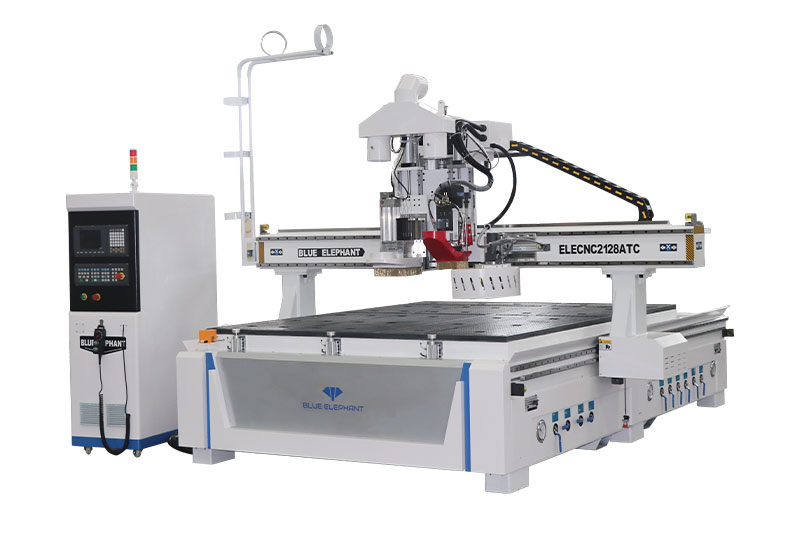

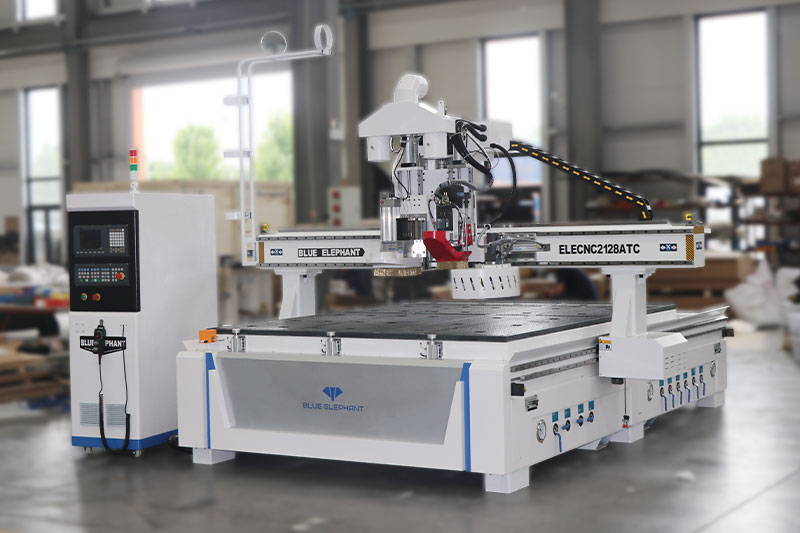

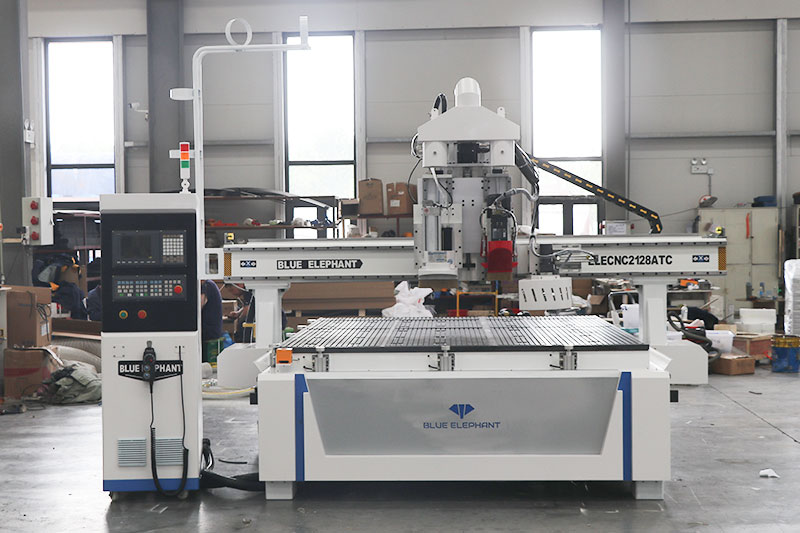

This is a multi-functional wood CNC nesting machine for cabinet, office table, wardrobe and other panel furniture. With a drill bank carrying 9 vertical drills, it can meet different drilling demands in the furniture making.
1. The big working size of 2070x3800mm is capable of processing most sizes of wooden boards for various custom and personalized panel furniture.
2. TAIWAN Syntec control system reads data quickly with high accuracy and working stability. It is easy to learn and operate the control system.
3. The full vacuum working table is equipped with 3 sets of 7.5kw water circulation vacuum pump with strong adsorption capacity. With big vacuum suction, the boards don’t move when processing.

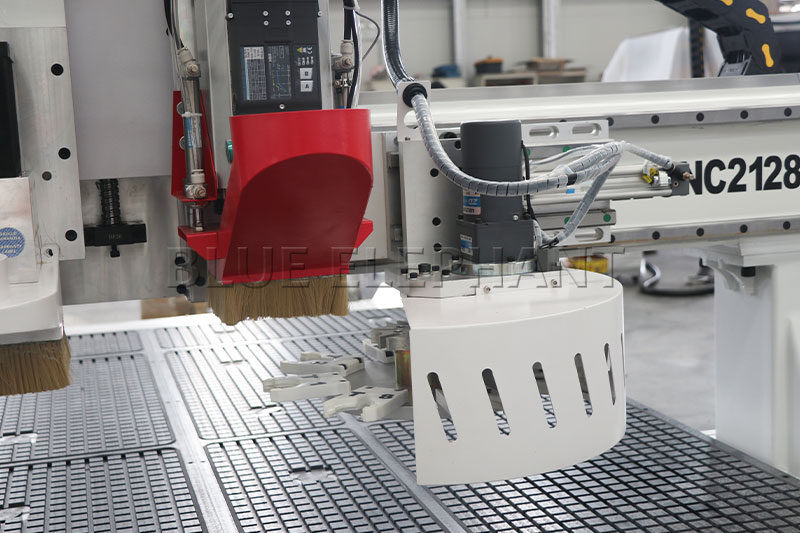

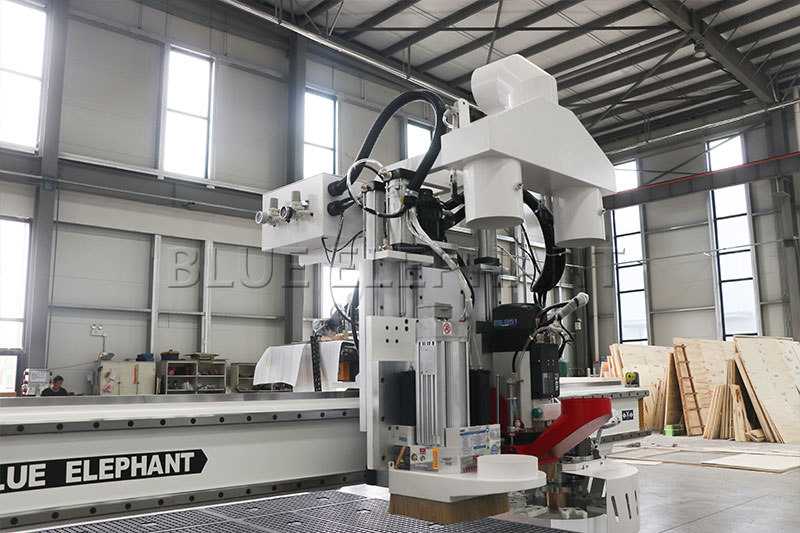

4. It adopts an imported Italian HSD 9 vertical drill bank, ensuring high efficiency for drilling.
| Model | ELECNC2138ATC |
| X,Y axis travel | 2070x3800mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm,etc. |
| Spindle type | 9.6kw Italy HSD ATC air cooled spindle, ES951 |
| Inverter type | 11kW Taiwan Delta inverter |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Drilling bank | HSD 9 vertical drill bank |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
Sure. You can customize not only the size of the machine but also many other configurations.
The machine can cut/engrave aluminium with an accuracy of ±0.05 mm. Equipped with a cooling device, it prevents deformation of the aluminium and extends the life of the milling tool.
