5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ET6T
Category : CNC Drilling Machine
Price Range : $25000 to $35000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month
ET6T 6 sided CNC drilling machine with four direction drill heads is equipped with a 6-tool ATC magazine. It can complete more invisible parts processing, grooving and drilling, greatly improving processing efficiency. In addition, the four direction drilling head can realize 4 sides processing of the plate. And the integrated machine bed is easy to install and operate.
1. The automatic tool change six sided CNC drilling machine is upgraded with a linear ATC magazine with 6 different tools, which can realize the processing of Lamello, Muteyi, sidelight slots, pivot hinges, and 3-in-1 invisible piece.
2. With a 2.5KW Changchuan four direaction drilling head, the six sided ATC CNC drilling machine can achieve front, rear, left, and right drilling or grooving of the panels.
3. The 6-sided ATC CNC drilling machine uses the Blue Elephant customized control system, significantly increasing efficiency by 32%.
4. Equipped with an air floating worktable, the automatic tool change six sided CNC drilling machine greatly improves the plate conveying efficiency and avoids scratching.
| Model | ET6T |
| Processing length | 250-2800mm |
| Processing width | 50-1220mm |
| Processing thickness | 12-45mm |
| Spindle type | 3.5KW HQD air cooling Spindle |
| 5.5KW Changchuan ATC spindle | |
| 2.5KW Changchuan drilling spindle (optional) | |
| Number of tools | 12 top vertical drilling+8 horizontal drilling; 9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Inverter | Fuling inverter |
| Worktable | Air floating worktable |
| Working voltage | 380V/60HZ/3PH |
This automatic tool change six sided CNC drilling machine is equipped with an upper drill package (including 12 vertical drills and 8 horizontal drills) and a bottom drill package (including 9 vertical drills), which can complete 6 side drilling at one time without turning the sheet over. It is widely used in the production of wooden furniture, such as cabinets, doors, office furniture, etc.

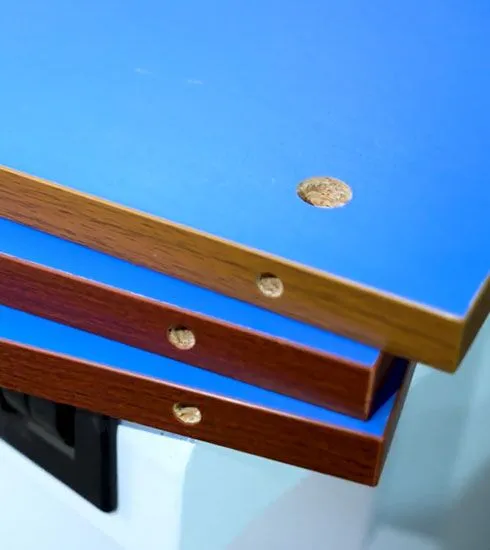

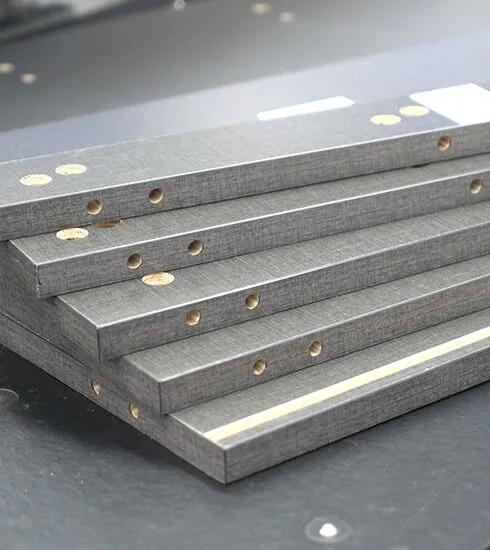

The automatic tool change six sided CNC drilling machine can realize the drilling work on six sides of a wooden panel. It is very popular in cabinet and panel furniture industry.
The automatic tool changing six sided CNC drilling machine is equipped with 12 top vertical drill bits, 8 top horizontal drill bits, and 9 bottom vertical drill bits.
This six sides ATC CNC drilling machine adopts the Blue elephant custom system, which is easy to operate.
