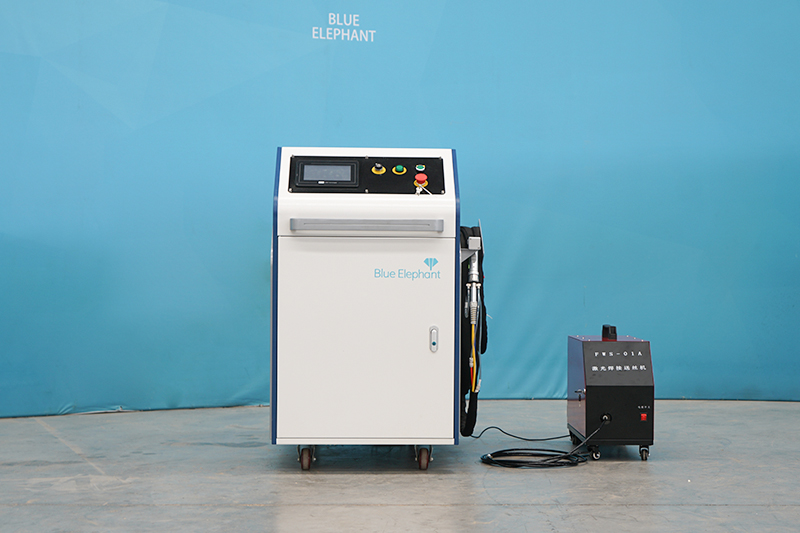

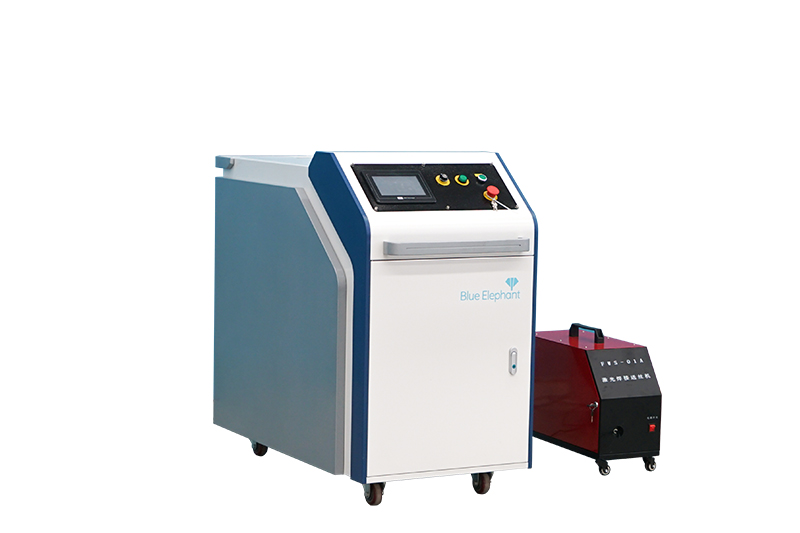

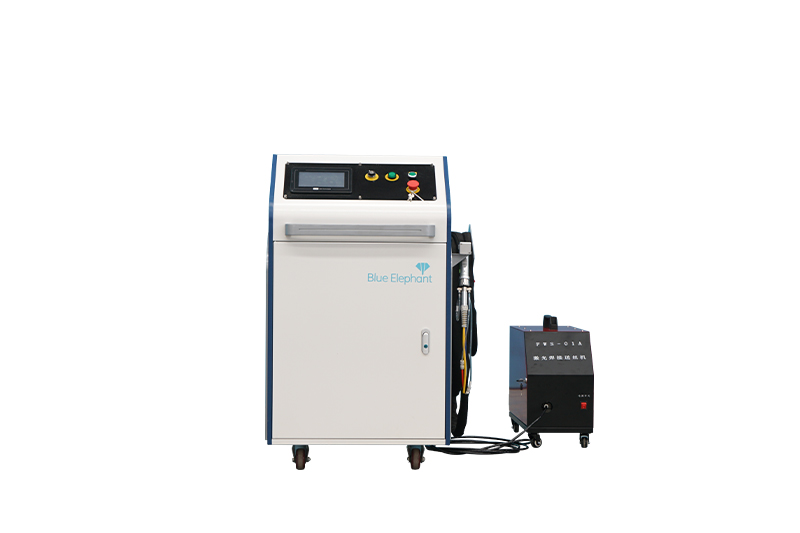

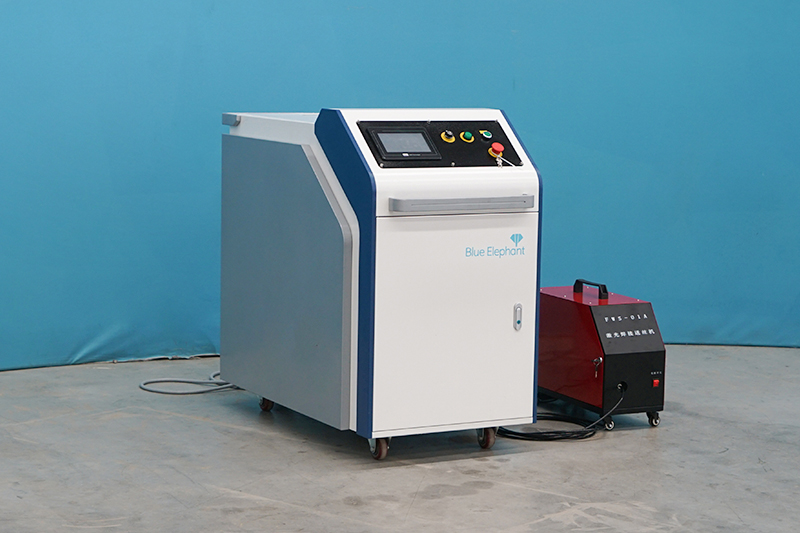

The 3 in 1 laser welding machine can realize the laser welding, laser cleaning, and laser cutting functions. It can meet different requirements of the users. It has fast welding speed, flexible cutting operation, and high cleaning efficiency. This laser welding machine is widely used in industrial field, due to its safe, environmental friendly, flexible, and stable.
1. This laser machine can realize laser cutting, laser cleaning, and laser welding functions in one machine.
2. It has multiple and complete functions but with low cost, which is quite cost-effective than the common laser welding and laser cleaning machine.
3. With a compact size, it occupies a small space, which saves the shipping costs and is suitable for small businesses.
4. It’s easy and convenient to exchange among the laser cutting, cleaning, and welding functions by changing the laser cutting head, protective lens, and system.

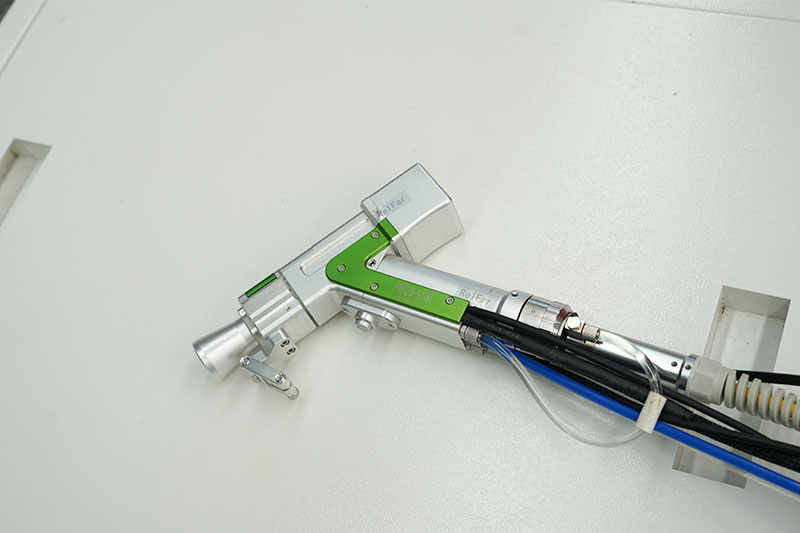

5. The handheld welding gun is flexible to operate to realize welding work in multiple directions.

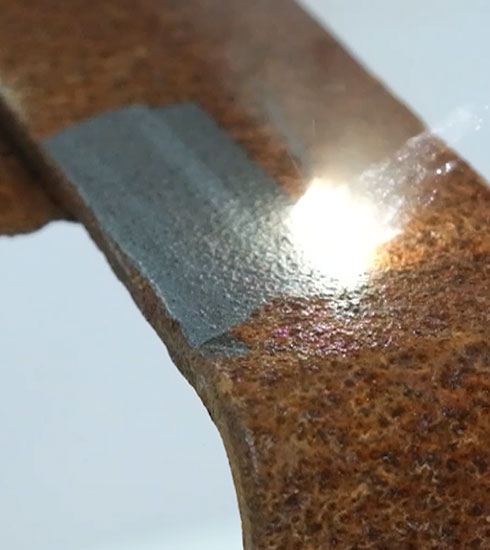

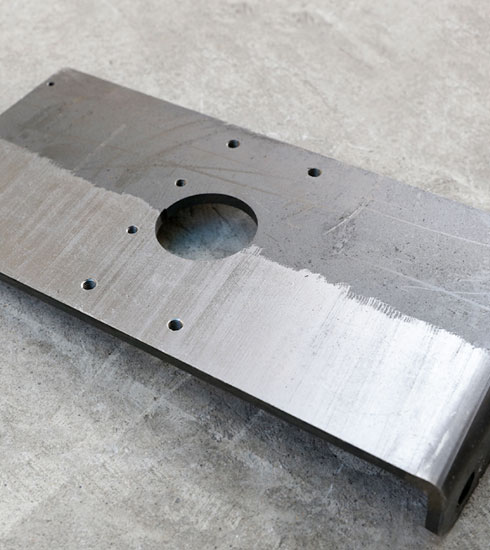

6. The non-contact cleaning method will not damage the surface of the workpieces to be cleaned.
| Laser power | 1000W, 1500W, 2000W, 3000W |

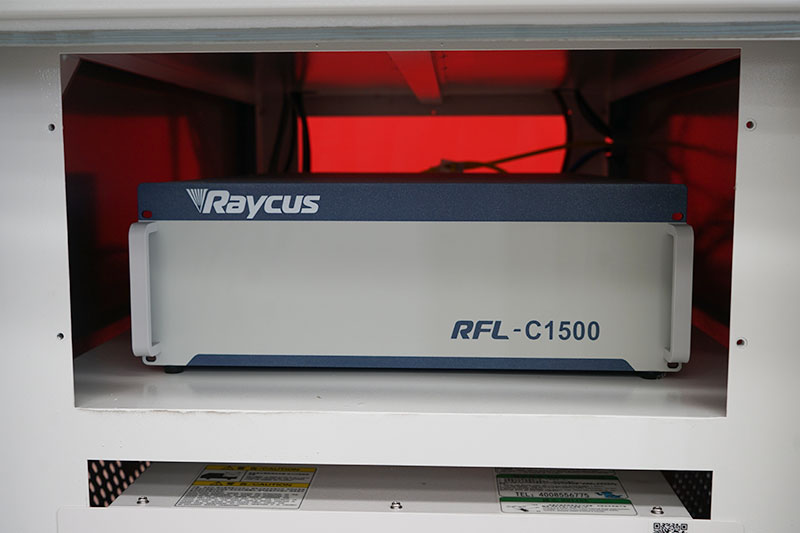

| Laser type | Fiber |
| Laser wavelength | 1080nm |
| Laser frequency | 50-20000Khz |
| Cooling method | Water cooling |
| Cooling water | Purified water or distilled water |
| Fiber length | 10m, optional: 20m, 30m |
| Voltage | 220V±10%, 50/60Hz, Single phase |
| Working temperature | 10℃-40℃ |
| Humidity | ≤70% |
| Processing materials | Stainless steel, carbon steel, aluminum |
It uses nitrogen or Argon as the auxiliary gas.

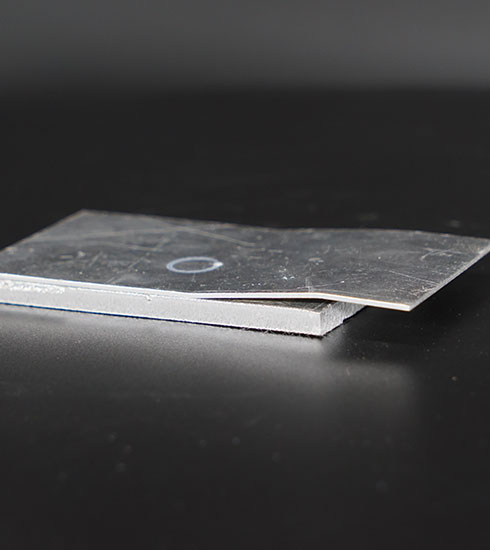

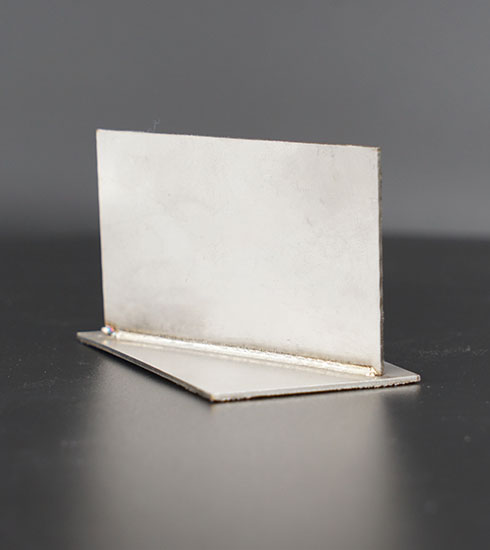

The welding penetration varies according to the laser power. For example, the welding penetration is about 1.5mm for 1000W laser, 2.0mm for 1500W laser, and 3.0mm for 2000W laser.
Stainless steel, carbon steel, aluminum, etc.
