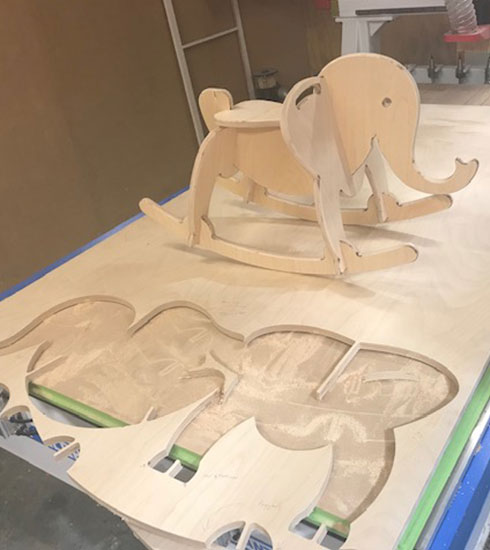

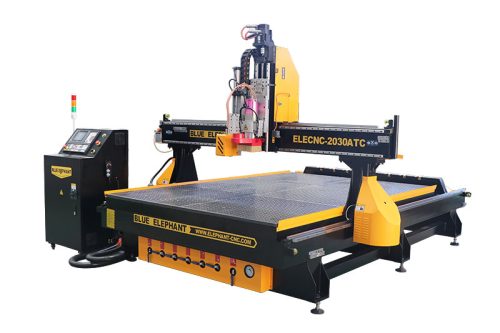

This CNC Oscillating Knife digital fabric cutting machine can cut soft materials such as leather, cardboard, rubber, etc. CNC knife cutting is safer, which has no heat and smock generating. This machine is also good at woodworking such as woodcutting and wood carving, the same as 3 axis CNC router.
1. Oscillating Knife Cutter machine works with the Taiwan SYNTEC control system with a 1.4m control box, supports EOT-3 with a CNC router;
2. EOT-3 oscillating knife head, imported from Germany;
3. HSD air cooling spindle can process wood, plywood, acrylic, soft metal; EOT-3 oscillating knife can process foam;

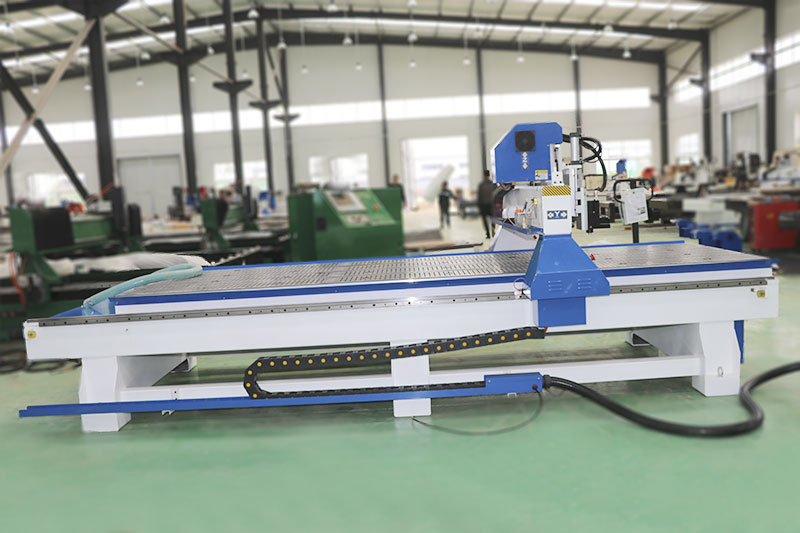

4. The working size can be an increase, taking 2050 Oscillating Knife CNC Cutting Machine or ELECNC-2030 CNC Oscillating Knife Cutting Machine for example;
5. Please notice that all the specifications can be made and customized according to customers’ requirements. Talking ELECNC-2030 CNC Router with Oscillating Knife for instance;

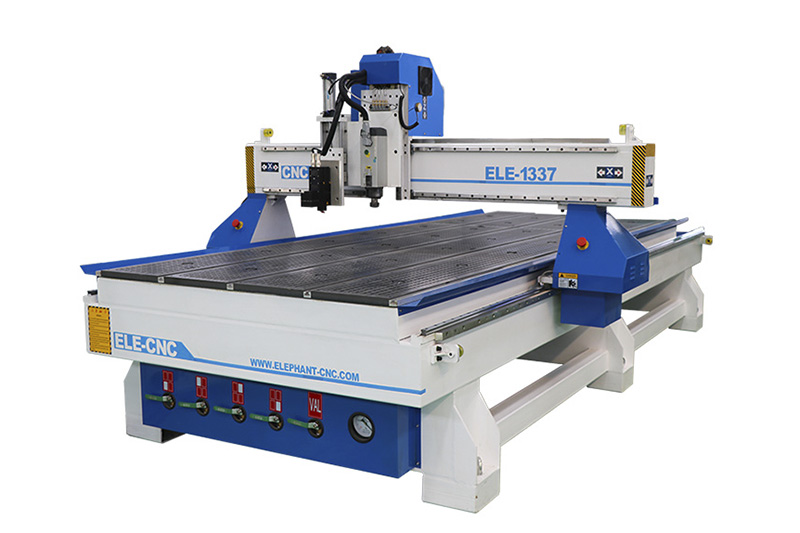

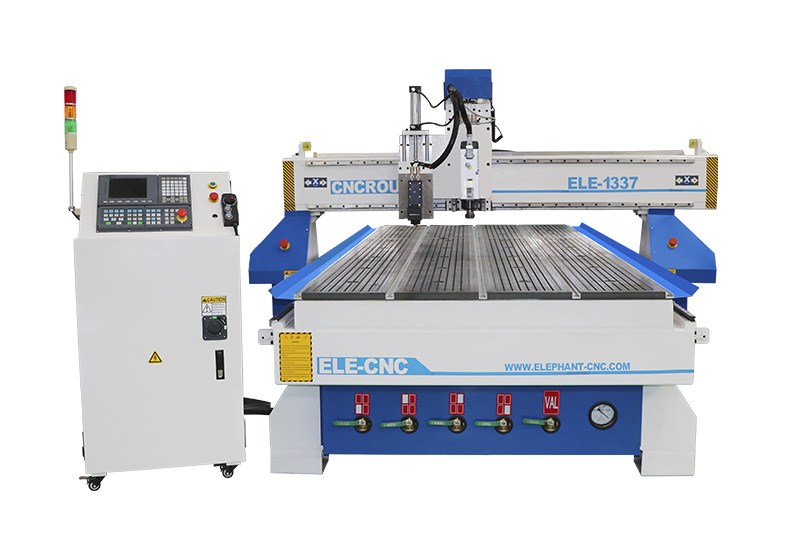

| Model | ELECNC1337 |
| X,Y axis travel | 1300x3700mm, optional: 1300*250mm, 1500*3000mm; 2100*3000mm, etc. |
| Z axis travel | 200mm, optional: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 3kw Italian HSD air cooling spindle, 18000rpm |
| Inverter type | 3.7kw |
| Oscillation knife | Germany EOT-3 oscillation tangential knife |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |

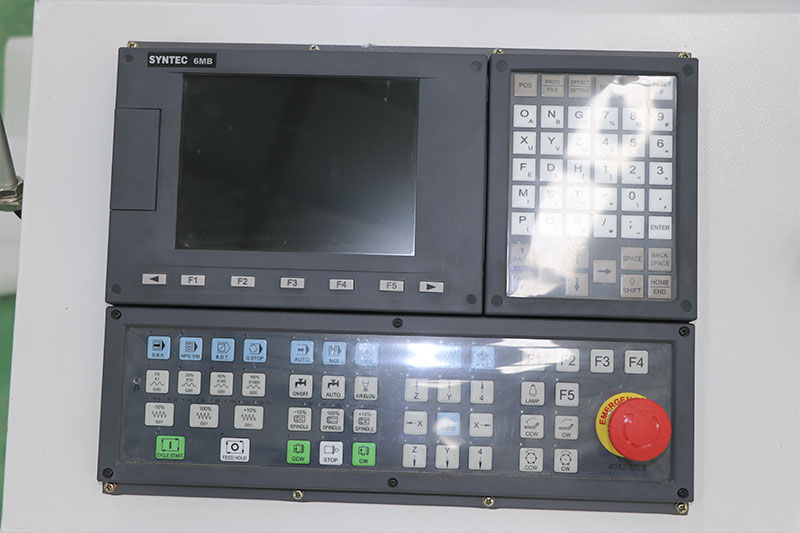

| Control system | Taiwan SYNTEC controller |

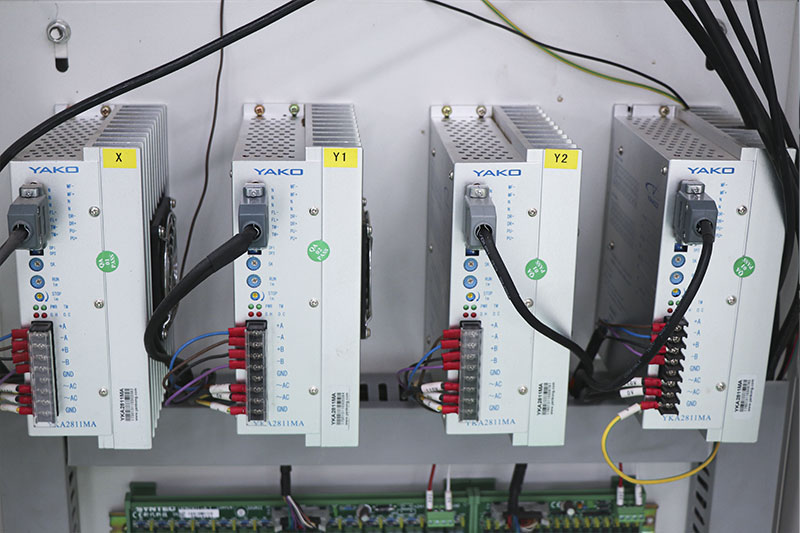

| Driving system | Servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | No need |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |

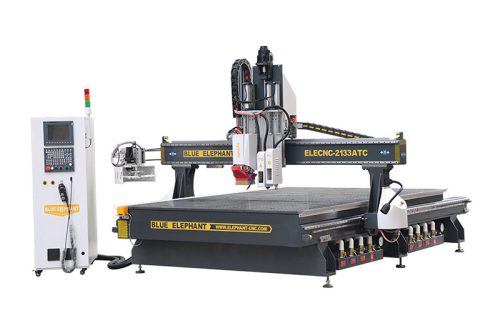

| Spindle type | ATC spindle |

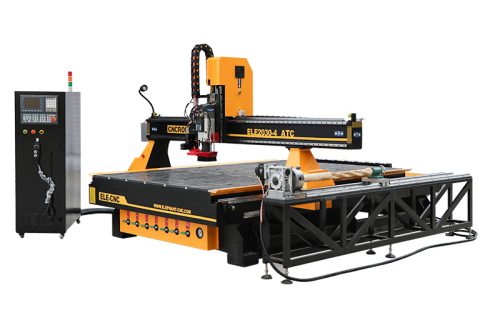

| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm |

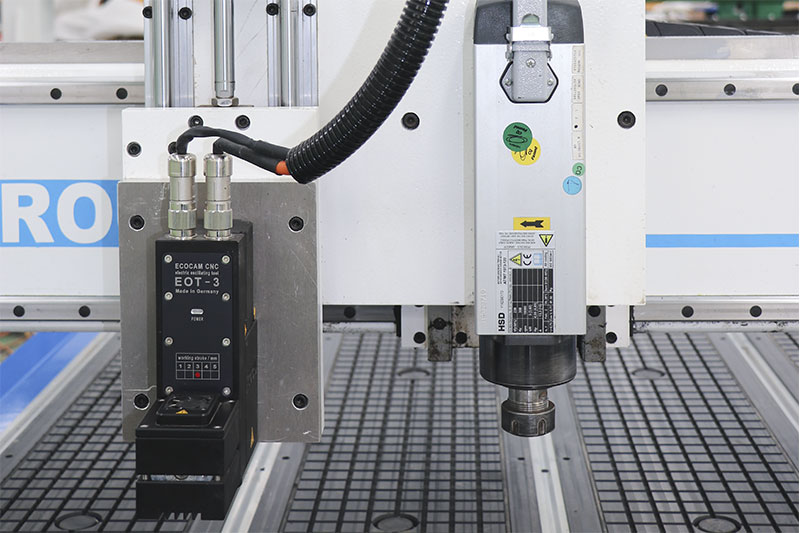

The oscillating tangential knife EOT-3 is easy to operate with all of our CNC machines. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material.

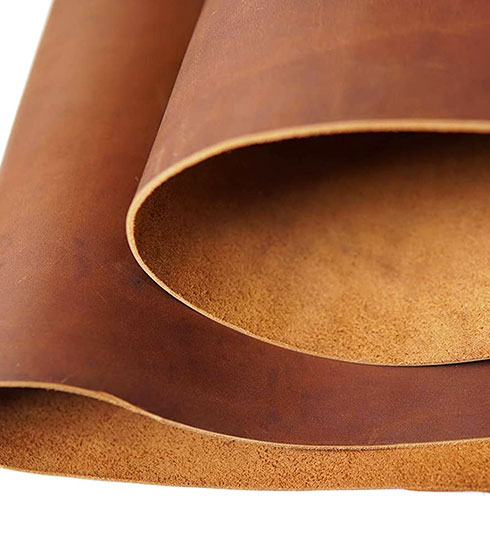

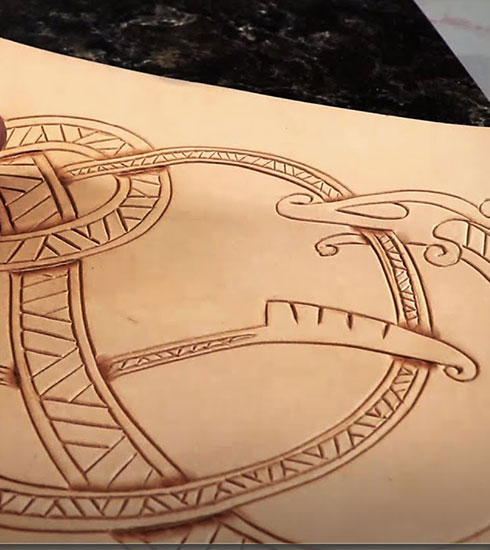

You can process sealing material, carbon fibre preggers, corrugated board, leather and cork,
tissue and foil, expanded plastic slabs, carpets.
After use machine,please clean machine,especially for helical rack gear and square linear guide. Please pay attention to lubrication linear guide.
ISO VG32 or 5w30.
