ELECNC-1325 CNC Router Machines for Wooden Furniture

Parameters

Features:

  • The machine was designed with Italy HSD air cooling spindle, which is similar to 1325 CNC Router with Roller for Wood Panel.  And the speed of spindle can reach 18000RPM for per minute.
  • Simple operation under DSP control system;
  • Like 4*8 Wood Engraving CNC Router Machine, the machine was equipped with Taiwan Delta Inverter.
  • With Heavy thick square tube industrial class strong structure; With Stable and high precision TBI and ABBA transmission.
  • all the specifications can be made and customized according to your requirements. considering, the machine can be designed with rotary or the spindle was designed for swing 180 degree, just like 1325 4 Axis CNC Router Machine.

Parameters:

Description Parameter
X,Y,Z Working Area 1300x2500x200mm
Table Surface T-slot and vacuum working table
Structure Industrial class square tube strong structure
X, Y Structure 20#Taiwan ABBA Linear guide and helical rack
Z Structure Taiwan TBI Ball screw and 20#Taiwan ABBA Linear guide and helical rack
X,Y Resolution <0.01mm
Spindle Power 4.5KW Italy HSD air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors FL118 stepper motor and YAKO2811 drive
Inverter 5.5 kw Taiwan Delta Inverter
Control System DSP A11 handle controller with USB port
Lubrication Manual Lubrication system
Tool sensor Manual tool sensor calibration
Dust Collector dust collector with 2 pockets
Vacuum pump 5.5kw Whirlpool vacuum pump
Control box Single Control box
Option Oil mist cooling system
Limit switch Japan OMRON limit switch for X, Y, Z axis
Command Language G Code
Computer Interface USB
Software Compatibility ARTCAM 2012 software, (Option: Artcam Type3 Software)
Running Environment  Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%

PS:All the working area and specifications can be customized according to your requests.

Detail Images:

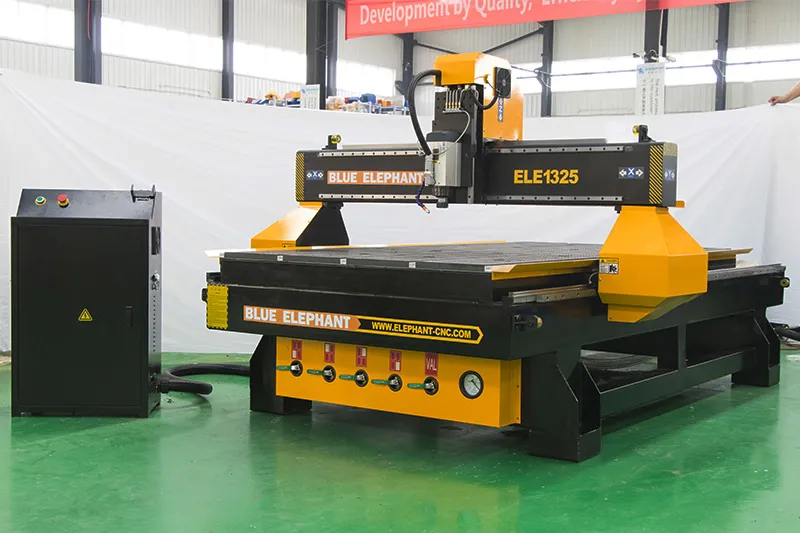

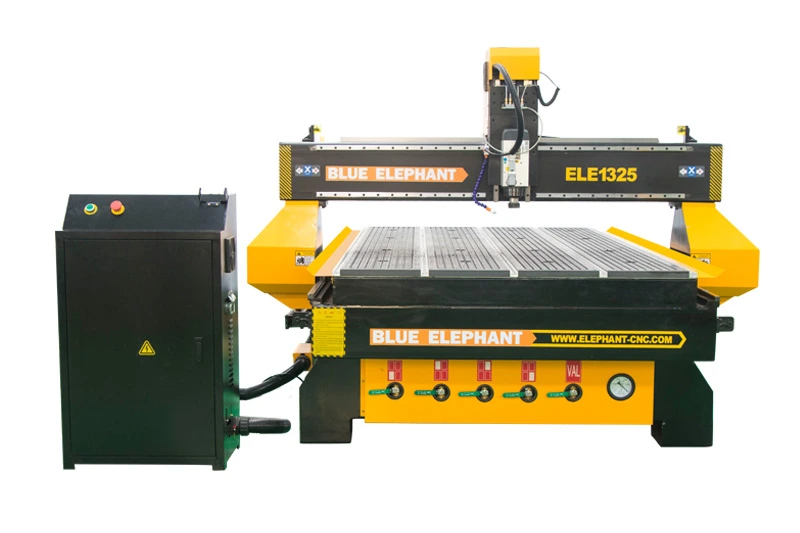

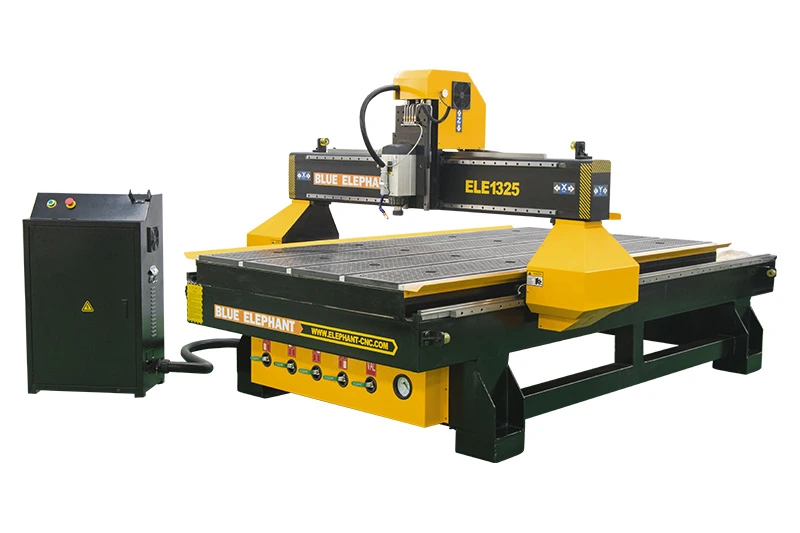

1325 cnc router machines for wooden furniture01

1325 cnc router machines for wooden furniture02

 1325 cnc router machines for wooden furniture04

1325 cnc router machines for wooden furniture03

1325 cnc router machines for wooden furniture 05

detail 01 for 1325 cnc router machines for wooden furniture

spindle for 1325 cnc router machines for wooden furniture

table for 1325 cnc router machines for wooden furniture

detail 02 for 1325 cnc router machines for wooden furniture

1325 cnc router machines for wooden furniture02 (2)
