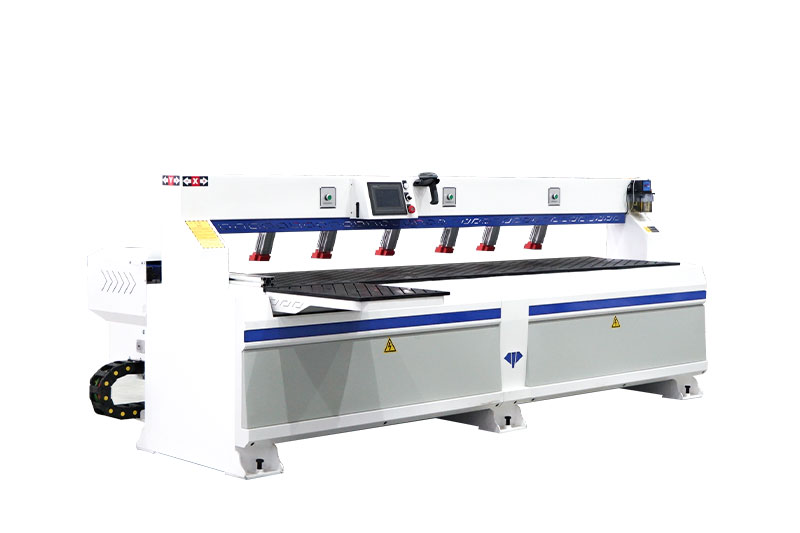

Compared with the single head side drilling machine, this machine has more functions such as side holes, dowel holes, blind holes, as well as locating the slot, opening the slot, and hiding parts.

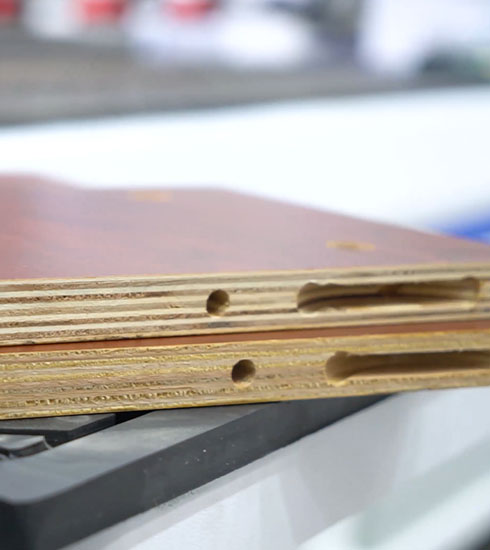

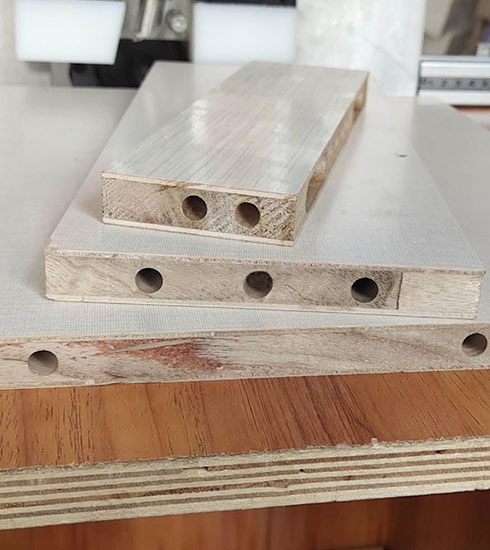

1. It can complete three-in-one side hole/wood pinhole/blind hole/fixed groove/through groove and side hole drilling of four kinds of hidden parts.
2. Adopting the American Bonner laser probe, it has the features of high drilling accuracy;

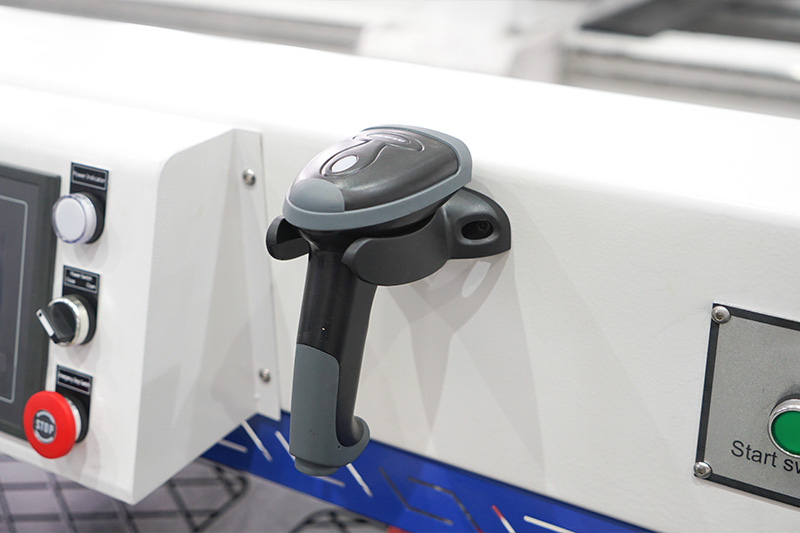

3. Equipped with dual-system dedicated code scanning gun, which has the advantages of fast speed and high efficiency.
4. With the features of simple operation and convenient use, the operator can use the machine without no special training.
| Model | ELE200 |
| Spindle | 2.2kw*2 |
| Spindle speed | 0-18000RPM |
| Idling speed | 100m/min |
| Working speed | 80m/min |
| Working travel | 2800mm |
| Height of table | 750mm |
| Drive and motor | Dongling servo motor and drive |
| Sensor | BANNER |

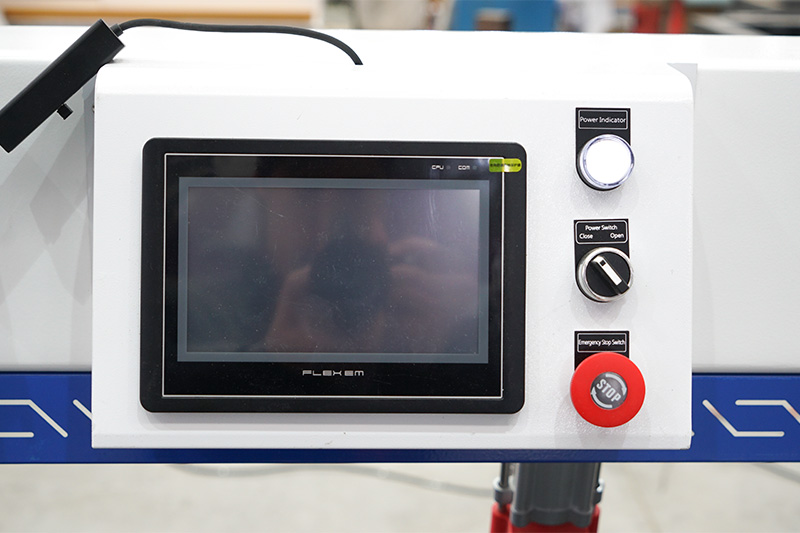

| Controller | Luolunchi code scanning and laser scanning dual system |
| Guild | #20 square rail |
| Rack | Taiwan JUELI |
| Screw | TBI |
| Whole size | 3300*1250*1300mm |

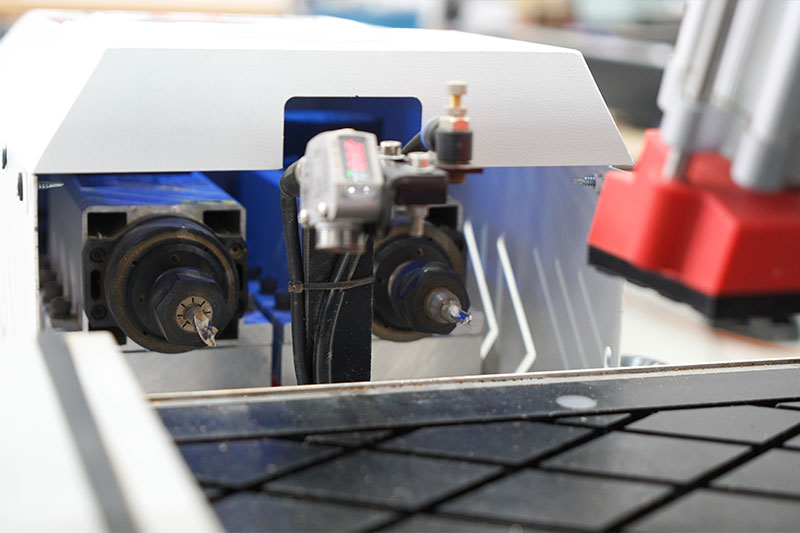

The side drilling machine has 2 spindles,which can hold 2 pieces of tool bits. One bit is used for making side holes, and the other is for making slots. It is easy to use, doesn’t need to change tool bits, and saves time.

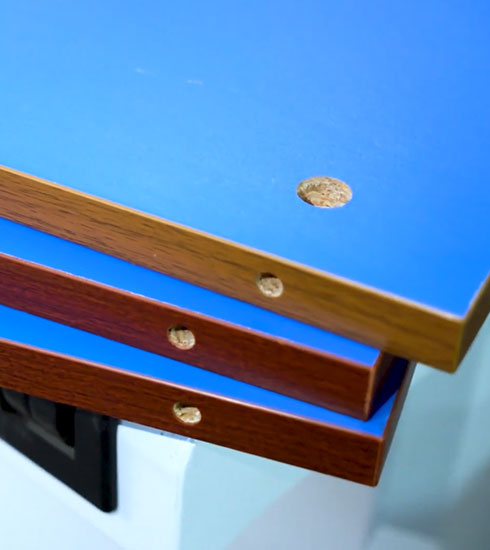

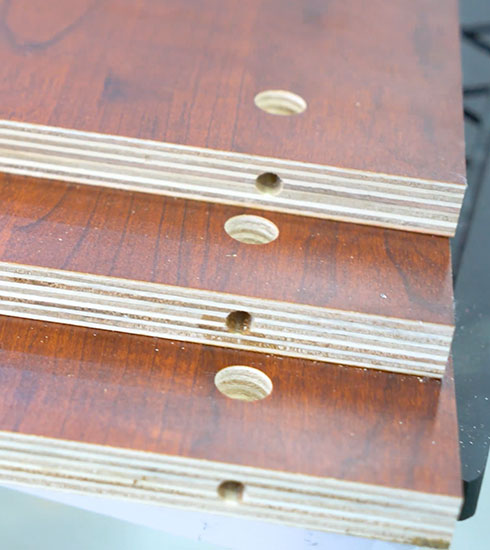

Yes, the machine can drill minifix holes. It can scan minifix holes by red light positioning, then make side holes on the correct position.

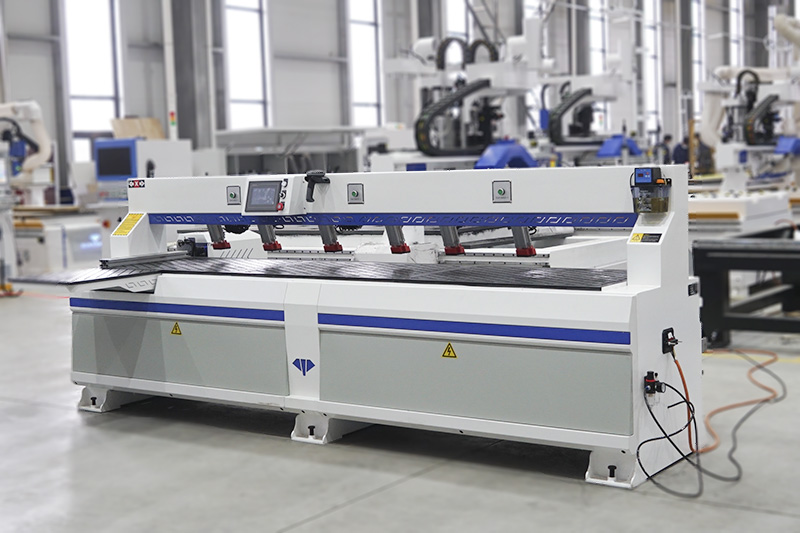

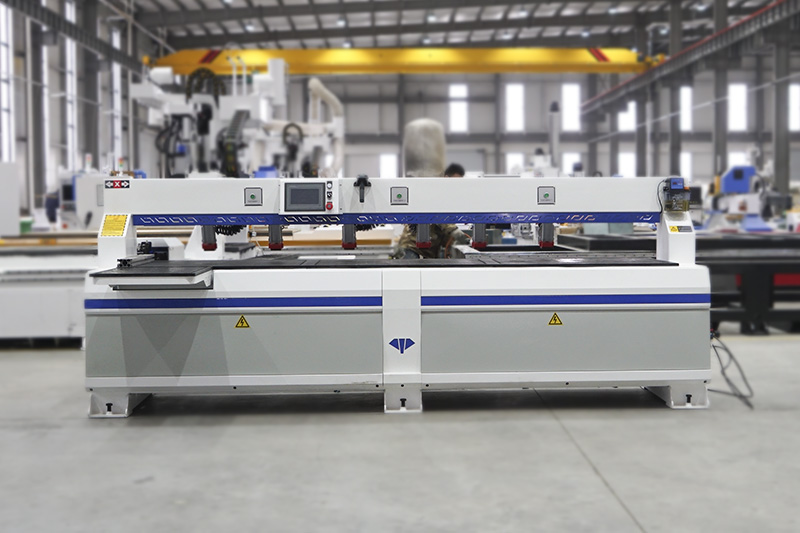

The machine is provided with 3 working stations, so you can put 3 boards on it. It can drill side holes one by one.
