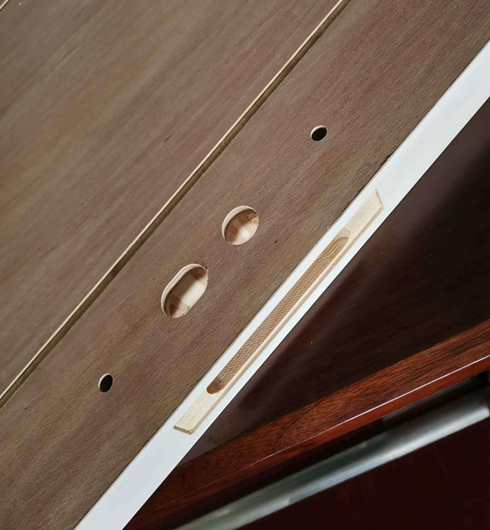

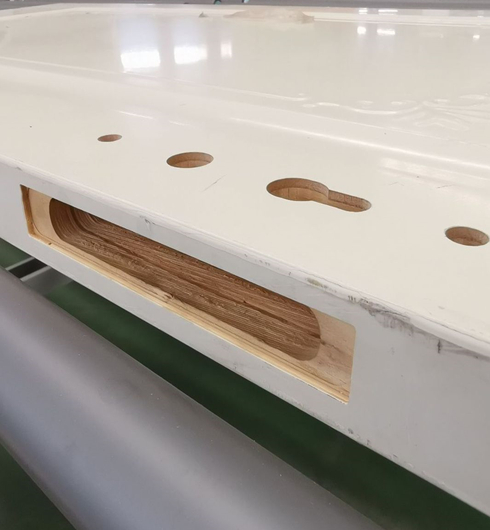

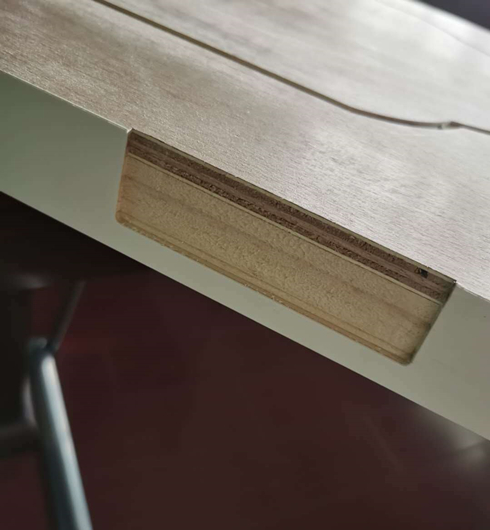

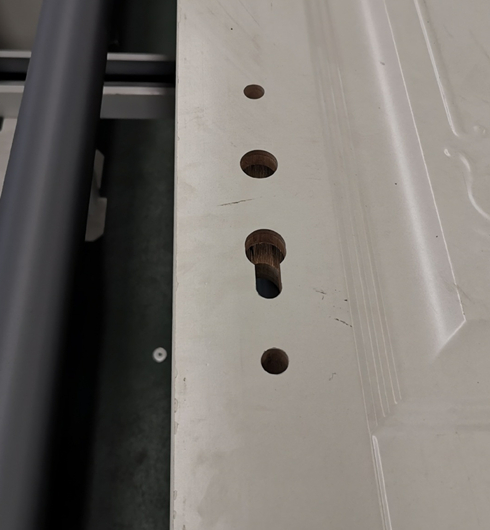

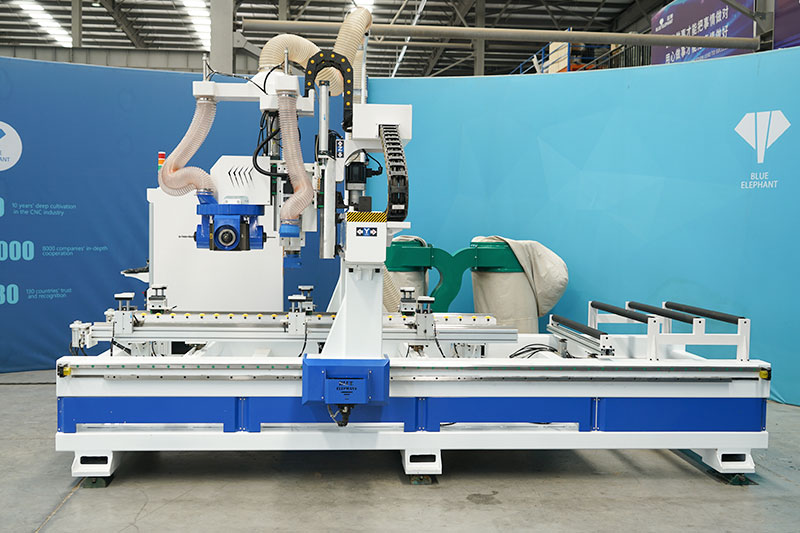

The CNC router for door lock hole making is mainly used for processing wooden doors, door frames, door locks, door lock steps, hinge holes, craft holes, etc. Various technological processing can be completed by one-time feeding and positioning. The wooden door is easy to clamp, and the function of multiple knives to switch freely is powerful. It is simple and convenient to operate, and is provided with a powerful system and sound CAM software.
1. Dedicated door lock hole control system. It has built-in CAM software, rich door lock hole shapes and modular operation, suitable for all kinds of door processing.
2. Easy operation. A worker can operate this machine after simple training, requiring no professional programming personnel.

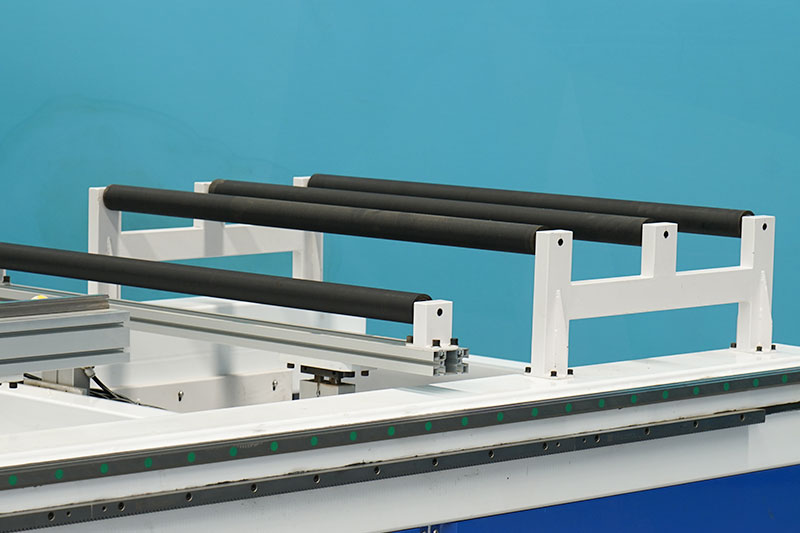

3. The auxiliary loading and unloading device helps reduce the labor intensity and improve work efficiency.

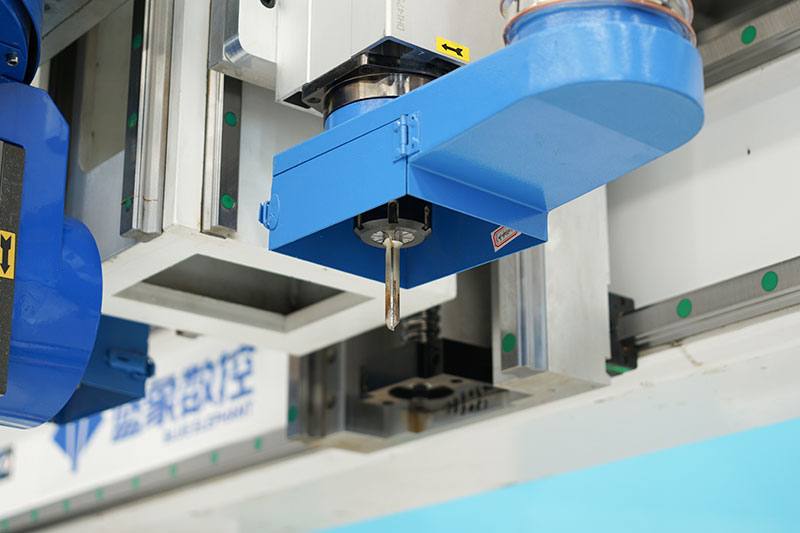

4. Four horizontal spindles can be switched freely and automatically, which can realize different processes in one operation.

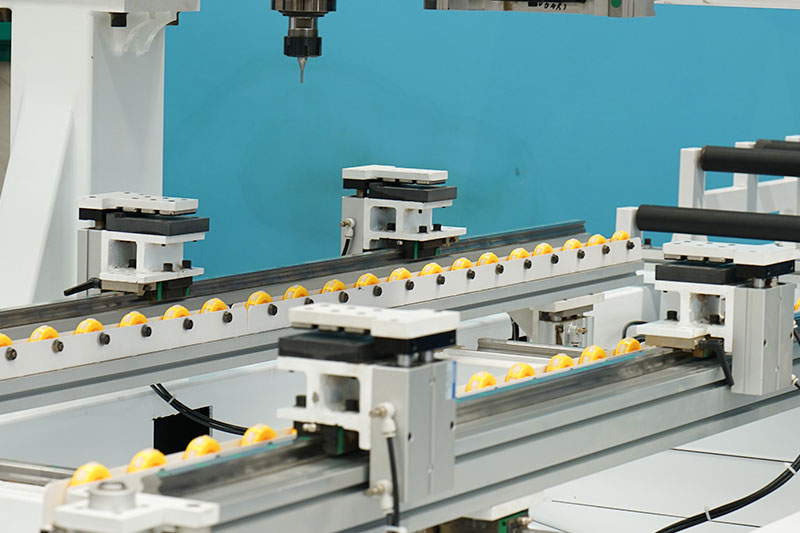

5. It adopts a dedicated wooden door pressing plate worktable, which can secure the door firmly.
6. Precise positioning of drilling and grooving positions with high processing accuracy.
7. Taiwan linear guide rails, sliding blocks and high-quality ball screw ensure stable machine performance.

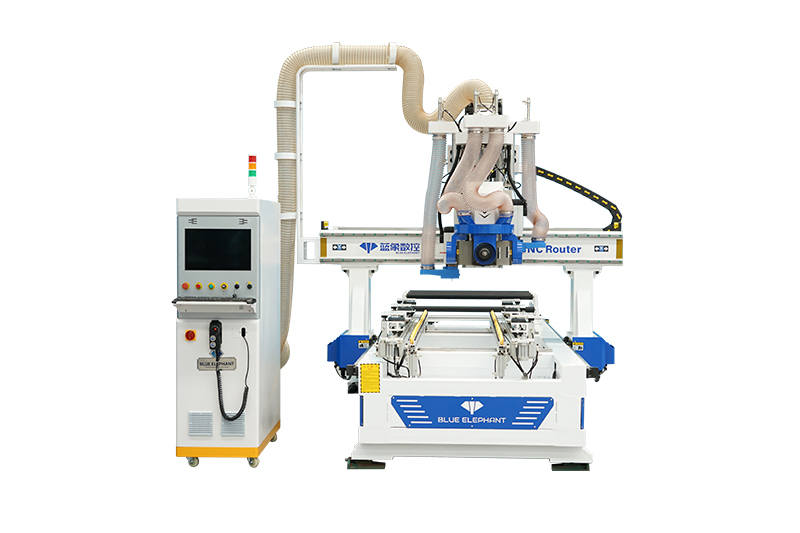

| Model | ELECNCM3 Door Lock Making Machine |
| Working area | Width: 500-1000mm; Length: 2500mm |
| Spindle | 4 set Horizontal spindle (7.5KW+2.2KW*2), spindle can swing 360 degree horizontally, changing tools fast, can meet different processing need |
| 2 Vertical spindle (6KW HQD Air cooling spindle) | |
| Fuling inverter | Famous brand With Resistance. |
| Moving speed | X axis 60m/min |
| Y axis 60m/min | |
| Z axis 20m/min | |
| Motor | X, Y axis 1000W servo motor, Zaxis 1000W servo motor with Brake function to protect machine head, C axis 750W servo motor |
| Taiwan square rail #30 | XYZ axis Taiwan Famous brand square rail #30, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than normal |
| X, Y axis Helical rack transmission | Imported 2M helical rack transmission,big loading capacity, very powerful for machine, long lifetime |
| Z axis Ball screw transmission | 3210, Accurate precision, smooth transmission. |
| Control system | Professional door lock control system, with CAM software, lots of door lock shape, modular operation, can adjust the size directly, suitable for all kinds of door processing |
| Reducer | Japan Shimpo reducer for XY axis |
| RV reducer for C axis which is usually used in Robot, Large transmission ratio range, long life, stable accuracy, high efficiency, stable transmission | |
| Position adjustable pneumatic clamp | Special wooden door pressing plate to fix the table top with high fixing precision, don’t need vacuum pump,save power. |
| France Schneider Electrical parts | France Schneider brand with CE in good quality, long life time |
| Working pressure | 0.7-0.8Mpa |
| Machine total power | 15KW+ (Option:5.5kw Dust collector) |
No, it can just make holes on the side of door (wood materials).
The CNC router for door lock hole making is mainly used for processing wooden doors, door frames, door locks, door lock steps, hinge holes, craft holes, etc. Various technological processing can be completed by one-time feeding and positioning. The wooden door is easy to clamp, and the function of multiple tools to switch freely is powerful. It is simple and convenient to operate, and is provided with a powerful system and sound CAM software.
The machine has a one-year warranty and free after-sales service for life.
