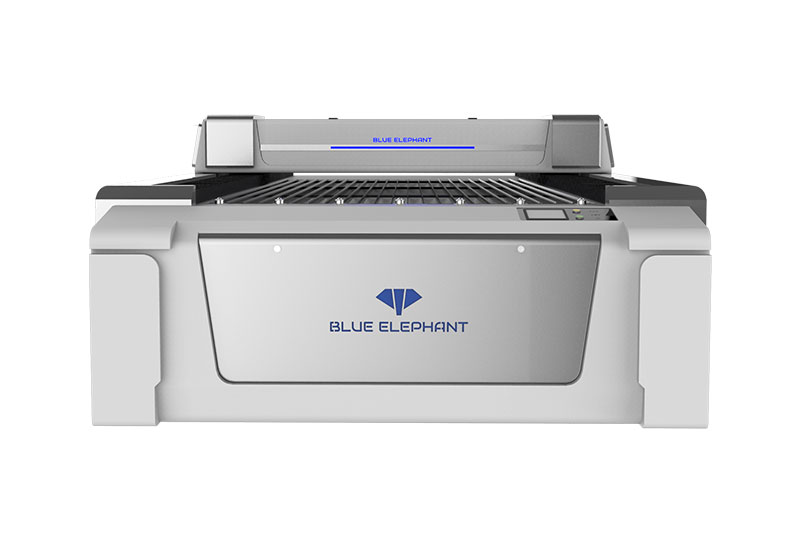

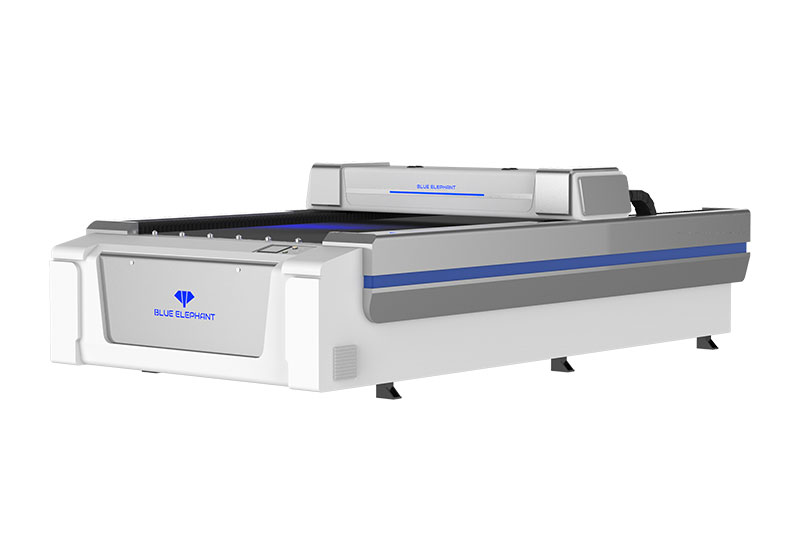

The 1326 CO2 laser cutter of Blue Elephant can cut, engrave, etch nonmetal material. Such as acrylic, plexiglass, glass, cardboard, leather, wood, mdf, plywood, etc.
1. Its cross beam uses high-strength aluminum alloy, which is lightweight, has small resonance, and operate more smooth.
2. The high precision linear guide transmission ensures more steady of the cutting operation, thus maintaining high cutting precision and good stability.

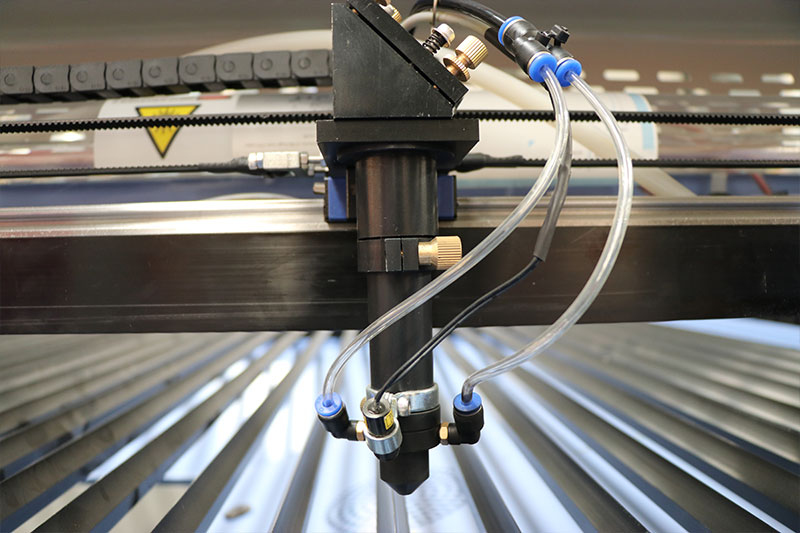

3. The newly upgraded laser head has stable and powerful laser beam, which ensures rapid cutting speed and good precision.
4. Its conveyor belt has high toughness and elasticity. It can move steadily with small noise and can mitigate the impact and vibration.

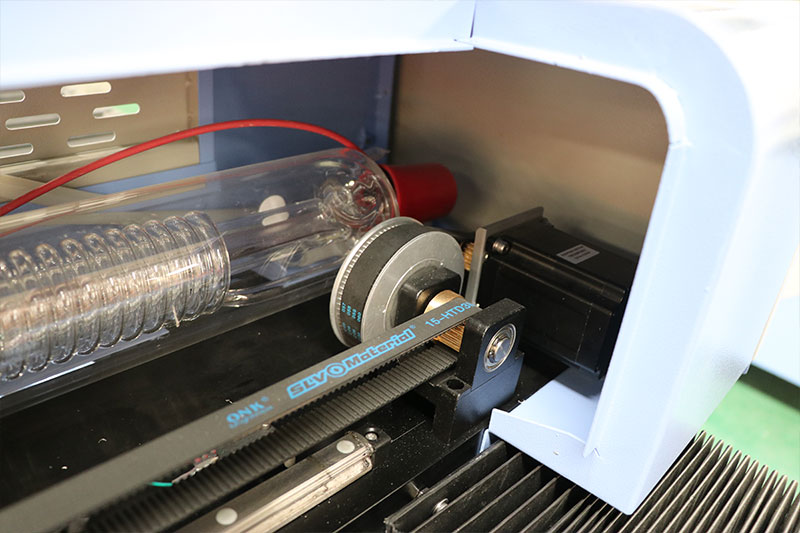

5. High-quality laser is able to generate stable power output. It has extra long service hours and protection measures.
| Model | ELECNC 1326 |
| Processing area | 1300mm*2600mm |
| Color | Blue and white |

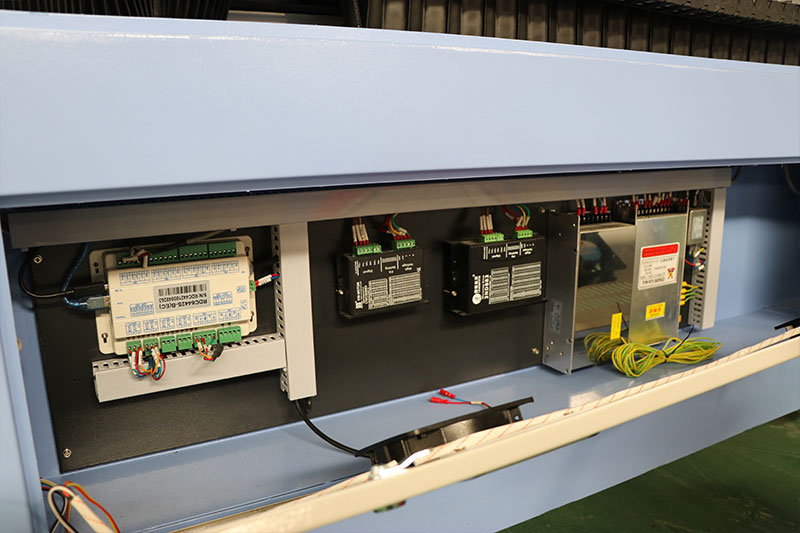

| Control System | RUIDA |
| Laser power | RECI W6 |
| Laser type | Sealed Co2 glass laser tube |
| Cutting speed | 0-30,000mm/min |
| Cutting thickness | 0-25mm acrylic (others determined by materials) |
| Position system | Red dot |
| Support graphic format | DST, PLT, BMP, DXF, etc. |
| Motor&drive | stepper |
| Working voltage | 220V, 50Hz, Single-phase |

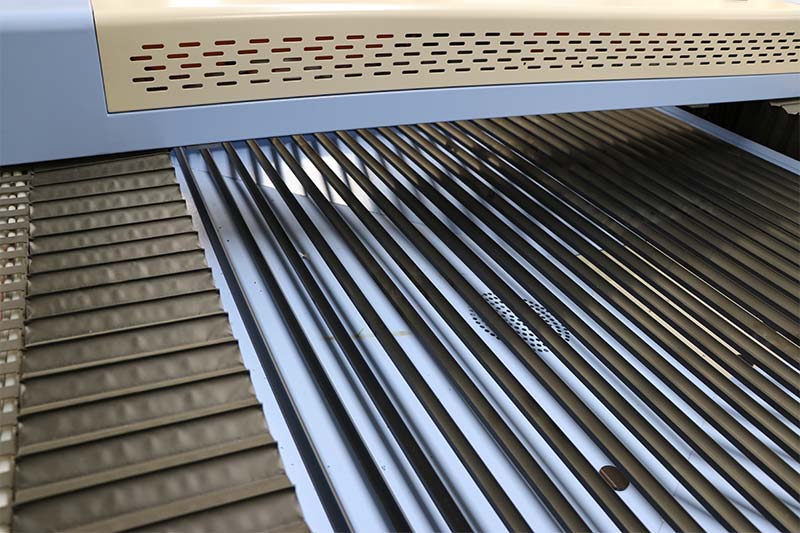

| Working table | Blades working table |
| Packing | wooden box |
| Accessory | Air Pump, Fan, CW5000 Water cooler, 130w Laser power supply, lens |
| Application | Cut (acrylic, plexiglass, wood, MDF, textile) Engrave (wood, stone) |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.
They are all CNC machines, able to perform intricate cuttings of non-metals, such as acrylic sheet, PVC, wood, MDF, etc. But there are also many differences when you use it to make dedicate works, it is all because:
As one of acrylic laser cutting machine manufacturers in China, we also supply CNC router for acrylic sheet cutting, you can choose any machine on your need.
The price of an acrylic CNC machine is different based on many factors. For example, laser table size, laser power, additional CNC kits, such as rotary device and industrial chiller, etc. The price range of this machine in the market is about: USD5,000 – 10,000. please contact us for the latest quotation.
