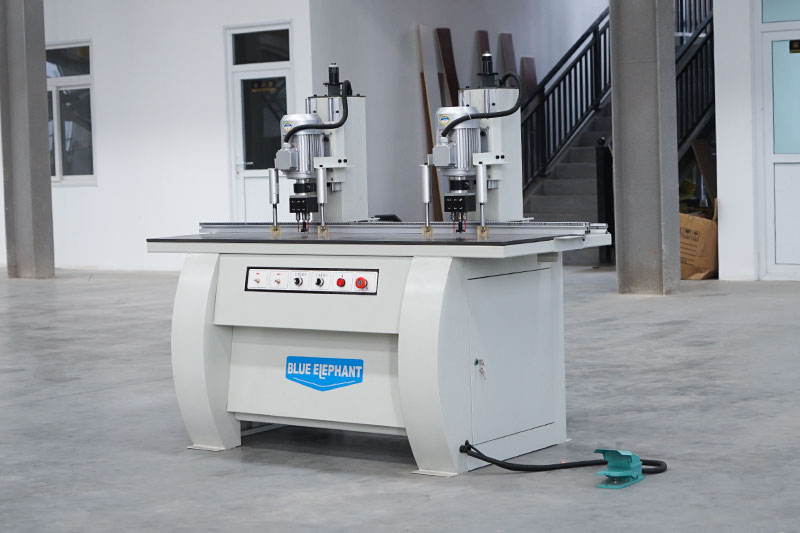

Double Head Hinge Hole Drilling Machine

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : Double head hinge drill machine

Category : Subsidiary Equipment

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Free professional machine operation training.

Supply Ability : 200 Set/Sets per Month

Description

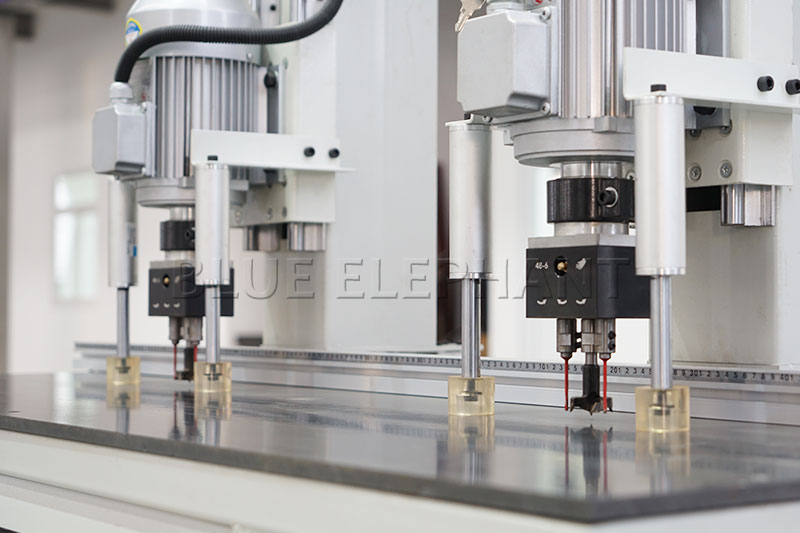

Double head hinged drill machine can adjust the drilling position longitudinally and horizontally, which is convenient and quick to adapt to the drilling processing requirements. It is an ideal equipment for cabinet, wardrobe and door processing manufacturers.

Features

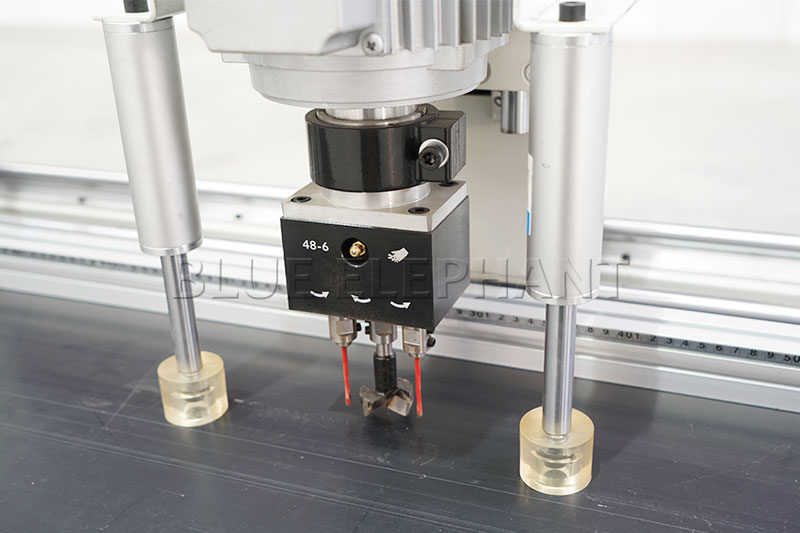

It adopts drill bag design, which has the characteristics of low noise and durability.

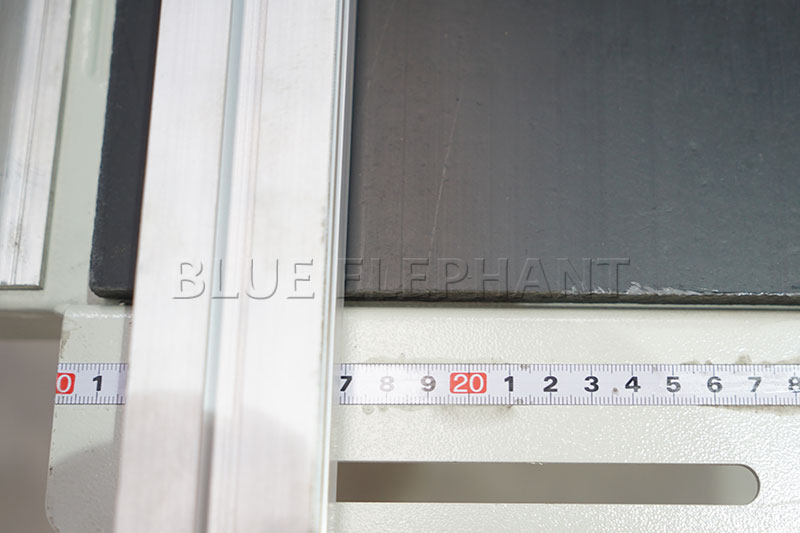

Equipped with positioning baffle and accurate scale, and it can adjust the baffle according to work needs.
Adopting foot switch control, it is labor-saving, simple and fast, and has long service life.
It has a wide range of uses, and one machine can match up many different drill bits.

Parameters

Voltage	380V/220V
Total power	1.5kw*2
Motor speed	2880r/min
Drilling diameter	≤35mm
Drilling depth	≤50mm
Number of spindles	3*2set
Dimensions	18008001550mm

Hinge Hole Drilling Machine Optional Parts

Application

A hinge hole drilling machine is a specialized device or drill bit assembly used for drilling hinge holes in furniture door panels. It is widely used, precise, and highly efficient. Common applications include drilling hinge holes for cabinet doors, processing door panels for wardrobes and bathroom cabinets, preparing mounting holes for door hinges, and pre-drilling hardware installation holes in panel furniture.

Review

The following samples were sent from French users with the 1325 3 axis engraving machine. It can be seen from the picture that the customer mainly processes the crafts such as advertising signs and ornaments.

The following samples were processed by Algerian users with the 1325 3 axis CNC router. Before the customer purchased, we learned that the customer mainly wanted to carry out simple processing of the board, including the processing of doors and windows.

These samples were processed by Australian customers. In the communication with customers, we learned that customers are mainly engaged in various parts of toy guns.

The machine works very well in the jobs we are having. The operation of this machine is simple. We are so happy with the purchase. Hope I will get my second purchase from Blue Elephant.
