$10,000 – $16,000

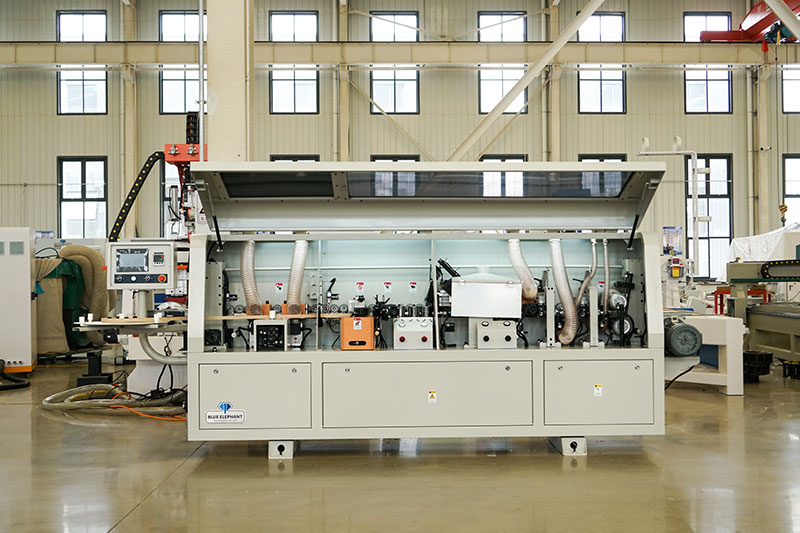

E-50J automatic edge banding machine has the functions of pre-milling, gluing, pressing, end cutting, fine trimming, scraping and buffing. It is suitable for density board, ecological board, multi-layer board, particle board, flat solid wood board and other kinds of boards.
1. Milling and smoothing of burst edges and residues on the cutting surface of the sheet, more uniform glue application and smaller glue lines.
2. Fast melting reduces the waiting time for melting, improves efficiency and reduces time costs
3. Selected gluing bearings can effectively and uniformly apply glue to the boards.
4. Front and rear flush heads allow for precise cutting of excess edge banding on the front and rear of the panel.
| Model | E-50J |
| Tape thickness | 0.4-3mm |
| Plate thickness | 10-50mm |
| Plate length | ≥140mm |
| Plate width | ≥60mm |
| Working pressure | 0.7Mpa |
| Feed speed | 13-18m/min |
| Total power | 11kw |
| Machine length*width | 3800*800mm |
| Height | 1410mm |
| Net weight | 1150kg |

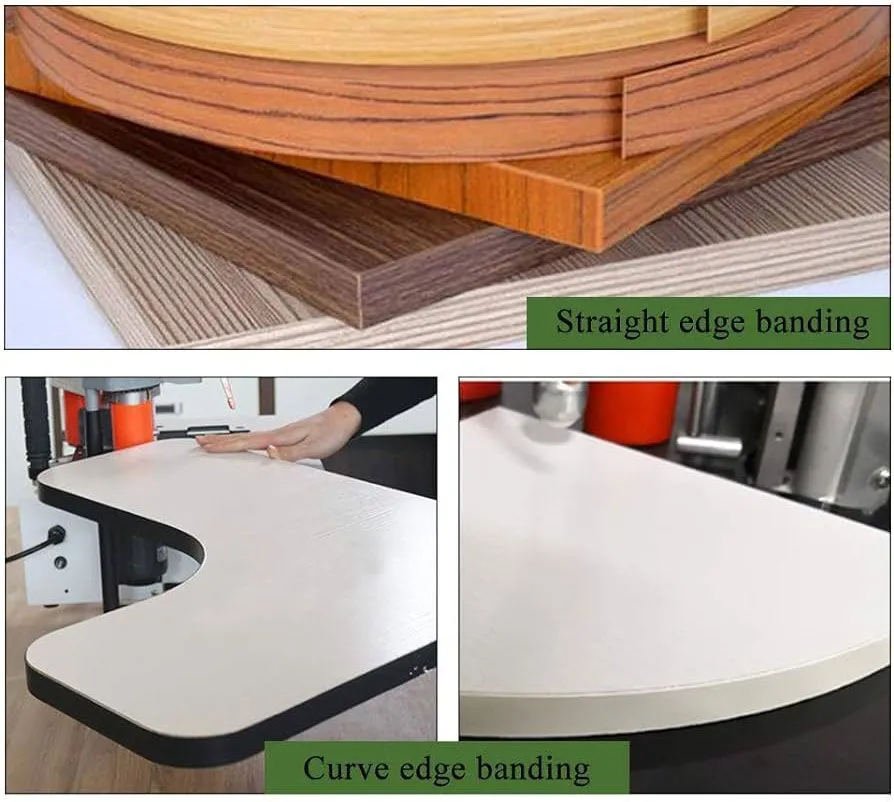

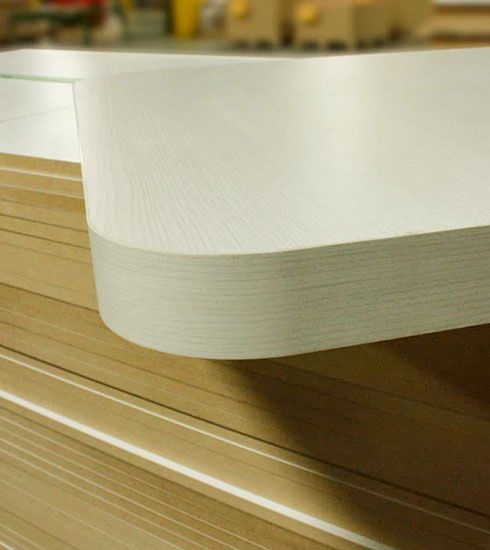

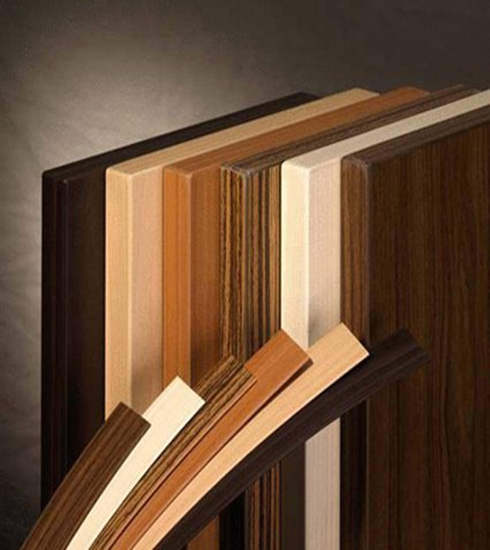

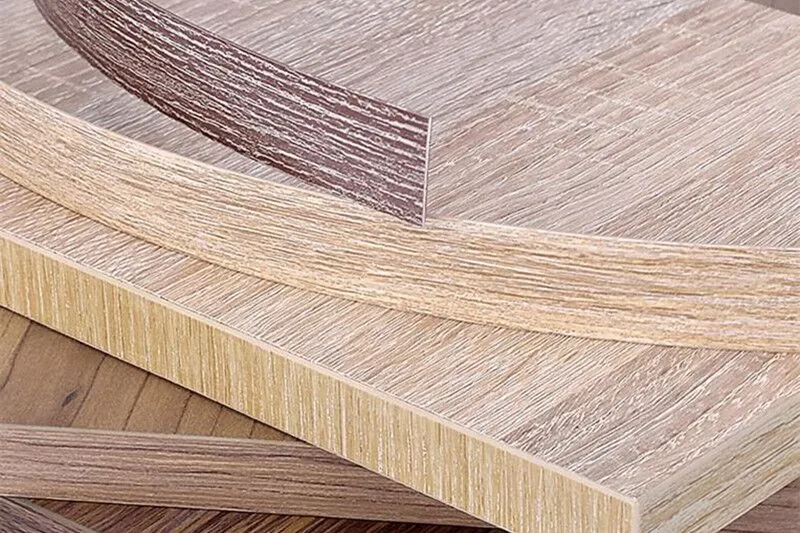

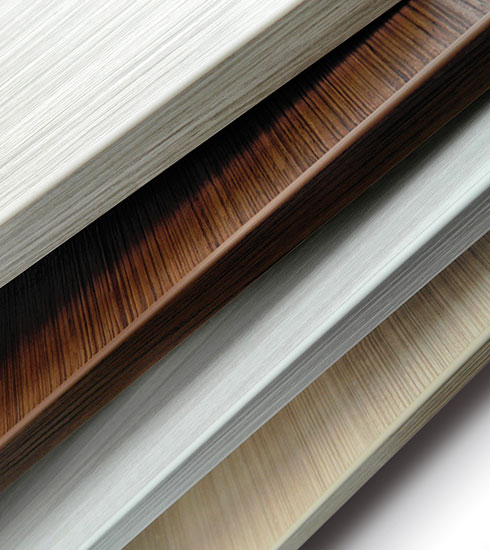

This machine can process materials such as Medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc.

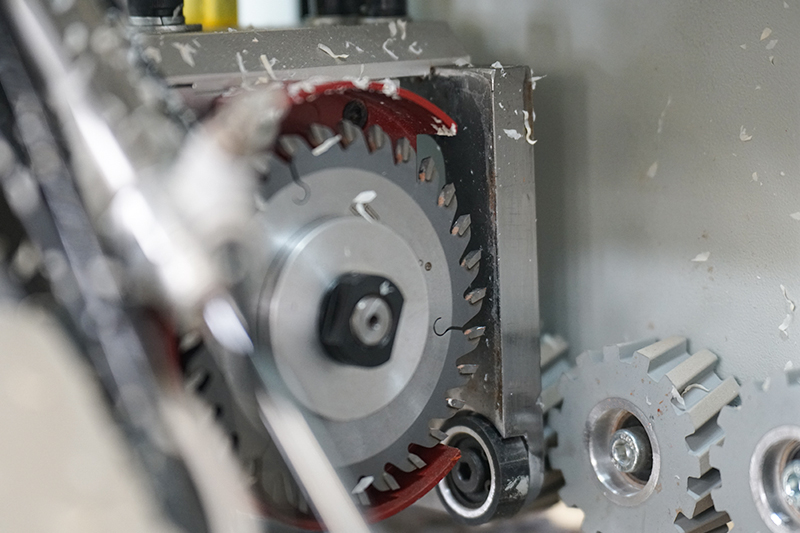

The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
Yes. Its processing range is 10mm-50mm.
