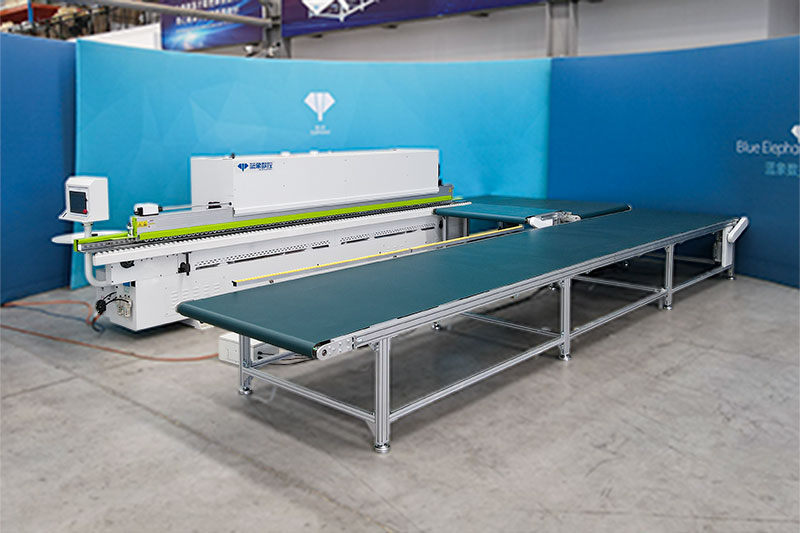

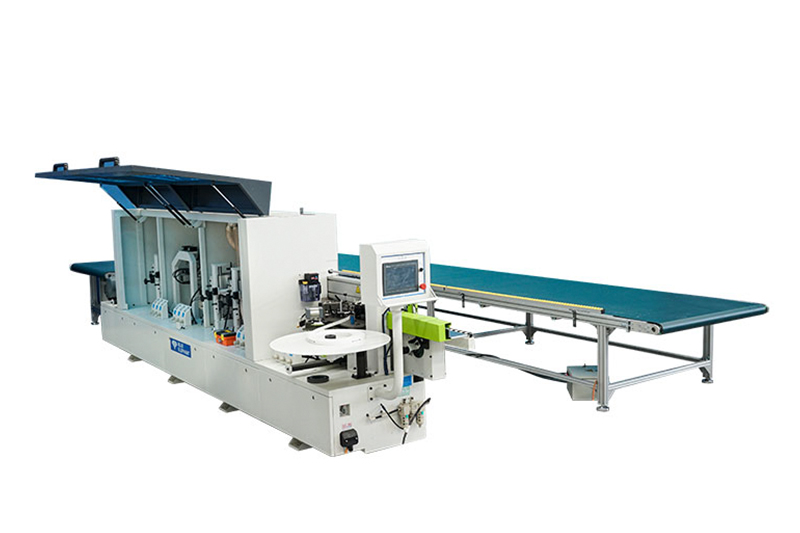

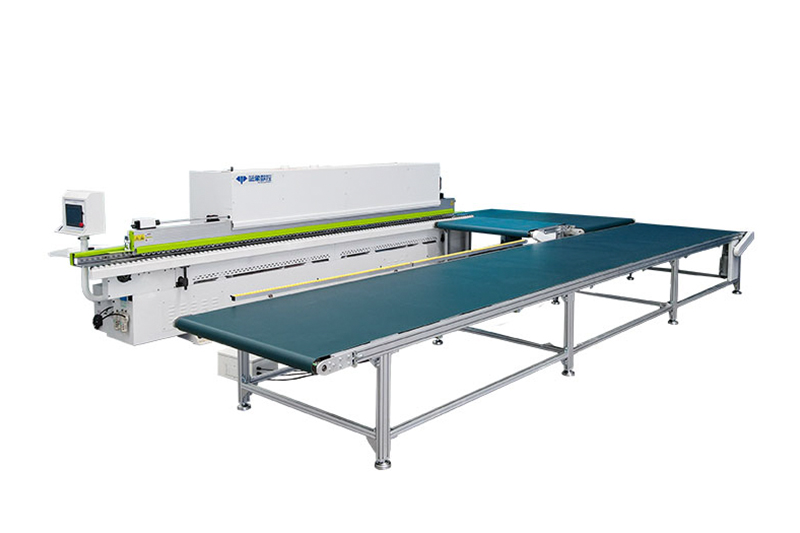

This is an automatic edgebander machine circular production line. It consists of a fully auto edge banding machine and auxiliary belt conveyor platforms. One operator is required to run this production line, which significantly improves the edge banding efficiency and reduces labor costs.
1.This line consists of one automatic edge banding machine and several belt conveyor platforms. It is very easy and convenient to operate this production line.
2.The edge banding machine can complete multiple functions automatically, include gluing, banding, end cutting, rough and fine trimming, profile tracking, scraping, and polishing.
3.It adopts a finishing unit with a high-speed motor, which ensures the finishing quality.
4.Only one operator is needed to operate this production line without running back and forth. It not only improves work efficiency but also saves much labor costs.
| Total power | 10.8kW |
| Dimension | 5600*960*1600mm |
| Feeding speed | 16-23m/min |
| Thickness of edge band | 0.4-3mm |
| Thickness of wood board | 10-60mm |
| Length of wood board | ≥150mm |
| Width of wood board | ≥60mm |
| Working pressure | 0.6Mpa |

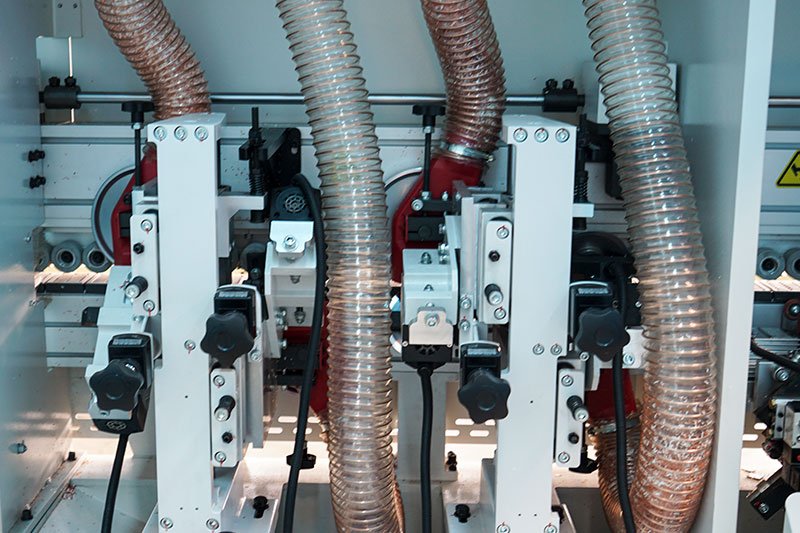

Our automatic edge banding machines have rough trimming, fine trimming, and polishing functions. All these functions help to trim and polish the edges to remove the exceeded glue.
Please check if the room temperature is below 8℃， or if the banding speed is too slow when the edge cannot be banded.
PUR glue has good high temperature resistance, solvent resistance and other properties. In the production of wood veneer panel furniture, it can improve the waterproof and moisture resistance. Besides, the high-temperature resistant PUR edge banding technology effectively solves the problem of glue seam after banding.
