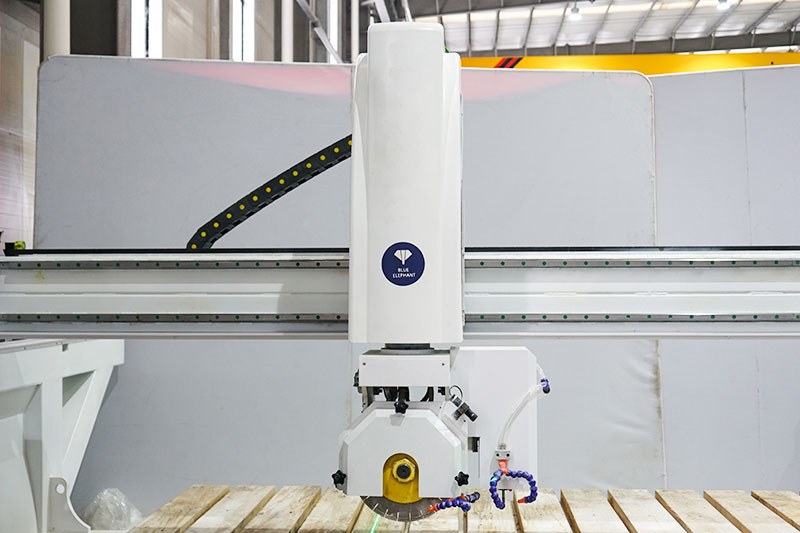

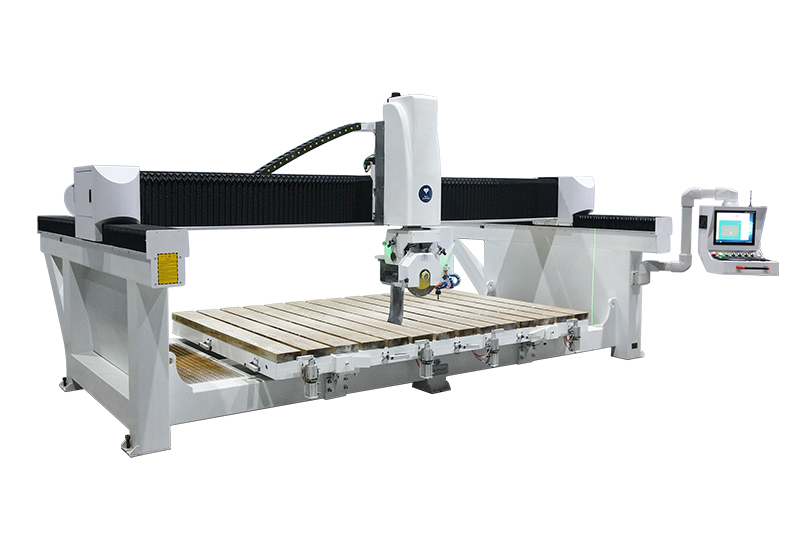

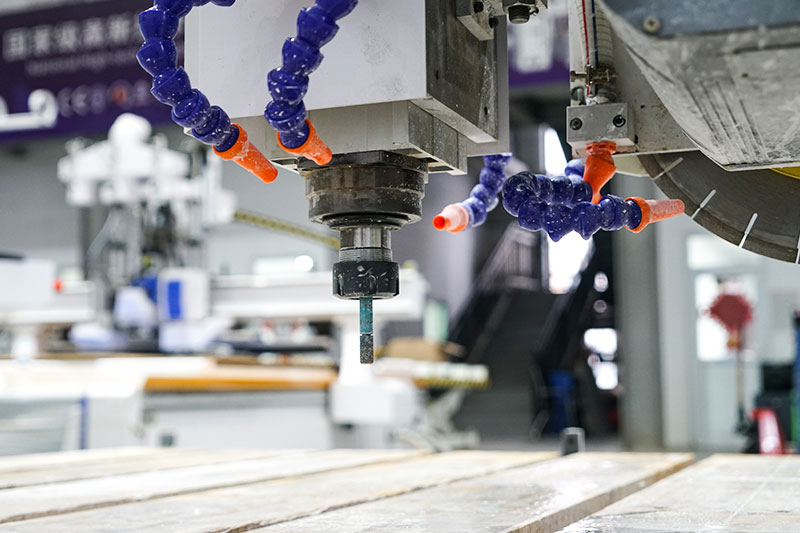

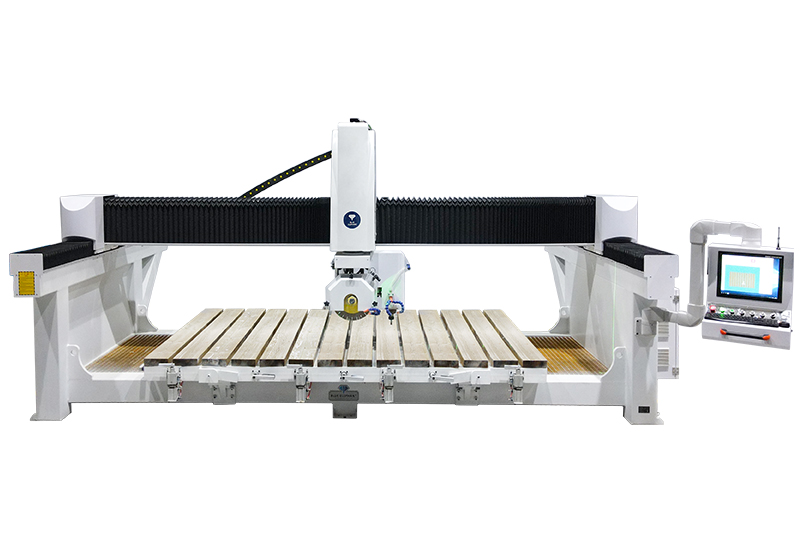

This 4 axis 4+1 stone CNC bridge saw has an additional 5.5kw water-cooled spindle. It can work alternately with the saw blade, so it greatly improve processing efficiency. But unlike the heavy-duty 4 axis 4+1 CNC bridge saw machine, it can’t add a camera or material moving device.
1. The economical 4 axis 4+1 CNC bridge saw can realize cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45° chamfering, under-counter basin and in-counter basin cutting, etc. However, edge grinding and polishing are not supported.

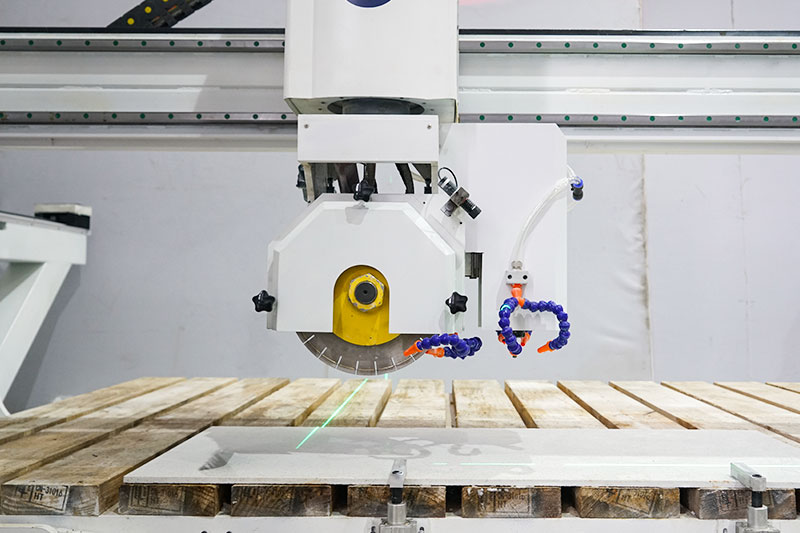

2. The diameter of the 4+1 stone CNC bridge saw blade is 350mm and the 4+1 stone CNC bridge saw spindle speed is 24000rpm/min. So it can realize the maximum cutting thickness of 80mm. Moreover, the spindle and saw blade can work alternately without affecting each other.

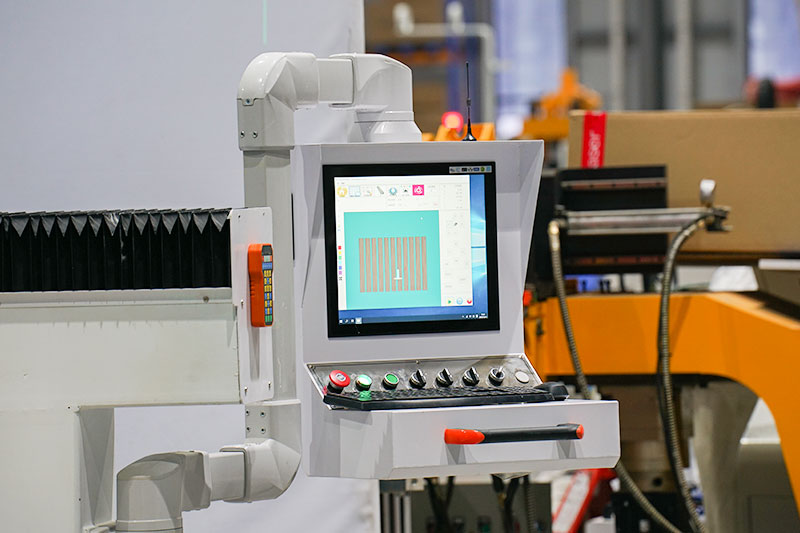

3. Use Blue Elephant customized control system and imported parts to ensure high-precision processing and smooth operation of the 4-axis 4+1 marble CNC bridge cutting saw.
4. High-power saw blade motor, size and voltage of the economical 4+1 quartz bridge saw, we all can customize and upgrade.
| 4+1 CNC Bridge Saw Machine | ||
| Travel | 3 axis | 3200*2000*400mm |
| C axis | ±360° | |
| A axis | 0/45° | |
| Control System | Blue Elephant Customized Control System | |
| Motor & Drive | Serve motor and drive | |
| Turning Table | Size | 3200×2000mm |
| Flip angle | 0-85° | |
| Saw Blade | Diameter | 350mm |
| Maximum thickness | 80mm | |
| Spindle | Power | 5.5kw |
| Rotating speed | 24000rpm | |
| Voltage | 380V,3PH,50/60HZ | |
| Motor power | 15kw | |
| Motor speed | 3300rpm | |
| Machine size | 5.36m×3.3m×2.41m | |
Yes. It can be set in the system and the maximum speed is 3300rpm/min.
No. The 4+1 bridge cutting saw is similar to a nesting CNC machine, which can only cut large plates into small plates as required. While the quartz stone processing center is responsible for edge grinding and polishing.
Stone Countertops: According to custom sizes and designs required, it can precisely cut and shape slabs of granite, marble, or quartz.
Architectural Stone: It can cut architectural stone pieces for buildings, including exterior cladding, facade elements, columns, etc.
Flooring and Wall Tiles: They can cut large stone slabs into smaller tiles of uniform sizes, so it can create visually appealing surfaces.
Monuments and Memorials: It can create intricate designs, lettering, and customized shapes for honoring individuals or events.
Furniture and Artistic Pieces: We can use it in artistic pieces, sculptures, and decorative elements from stone or wood materials.
