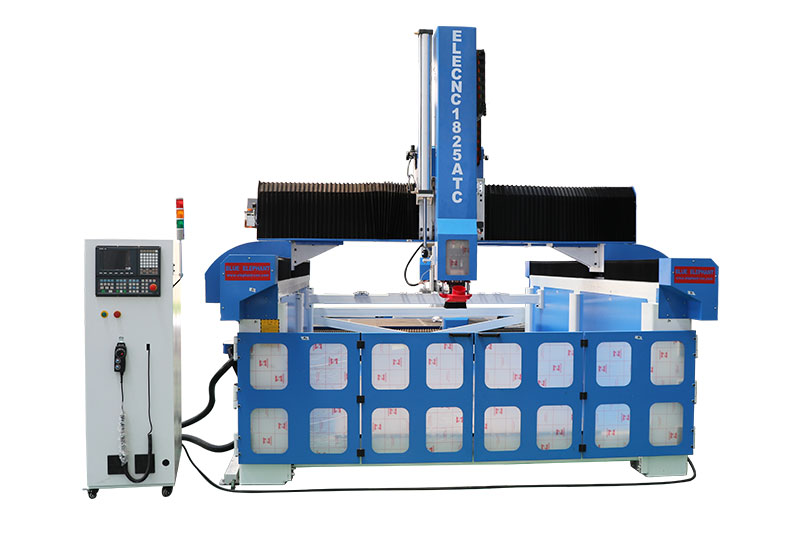

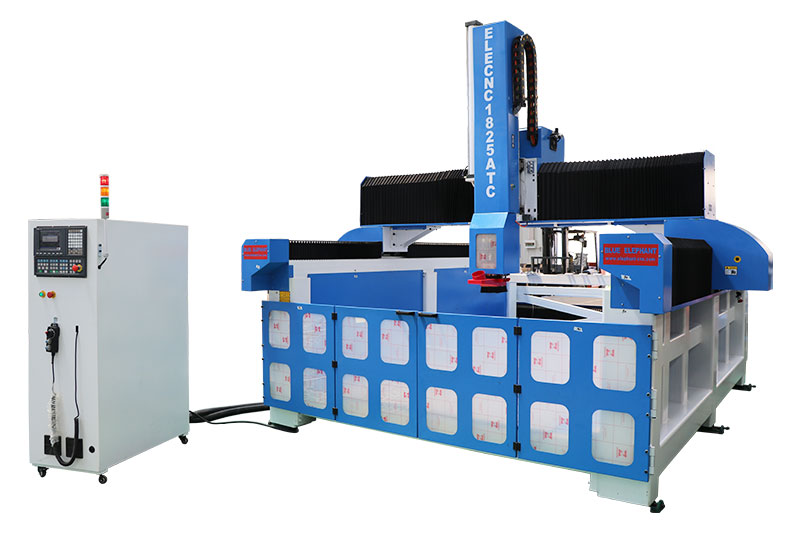

ELECNC-1825 Linear ATC Woodworking Carving Machine

Parameters

Features:

  • Equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability.
  • With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient.
  • Adopting International imported brand components like motor and driver, which make the machine have a longer service life.
  • Using vacuum & T-slot working table not only makes the work piece fixed more stable, but also ensures the machining accuracy.

Parameters:

Description Parameter
Model ELECNC-1825 ATC
Effective Working area 1800*2500*1100mm (optional)
Tool magazine Linear tool magazine
Spindle HSD ATC air cooling spindle
Motor and drive Japan YASKAWA
Control system Syntec 6MD-H control system
Inverter Taiwan Delta
Reducer Japan Shimpo reducer
Transmission German WMH brand Rack and Pinion;Sweden SKF ABBA ; 7000mm—-30mm linear guide way

3000mm and Z axis—25mm linear guide day;

Taiwan TBI ball screw;

Structure Heavy duty body
Tool sensor Auto Tool sensor system
Positioning cylinder linear cylinders for 8 pieces
Lubrication Auto Lubrication system
Software Artcam
Pump German Becker pump (KVT.3.140,4kw ) —4 SETS;New type 1.5kw With 2 bags, special design for dust collect pipe connection
Table surface  Ordinary worktable with PVC protection
Command Language G Code
Computer interface Usb
Voltage 380v/50hz
Guarantee 18 months, special for this large type cnc router
Spare parts Shanghai Cardiff brand wire, for high soft shield;Scheider electric E-stop buttons;

Japan Omron limited switch;

PS:All the working area and specifications can be customized according to your requests.

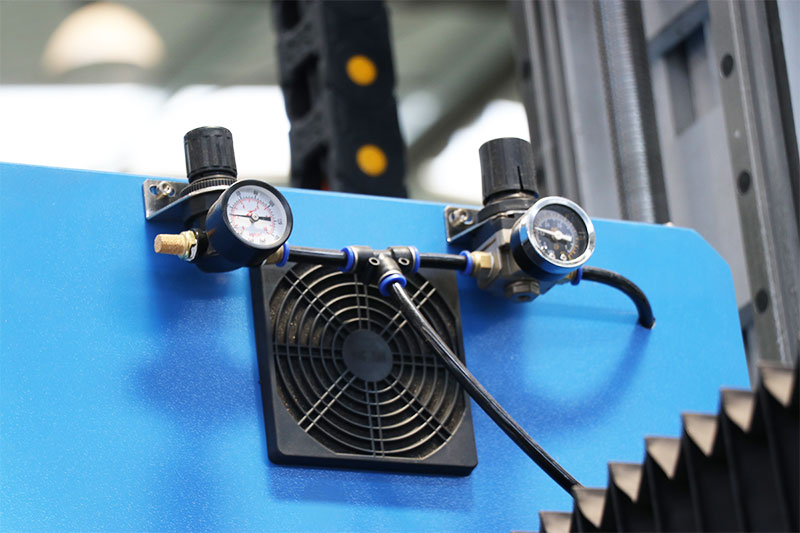

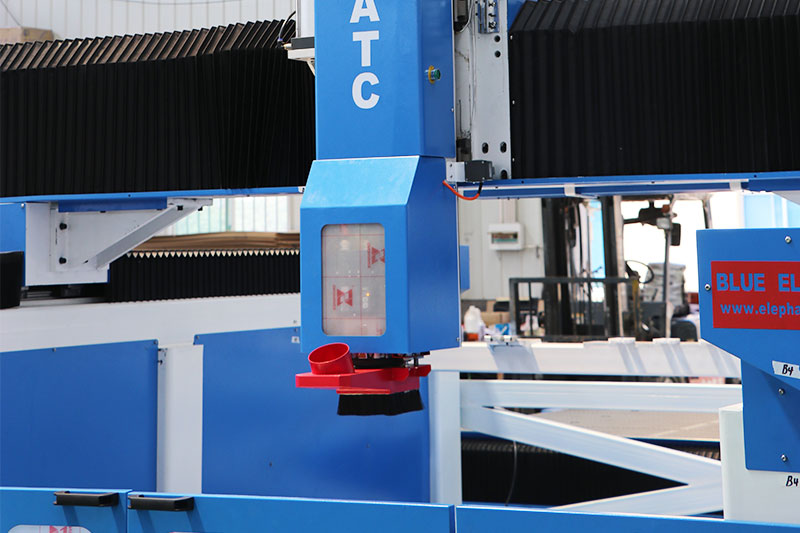

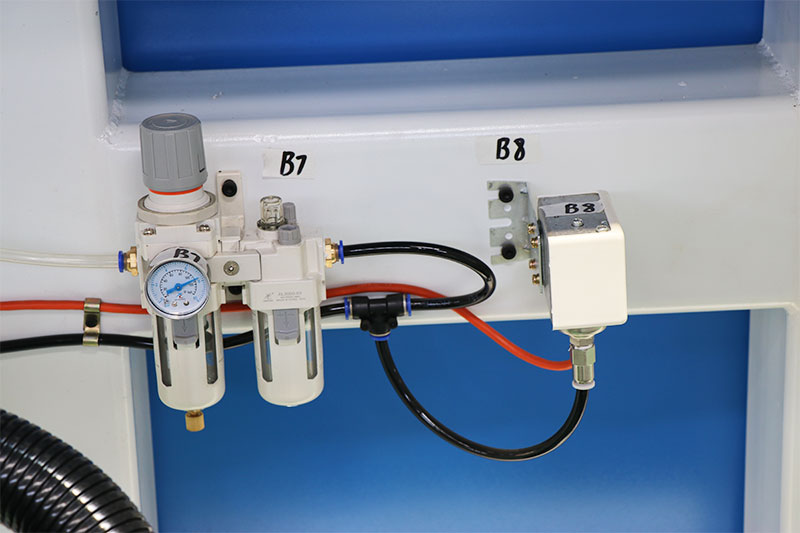

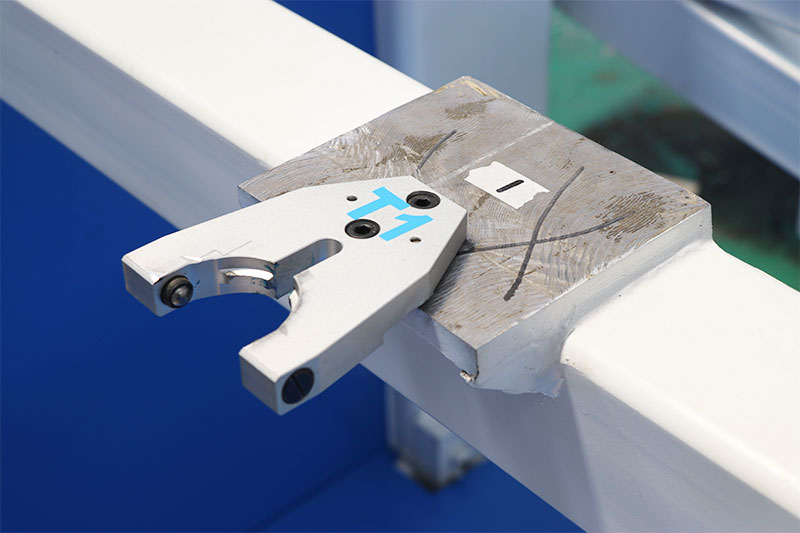

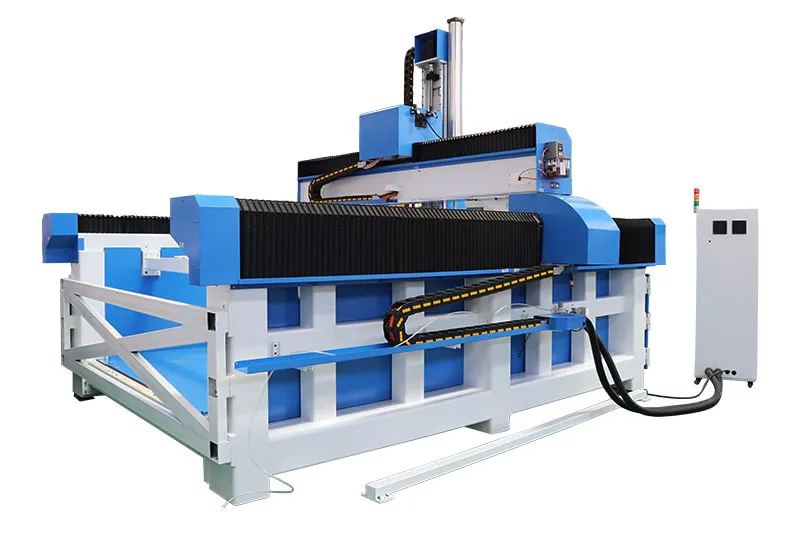

Close-up Pictures:

ELECNC-1825 Linear ATC Woodworking Carving Machine4

ELECNC-1825 Linear ATC Woodworking Carving Machine5

ELECNC-1825 Linear ATC Woodworking Carving Machine2
