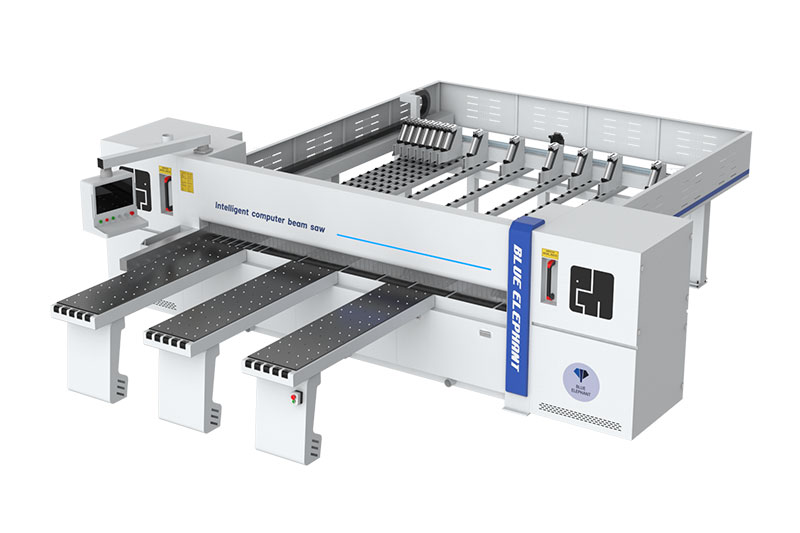

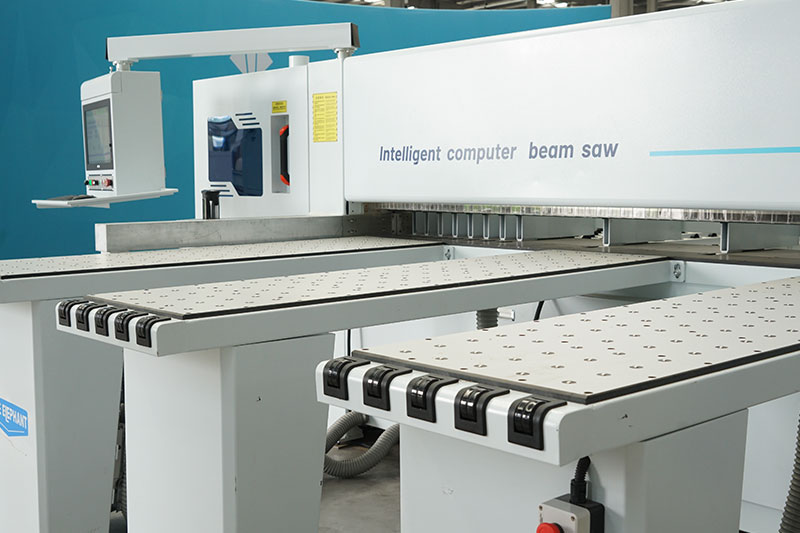

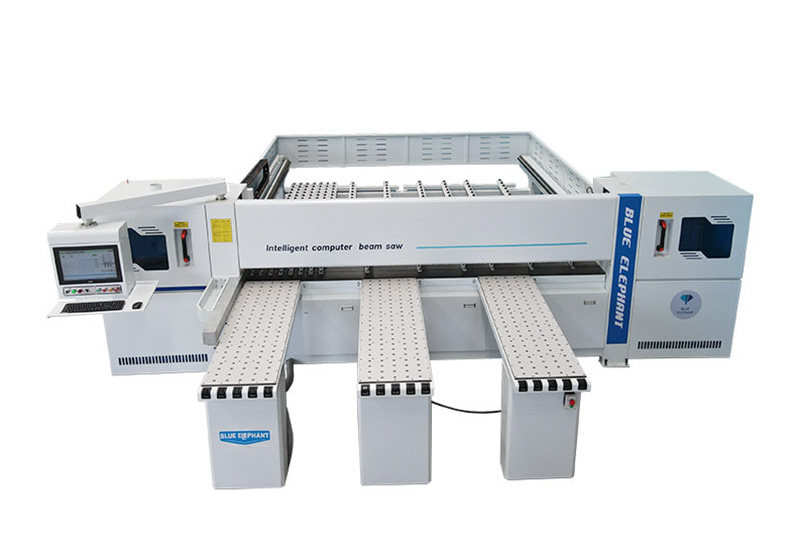

Computer CNC beam saw is a computer-controlled and intelligent wooden panel cutting machinery. It can cut multiple layers of wooden panels with the thickness up to 100mm at the same time with high efficiency and excellent accuracy.

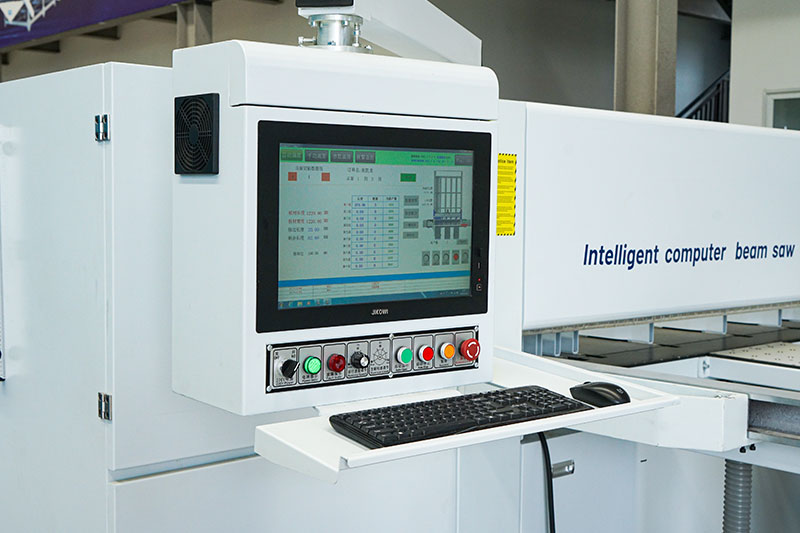

1. The machine adopts industrial computer control, which has an advanced but easy-to-operate man-machine interface.
2. Key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
3. Optional optimization software adds drawing design and optimization while with the practical functions of residuals management, layout optimization, and barcode printing.
4. Due to the intelligence system, the worker only takes 2 hours of training before using it.
| Model | ELECNC-280 |
| Overall dimension | 5400x5300x1800mm |
| Cutting length | 2700mm |
| Cutting thickness | 100mm |

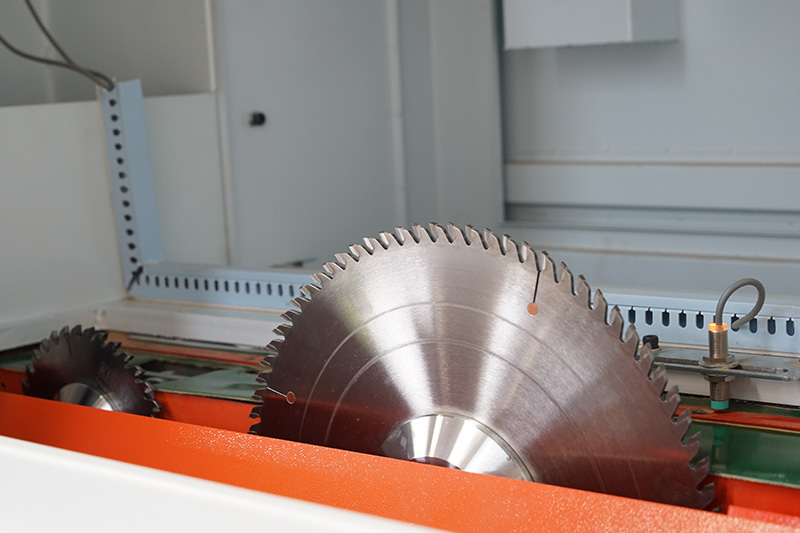

| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 15kW |
| Groove saw motor | 2.2kW |
| Auto feeding motor | 2.0kW (AC, servo) |
| High-press ventilating motor | 3kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |

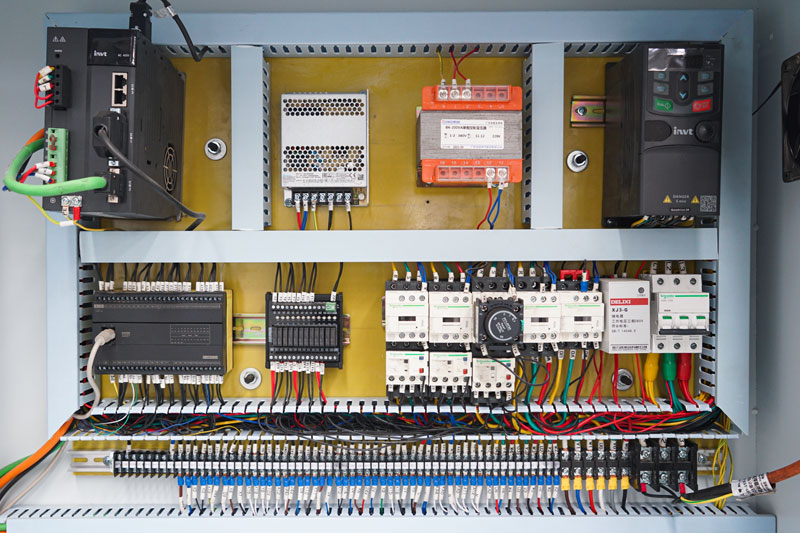

| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Jikowi |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
Yes, both of them can be added to this panel saw. It’d better to add the nesting software, a computer, a label printer and a side pressure device together.
