3050 EPS Foam CNC Router with Rotary Device

3050 EPS Foam CNC Router with Rotary Device

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : ELECNC-3050

Category : EPS Foam CNC Router

Price Range : $30,000 to $90,000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

The heavy-duty 5 axis CNC router center can realize multiple complex and heavy-duty woodworking cutting 3D carving processes. It adopts the moving gantry and fixed worktable structure, ensuring great flexibility and wide processing range.

Features

1. Heavy duty welded steel frame and gantry guarantee the maximum straightness and rigidity.
2. It reduces repeated clamping and tooling time, which greatly shortens product development cycle and improves work efficiency.
3. Equipped with a linear tool changer, it can change tools automatically and achieve multiple machining processes.
4. Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump electricity.
5. It can process multiple materials, such as stone, styrofoam, wood, aluminum, etc.

Parameters

Model	ELECNC-3050
X,Y axis travel	3000x5000mm, option: 13002500mm; 15003000mm; 2000*3000mm, etc
Z axis travel	1100mm
Spindle type	10KW Germany DMASS spindle
Inverter type	15kw
Drilling bank	Taiwan or Italy 5+4 vertical drills
Tool magazine	Carousel type auto tool changer
Tool holder with collet	HSK tool holder
Control system	Syntec 610MA-E5
Driving system	1800W Japan YASKAWA servo motor and driver
Reducer	Japan SHIMPO reducer
Structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X2,Y3)
Linear guide	Taiwan #35 Linear guide with dust proof
Transmission	X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	Semi-auto lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Customized professional 5 axis software
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Working air pressure	0.6MPa
Working voltage	380V 3PH 50HZ/ 60HZ

EPS Foam CNC Router Optional Parts

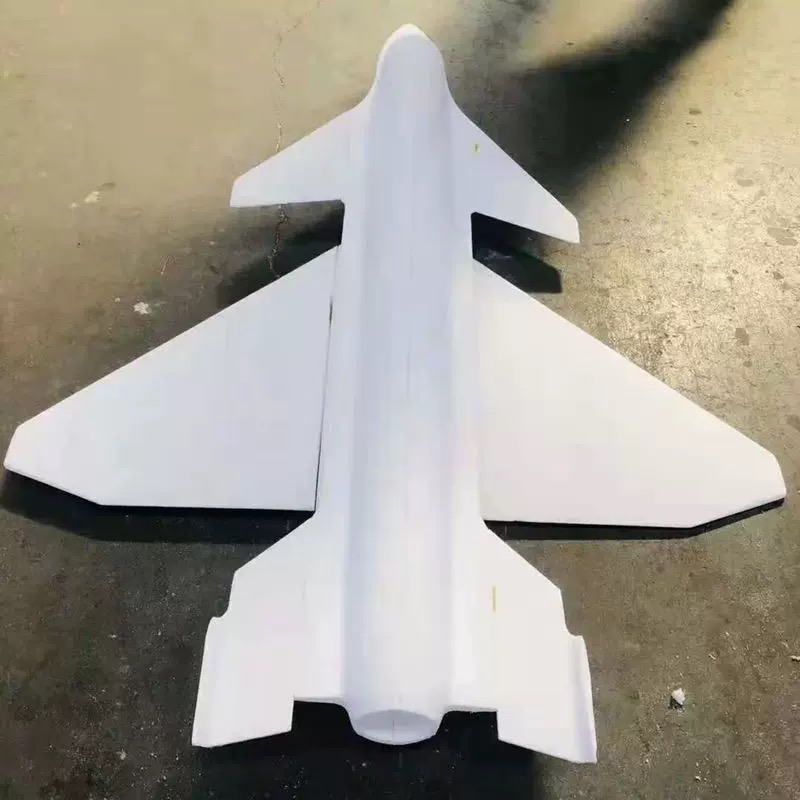

Application

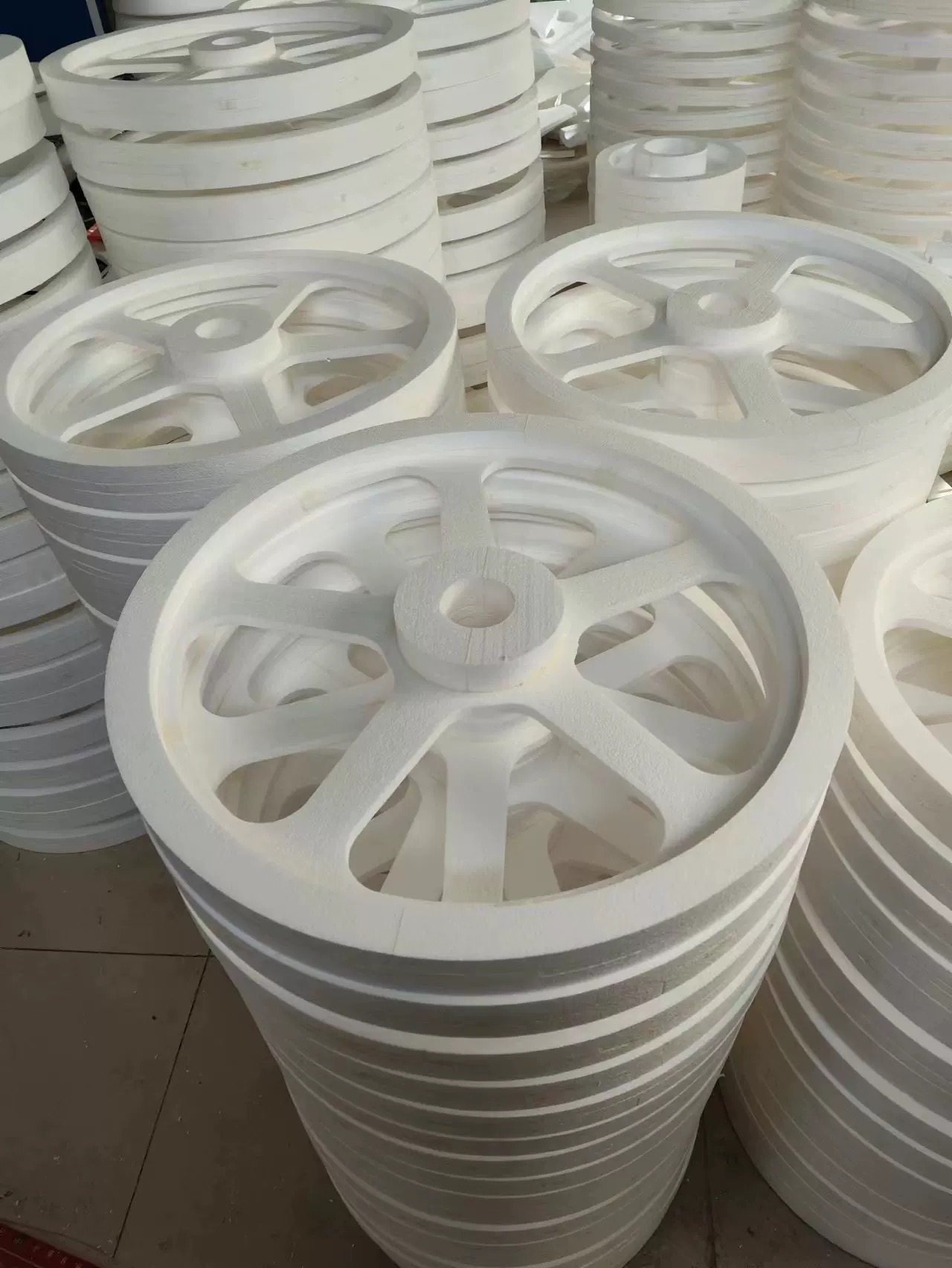

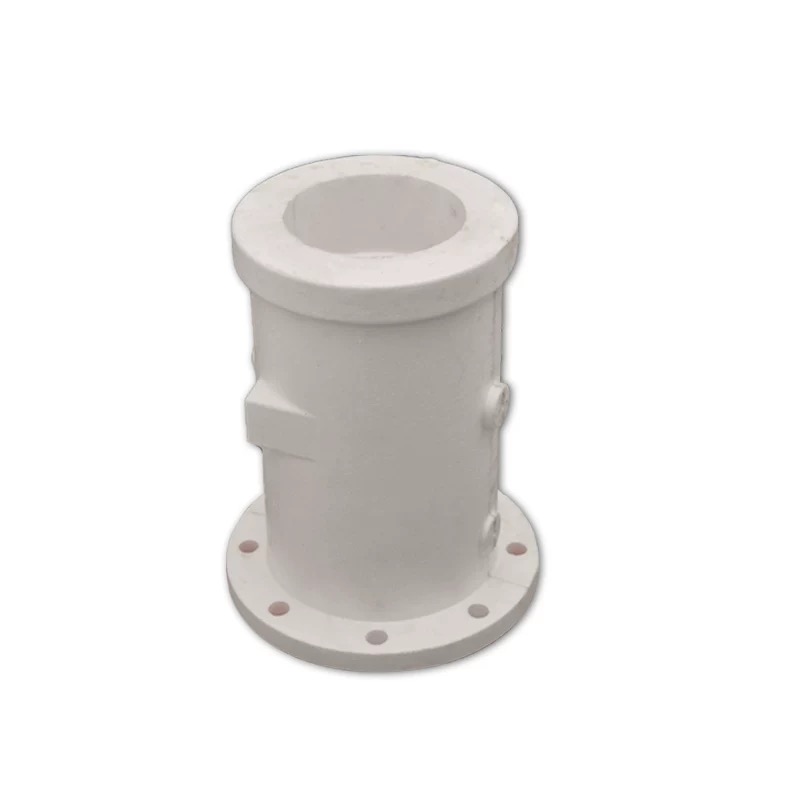

Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.

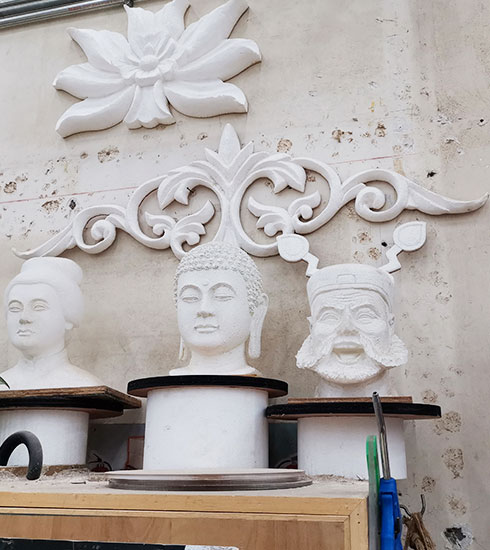

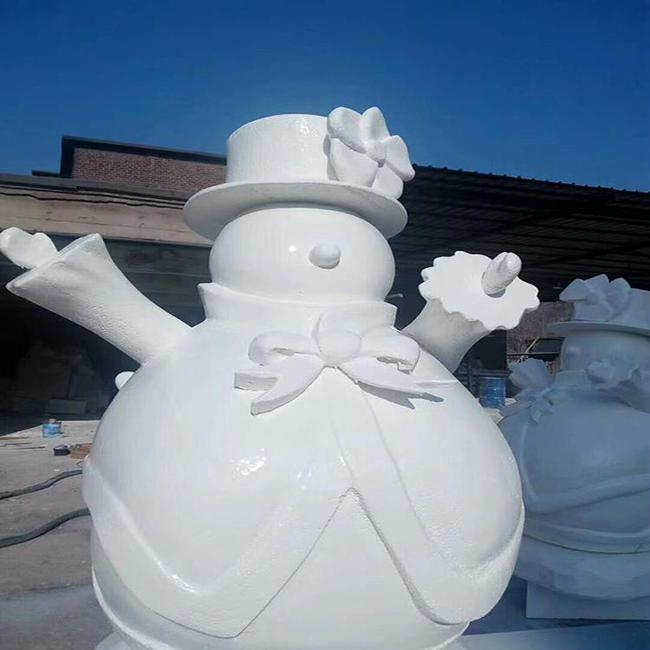

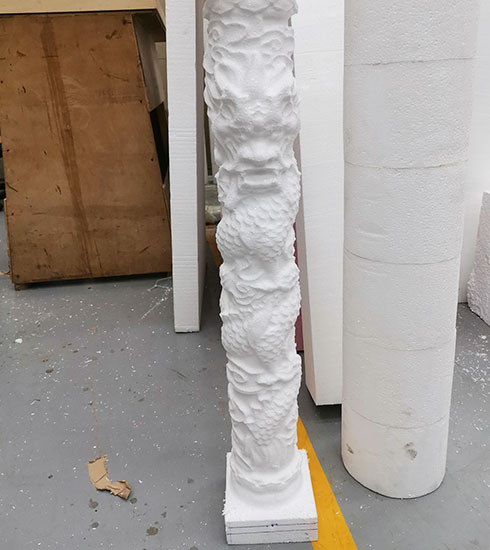

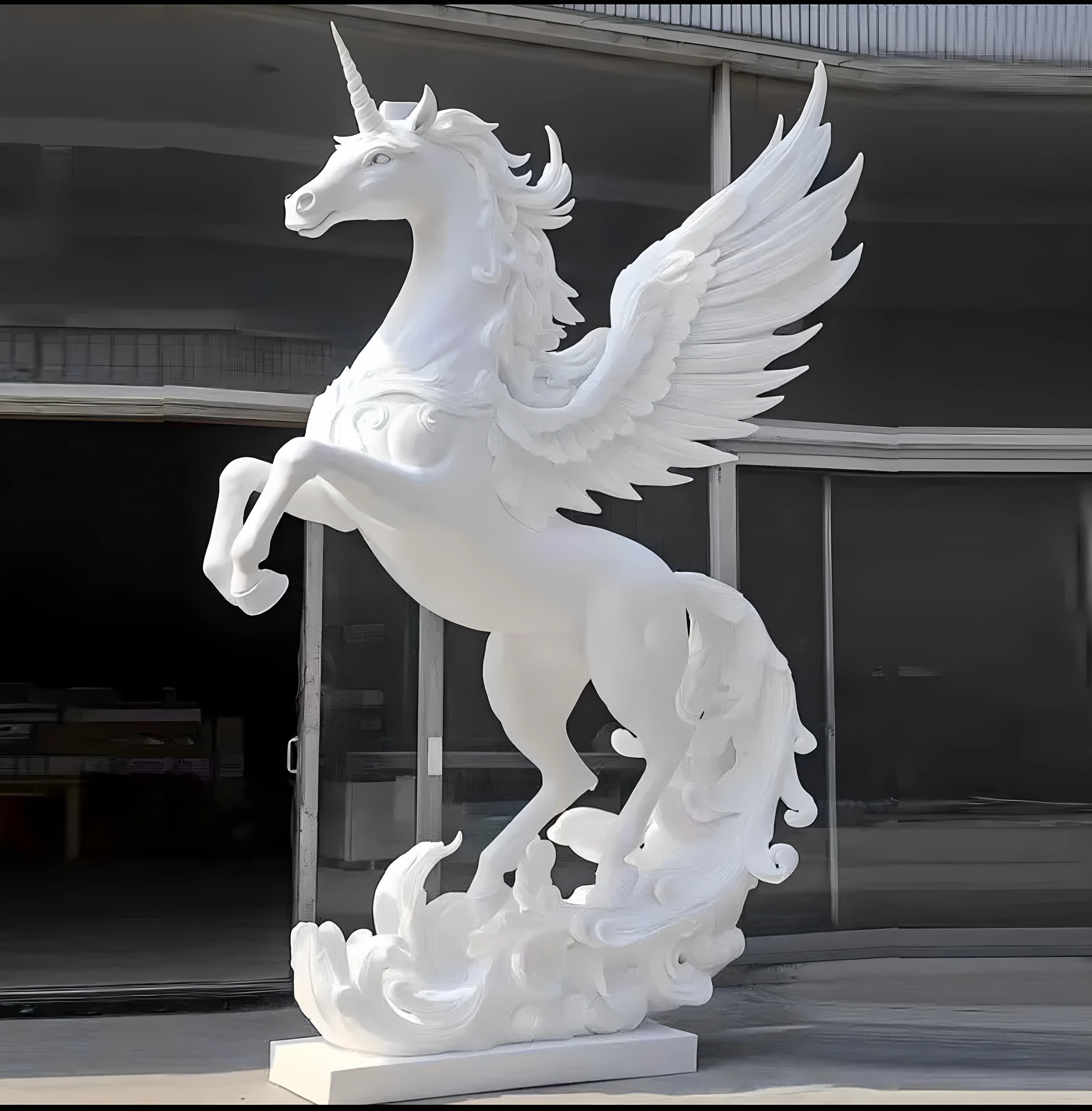

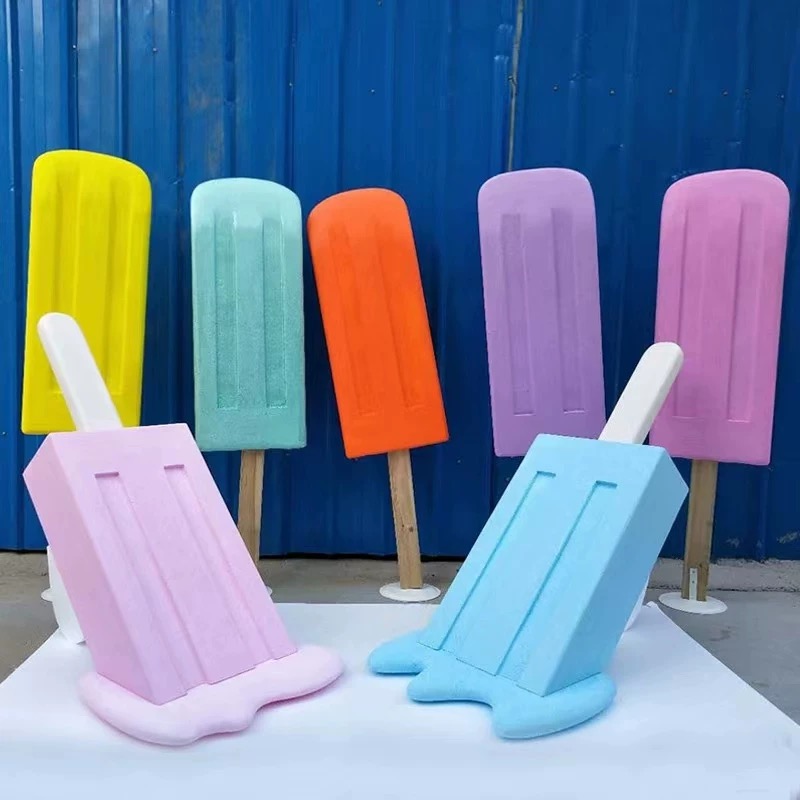

Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.

Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.

Review

Your machine works very well. I use it 3 years everyday. Next year I hope to buy another CNC Router with the automatic tool changer.

I finished the installation of my second CNC machine. It works pretty good and I’m really satisfied about this machine. I am very familiar with the machine now if you have customer needs technical support, you can let them contact me ;)

I’m happy to tell you that the CNC machine was installed yesterday and works fine. We only did some basic tests, such as easy carving. And everything looks good. Next week I will install the software.

I bought the machine and used it for 5 years now. The machine still work in high precision. And their services still as same as the first day. Happy to purchase.
