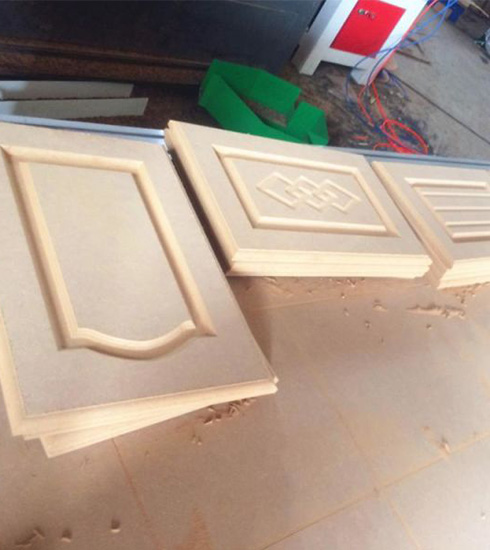

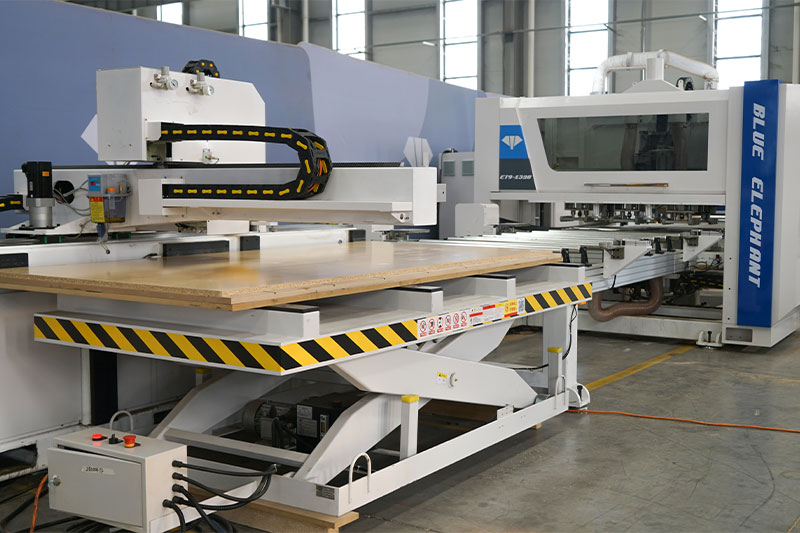

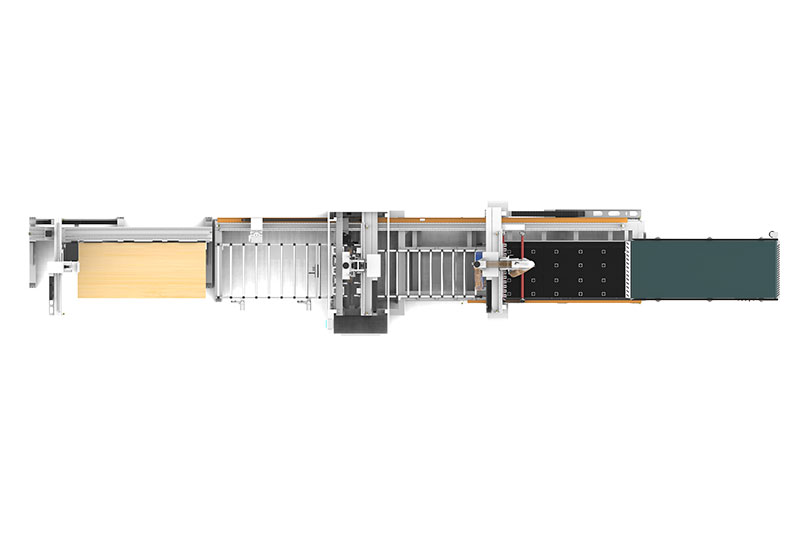

ET-9 intelligent labeling CNC drilling and cutting production line is a device that integrates labeling, punching, cutting and edge banding functions. It can be used in woodworking, wooden furniture, cabinets, interior door design and manufacturing, construction and decoration and other industries. It optimizes the production process, reduces labor and improves efficiency.
1. Optimize the production process and reduce costs. Labeling, punching and cutting are completed at one time, and then the edge banding machine is used to punch holes, eliminating the traditional production line six-sided drilling or side hole machine punching process.
2. Easier operation, higher degree of automation, automatic labeling, drilling and milling, automatic edge banding and punching.
3. High processing efficiency, double drilling and punching, faster speed.
4. One-time positioning and punching, no need to flip the plate, higher processing accuracy, and save the process of flipping the plate in the traditional production line.
5. Simplified process flow, during the production process, the process of moving and transporting the plate is reduced, saving labor and effort, and reducing the risk of plate damage.

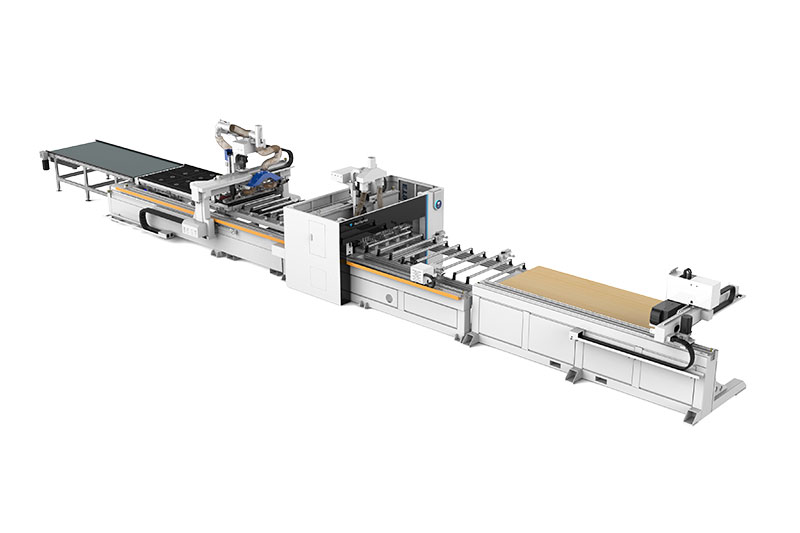

| ET-9 Intelligent Labeling CNC Drilling and Cutting Production Line | |
| Machine size | 16200*3300*2600mm |
| System | Blue Elephant custom system |
| Air pressure | 0.6-0.8MPa |
| Voltage | 380V/3P/50HZ(Vacuum pump and dust collector not included) |
| Power | 40KW |
| Minimum processing size | 2800mm*1220mm*12mm |
| Maximum processing size | 2800mm*1220mm*30mm |
| Machine weight | 7.5t |
| Labeling Unit | |
| Printer | Honeywell P×240 |
| Guide rail | Taiwan square rail 20# |
| Rack | J&T 1.5M |
| Servo motor | 750W＋1000W |
| Reducer | Shimpo |
| Loading table | Standard |
| Drilling and Grooving Unit | |
| Spindle | 3.5KW HQD air cooling spindle*2 |
| Guide rail | Taiwan square rail 25# |
| Rack | J&T 1.5M |
| Reducer | Shimpo |
| Servo motor | 750W+1000W |
| Lead screw | 2510 |
| Inverter | Fuling inverter |
| Vacuum cleaner | 5.5KW |
| Cutting Unit | |

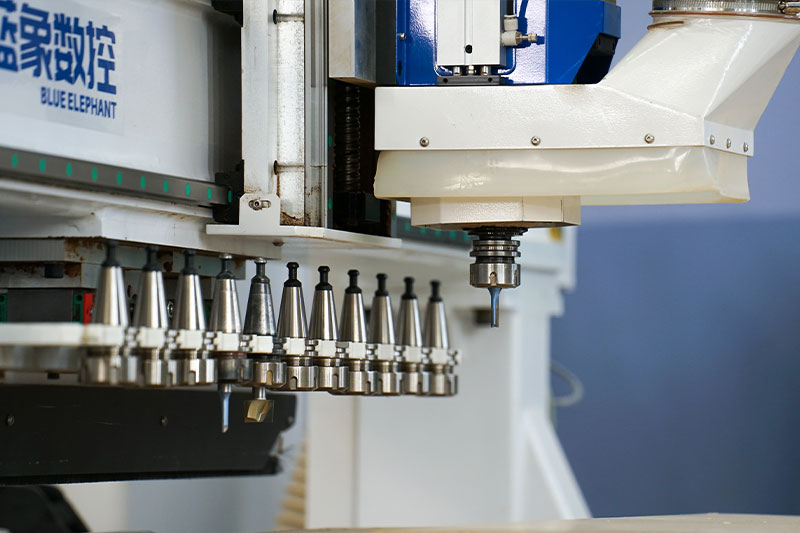

| Spindle | JST 9KW air-cooling automatic tool-changing spindle |
| Inverter | Fuling inverter |
| Guide rail | Taiwan square rail Y 30 XZ 25 |
| Rack | J&T 2M |
| Servo motor | 1000W |
| Reducer | Shimpo |
| Screw | 2510 |
| Vacuum Pump | 7.5kw water circulation |
| Vacuum cleaner | 5.5KW |
| Unloading table | Standard |
We have a professional after-sales technical team to support and provide 24-hour online service.
The minimum processing size is 2800mm*1220mm*12mm and maximum processing size is 2800mm*1220mm*30mm.
Sure. You can customize not only the size of the machine but also many other configurations.
