Description

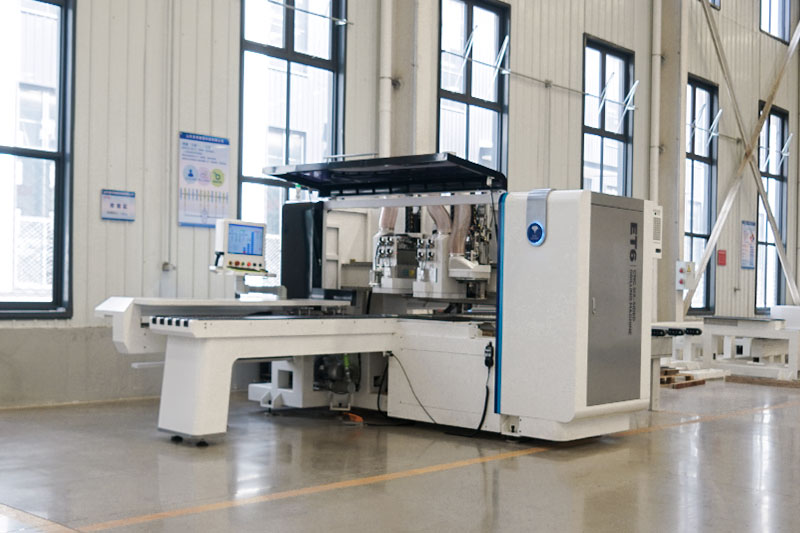

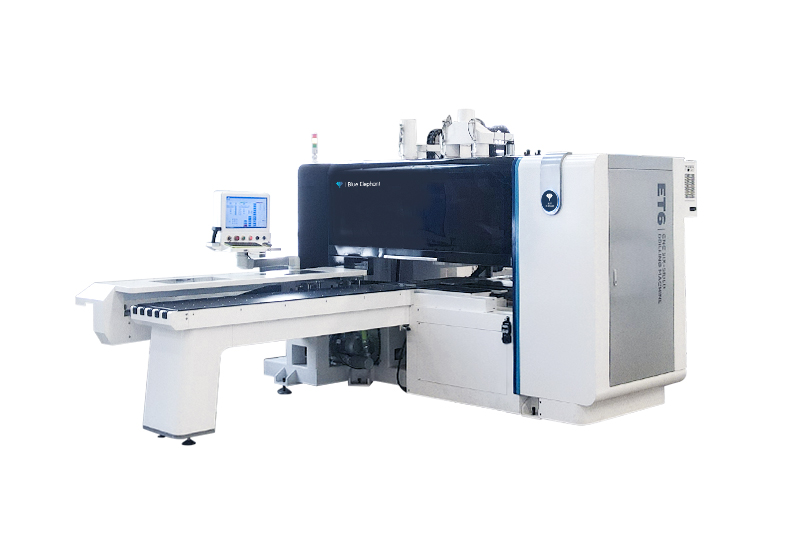

The ET6DT six-sided CNC drilling center adopts a double drill units + automatic tool change design. While meeting traditional drilling, upper and lower grooving and other functions, it also has a variety of processes such as laminar, side grooving, and front milling that can be completed in one go. There is no need for manual tool change, and it can solve processing needs in one stop.

Features

1.Six-position large-capacity tool magazine supports diverse processing techniques, enabling quick tool changes for different needs.
2.Upgraded clamps feature three positioning units, offering flexibility for narrow slab positioning.

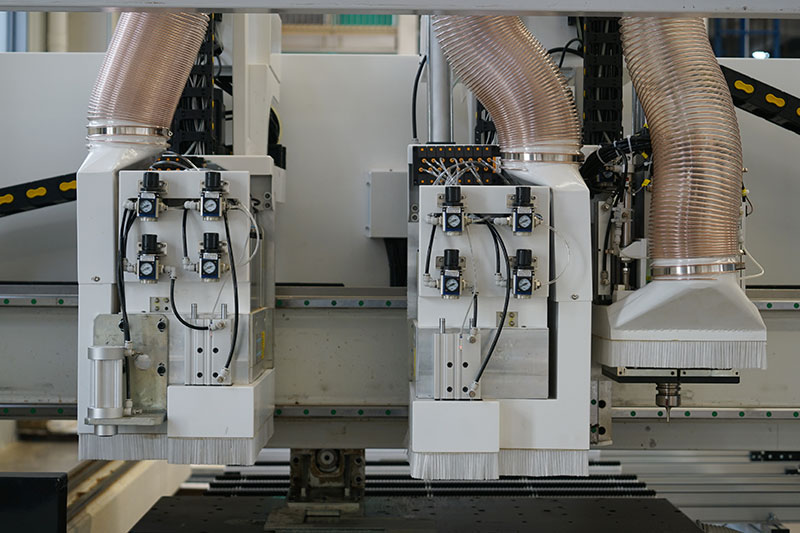

3.It is double drill package structure. The minimum vertical hole can be 100mm and the double drill units can be processed simultaneously, with high processing efficiency and high precision.
4.The six sided CNC drill equipped with an automatic tool setter to guarantee accuracy and boost processing efficiency.

Parameters

Model ET6DT
Panel size Width: 50-1220mm
Length: 250-2800mm
Thickness: 12-45mm

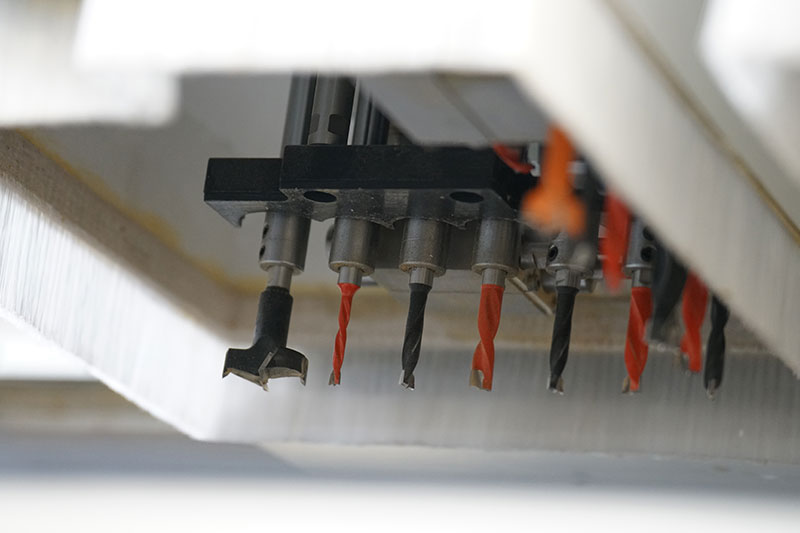

Number of tools CC Drill 12 Vertical top drilling*2 + 8 horizontal drilling*2 +9 bottom vertical drilling*1
Voltage/frequency 380V/50HZ/3P

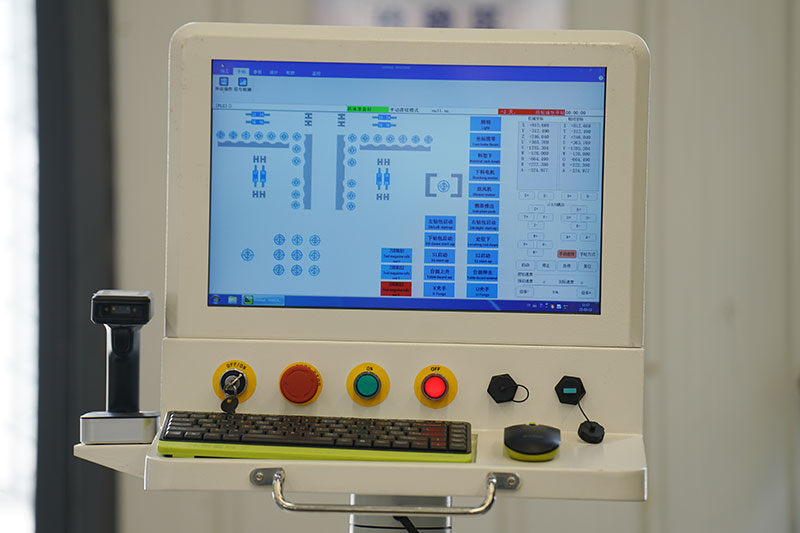

Control system Blue Elephant Custom System
Spindle type HQD3.5KW*1
CC ATC 5.5KW*1
18000 rpm
Inverter Fuling

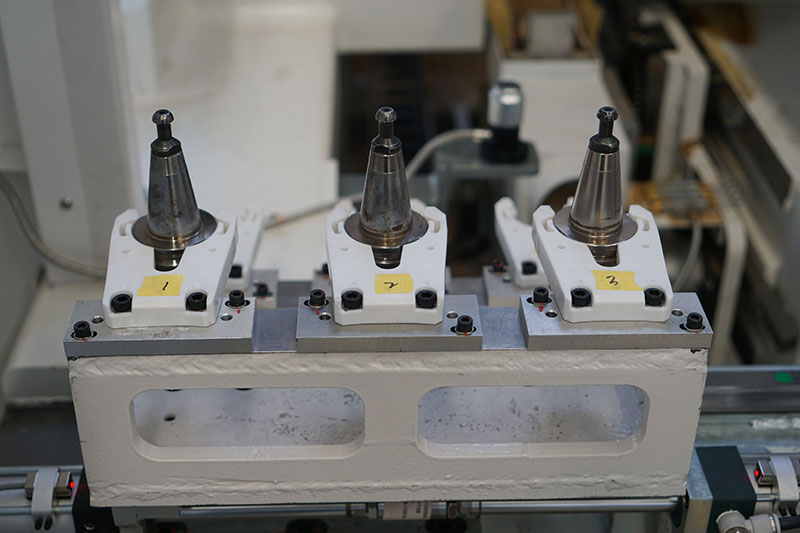

Tool magazine capacity 6 Tools ISO30
Driver system Absolute servo motor
Reducer Shimpo
Worktable Air floatation table
Guide rail SHAC
Rack JT
Lubrication system 1.5L Automatic lubrication
Fan 1.6KW
