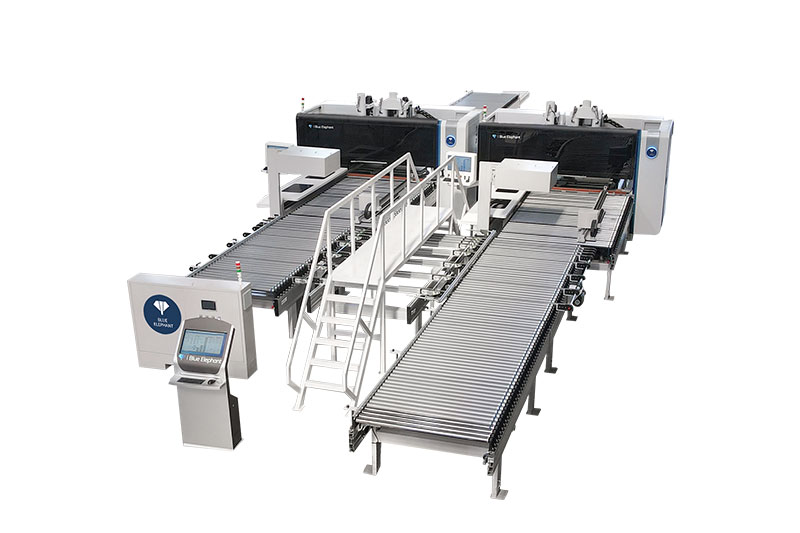

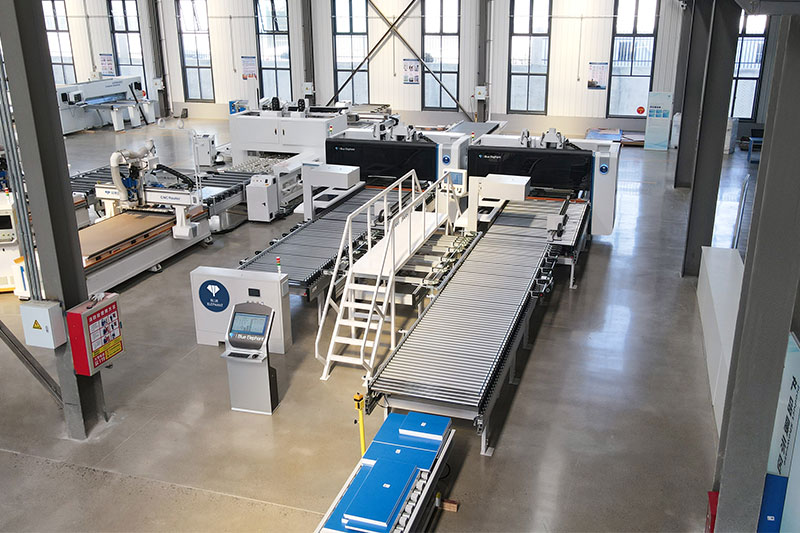

Blue Elephant’s latest six-sided drilling double-machine connection adopts Blue Elephant’s self-innovated mechanical structure and uses two six-sided drilling machines for upper and lower double drilling packages, greatly improving production efficiency. It also has the functions of high-definition scanning, automatic positioning, and intelligent transmission. Compared with a single-head six-sided CNC drilling machine, this six-sided drilling double machine connection uses Blue Elephant’s self-developed precision CNC dual drilling kit, which ensures high precision while increasing drilling efficiency by 30%, greatly saving labor and time costs.

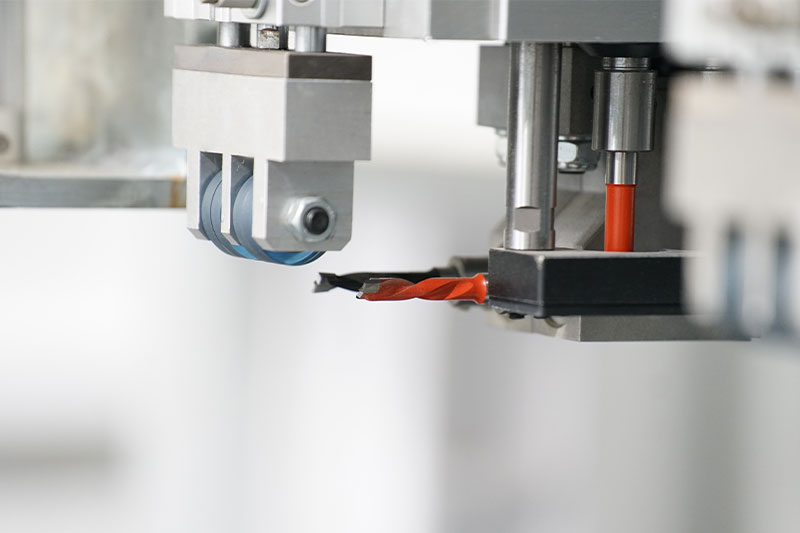

1. Each drill package contains 12 vertical drill bits and 8 horizontal drill bits. Double drill packages can drill holes at the same time. Compared with single drill package, the efficiency is increased by 30%. At the same time, the multiple different drill bits can be switched quickly, which can meet the fast and efficient drilling and milling of all holes and slots.
2. It only needs one worker to operate, load and unload. The operation is simple and fast, saving one labor cost.
3. Adopting C-type double gripper mechanism, it can control board feeding and positioning according to computer drilling program, which is more stable and reliable.
4. The maximum processing length of this machine is 250-2800mm, the maximum processing width is 50-1200mm.
| Model | ET6D |
| Working size | 1300x2500mm |
| Spindle type | 3.5KW Air Cooling Spindle*2 |
| Number of tools | 12 Vertical top drilling+8 horizontal drilling*2 +9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Transmission | Taiwan helical rack |
| X axis Travel speed | 120m/min |
| Y axis Travel speed | 80m/min |
| Re-positioning accuracy | ±0.03mm |
| Software | Blue Elephant Custom System |
| Working voltage | 220V /380V/ 50-60HZ |
| Machine overall size | 5832*2727*2367mm |
It can realize the drilling work on six sides of a wooden panel. It is very popular in cabinet and panel furniture industry.

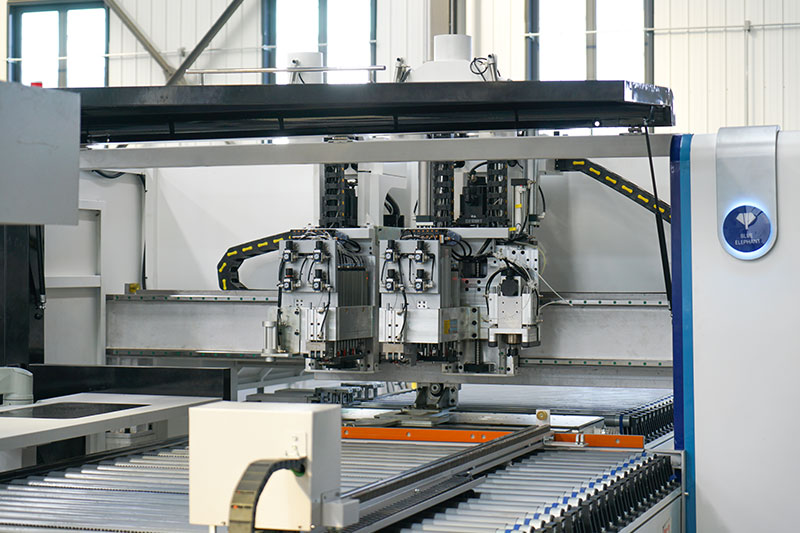

This six sided drilling double machine connection has 2 six-sided drilling machines. Each machine has 2 drilling units in total, including 12 vertical top drill bits, 8 horizontal drill bits, and 9 bottom vertical drill bits.
Blue elephant custom system, and it is easy to operate.
