1325 CO2 Mixed Laser Cutting Machine or Metal & Non Metal

1325 CO2 Mixed Laser Cutting Machine or Metal & Non Metal

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1325
Category : CO2 Laser Cutting Machine
Price Range : $6100 to $14500 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

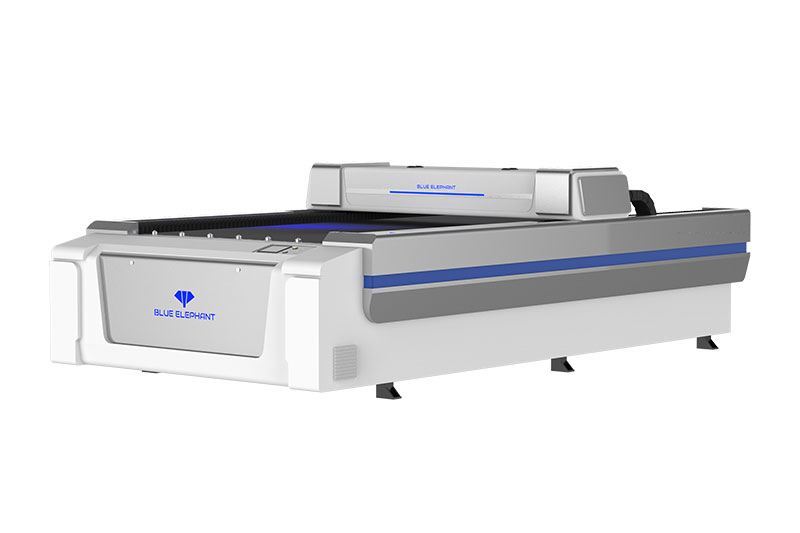

1325 Dual Use CO2 Laser Cutting Machine

1325 CO2 Wood Laser Cutter

Description

This Co2 Laser etching machine is a mixed laser cutting machine. It uses co2 laser source to engraving and cutting metal and non-metal, such as glass, wood, plastic, stainless steel, etc.

Features

1. Adopting steel structure bed, the design is more scientific and the bed is more stable.
2. One machine with dual functions. It is able to cut both non-metal and thin metal materials such as stainless steel, carbon steel, acrylic and wood.
3. The high precision linear guide transmission ensures more steady of the cutting operation, thus maintaining high cutting precision and good stability.

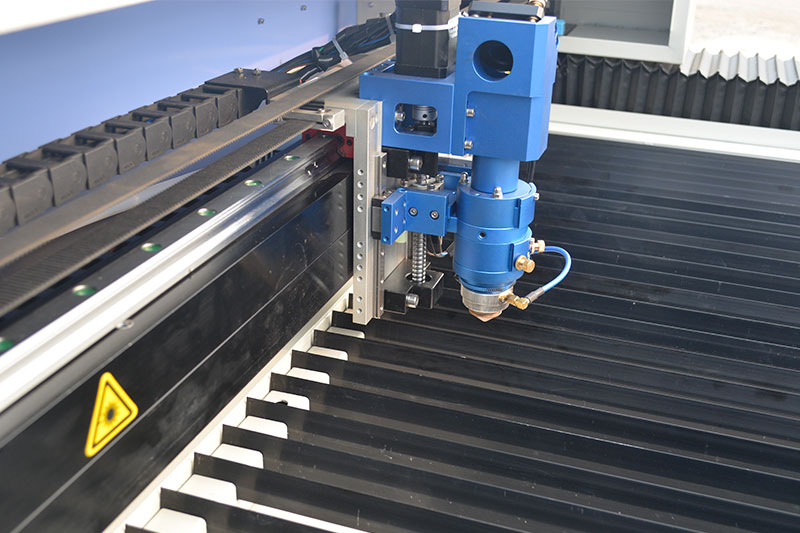

4. The quality of the cutting section is good because it adopts the mechanical follow-up cutting through system. The cutting head follows the height of the plate, and the position of the cutting point remains unchanged, so that the cutting seam is flat and smooth.
5. Its cross beam uses high-strength aluminum alloy, which is lightweight, has small resonance, and operate more smooth.

Parameters

Model	ELECNC-1325
X,Y,Z Working Area	1300*2500mm
Laser Power	130W, option: 150W, 180W, 200W, 300W.
Laser type	Sealed CO2 laser tube
Cutting speed	0-30,000mm/min

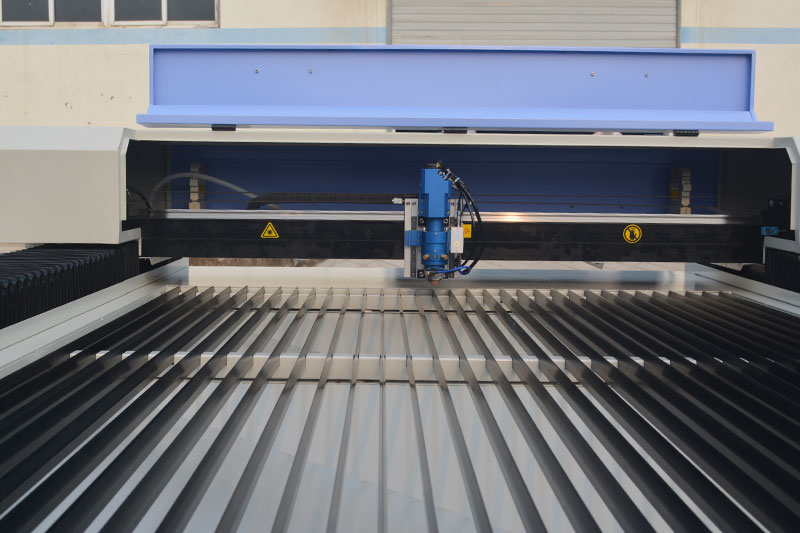

Working platform	Blade platform
Position accuracy	±0.05mm
Graphic support	BMP, PLT, DST, AI, DXF etc.
Cooling mode	Water cooling and protect system
Working temperature	0~45℃
Working humidity	5%~95%

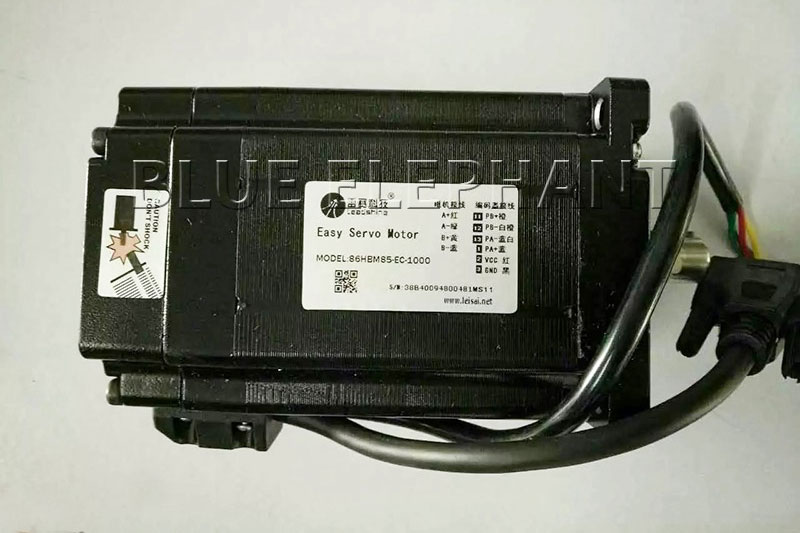

Drive motor	Stepper
Exhausting method	Exhaust by beam, funnel

FAQ

What materials can a CO2 laser cutter cut?

A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.

Can the CO2 laser cutter cut metal?

Yes, but with some conditions. The laser power of this CO2 laser cutter must be greater or equal to 130W. Besides, the laser head shall be a mixed type, which means that it can cut both metal and non-metal materials. For example, a 130W CO2 laser cutter can cut 1mm carbon steel and 1mm stainless steel.

Can I use this laser cutter for acrylic and fabric?

Yes, this CO2 laser cutter can cut many materials, including acrylic sheet, fabric, cloth, MDF, plastic. It can also engrave patterns on acrylic sheets.

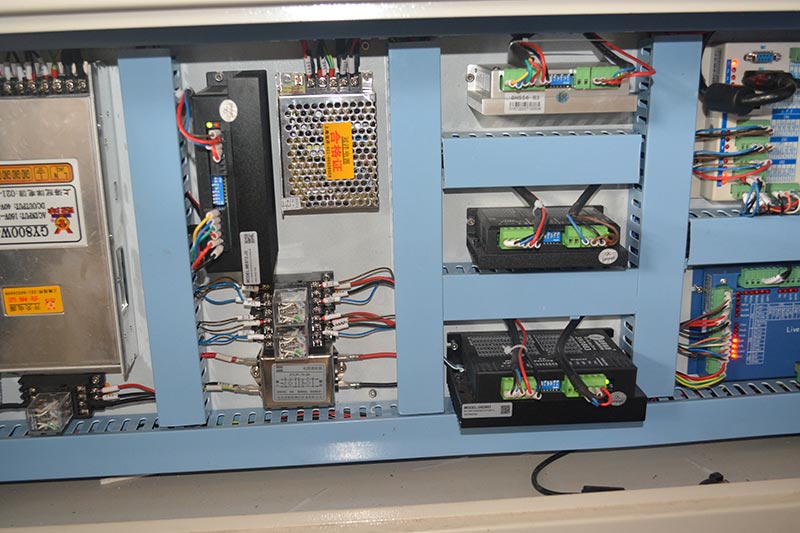

CO2 Laser Cutting Machine Details

Application

CO2 laser cutting machine is widely used in process non-metal materials. For example, wood, acrylic, feather, fabric, paper, plastic, etc. This dual use CO2 laser cutter can also cut thin meal sheets, like stainless steel, carbon steel, etc. The CO2 laser cutter has extensive usage in the industries of automotive inner decoration, toys, furniture, crafts, artworks, advertising decorations, paper products, wood products, feather products, fabric products, packaging, and other industries.
