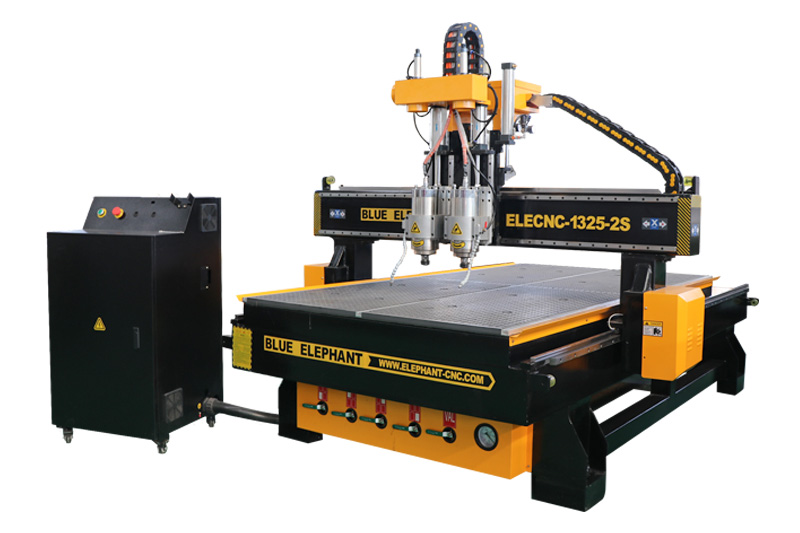

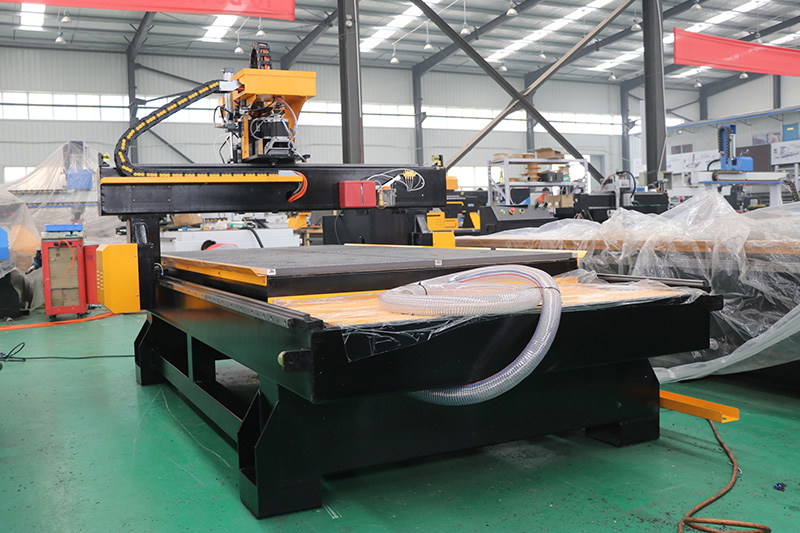

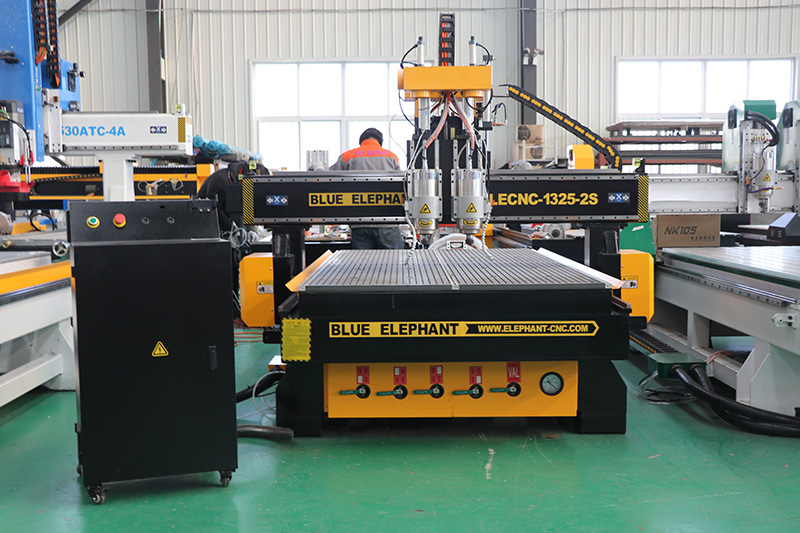

This is a multi-spindle engraving machine with two spindles. The two spindles can complete processing independently, so more flexible processing is realized. The two spindles can also work at the same time, which greatly improves the processing efficiency.

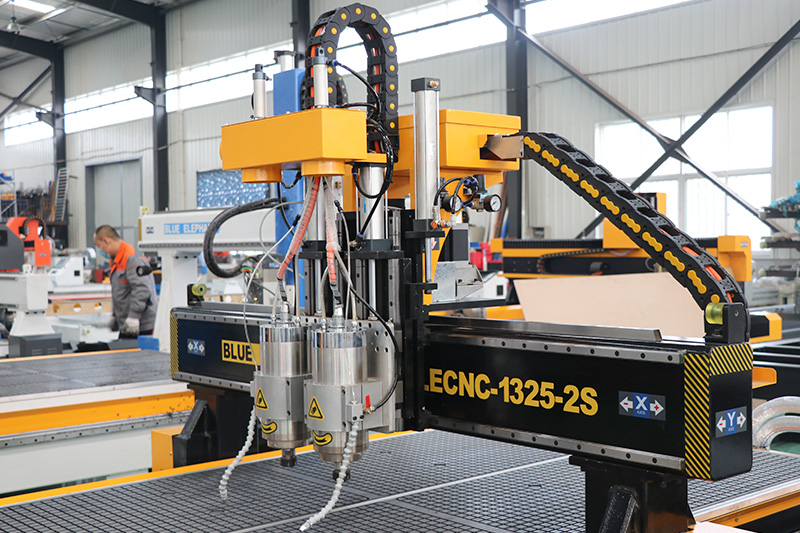

1. Equipped with two spindles, which can work independently to promote the working efficiency.
2. Adopting DSP control system, it is easy to learn and master.
3. With new type thicker and bigger heavy duty welded frame and gantry, the machine is more durable.
4. We provide customized services and full sets of teaching videos for all users.
| Model | ELECNC1325-2S |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
| Spindle type | 3kw Watercooling spindle* 2 sets, ER20 |
| Inverter type | 3.7kw* 2sets |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A15 Options：Ncstudio/NK105 |
| Driving system | Stepper motor and leadshine driver |
| Machine structure | Heavy dut ybody with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Linear guide | Taiwan linear guide |

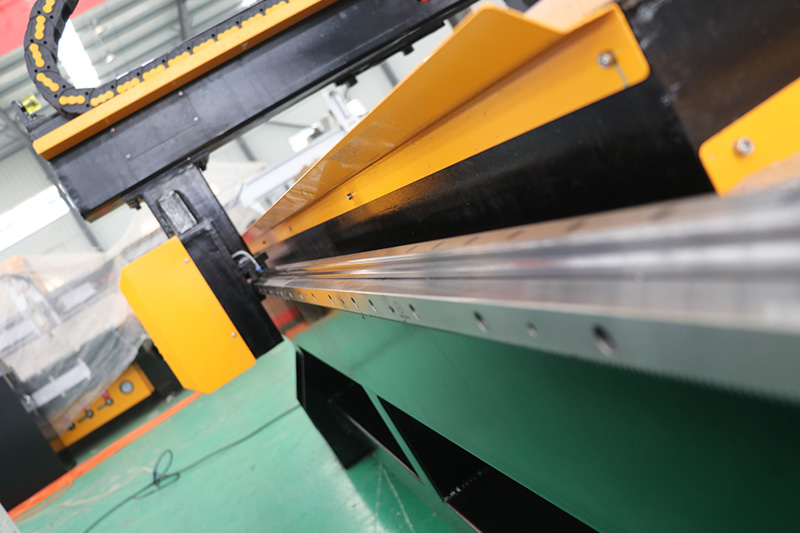

| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |

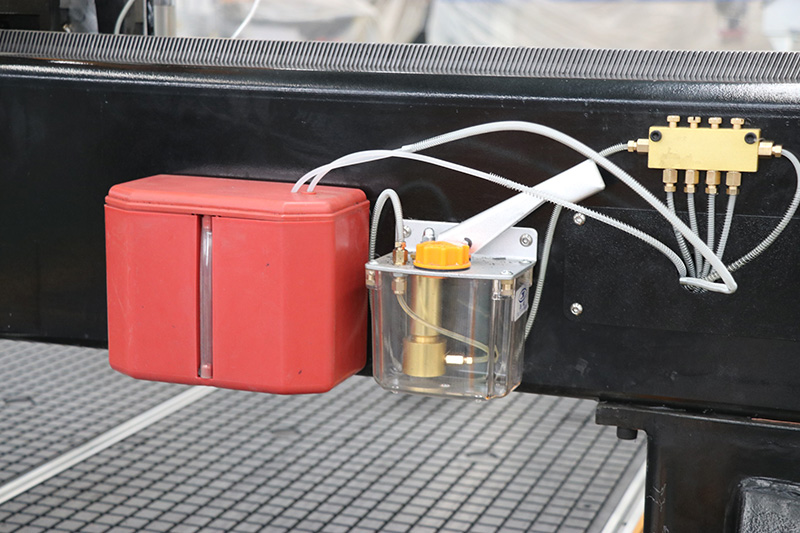

| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 30m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Germany, Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5KW, 5.5KW, 6KW |
Yes, the machine is with two inverters for two spindles. So these two spindles can work at the same time. If you choose one inverter, then the two spindles are used alternately. You can install different tools on the two spindles to realize tool changing.
You can use CAD software to draw your design, and use CAM software to convert designs to G code. Then put G code into the machine control system. We will send you ArtCAM or Aspire for free, or you can also use your own software.
The CNC machine is easy to learn and we have many customers are first time to use it. After you purchase the CNC machine, we will set up a service group on Whatspp or Skype. We will send you user manuals and instructional videos. If you have any questions you can always feel free to ask in the service group.
