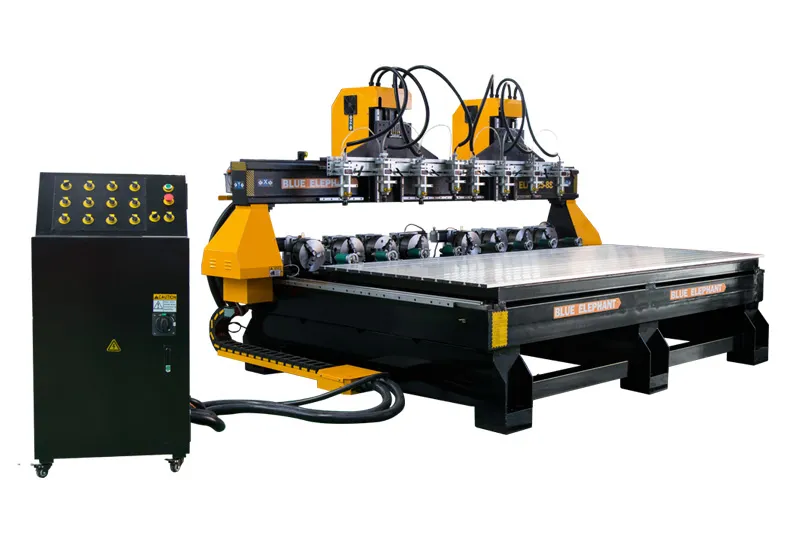

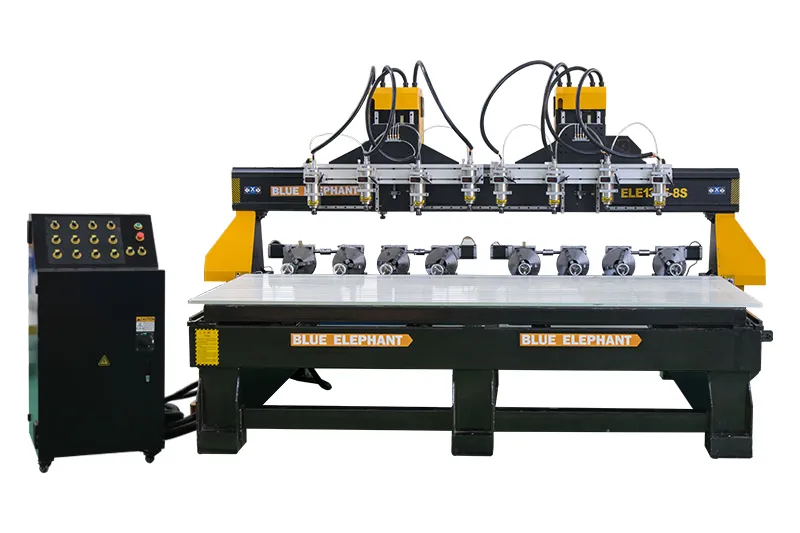

ELECNC-1325 Multi 8 spindles Woodworking Machine

Parameters

Features:

  • Compared with 4*8 Multi Spindle Woodworking Machine, the amount of spindle can be customized for 8 sets.
  • 8 Spindles work in the same time, greatly saved time to change tool manually. In this case, the machine has some similarities with ATC CNC Router Machine.
  • Both 2036 Multi Spindles CNC Router Machine and this machine was designed with rotary device to engraving cylinder objects. Meanwhile, it’s diameter, length and position can be customized according to your requests.
  • Removable t-slot table, multi function engraving machine process 2d、3d、4d figures.
  • Distinct from 0809 Multi-head 4 axis CNC Router, this machine was designed with two heads.

Advantages:

  • Multi spindles can work at the same time, and the machine can improve the engraving efficiency.
  • The account of spindle and working area can be customized according your requirements.
  • The machine are widely used for furniture( table legs, chair legs), stair handrails, sculptures, 3D relief and so on.
  • Please notice that It is an economical processing machine.

Parameters:

Descriptions Parameters
Product name ELECNC-1325-8s
Model 1325-8s+8r
Working area 1300*2500*300mm
Control system DSP  control system
Spindle 2.2kw*8 water cooling spindle
Spindle speed 0-24000RPM
Inverter 2.2kw*8 fuling inverter
Motor and driver 8 piece*FL 118 stepper motor and YAKO 2811 bigger and stronger driver
Voltage 380V, 3ph, 50Hz( can be customized)
Linear rail Sweden ABBA #20 linear guide for all axis
Table structure New type thicker and bigger heavy duty welded frame and gantry
Table surface Removable T-slot work table
X,Y axis transmission Helical rack and pinion drive for X,Y axis
Z axis transmission Taiwan TBI ball screw for z axis
lubrication system Auto lubrication system
Rotary device Rotary device with 200mm diameter

PS:All the working area and specifications can be customized according to your requests.
