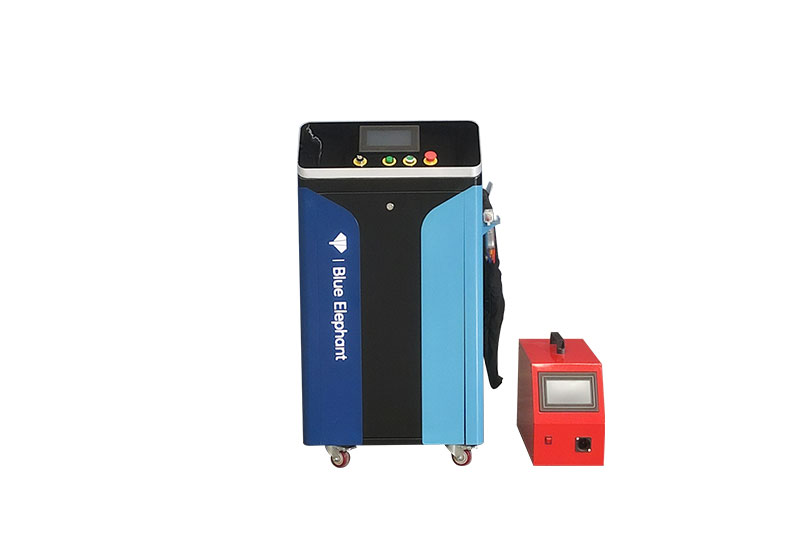

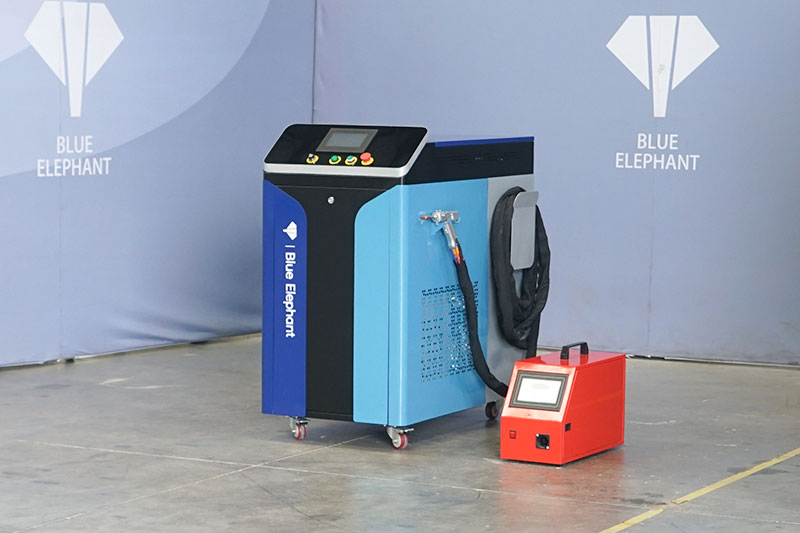

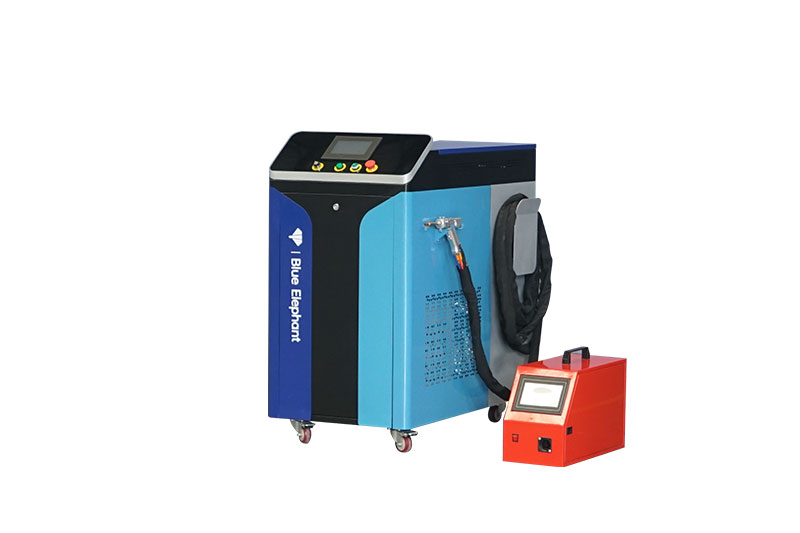

This conventional handheld 4-in-1 laser welding machine adopts the brand-new appearance design of Blue Elephant, which can realize laser welding, laser cleaning, laser cutting, weld cleaning. It can also weld and cut stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet and other metal materials to meet the different needs of users. At the same time, the machine has fast welding speed, flexible cutting and efficient cleaning, which is suitable for large-scale industrial production. This machine has great sales and are exported to countries such as the America, Mexico, and Peru.
1. The 4 in 1 laser welder has many functions, integrating welding, cleaning, cutting, and weld cleaning functions.

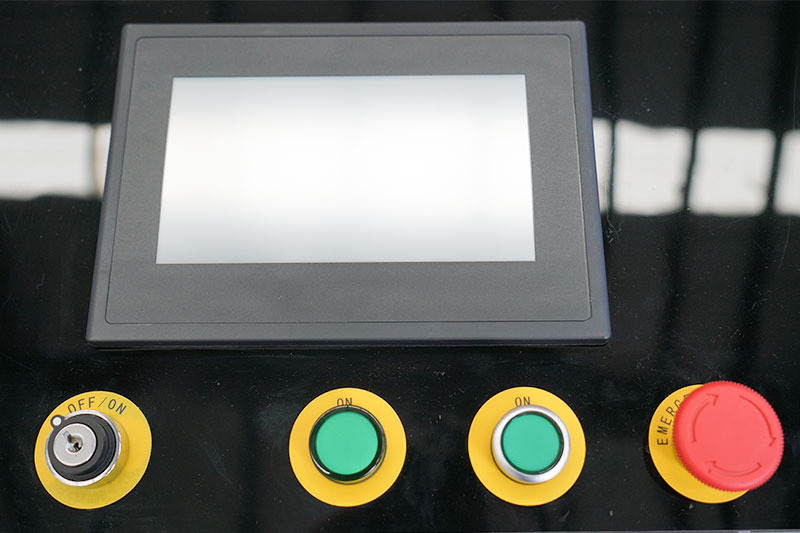

2. It supports 17 languages to switch independently. At the same time, welding, cleaning, and cutting can be switched flexibly.
3. The laser welding machine is handheld, and the bracket cable is longer, which is convenient for mobile work at any time.
4. To convert the welding function to the cleaning function, you only need to replace the focusing lens and the laser head.
5. It adopts handheld operation, which is convenient and easy to learn.
| Model | CCW20(General 4 in 1) |
| Function | Laser welding, laser cleaning, weld cleaning, laser cutting |
| Laser power | 2000W |
| Fiber laser | Maxphotonics Fiber Laser |
| Fiber length | 10m(Exposed 8m) |

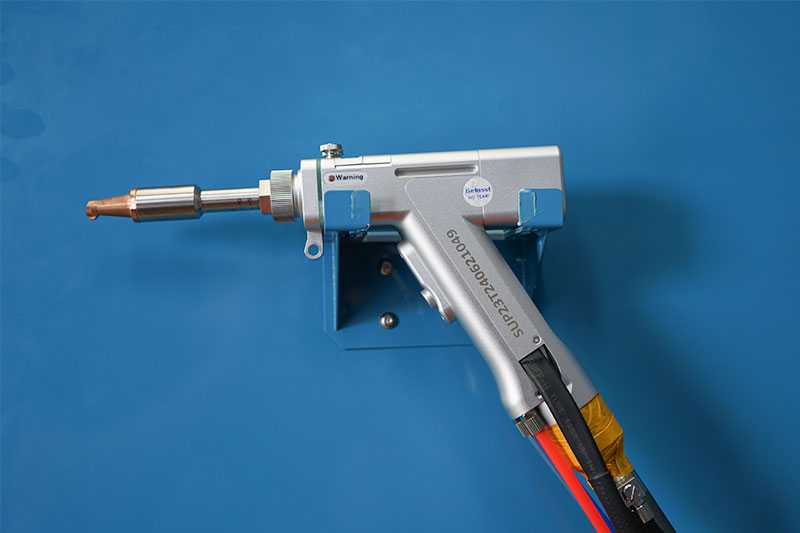

| Laser head | Chao Qiang |
| Cutting system | Chao Qiang System |

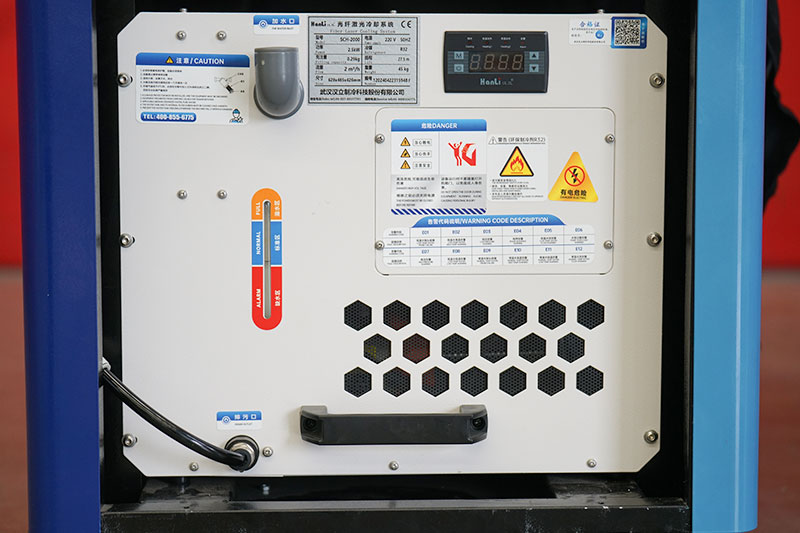

| Laser chiller | Hanli laser chiller |
| Wire feed configuration | Chao Qiang single wire feed |
| Welding/cutting materials | Stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet and other metal materials |
| Welding thickness | ≤5mm |
| Cutting thickness | 0-2mm |
| Cleaning objects | Dust, rust, coating, paint, oil and other pollutants on the workpiece surface |
| Cleaning width | 30mm |
| Cleaning thickness | 0.5mm |

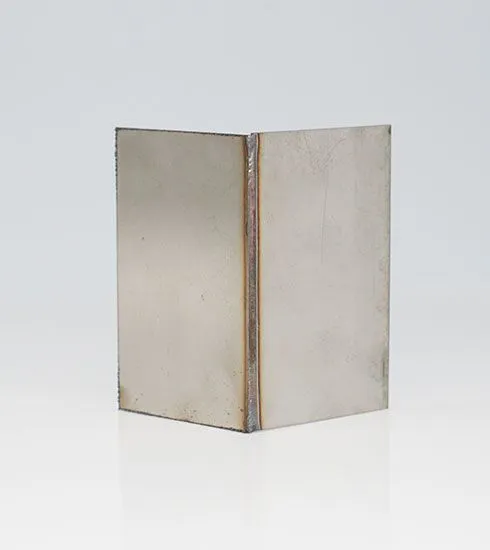

The welding penetration varies according to the laser power. For example, the welding penetration is about 1.5mm for 1000W laser, 2.0mm for 1500W laser, and 3.0mm for 2000W laser. The welding penetration of this machine is ≤5mm.

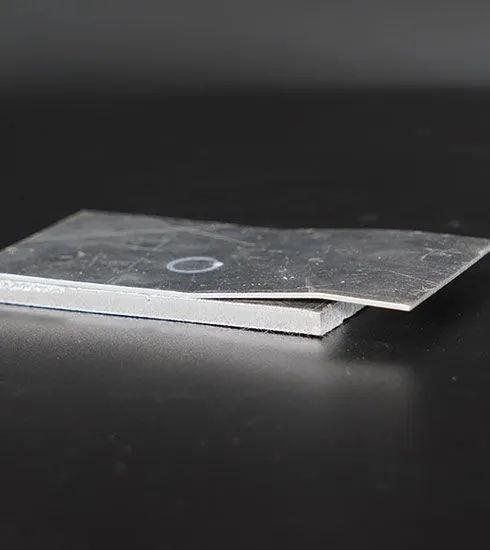

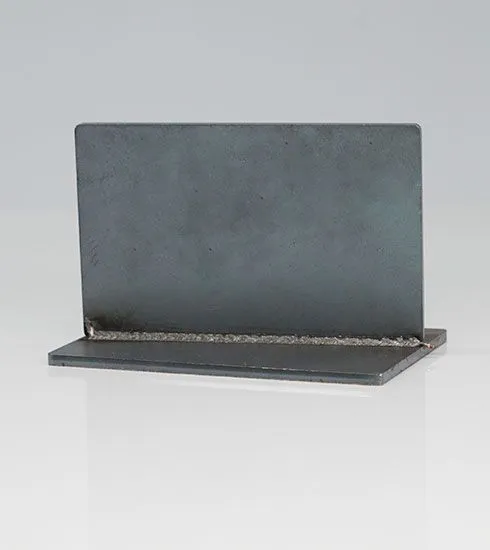

It can process Stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet and other metal materials.
Typical working speed for laser welding production ranges from 1 to 10 meters per minute based on different laser power. But the speed is subjected to the actual working conditions and processing materials.
