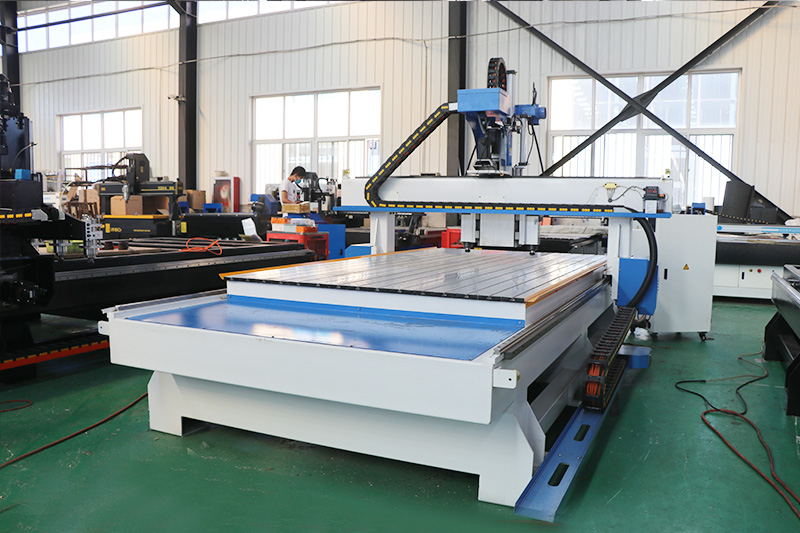

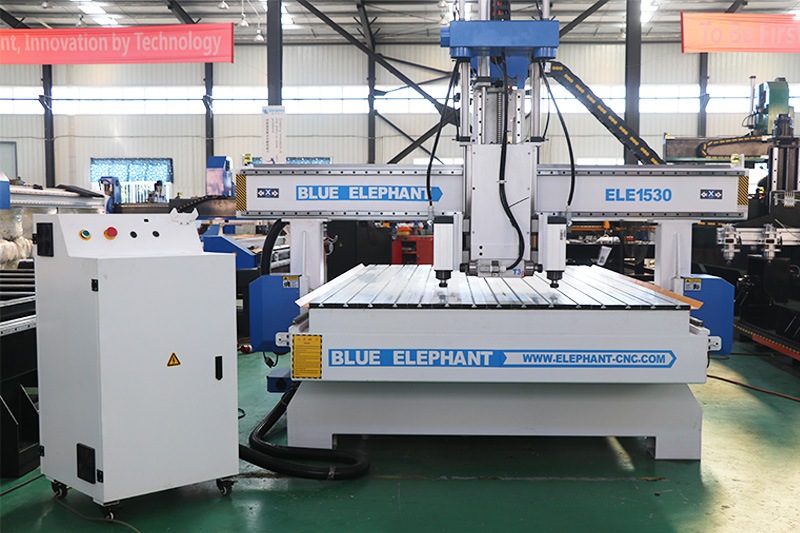

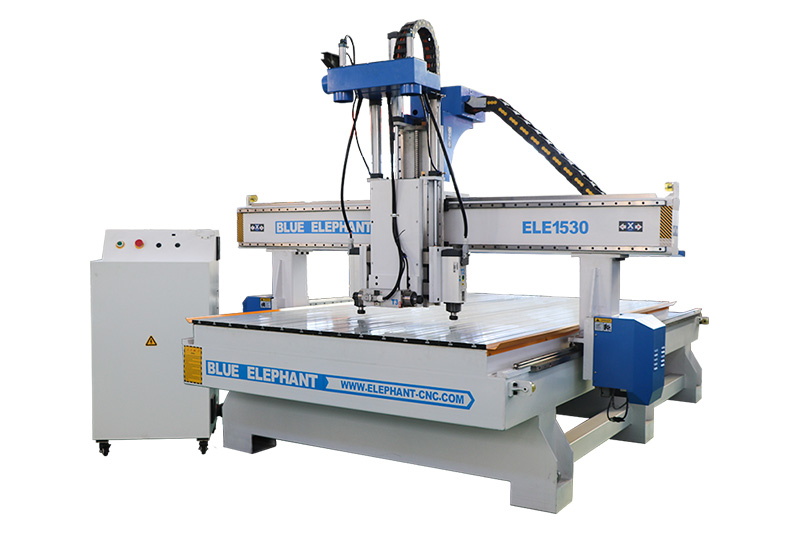

1530 Three Head CNC Router Machine for Sale
1530 Three Head CNC Router Machine for Sale - Image 2
1530 Three Head CNC Router Machine for Sale - Image 3

1530 Three Head CNC Router Machine for Sale

5.0 based on 28 ratings and reviews
  • Brand : Blue Elephant
  • Model : ELECNC1530-3S
  • Category : Multi-head CNC Router
  • Price Range : $10,000 to $30,000 / Set based on the configuration
  • Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
  • After-sale Service : Professional operation training service.
  • Supply Ability : 200 Sets per Month
Get Quote

1325 4*8 Two Head Rotary Axis Machine

1325-3s Rotary CNC Machien on MDF

Description

This multi head CNC router with three spindles can work independently to promote the working efficiency. And the amount of spindle can be customized according to your processing requirements.

Features

1. Equipped with two sets of HSD air cooling spindle and one set of Changsheng spindle.
2. Designed with double heads, and horizontal, the machine has a powerful processing ability.
3. Equipped with Lead shine servo motor and driver, it is simple to use and easy to operate.
4. Please notice that all the specifications can be customized according to your own actual situation.

Parameters

ModelELECNC1530-3S
X,Y axis travel1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc
Z axis travel200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle typeVertical spindles：3kw Italian HSD air cooling spindle×2set, 18000RPM
Horizontal spindle: 3.5kw ChangSheng water cooling spindle, with double head, 18000RPM
Inverter type3.7kw Taiwan DELTA
Control systemDSP A15 handle controller
Driving system750W Leadshine easy servo motors and drivers
Machine structureHeavy duty body more thicker and stronger
Work tableAluminum T-slot work table
Linear guideTaiwan linear guide 25#
TransmissionX,Y axis: Germany Helical Rack and Pinion
Z axis:Taiwan TBI high precision ball screw
Lubrication systemAutomatic lubrication system
Tool calibrationManual tool sensor calibration
CablesGermany Igus cables with CE, cUL certificate
Compatible softwareArtcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command languageG Code
Traveling speed30m/min
Working speed0-25m/min
Re-positioning accuracy±0.05mm
Working accuracy±0.05mm
Working air pressure0.6MPa
Working voltage220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Optional Items

Dust collect system
  1. Classic 3kw, 5.5kw etc, including dust hood, pipe, all full set
  2. New design 1.5kw double bags dust collector with CE certificate
Air compressor7.5kw air compressor
Spindle typeItalian HSD 4.5KW, 6KW, 7KW
Economic: Chinese HQD 4.5kw, 6KW, 7KW

Contact Us

FAQ

This machine has a horizontal spindle, which is very suitable for processing door lock holes.And the three spindles work one by one through the cylinder, which seems like a simple ATC CNC machine.

3950*2280*1900mm.

Yes, of course. The number of spindles is generally 1 to 4, you can choose in this range.

Multi-head CNC Router Details

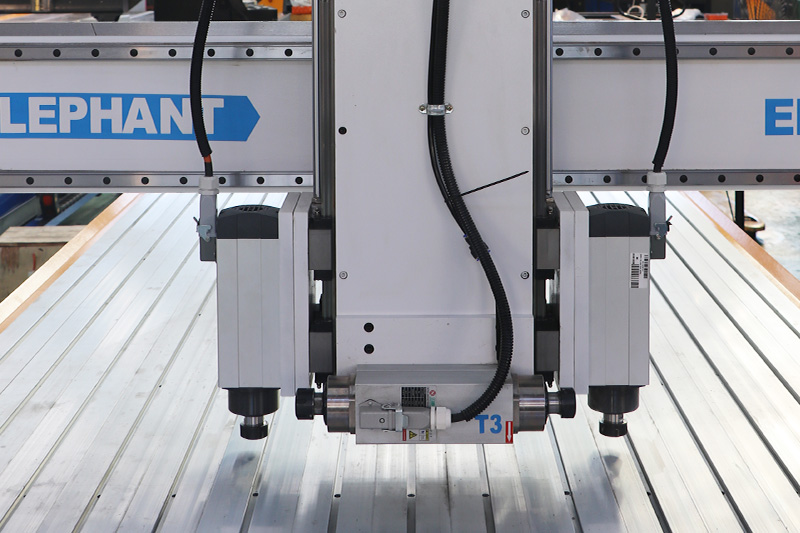

Two Spindles

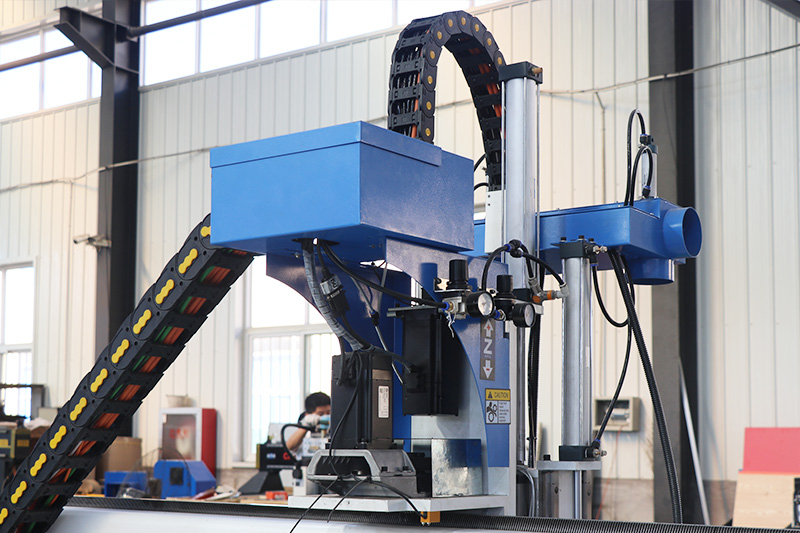

Lifting Cylinder

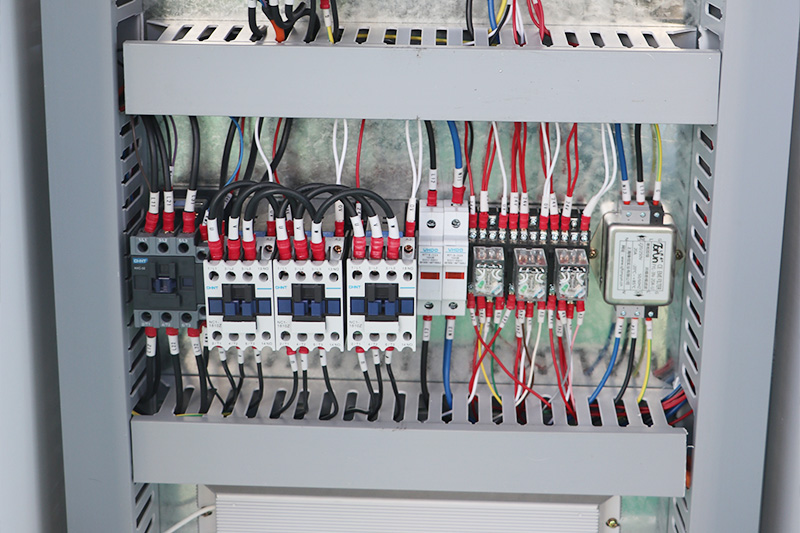

Internal Components

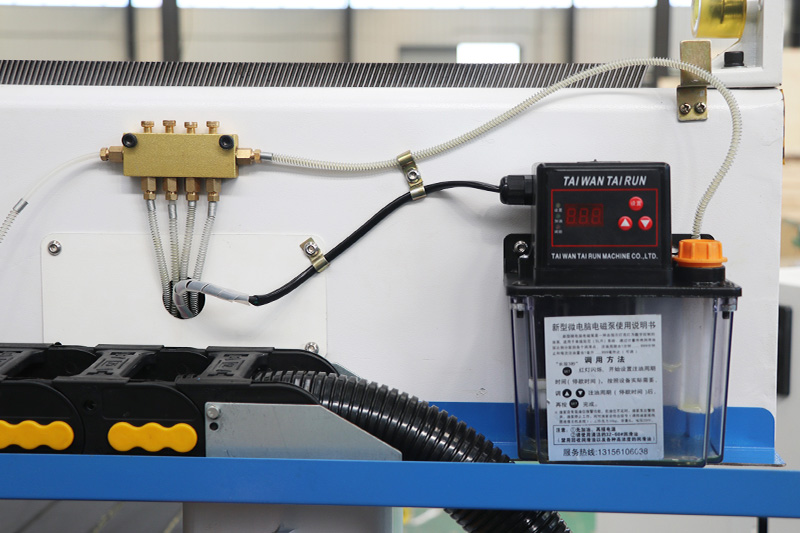

Automatic Lubrication System

Application

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.



Samples

Check Our Solution

Production Facility

Quality Control & Testing

Get Quote

Related Products

Related products

Review

Mattfrom USA - Nov 30, 2024
The one we already got from you is working great and we’ve made lots of money with it. Now I need another cnc router can work with 5*10ft sheets. I will reach out again in about a month when we have made a decision. I will made second purchase from Blue Elephant for sure.
Brown Aaronfrom UK - Nov 17, 2024
Due to the machine finished testing before shipping, I only connect with some electric cables and do few parameters setting. The machine can be working. I have deeply impression into faster installation. I made some simple test, the machine is running more faster and smooth, without vibration. This is exactly what I was expecting.
Jones Casparfrom Canada - Dec 05, 2024
During operation the machine, i faced some technical issues. The salesman setup the service group via whatsapp. Blue Elephant engineers help me step by step, until I am totally understand. Thanks for their patient and passionate help. I think that’s the most important reasons for more and more clients choose Blue Elephant.
Clarosfrom Portugal - Dec 12, 2024
We are happy with machine work. You know we are a government institution doing research in robotics cnc build some parts to our robots. We really like the machine performance.
