CNC wood router, do you know what it can be used for? Do you know what the CNC wood router can do?

If you want to know what the CNC wood router is used for and what the CNC wood router can do? You must not miss this article. First of all, we have to understand what wood CNC machine is, how the CNC engraving machine is processed and how it works, what types of engraving machines are, what processing advantages of engraving machines, and so on. Today, the editor of Blue Elephant CNC will share three parts from the engraving machine itself, the application industry of the engraving machine and the specific case of the engraving machine. Hope to help friends who are interested in engraving machine.

Part1. CNC Wood Router Knowledge

1.1. What is the CNC wood router?

CNC wood router is CNC router by computer-controlled related to the hand-held router and used for engraving various materials, such as wood, Acrylic, PVC board, MDF, marble, rubber board, plastics, glass, and foams, crystal, etc. And CNC router is also a combination of engraving and milling from the processing principle. And the CNC router is very similar in concept to a CNC milling machine. Instead of routing by hand, tool paths are controlled via computer numerical control.

1.2. What types of CNC machines are commonly used?

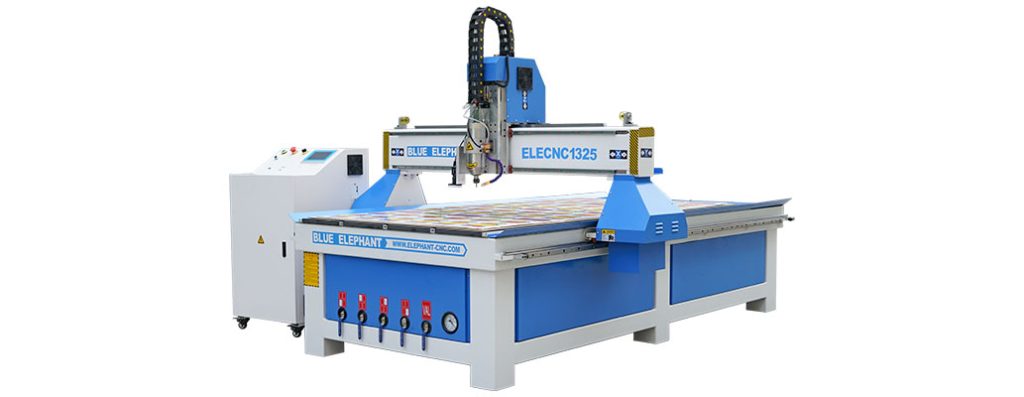

Firstly，i want to say the ordinary CNC wood router who is also called entry-level wood CNC machine. With the features of low cost, simple operation and easy maintenance, this CNC wood router is always favored by users at home and abroad. The CNC wood router mainly performs some plane processing on the board. If you are just doing flat machining on some plates, this three-axis engraving machine is definitely your ideal choice.

CNC wood router

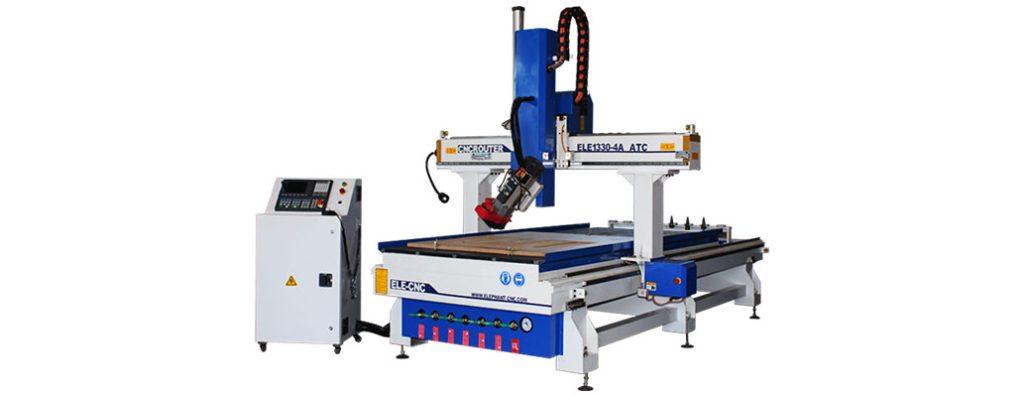

Secondly, i will introduce the 4 axis CNC router. Compared with the ordinary CNC wood router, this type of 4 axis CNC router refers to the CNC machine whose processing path include X, Y, Z, and A axes, and whose spindle can swing left and right. Because the spindle of this type of engraving machine can swing left and right, the spindle can approach the work piece from multiple different angles and efficiently process three effective processing surfaces. It can realize not only the plane engraving machine, but also the three-dimensional engraving of irregular work pieces. And this type of 4 axis CNC machine is suitable for common work piece, three-dimensional work piece, complex work piece and irregular graphics processing.

4 axis CNC router

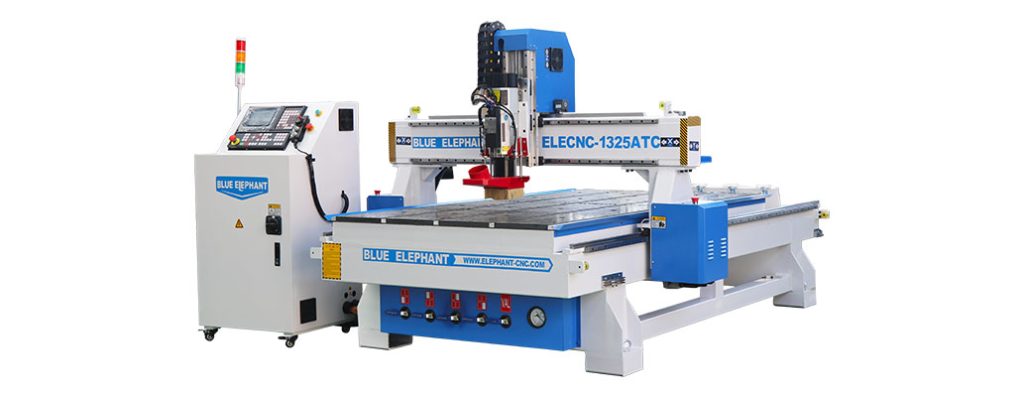

Thirdly, i will introduce the ATC CNC router. Compared with the traditional manual tool change production method, this type of ATC CNC engraving machine has an independent tool magazine with different tool bits. It can automatically change the required tools by computer program control without stopping work during processing. And it can complete a series of cutting, hollowing, grooving, punching, milling grooves, milling planes and other different processing needs. Therefore, both the processing quality and processing efficiency have been greatly improved. Therefore, this type of ATC CNC router is the first choice for enterprises with large production volume.

ATC CNC router

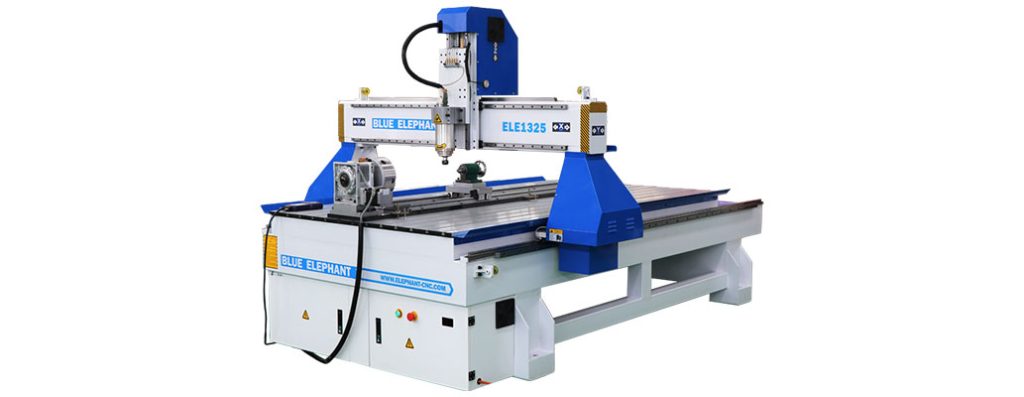

Fourthly, Then i will introduce the rotary axis CNC router. Compared with ordinary engraving machines, rotary axis CNC machine refers to these CNC router machines with rotary device. During the processing of the rotary axis engraving machine, it is not necessary to repeatedly rotate and process the work piece manually to reduce the number of clamping times and complete the processing of the work piece at one time. And this type of rotary axis CNC router mainly process cube or cylindrical work pieces.

Rotary axis CNC router

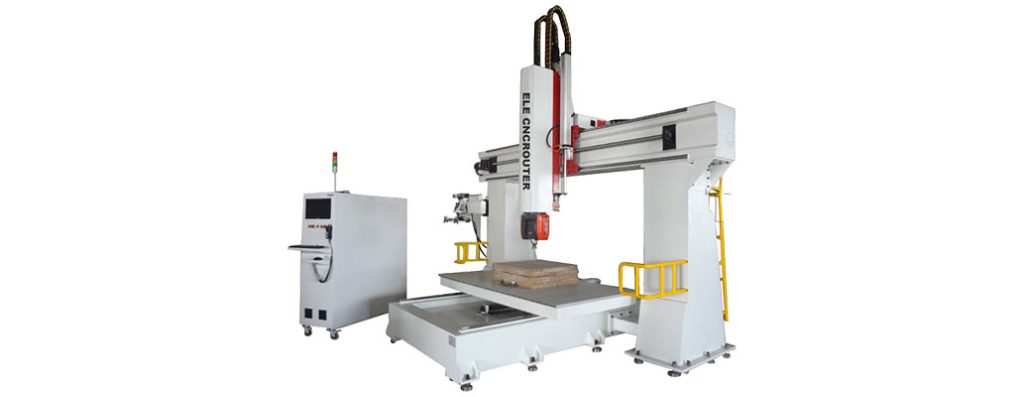

Fifthly, i will introduce the 5 axis CNC router. This type of 5 axis CNC router which have at least five coordinate axes (three linear coordinates and two rotation coordinates) on a machine tool, and different coordinate axes can be coordinated and moved simultaneously for processing under the control of a CNC system. This type of 5 axis CNC equipment has the advantages of high technology content and high machining accuracy, and is specially used for the machining of complex curved surface work pieces.

5 axis CNC Router

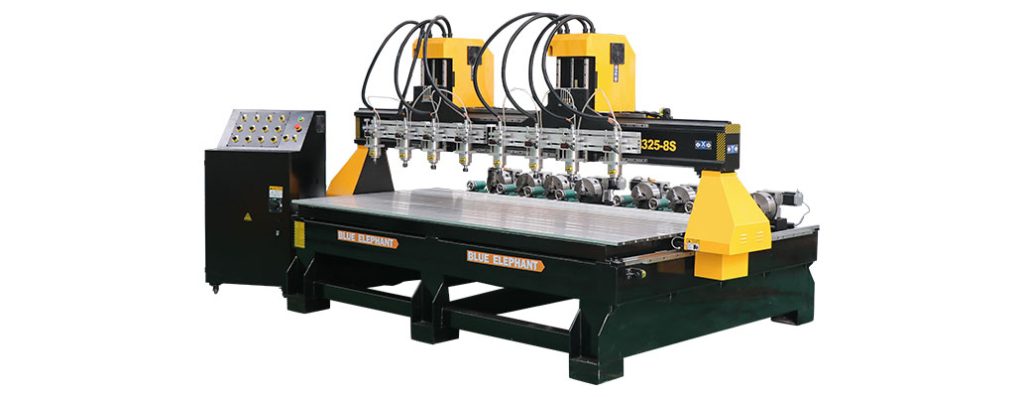

Sixthly, i will introduce the multi-head CNC router. This kind of wood CNC machine whose spindle can be customized according to the user’s specific processing needs. Multiple spindles can be processed simultaneously to meet the needs of batch processing of products. Especially when processing the same pattern on the board, multiple spindles process at the same time, which greatly improves the processing speed of the board. One machine can complete the production of multiple machines at once, which greatly improves the production efficiency, and the processed products have better consistency. In the case of a small production volume, a single spindle can be independently processed, and the production cost can be controlled reasonably and effectively. Therefore, multi-head CNC router is mainly designed for users with small product size and large processing volume.

Multi-head CNC router

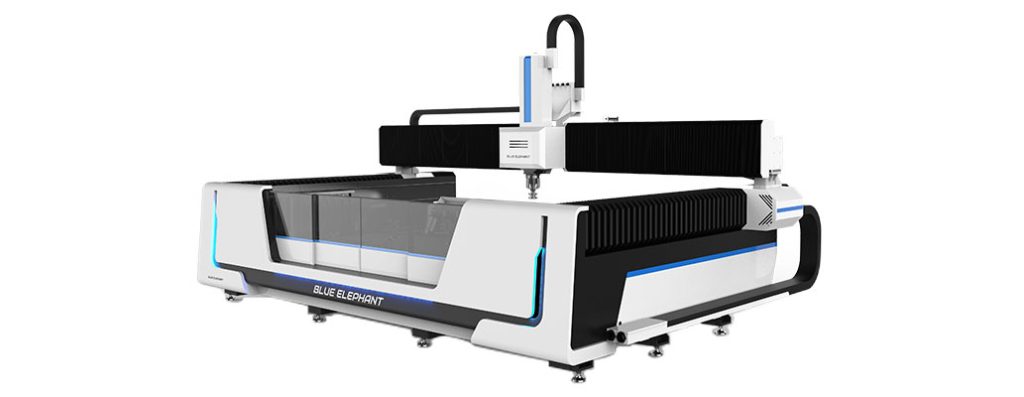

Seventhly, i will introduce the stone CNC router. This kind of stone CNC machine is suitable for the carving and engraving of various types of stone, jade, crystal, wood, man-made materials, synthetic materials, etc. The main functions includes embossing, lettering, hollowing out, cutting, seamless stitching, surface treatment, table milling and so on. And it is widely used in inscriptions, garden engineering, large-scale sculptures, handicraft carvings, home improvement, film and other industries.
Then, i will introduce the foam CNC router. Foam CNC router is also called EPS CNC wood router for processing foam. Relative to heavy-duty metal cutting machine, foam engraving machines are lightweight CNC machine. And compared with ordinary engraving machines, this type of foam engraving machine has a larger processing size and processing stroke. Especially in the mold industry such as automobile foam molds, gypsum molds, paraffin molds, large ship wooden molds, aviation wooden molds, propellers, and train wooden molds, this type EPS CNC router is very popular.

Stone CNC router

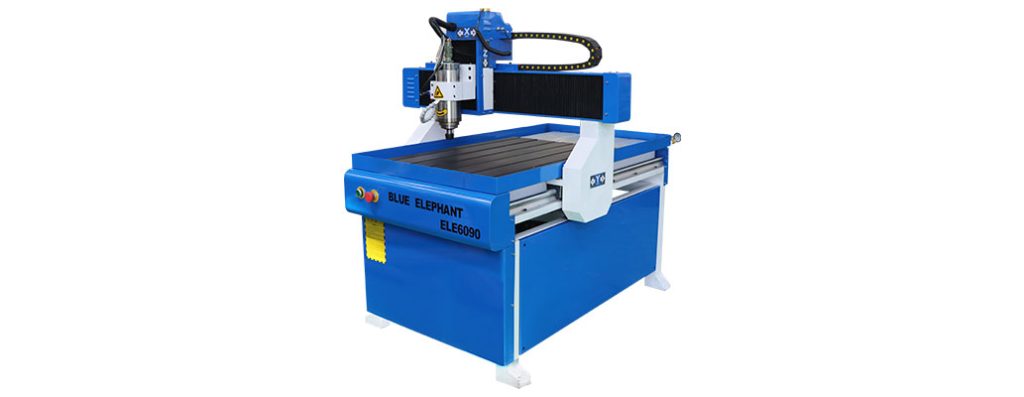

Finally, i will introduce the mini CNC router. Mini CNC router, also called small CNC router and desktop CNC router. Compared with other ordinary CNC machines, this small CNC wood router has a relatively small size. This type of small engraving machine has a compact structure and a small footprint, so it is easy to move and use. And this small CNC router adopt advanced industrial numerical control operation software and typesetting processing software to complete various processing requirements on small work piece of users. Therefore, mini CNC router is welcomed by woodworking enthusiasts and the advertising industry.

Mini CNC router

Part 2: CNC Wood Router Application

As a combination of drilling and milling, CNC engraving machine is mainly used for engraving with a certain depth mark on the surface of objects. Relying on the advantages of complete types, complete functions, high processing accuracy, and high processing efficiency, the CNC router is widely used by domestic and foreign users in various industries such as advertising industry, technology industry, mold industry, electronics industry, construction industry, printing and packaging industry, decoration industry, tombstone industry, crystal products industry. The following are the main applications of engraving machines in various industries.

1. Furniture industry

CNC engraving machine produces engraving parts, with high production speed and high precision. With the characteristics of complete types, high intelligence, practicality and efficiency, mass production, high speed and high efficiency, it can realize most solid wood engraving or panel milling operations. And it can retain the natural color, texture and texture of solid wood materials, so it is widely used in the furniture industry and has become the first choice for the furniture manufacturing industry. For example, the application of the engraving machine in the furniture industry is shown in the plane carving of large-area plates, solid wood furniture carving, solid wood art mural carving, solid wood carving, MDF paint-free door carving, kitchen window door carving.

2. Wood products industry:

Wood products mainly cover furniture wood products, office wood products, craft wood products, garden wood products, living wood products and other major fields. The processing of the engraving machine covers no matter what field it is, the engraving machine can easily achieve the ideal processing effect. In addition, the engraving machine can also be displayed in the production of wooden industrial products such as sewing machine countertop, electrical cabinet panels, sports equipment and so on.

3. Advertising industry:

Common materials in the advertising industry are non-metallic materials such as double-color boards, organic boards (acrylic), artificial stones, PVC boards, wood, MDF, and ABS. The advertising industry mainly involves badges, modeling, steel molds, carved seals, furniture carvings, gifts, souvenirs, handicrafts, signboards, sign production, hand boards, punching, printing factory knife molds, advertising word cutting, carving advertising light box production, etc. . The engraving machine has simple operation, flexible processing methods, and excellent processing quality. It has always been popular among users in the advertising industry.

4. Mold industry:

In the process of mold manufacturing and production, the use of CNC machining technology can not only ensure the accuracy of the mold, but also facilitate the efficient and efficient design and processing of the mold. Therefore, CNC technology plays an important role in mold manufacturing. In the mold industry, CNC engraving machines can be used to engrave various architectural models, physical models, bronzing molds, motors, wooden molds, aviation wooden molds, propellers, automobile foam molds, shoe molds, badges, embossing molds, cookies, chocolates, and candy Mold etc.

5. Residential and construction industry:

Residential / commercial construction: Residential / Commercial Construction: cnc router can be applied to all kinds of wooden decoration, such as stairs, railings, panels and slat fences can be durable for many years, private houses often use wooden frame, wooden floor, and wooden structure stairs. Large wooden beams, wooden window frames, wooden floors, paneling and cabinets can often create breathtaking commercial spaces. Modular wooden buildings can be assembled in an instant to produce large and complex wooden structures such as factories and warehouses. These blue elephant wood carving machines can do it for you.

6. Stone carving industry:

The CNC engraving machine is a product of the combination of traditional engraving technology and modern CNC technology. It inherits the fine, light and flexible operation characteristics of traditional engraving. At the same time, it uses the automation technology in modern CNC machining and is widely used in various industries. The processing materials mainly involved in the stone carving industry include granite, marble, artificial stone, bluestone, sandstone and other various stones. The stone carving industry mainly involves small-sized stone products for viewing and hanging. As well as figures and animal stone carvings. Such as celebrity statues, Buddha statues, stone lions, etc. There are also some daily necessities including tables, chairs, stools, coffee tables, lamps, inkwells, etc. There are also some inscriptions and stone carvings. Such as various monuments, tombstones, etc.

7. Crafts industry:

The crafts industry mainly involves various furniture, lighting, ornaments, models, root carvings, study, utensils, pen holders, combs, screens, doors, coat racks, coffee tables, craft boxes, jewelry boxes, jewelry boxes, wine racks, craft painting , Buddha statues, pendants, etc. Engraving machines in the handicraft industry are characterized by carving various types of characters, patterns, and outlines on various handicrafts and souvenirs.

8. Musical instrument industry

Many musical instruments are mainly made of wooden materials, including clarinet, oboe, big pipe, clarinet, special flute, flute, Sheng and other woodwind instruments, Huqin, matouqin, violin, Banhu, Yehu and other bowed string instruments, clapper, wooden fish, sound Percussion instruments such as boards and drums. The application of the engraving machine in the musical instrument industry is manifested in engraving the three-dimensional curved surface of the musical instrument and cutting the appearance.

Part 3. CNC Wood Router Sample

With strong company strength, perfect after-sales service, rich experience in the CNC industry, and complete CNC machines, the CNC engraving machine produced by Blue elephant CNC has been unanimously recognized by users at home and abroad. Every year, thousands of CNC machines are sold to various countries and regions at home and abroad. Since its establishment, it has provided customized production solutions for more than 8000 users. Every user we have worked with is not just a relationship between sellers and buyers, we are also friends who make progress together. Every day we receive feedback from users from different countries about receiving the CNC machine, installing the CNC machine and processing samples, etc. Customers are happy to share with us everything about the machine. We are also very happy to receive different feedback from users. The following are samples of users from different countries using different types of engraving machines. Let’s enjoy it together.

1. Samples from Portuguese users

The following are the processing samples shared by a user from Portugal. From the pictures, we can see that the customers mainly do carvings of Buddha statues and signs. For the carving of Buddha statues, the precision of carving is relatively high especially expressed in the processing of the outline of the characters and the processing of the patterns. These samples are processed by 1212 3 axis woodworking engraving machine. The Mach3 control system used in this machine is very easy to operate. You can meet any processing of non-metallic materials without high procurement costs and training costs.

2. Samples from Lebanese users

The following are samples of processed chairs shared by Lebanese users. The chairs in the picture are made by using a 2040 3-axis engraving machine. Customers said that their main processing materials are some non-metallic materials such as wood, which mainly involve the engraving of planes of different sizes of plates and the simple processing of cutting, etc., without too much complicated work piece processing. So they chose a 3-axis woodworking engraving machine with a large table. Because the table is large, it is widely used and can handle large or small work pieces. For example, the chair back and sitting surface in the picture.

3.Samples from Japanese users

The following are sample feedback shared by our users in Japan. Customers are mainly engaged in some processing in the advertising industry, such as the production of LEDs, advertising words, signs, the production of light boxes, etc. The customer showed us that they were processed by a 1325 3-axis CNC router. This type of wood CNC machine is an entry-level wood carving engraving machine. It has the advantages of low procurement cost, simple operation, convenient use, no special maintenance, etc. It has always been thought that customers choose more wood CNC machines. Especially for new users in the engraving machine industry, it is an ideal choice.

4. Samples from Pakistani users

The pictures below are sample feedback shared by Pakistani users. The customer stated that it was processed using a 1325 rotary axis CNC router. From the pictures, we can see that the customers show us mainly the processing of the cabinets. According to the requirement with the customers, the customers mainly deal with the furniture industry, which not only involves simple pattern processing on various sizes of wooden boards, cutting the entire template and hollowing out the plates, but also involves some furniture legs Processing of cylindrical work pieces such as handrails. Therefore, this engraving machine that can process both flat and cylindrical work pieces is indeed a good choice.

5. Samples from Chilean users

The pictures below are the feedback about the round table samples shared by users in Chile. The customer used an 1825ATC woodworking engraving machine. From the original production of single Chinese furniture, the customer has now expanded to the production of various styles of furniture industry. The processed products include not only the processing of beds, cabinets, tables, chairs, but also some European furniture with complex patterns . Customers have also upgraded from the initial 3-axis engraving machine to 4-axis engraving machine and automatic tool change engraving machine. We are also very pleased to see users continue to expand production scale.

6. Samples from New Zealand users

The following cool samples are processed by New Zealand users using a 1325 4 axis engraving machine. From the pictures, we can see that customers mainly process various signs. The client said that he is mainly engaged in the advertising industry, and is mainly engaged in the production of signs of various materials. This four-axis engraving machine is fully functional, not only capable of handling simple planar machining, but also capable of processing complex three-dimensional work pieces. The continuous creative inspiration of users combined with this powerful engraving machine can easily achieve the ideal processing effect of users.

7. Samples from Zimbabwe users

The following exquisite crafts are processed by Zimbabwe users using CNC laser machines. Before purchasing the machine, the user stated that he was mainly engaged in the processing of various work pieces in the handicraft industry, and mainly small and delicate work pieces. These work pieces have relatively high requirements for machining accuracy, and require more flexible machining methods. This laser engraving machine adopts non-contact processing, does not cause any pressure on the work piece, and the processed edge is relatively smooth and delicate, so it is very suitable for the user’s production and processing.

8. Samples from Azerbaijani users

The following stone carvings were processed by Azerbaijani users using a 2113 4-axis engraving machine with automatic tool change. From the picture, we can also see that the customer is mainly carving stone, involving flat carving, hollowing and other processing techniques. This stone engraving machine with tool change function can not only carry out simple plane engraving machine, but also realize complex hollow processing of three-dimensional work pieces. In addition, this machine also has an automatic tool change function, which effectively improves the processing efficiency.

9. Samples from Hong Kong users

The following statues are processed by Hong Kong users using 1824EPS engraving machine. Customers say that their main processing material is foam. So after understanding the processing functions of various engraving machines, they chose this EPS engraving machine. This type of engraving machine has a large processing stroke and processing height, which is very suitable for the processing of various large foam molds and statues.

This article is not only helpful for you to understand the CNC wood router, but it is also helpful for you to know how to choose the appropriate CNC wood router machine according to your processing needs. Have you learned what the CNC wood router can do and which industries the CNC wood router can be applied to?
