1. THREE AXIS MACHINE

A : Mach3

B : Ncstudio 53C,95A-3l 95A-4A(rotary)

C : DSP A11 B11 A18 B18 A51 B51

Please select this one processor

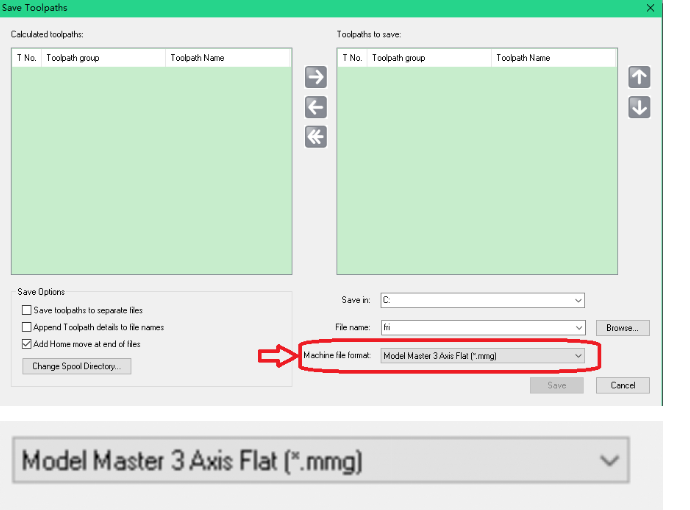

Name: Model Master 3 Axis Flat(.*mmg)

2. All the rotary , please select this one postprocessor .

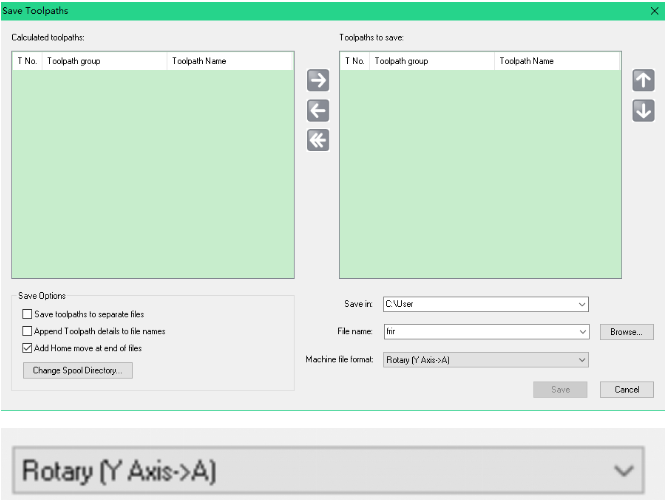

Name ：Rotary (Y Axis-> A)

3. Siemens 808/828 ordinary triaxial and Siemens 808/828 ATC machines.

Please select one.

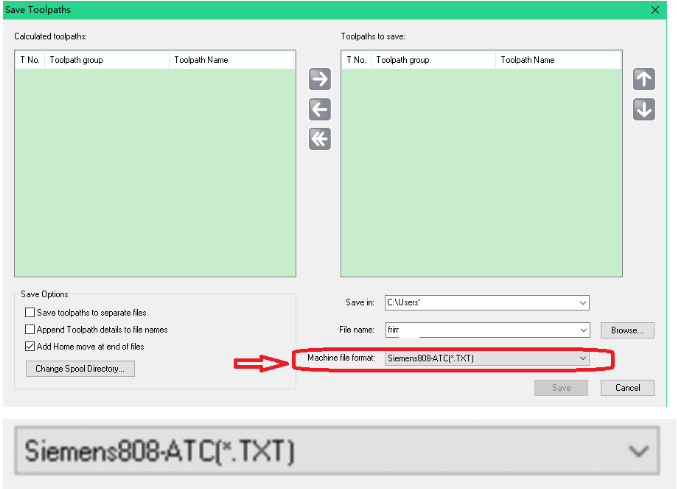

Name : Siemens808-ATC(*.TXT)

Attention

After install ARTCAM , Please find then copy this file

Then patse it to ARTCAM install folder ,here is am example :

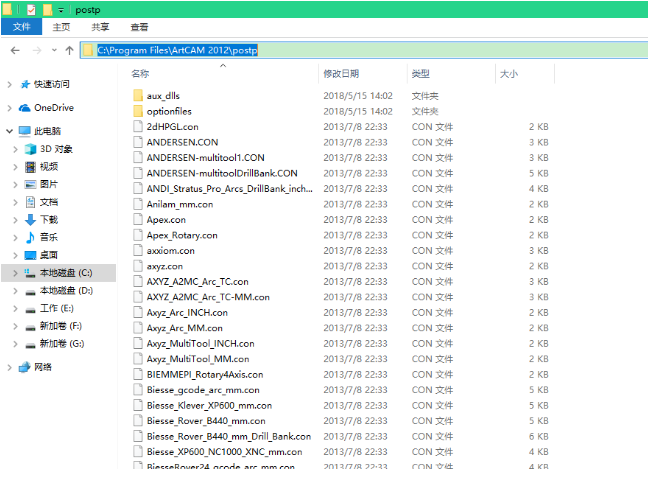

C:/Program Files/ArtCAM 2012/postp

4. Syntec 3 axis and Syntec ATC,please select this one .

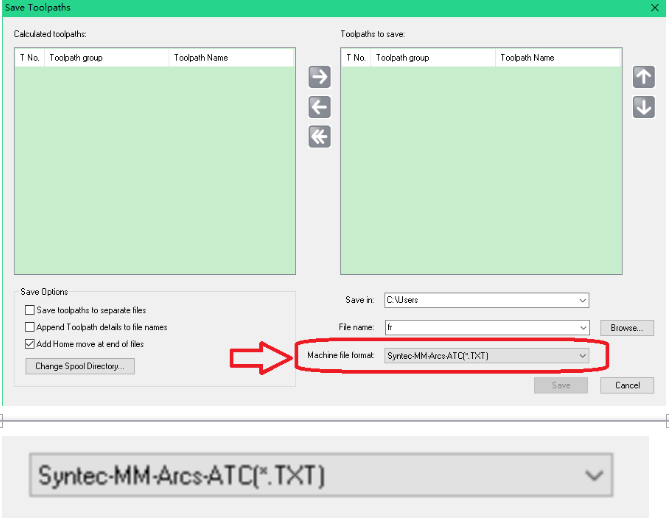

Name : Syntec-MM-Arcs-ATC(*.TXT)
