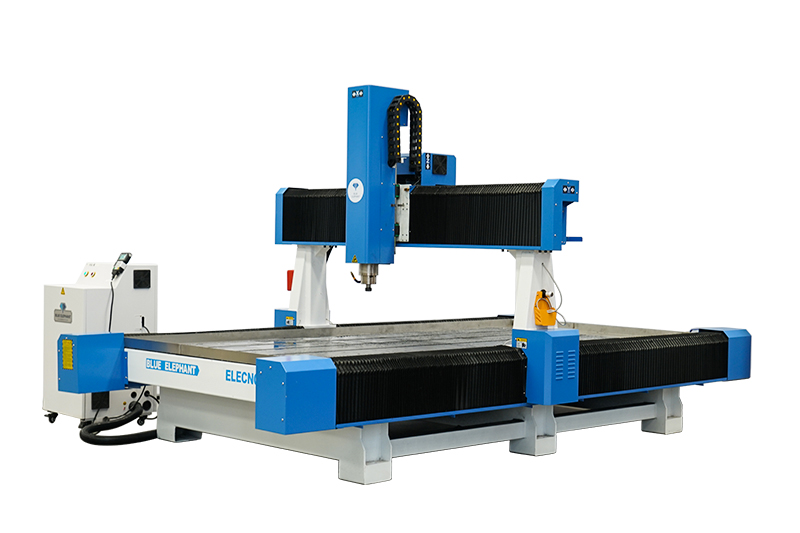

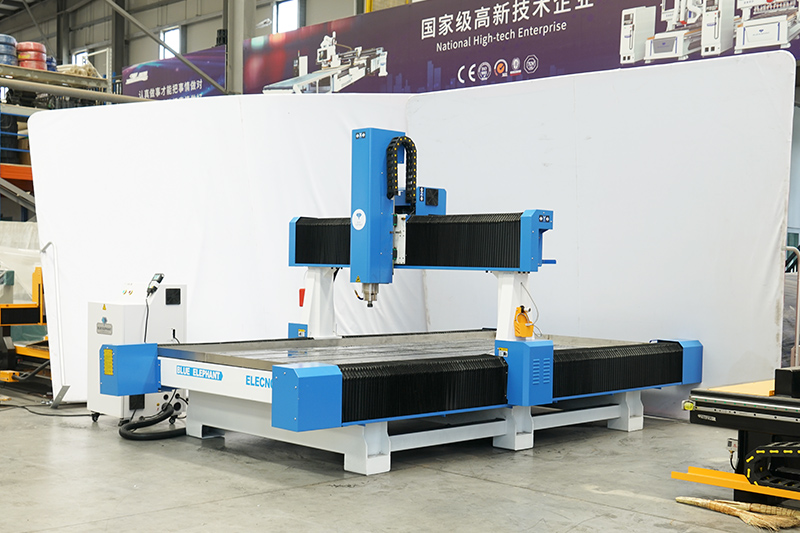

This customized stone engraving machine is able to cut, engrave, and shape stone slabs. We add the DSP A11 control system to manages the movement and speed of the machine. Moreover, the extra added a powerful saw spindle can horizontally cut stone slabs at high speed.

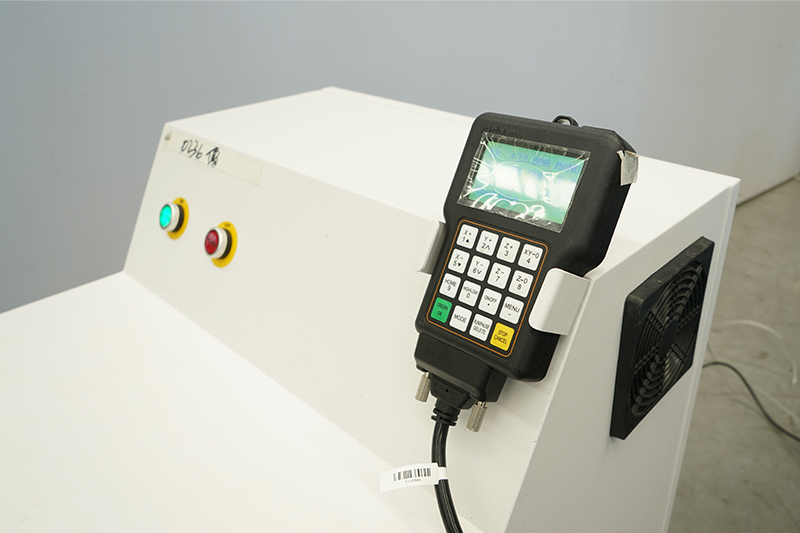

1. DSP A11 control system has a built-in watchdog timer that monitors the system and prevents it from crashing or malfunctioning. It also has a fault self-diagnosis function that can detect and diagnose any problems with the system, making it easier to troubleshoot and fix issues.
2. The high 400mm Z axis allowes 600mm materials feeding height, which made loading be more convenient.
3. Fuling inverter uses advanced control algorithms to maintain a constant speed and torque, even when the load changes. This allows for consistent cutting performance and reduces wear and tear on the machine.
| Model | ELECNC1228 |
| X, Y axis travel | 1200*2800mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 200mm, 300mm, etc |
| Spindle type | 5.5kw water cooling spindle |
| Inverter type | 7.5kw Fuling inverter |
| Control system | DSP A11 |
| Motor & Driver | 850w Leadshine servo motor and driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T- slot with PVC working table |
| Linear guide | Taiwan Linear guide, # 25 |
| Limit | Japan Omron limit |

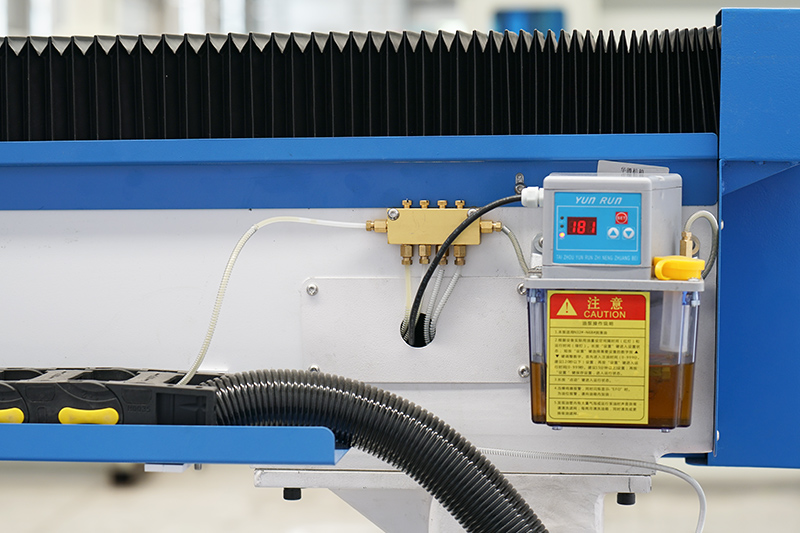

| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| X,Y,Z Working Area | 1200*2600*400mm |
| Table Surface | T- slot with PVC working table |

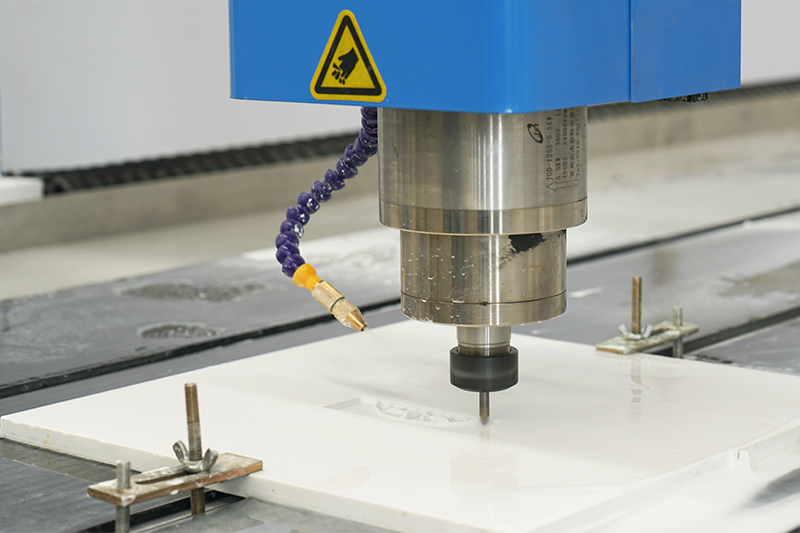

| Spindle | 5.5kw water cooling spindle, 24000rpm |
| X, Y Structure | Taiwan linear guide 25# |
| Z Structure | Taiwan TBI ball screw |
| Motor and driver | 850w Leadshine servo motor and driver |
| Inverter | 7.5kw Fuling inverter |
| Control System | DSP A11 control system |

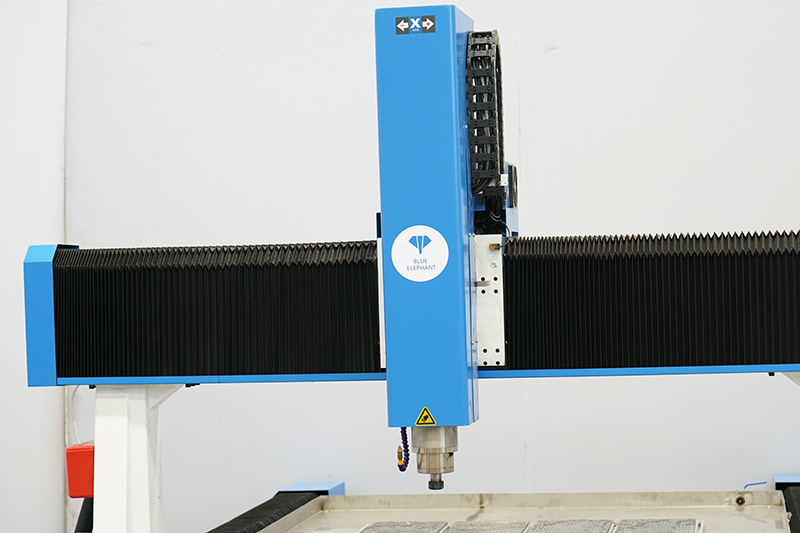

| Dust cover | 3 axis dust cover |
The machine is easy to install. We have manuals and teach videos in English to help you. Our engineers can also teach you step by step.
Yes, the tools for stone are different with tools for wood. It needs stone processing tools.
Yes, it is with Mach3 control system. You can operate it by laptop. Mach3 system has upgraded since 2020. It also has memory function.
