Customized 1325 Stone Cnc Router for Engraving Stone (10)

Parameters

Features:

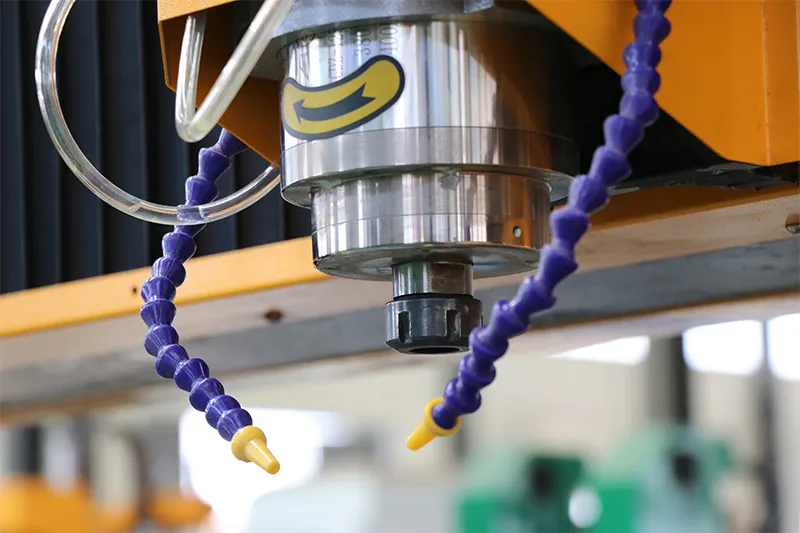

  • 6.0kw water cooling spindle, 7.5kw Fuling inverter. The most famous brand, have after-sales service all over the world.

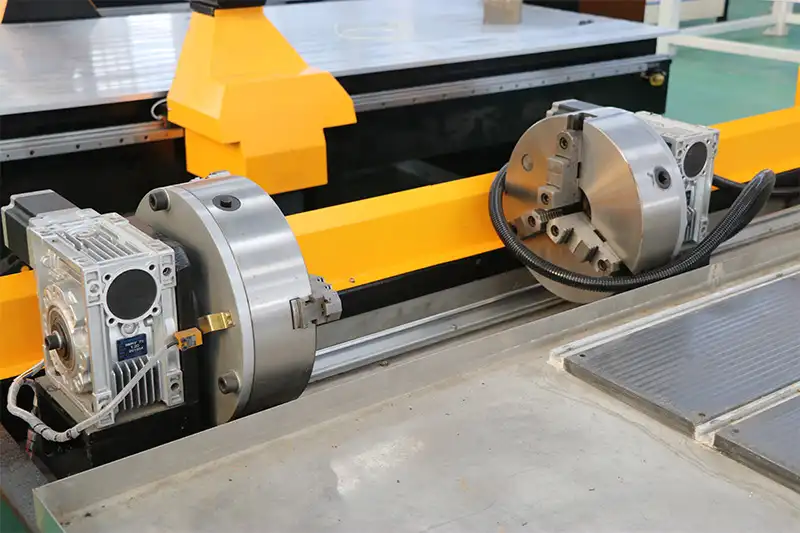

  • 300mm diameter rotary device with double chucks, meet your diverse job needs.
  • FL118 Stepper motor and YAKO2811 Big Driver.

Parameters:

Description Parameter
X,Y,Z Working Area 1300*2500*300mm
Table Surface T-slot table and stainless steel water tank
Spindle 6.0kw water cooling spindle
X, Y Structure Taiwan linear guide 25#
Z Structure Taiwan TBI ball screw for Z axis
Motor and driver FL118 Stepper motor and YAKO2811 Big Driver
Spindle Speed 0-24000RPM
Inverter 7.5kw Fuling inverter
Command Language G Code
Control System DSP B18 control system
Computer Interface USB
Warranty guarantee 12 months
Software Compatibility Artcam Software in English
Running Environment Temperature 0 – 45 Centigrade
Working Voltage 380V,3 phase,50HZ

PS:All the working area and specifications can be customized according to your requests.

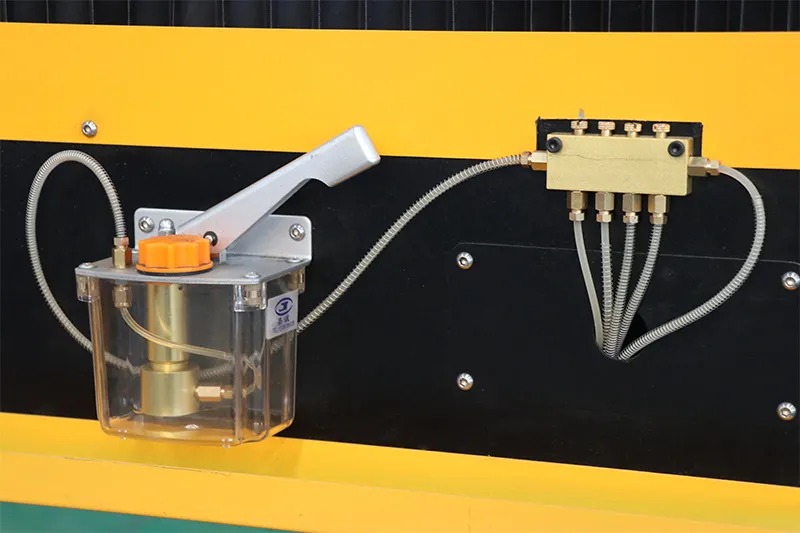

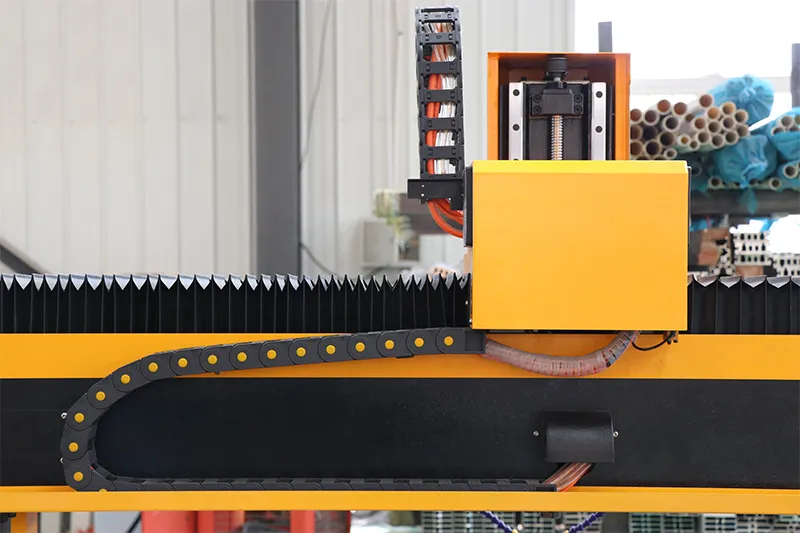

Close-up Pictures:

Customized 1325 Stone Cnc Router for Engraving Stone (3) Customized 1325 Stone Cnc Router for Engraving Stone (4) Customized 1325 Stone Cnc Router for Engraving Stone (5) Customized 1325 Stone Cnc Router for Engraving Stone (8) Customized 1325 Stone Cnc Router for Engraving Stone (7) Customized 1325 Stone Cnc Router for Engraving Stone (1) Customized 1325 Stone Cnc Router for Engraving Stone (9) Customized 1325 Stone Cnc Router for Engraving Stone (6)
