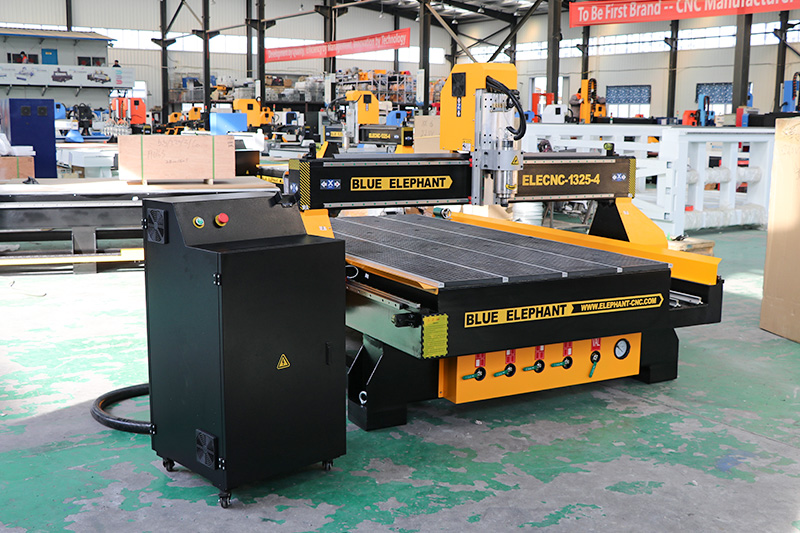

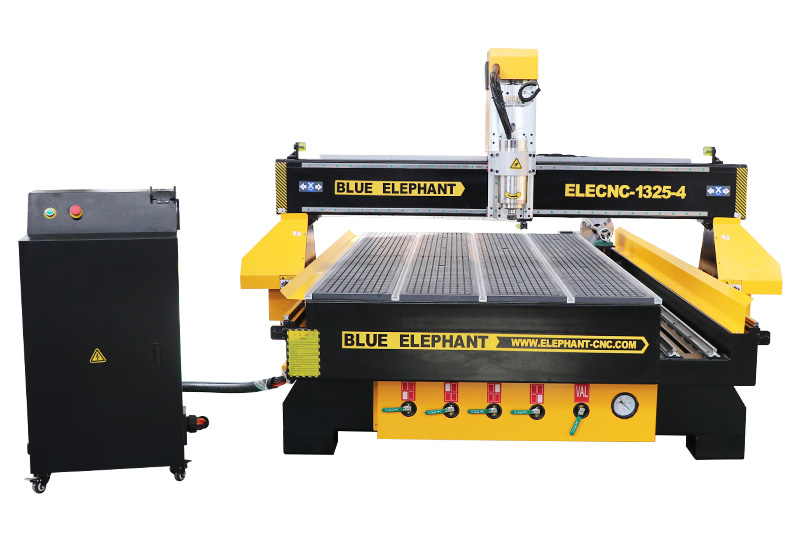

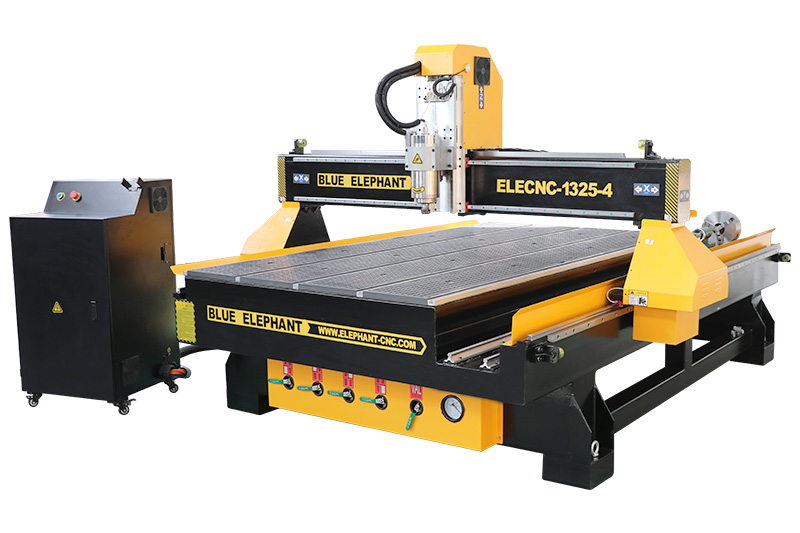

This is a cost-effective rotary axis cnc router. This type of rotary axis CNC machine not only can process flat workpieces, but also can process cylindrical workpieces. Therefore, it is deeply loved by customers at home and abroad.
1. Adopting water cooling spindle, it has the features of high speed and low noise.
2. New type of square tube heavy bed to ensure smooth operation of the machine.

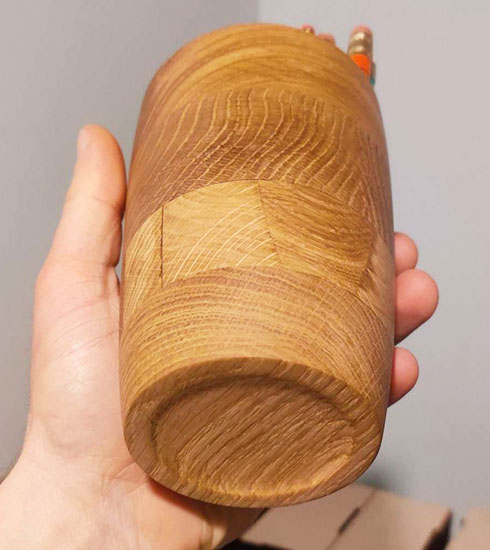

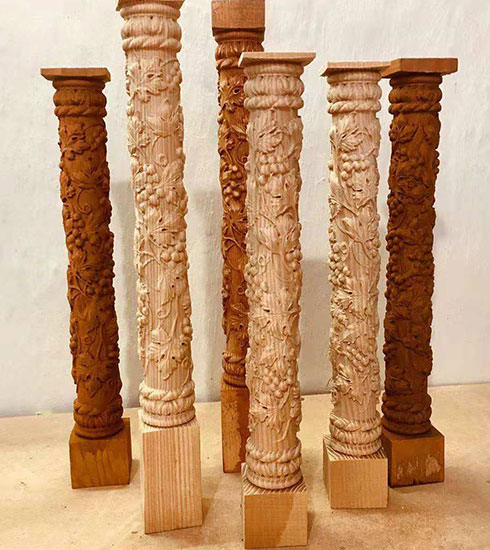

3. Designed with 4th axis rotary table, it can realize the processing of plane workpiece and cylinder workpiece.

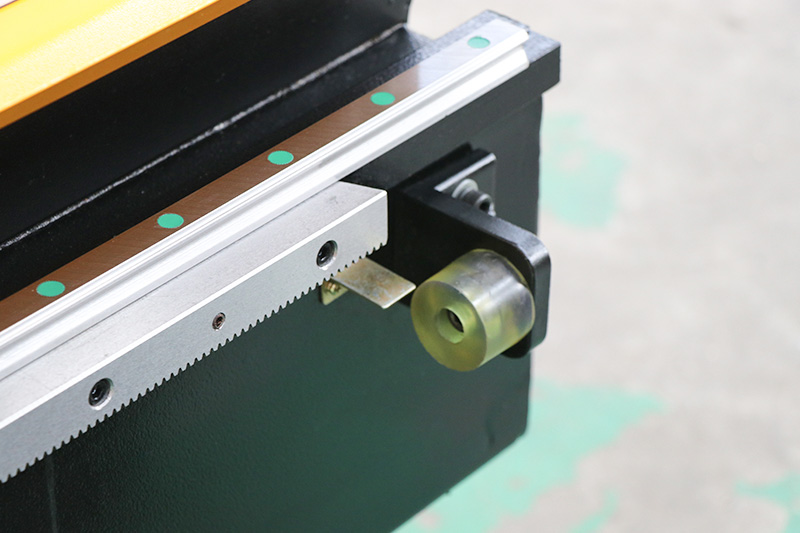

4. Adopting high-precision helical rack to ensure more precise machining accuracy and machining quality.
| Model | ELECNC1325-R |
| X,Y axis travel | 1300*2500mm, option: 15003000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, etc |
| Spindle type | 3kw water cooling spindle |
| Inverter type | 3.7kw Fuling inverter |

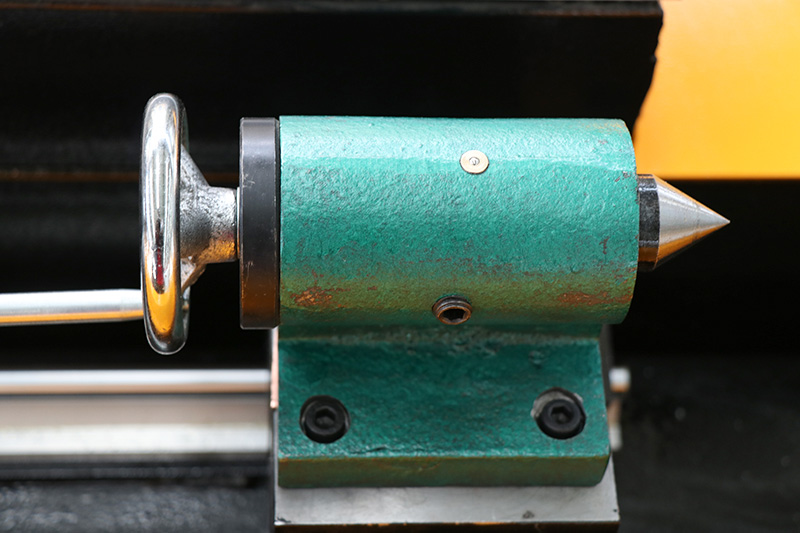

| The 4th axis | Cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Control system | DSPB18 controller |
| Driving system | FL118 motor and Leadshine driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Slot & vacuum work table |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

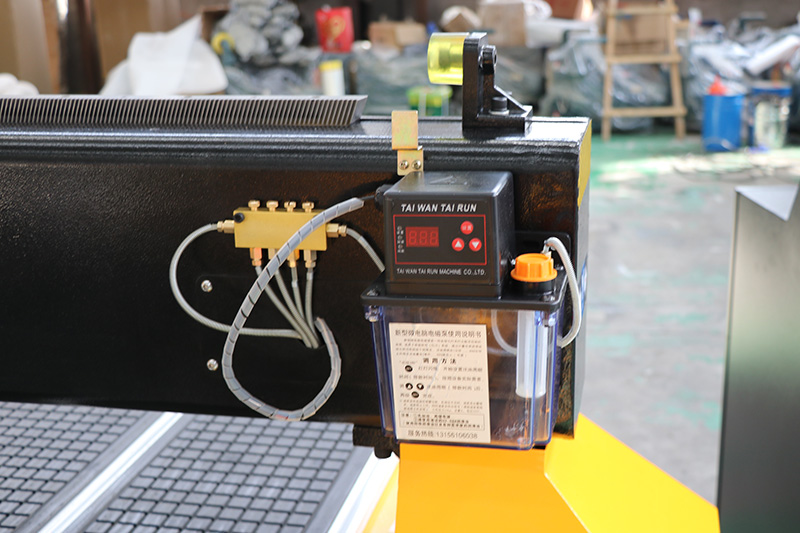

| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam /Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
We have 100mm and 200mm diameter rotary device. It depends on your materials diameter.
No, the working area will not change.
Yes, sure. Our CNC machine can be customized according to your processing needs. Normal Z axis is of 200mm.
