Multi-use Five Axis CNC Router for Sale

Position: Home > CNC Router > 5 Axis CNC Router > New Design 5 Axis CNC Router Woodworking Center for Sale
  • New Design 5 Axis CNC Router Woodworking Center for Sale

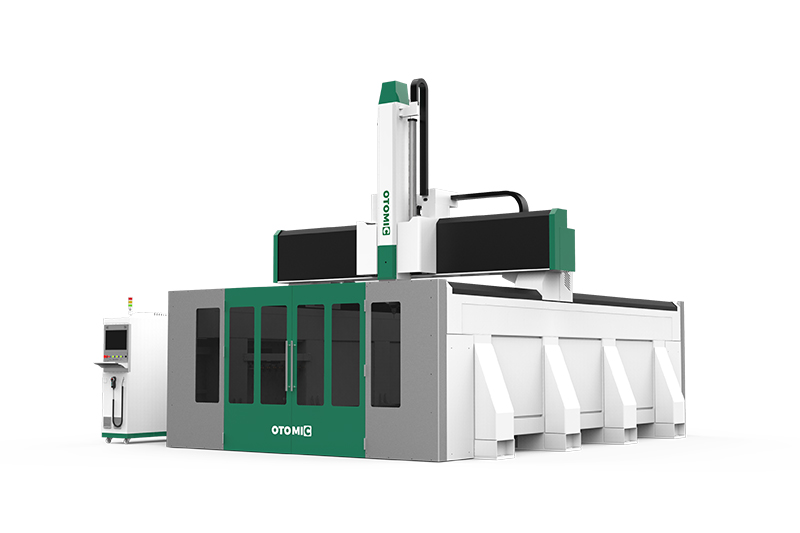

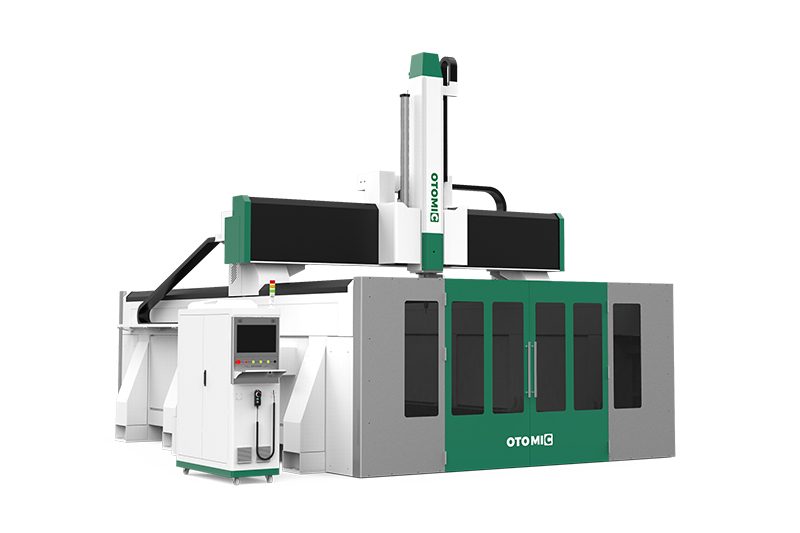

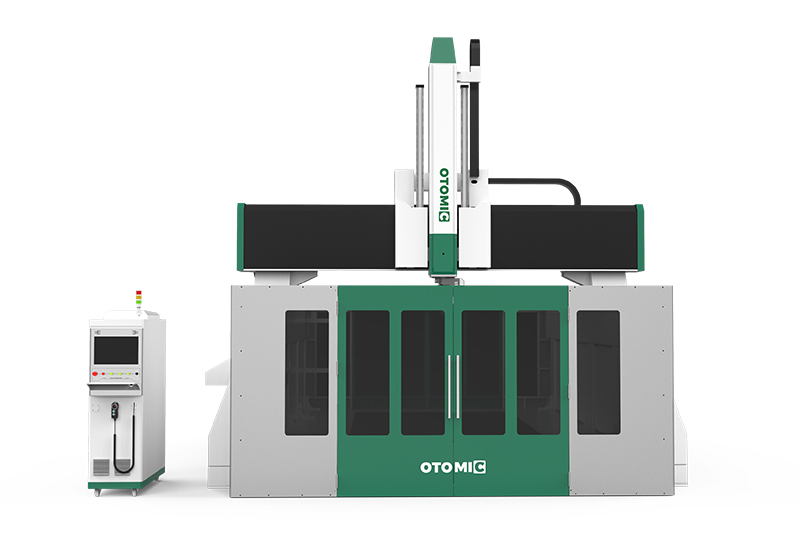

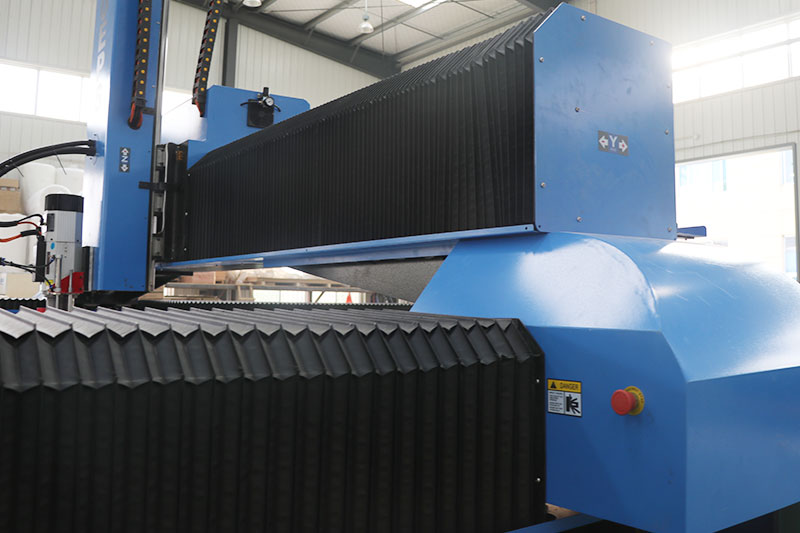

New Design 5 Axis CNC Router Woodworking Center for Sale
New Design 5 Axis CNC Router Woodworking Center for Sale
New Design 5 Axis CNC Router Woodworking Center for Sale

New Design 5 Axis CNC Router Woodworking Center for Sale

5.0 based on 28 ratings and reviews
  • Brand : Blue Elephant
  • Model : ELECNC-3050
  • Category : 5 Axis CNC Router
  • Price Range : $85,000 to $150,000 / Set based on the configuration
  • Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
  • After-sale Service : Professional operation training service.
  • Supply Ability : 200 Sets per Month

Industrial 5 Axis CNC Router Center

2040 Foam 5 Axis ATC CNC Router

Description

The heavy-duty 5 axis CNC router center can realize multiple complex and heavy-duty woodworking cutting 3D carving processes. It adopts the moving gantry and fixed worktable structure, ensuring great flexibility and wide processing range.

Features

1. Heavy duty welded steel frame and gantry guarantee the maximum straightness and rigidity.
2. It reduces repeated clamping and tooling time, which greatly shortens product development cycle and improves work efficiency.
3. Equipped with a linear tool changer, it can change tools automatically and achieve multiple machining processes.
4. Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump electricity.
5. It can process multiple materials, such as stone, styrofoam, wood, aluminum, etc.

Parameters

Model  ELECNC-3050
X,Y axis travel 3000x5000mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc
Z axis travel 1100mm
Spindle type 10KW Germany DMASS spindle
Inverter type 15kw
Drilling bank Taiwan or Italy 5+4 vertical drills
Tool magazine Carousel type auto tool changer
Tool holder with collet HSK tool holder
Control system Syntec 610MA-E5
Driving system 1800W Japan YASKAWA servo motor and driver
Reducer Japan SHIMPO reducer
Structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan #35 Linear guide with dust proof
Transmission X, Y axis: Taiwan /Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system Semi-auto lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Customized professional 5 axis software
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Working air pressure 0.6MPa
Working voltage 380V 3PH 50HZ/ 60HZ

Click for details

Frequent Asked Questions

1.What is the main difference between the 5 axis CNC router and CNC milling?

The main difference lies in the diameter of the cutting tool. The commonly used cutting diameter for CNC milling is 6-40 mm, while the cutting diameter for 5 axis CNC router is 0.2-3 mm.

2.What is the 5 axis CNC router?

The 5 axis CNC router is a high-tech and high-precision CNC router specially used for processing complex curved surfaces, 3D carving, mold milling.

3.Do you provide software for the Router?

Yes. We provide customized professional software for the 5 axis CNC.

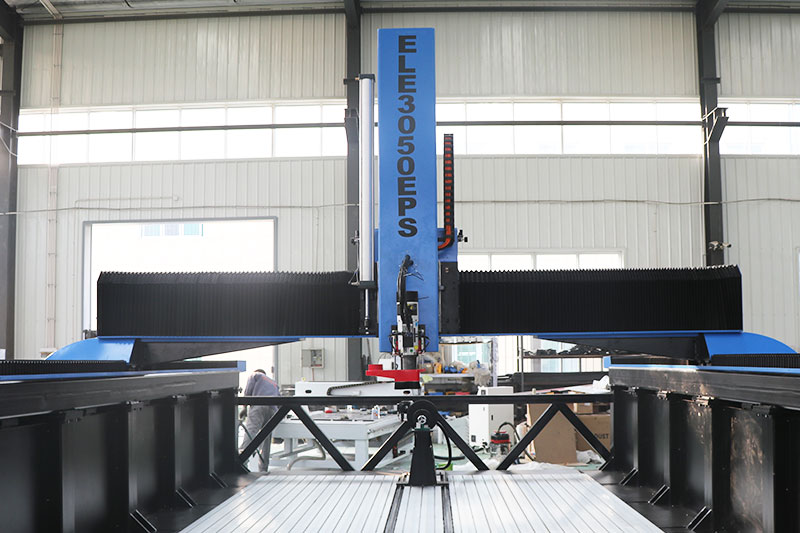

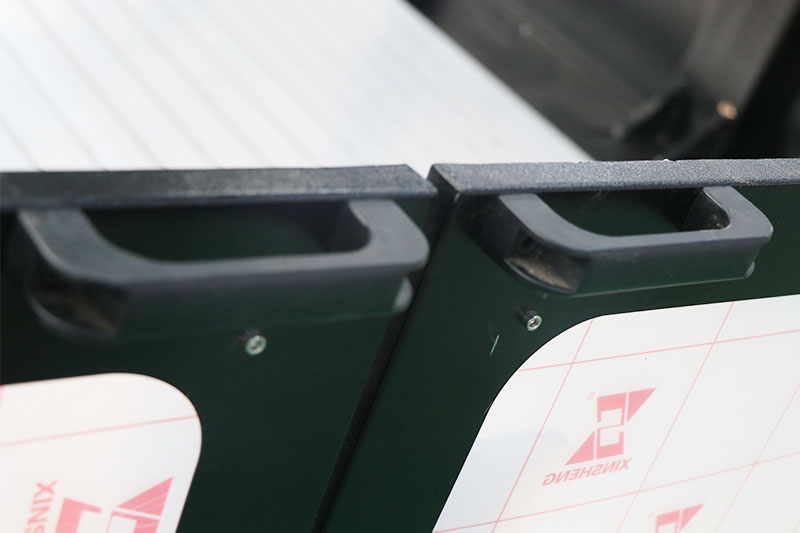

5 Axis CNC Router Details

Application

INDUSTRIES
5 Axis CNC router has an swing spindle. It can change the direction automatically during the router process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
MATERIAL
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite

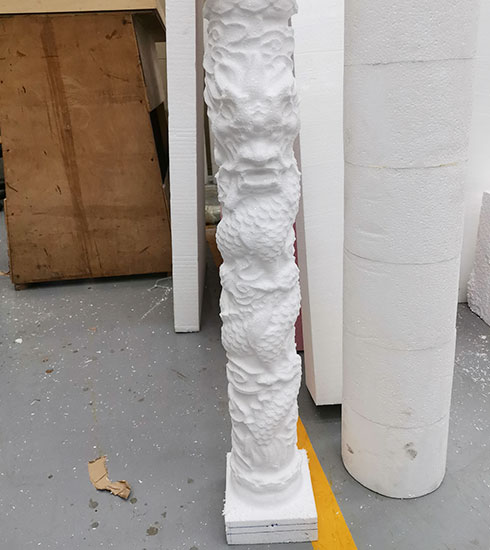

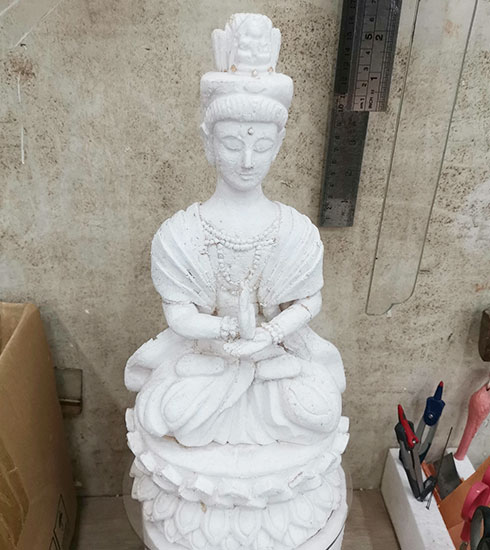

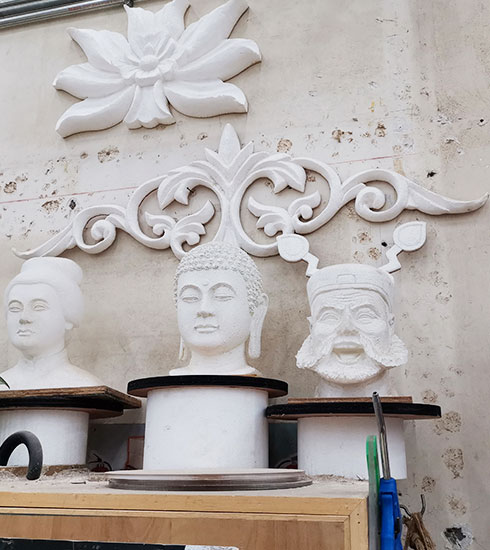

Samples
