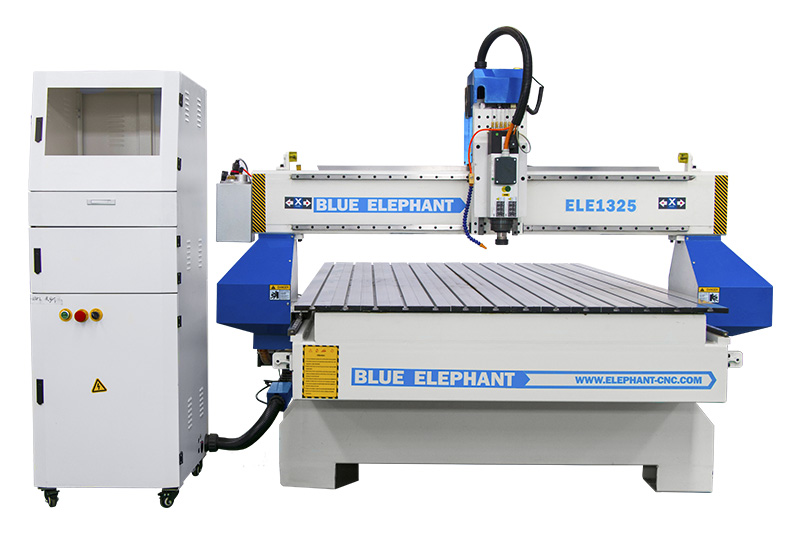

Quality CNC Wood Router Table for sale, this CNC machine with Italy spindle & 4×8 table, it adopts ordinary aluminum T-slot working table and Italy spindle. With the features of low cost and being good at 2D/3D wood engraving & carving, it is suitable for cabinet, doors making, etc.
1. CNC Wood Router Table is equipped with original Italy HSD spindle, powerful and quality guaranteed.
2. WEI HONG control system is a very good choice for this kind 3 Axis CNC wood router table.
3. Designed with heavy-duty frame and gantry, this CNC Wood Router Table works stably;

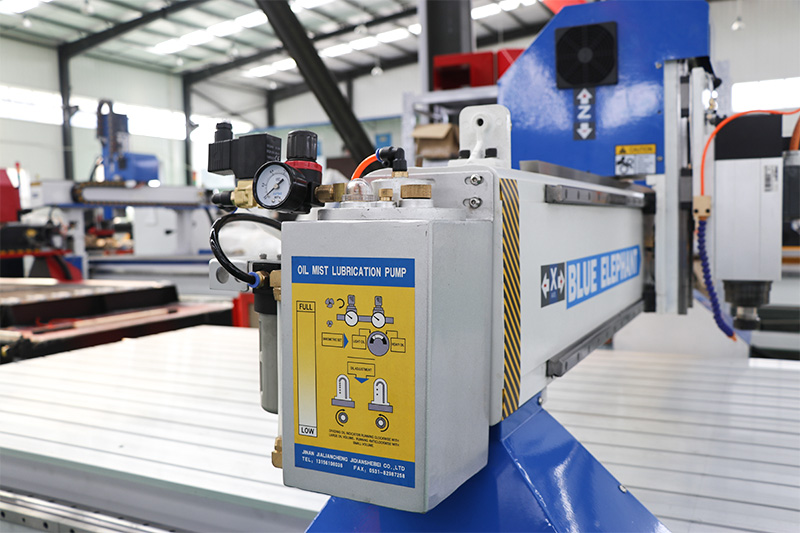

4. With automatic oil mist cooling, it prolongs the lifetime of the bits and ensures the carving quality.

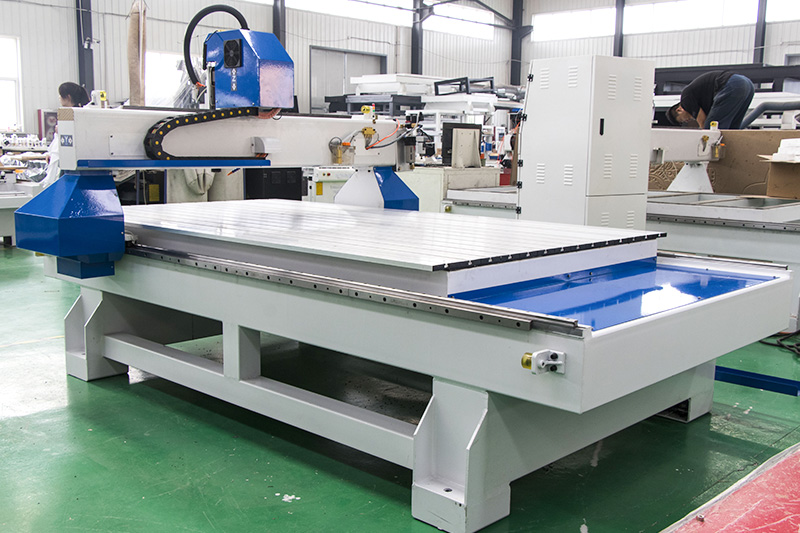

This CNC Wood Router Table is an entry-level 3 Axis CNC Router. The machine frame and gantry are made of thick-enhanced steel, which can make the machine stable when gantry moving or spindle routering.
A stable machine frame is very important for bits positioning accuracy, there is also a Semi-Automatic Tool Sensor helping the CNC wood router table get the right position for bits.
| Model | ELECNC1325 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 7kwair cooling spindle, ISO30, ER32 |
| Inverter type | 7.5kw |
| Collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Nc studio PM95A controller, option: DSP |
| Driving system | FL 118 stepper motor and Leadshine DM1182 biggest driver, 4 sets. option: YASKAWA AC servo driver |
| Machine structure | Heavy duty body with quenching treatment |

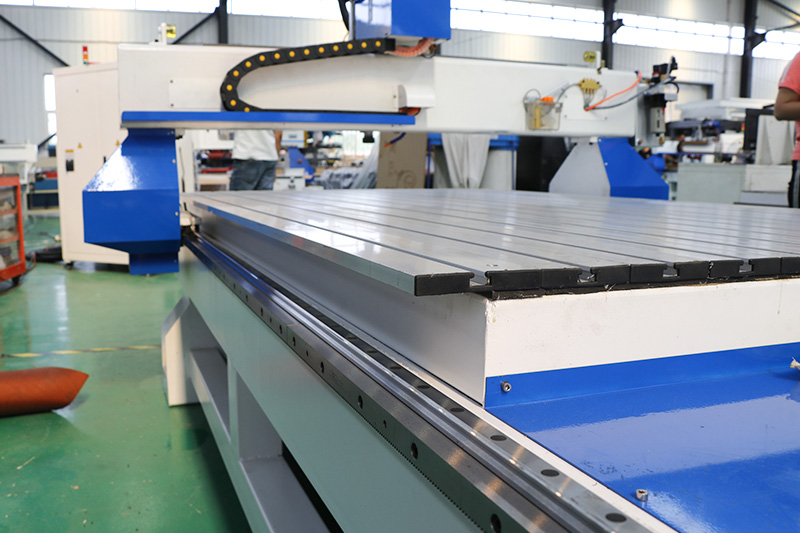

| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | TaiwanLinear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |

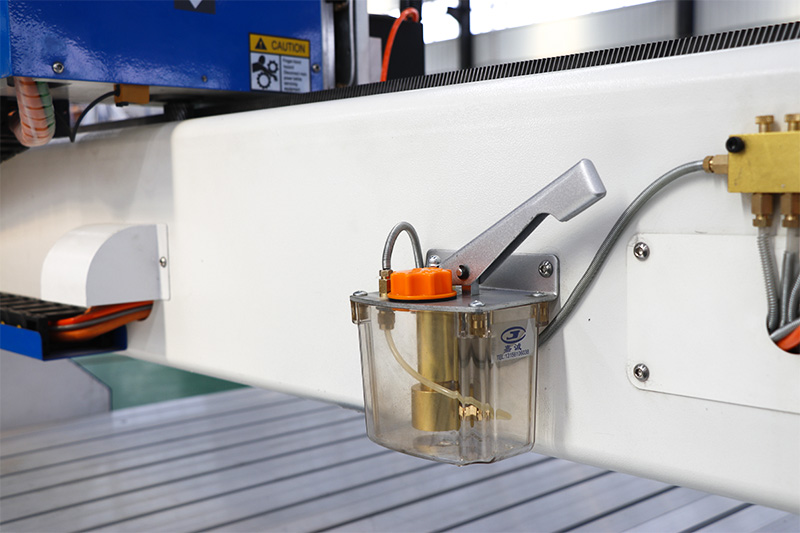

| Lubrication system | Manual lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5kw, 6.0kw, 9kw etc. |
When processing aluminum, the cutter generates heat. We suggest to adding a cooling device(water cooling or oil mist) to cool the tool, which will improve the processing effect.
The machine is equipped with an automatic lubrication system, no manual maintenance is required.
We have a mature after-sales service team that can provide you 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we have instructional videos and manuals for you.
