5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ELECNC-2040ATC
Category : ATC CNC Router
Price Range : $13,000 to $27,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

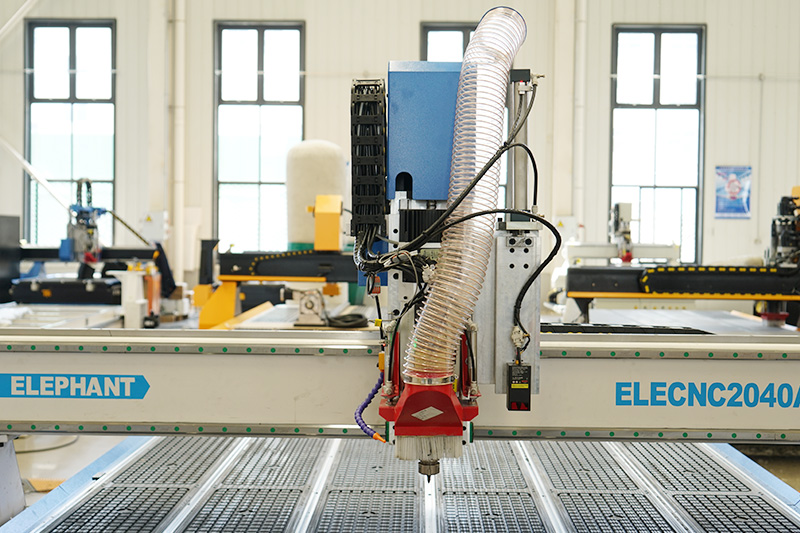

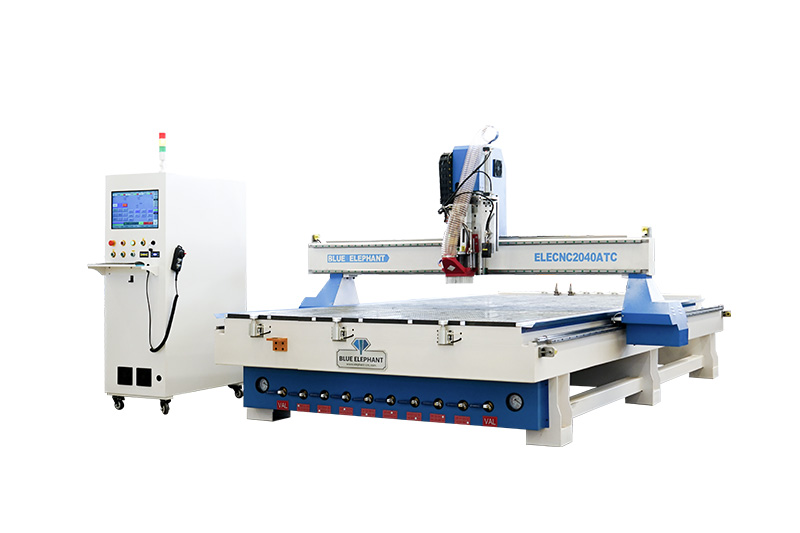

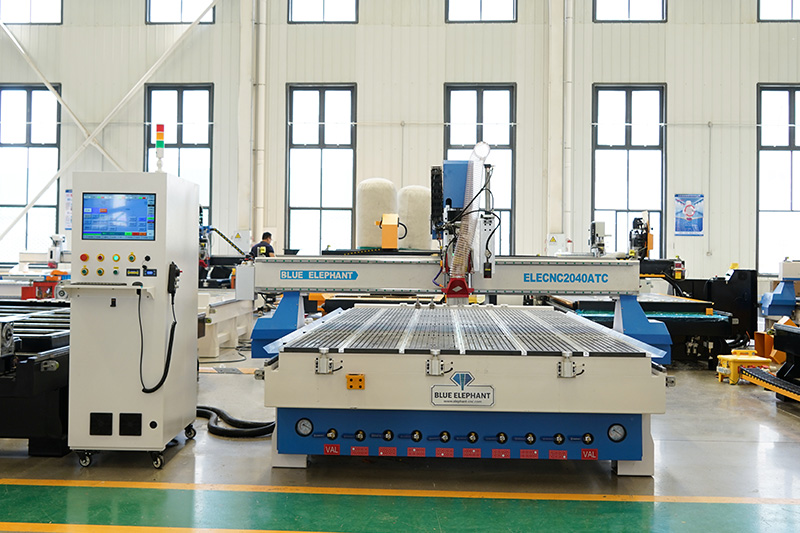

2040 ATC Laser Head CNC Router is a multifunctional machine. It is equipped with 8 sets of ATC magazines and other auxiliary devices such as vacuum adsorption, clamps, positioning systems, etc. The ATC CNC router can realize engraving, cutting, laser marking and other processing technologies for various types of wood boards, acrylic boards, fiber boards and other boards. It is suitable for furniture manufacturing, advertising signs, construction and other industries.

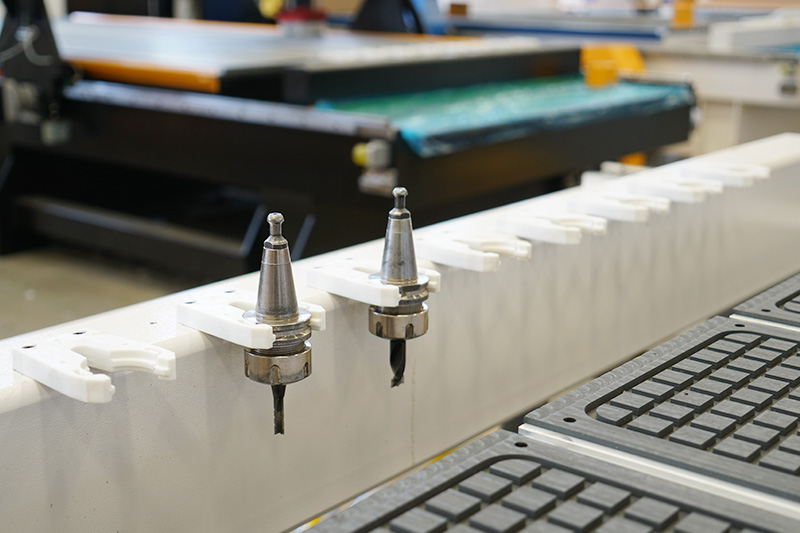

1. Automatic tool changing function saves tool changing time and improves work efficiency.
2. This ATC CNC router adopts 9kw high-power air-cooling spindle for cutting deeper.
3. With laser head, it can realize wood engraving, marking and cutting.
4. The 2m x 4m ultra-large vacuum adsorption table is compatible with panels of various sizes.
Model | ELECNC2040ATC |
X,Y,Z axis travel | 2000x4000x200mm |
Number of tools | 8 |
Voltage/frequency | 380V 3PH 50HZ |
Control system | Taiwan SYNTEC 60CB |

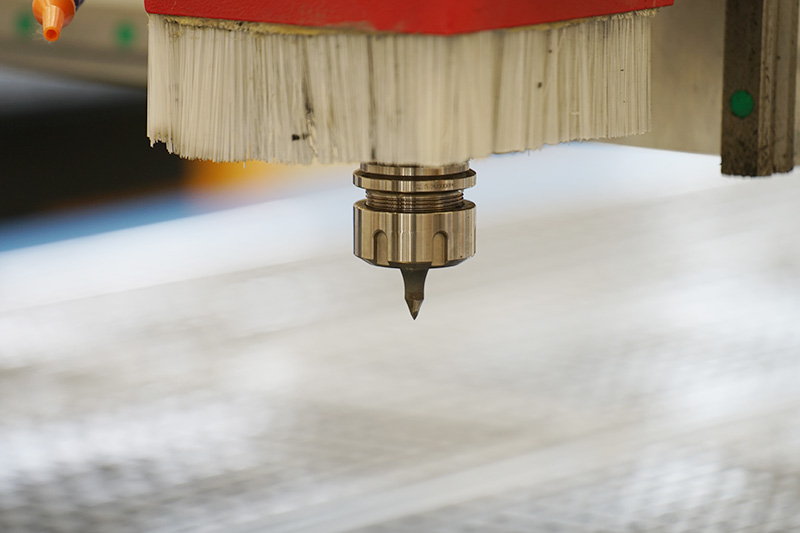

Spindle power/speed | 9KW JST ATC air cooling spindle 24000rpm, ER32 clamp, 20w domestic laser head |
Inverter | 11KW Fuling Inverter H1 |
Driving system | 1500W Leadshine servo motor, Z axis with brake |
Reducer | Shimpo reducer |

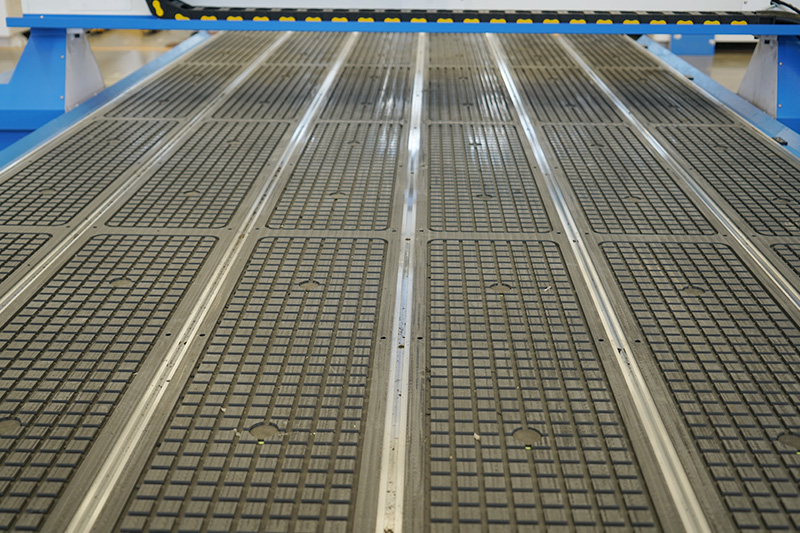

Table structure | T-slot adsorption table, 8 divisions |
Chassis | Rittal, white |
Linear guide | Taiwan guide #25 |
Rack | PCRCH helical rack 1.5M |
Lubrication system | 1.5L Automatic lubrication |

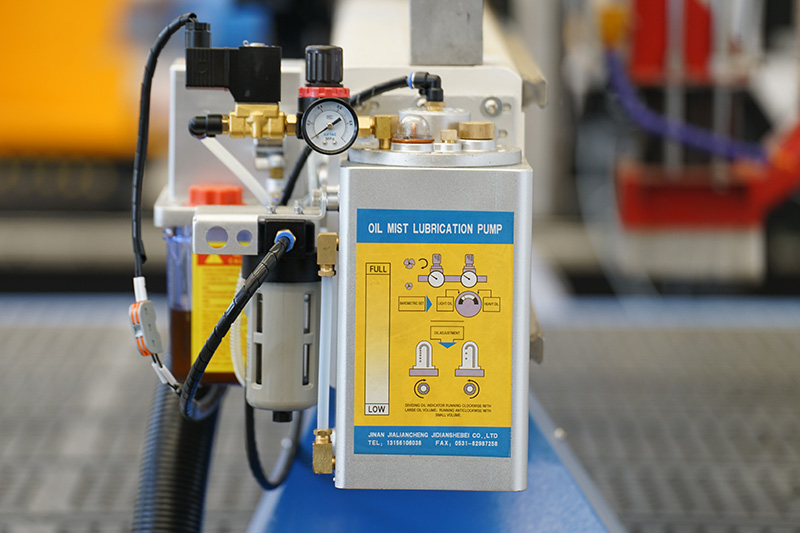

Spray/sink | Automatic oil mist cooling, no sink |
Vacuum pump | 7.5kw Ribake two-stage vortex pump in parallel*2, 2 main valves, 380V 3PH 50HZ |
Positioning cylinder | X3,Y4 |
ATC CNC routers have a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
ATC means Automatic Tool Changer. With it, the CNC machine can change bits automatically and greatly improve the working efficiency.
Yes, you can. The machine details can be changed as you wanted. Our factory can design the CNC machine according to your requirements. We will provide you with the most suitable CNC machine.
After use machine, please clean machine, especially for helical rack gear and square linear guide.
