(4.9 based on 165 ratings and reviews)
$25,000 – $30,000

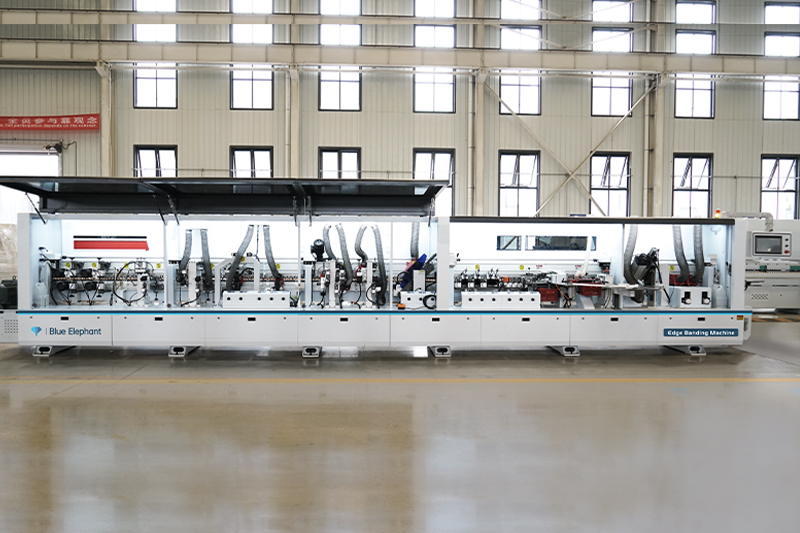

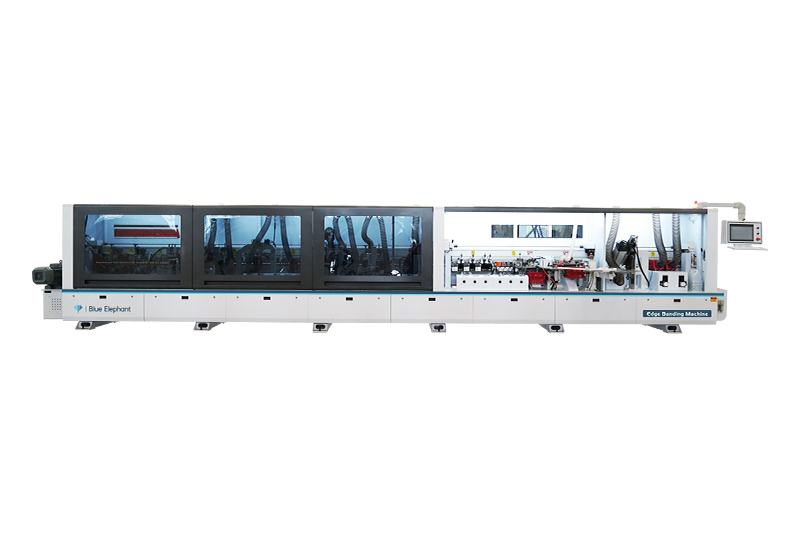

450SG beveled and straight integrated edge banding machine has many functions: pre-milling、45°bevel saw-milling、hot-air pre-heating 1、bevel edge、hot-air pre-heating 2、fast glue melting、straight edge、straight pressing、beveled and straight pressing、end cutting、bevel-edge trimming、straight-edge trimming、profile tracking、scraping (straight edge)、scraping (bevel edge)、buffing 1、buffing pass 2、front and rear cleaning. The edge sealing effect is beautiful, delicate, smooth.
1. The edge banding machine supports bevel edge banding with a 5.5KW motor, ensuring powerful, smooth cutting—straight in, bevel out.

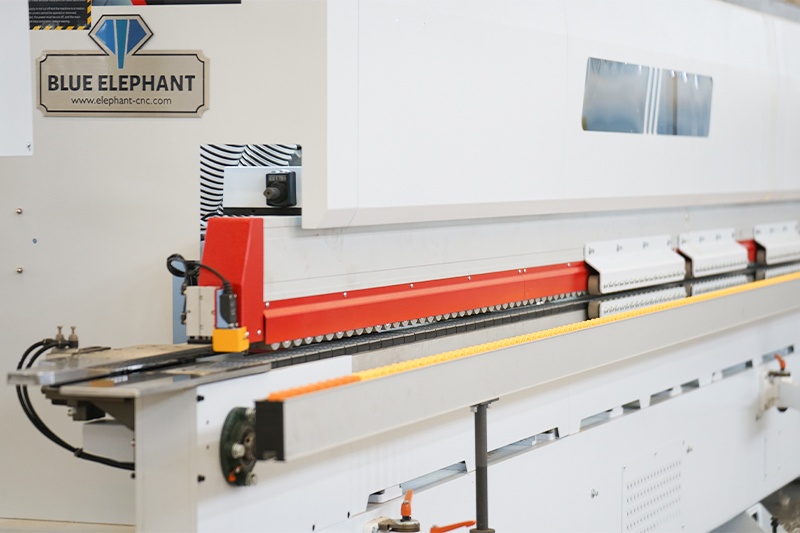

2. For the bevel trimming, it is designed according to the angle of the beveled panel, with an upper flat knife and a lower tracking knife, trimming the edge banding to fit closely to the board.
3. Straight edge banding delivers smooth, elegant edges with excellent wrapping effect.
4. This edge bander is ideal for panel, custom, solid wood, and office furniture, as well as doors, windows, and décor industries.
5. It is suitable for MDF, melamine, plywood, particle board, and solid wood panels.
Model | 450SG |
Machine weight | 3500KG |
Total power | 27.5KW |
Feed speed | Bevel edge 13m/min Straight edge 15-23m/min |
Panel width | ≧80mm |
Sheet length | ≧120mm |
Edge thickness | 0.4-1.5mm |
Panel Thickness | Bevel edge 15-25mm Straight edge 10-60mm |
Electric lifting | 0.37KW |
Working pressure | 0.6Mpa |
Overall Size(L x W x H) | 10000*970*1800mm |
This machine can process materials such as Medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc.
At Blue Elephant, we understand that many of our clients are new to edge banding machine. That’s why we’re dedicated to providing lifetime technical assistance. With us, you’ll always have someone to speak with whenever you need help. Plus, we offer access to Blue Elephant University Training Videos, providing hands-on experience without the cost of paid training.
Yes. For bevel edge, panel thickness is 15-25mm; for straight edge, panel thickness is 10-60mm.
