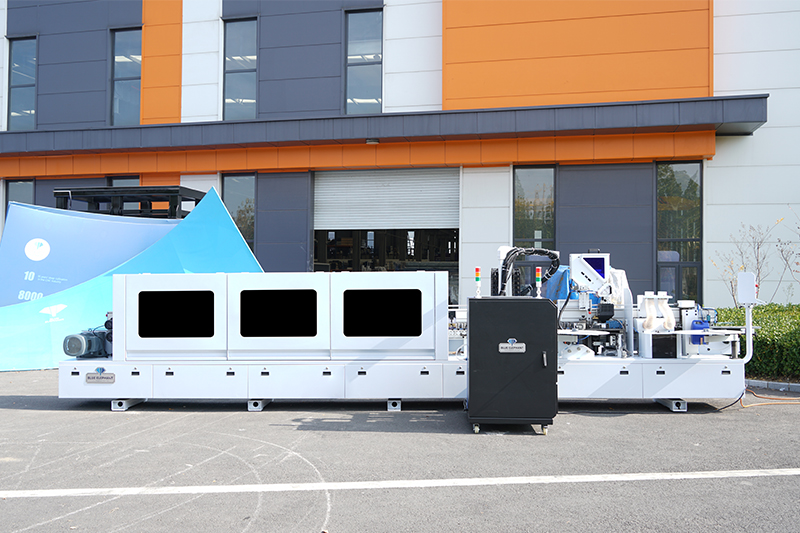

This is an automatic edgebander machine with two gluepots, which can complete the processing procedures of pre-milling, gluing, edge banding, end cutting, rough and fine trimming, profile tracking, scraping and polishing. As a high configuration edge bander, it is suitable for the cabinet makers with medium and large production volume.
1. It adopts two gluepots, which is convenient for using glue of two different colors, and avoids cleaning the gluepots frequently.
2. This machine is suitable for the straight edge sealing of solid wood board, fiberboard, particleboard and other sheets.
3. With many functions like polishing slotting, scraping, tracking trimming, finishing, edge sealing, pre-milling, etc.
4. Adopting intensive units with high-speed motors, it can ensure maximum finishing quality of the machine.
| Machine Size | 8650*970*1800mm |
| Plate Thickness | 10-60mm |
| Edge Banding Thickness | 0.4∽3mm |
| Width of panel | ≥60mm |
| Feed Speed | 15-23m/min |
| Total Power | 16.5kw |
| Air pressure | 0.6MPa |
This machine has the cleaning device as the standard configuration. It can do 2 times cleaning.

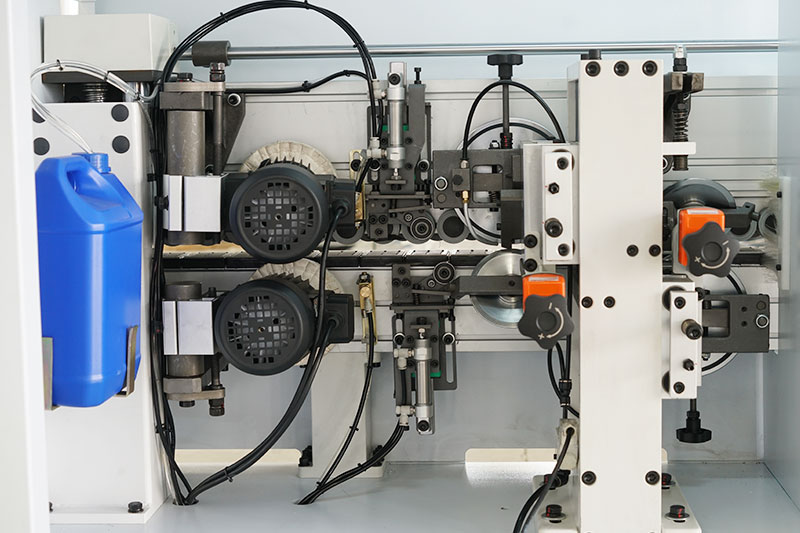

The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
Yes, it’s Taiwan Delta brand.
