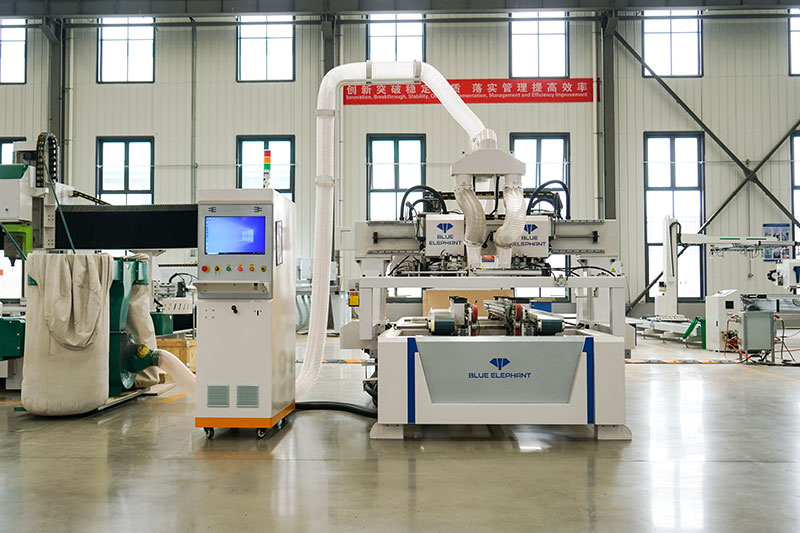

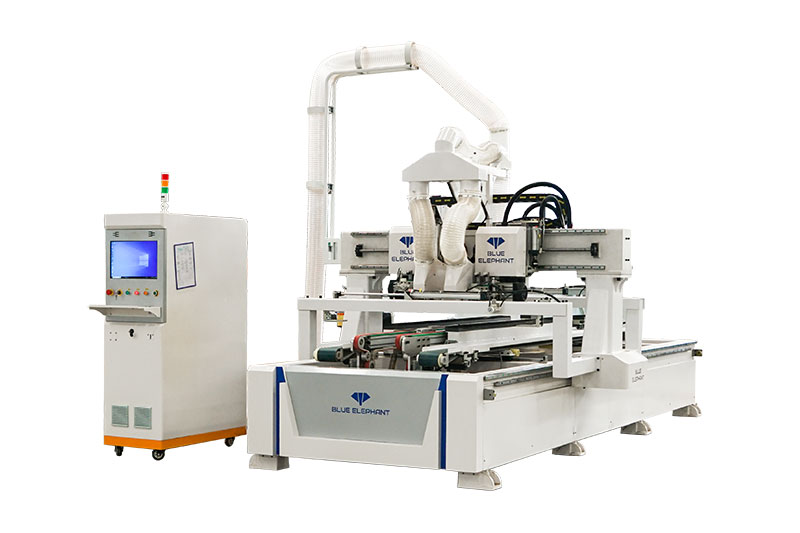

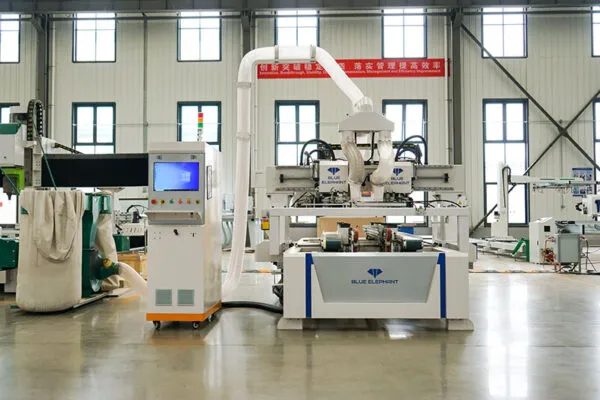

The through-type 4-side edge cutting saw is mainly used in the wooden door industry. It can complete the squareness of the four sides of the wooden door in one positioning, with high processing accuracy and high efficiency. The 4-side wood door cutting saw can also be connected with production optimization software to realize automatic code scanning and through-type conveyor belt conveying unmanned assembly line operation. It effectively improves production efficiency.

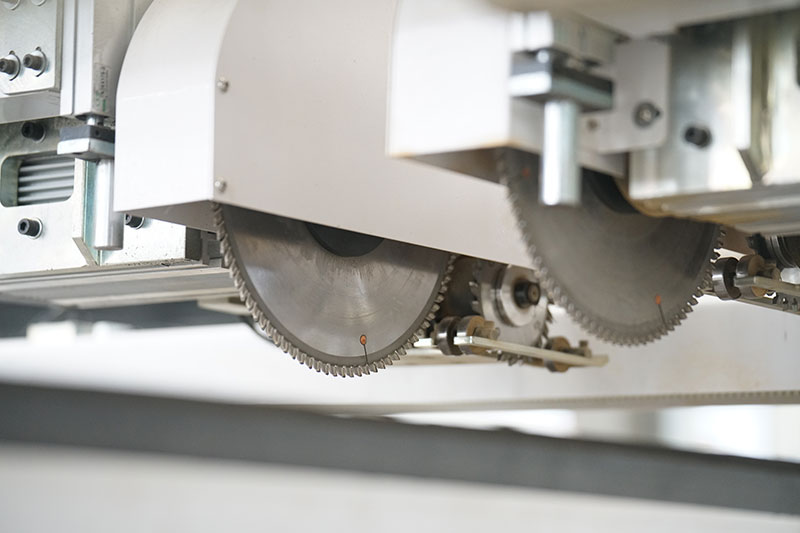

1.The saw blade is equipped with a floating guide saw to prevent edge bursting.

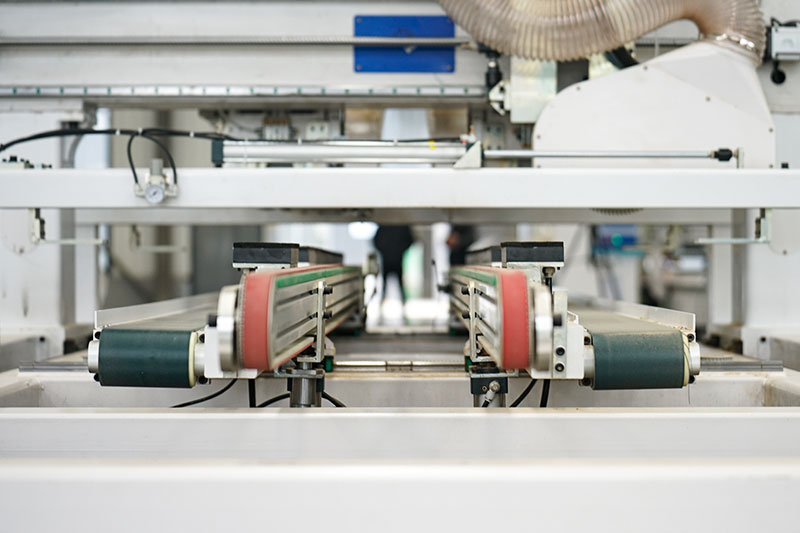

2.With large space for collecting leftover materials, the leftover materials are sent away from the processing area through the conveyor belt.

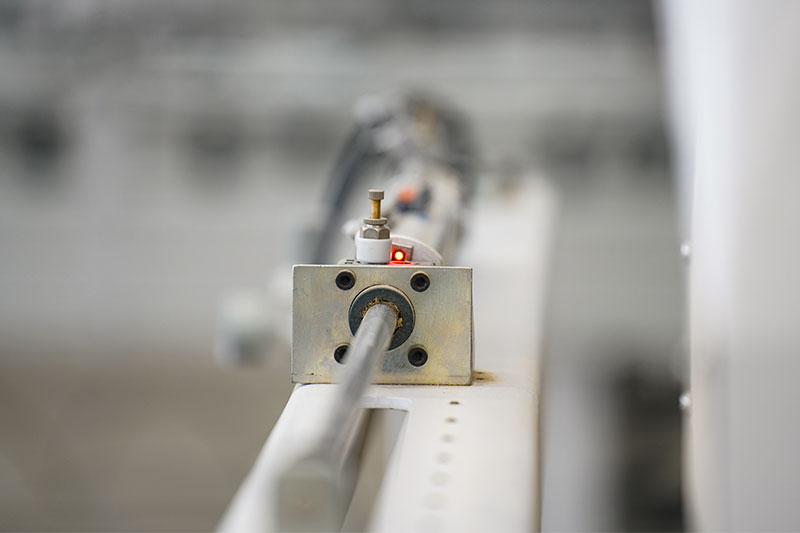

3.The door leaf width can be automatically centered.
4. The length and width are adjusted automatically without manual intervention.
5. It can saw doors of different specifications continuously without stopping the machine.
| Model | EM2.1-1128 Through-type Wooddoor Cutting Saw |
| Control system | XINJE control system |
| Voltage/frequency | 380V/50HZ/3P |
| Spindle power | 7.5KW+0.75KW CC saw blade spindle*3sets |
| Inverter | XINJE |
| Motor and drive | XINJE absolute servo:Y axis 1.5kw X axis 0.75kw |
| Bed structure | Four-side saw bed |
| Reducer | Shimpo reducer |

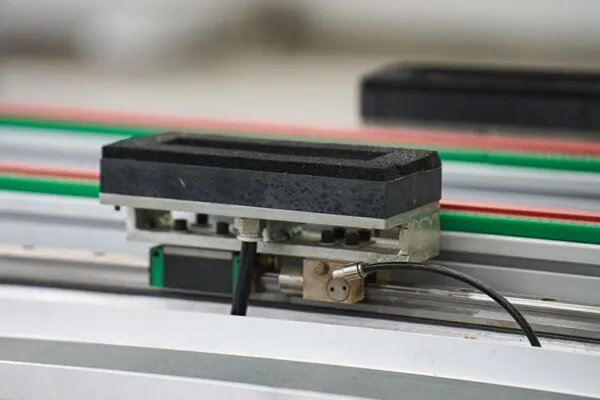

| Table structure | Pass-through mobile adsorption table |
| Side panel type | Four-sided saw column |
| Chassis(type, color) | Standard |
| Guide rail | Taiwan SHAC guide rail: Y #30/X #25/Z #25 |
| Vacuum pump | 5.5KW |
| Rack | J&T rack 2M |
| Lubrication system | 1.5L automatic lubrication |
| Fan | Vortex pump (double stage)5.5KW/380V/3P/50-60HZ |
| Positioning cylinder | Four-sided saw standard |
| Machine size | 4880x2450x2500mm |
| Net weight | About 3000kg |
| Panel size | Length：1700-2800mm |
| Width：390-1100mm | |
| Thickness：≤65mm |
The 4-sided saw uses multiple sets of saw blades to cut all four sides of the wood simultaneously. This allows it to quickly and efficiently complete the flat processing of wood doors on all four sides.
It is mainly designed for cutting various types of wood, including solid wood, composite boards, plywood, and density boards.
The 4-sided saw machine offers high efficiency, high precision, and high stability. By processing all four sides of the wood door at the same time, it significantly improves production efficiency.
Cabinets: used for processing cabinet bodies, cabinet doors, drawer boards, etc.
Floors: used for cutting floor strips to make them accurate in size and with smooth edges.
Wall panels: processing wall decorative panels to ensure consistent size.
Wooden doors: cutting door panels, door frames and other parts.
Wooden windows: used for processing window frames, window sashes, etc.
Wooden boxes: cutting wooden box panels to make them accurate in size for easy assembly.
