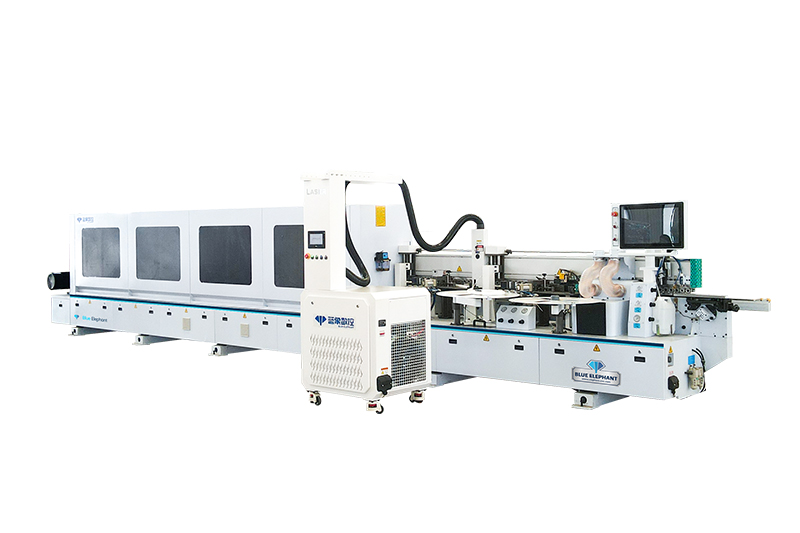

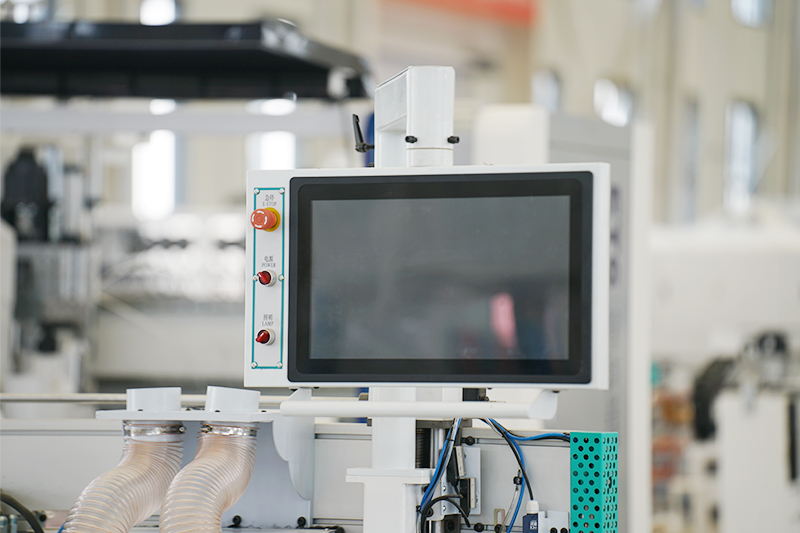

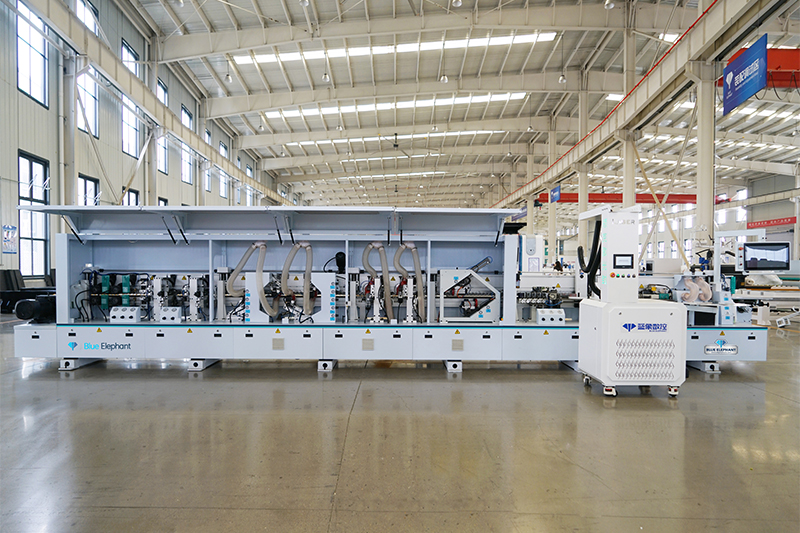

The E-80L is a fully automatic laser edge banding machine. It does not need a glue application system. The edge bander uses laser technology to bond the board with the edge banding tape, creating a seamless, glue-line-free finish. It has a maximum processing speed of 23 m/min. The tracking chamfering speed is 18 m/min. The machine is fully functional and system-stable and has intelligent operation controls. These features enable high-speed and efficient production.
1.The laser edge banding machine utilizes high-power laser edging. It eliminats the need for preheating adhesive, enabling instant edging, saving time and effort.

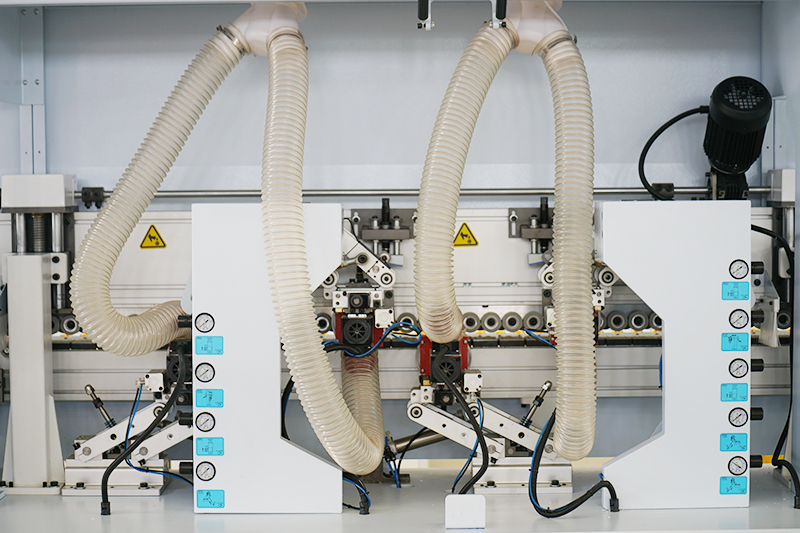

2.Equipped with four high-speed motors, it can achieve quick and accurate rounded edge profiling. It also has various chamfering and edge finishing techniques.
3.Dual guide rails for rapid end cutting. Through precise linear guide motion, automatic tracking of the mold and high-frequency and high-speed motor fast cutting structure, the cut surface is guaranteed to be smooth.
4.Dual reciprocating buffing to remove excess adhesive and debris of the board.
5.Pneumatic dual scraping eliminates trimming marks, ensuring the board surface is smooth and clean.
| Model | E-80L |
| Machine weight | 4550kg |
| Overall size(Length×width×height) | 10580× 960× 1600mm |
| Total power | 25KW |
| Working pressure | 0.7Mpa |
| Feed speed | Low 18/Mid 23/High 28m/min |
| Panel width | ≥60mm |
| Panel thickness | 9mm-60mm |
| Panel length | ≥ 60mm(No milling) ≥ 150mm(Pre-milling) |
| Min. size | 60×60mm |
This machine can process materials such as MDF, solid wood board, particle board, polymer wood board, plywood, etc.
Yes. Its processing range is 9mm-60mm.
The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
Edge banding machines are primarily designed for applying edge bands to a wide range of panel furniture. These include cabinets, wardrobes, shelves, custom-made furniture, office furniture, tables, chairs, windows, doors, cupboards, and various other wooden products.
