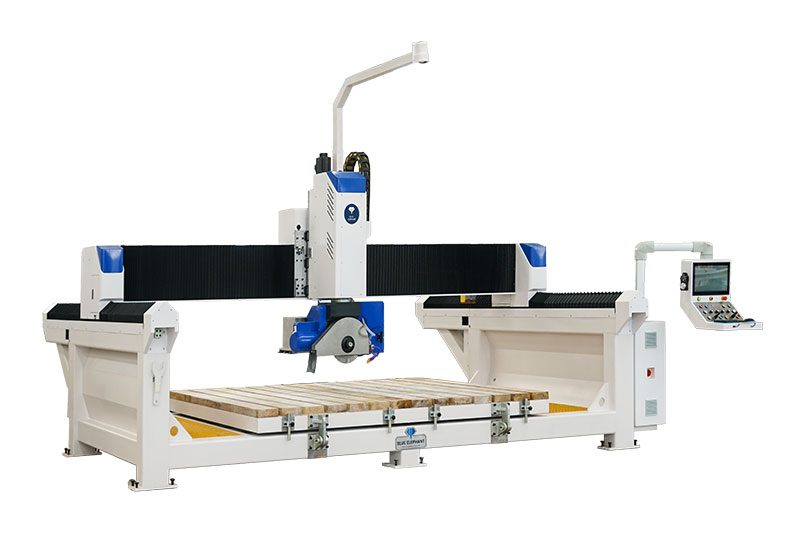

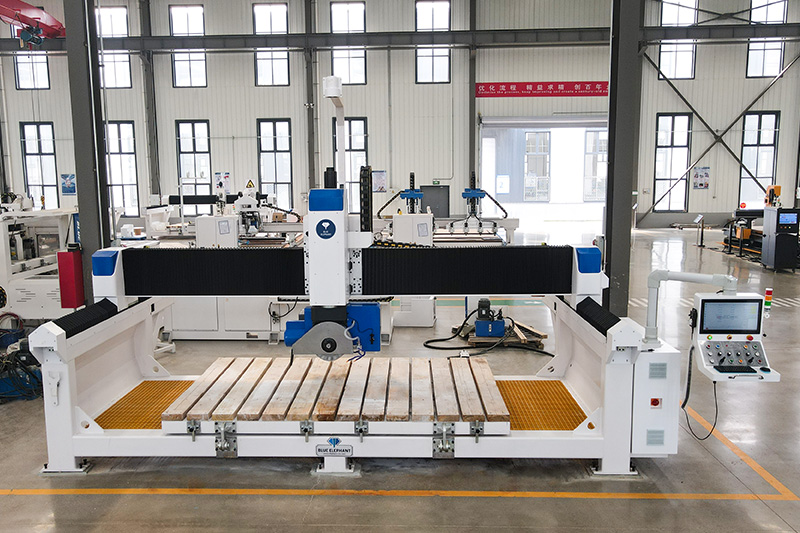

The latest 5+1 CNC bridge saw is capable of precision cutting and shaping granite, marble, engineered stone, slate, and various other stone materials at any desired angle and shape. It is equipped with premium imported components, ensuring superior performance and durability. Additionally, the system offers customization options, including the Italian ESA system.

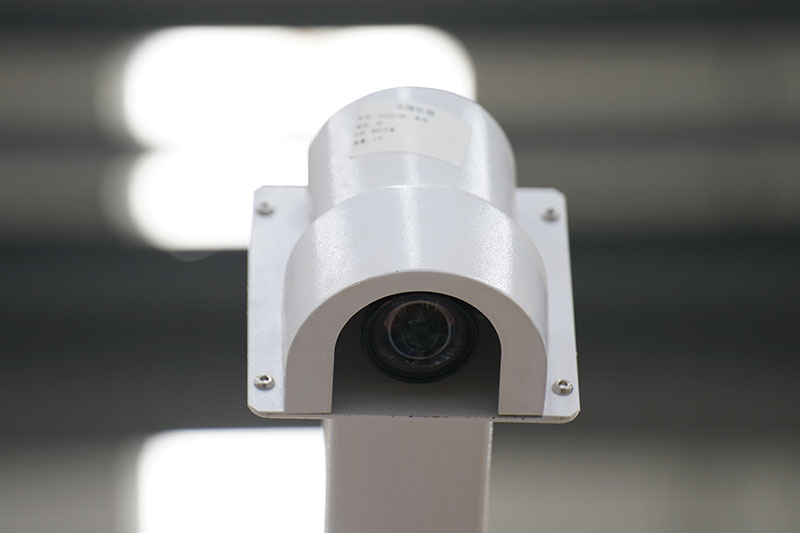

1.The slab can be positioned by taking photos. In addition, this machine can automatically plan the cutting path directly from the generated map, greatly improving processing efficiency.
2.The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
3.The overturned worktable is adopted, which has large overturning weight redundancy, up to 85°.

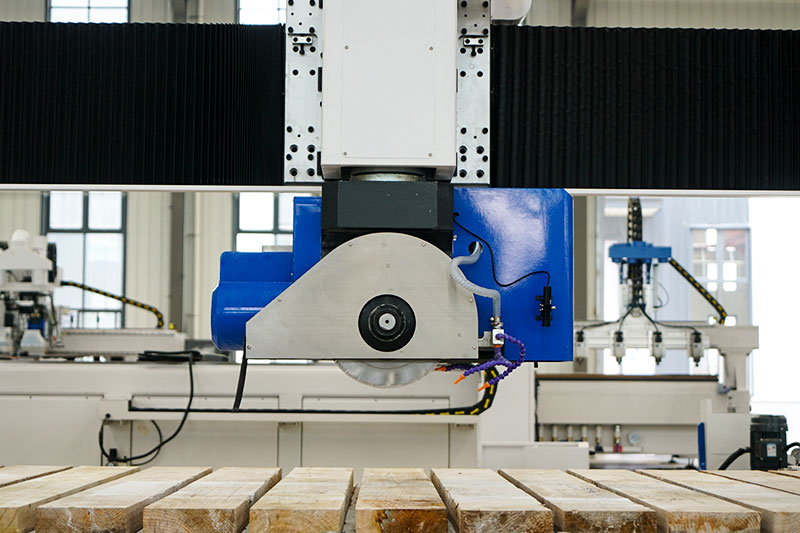

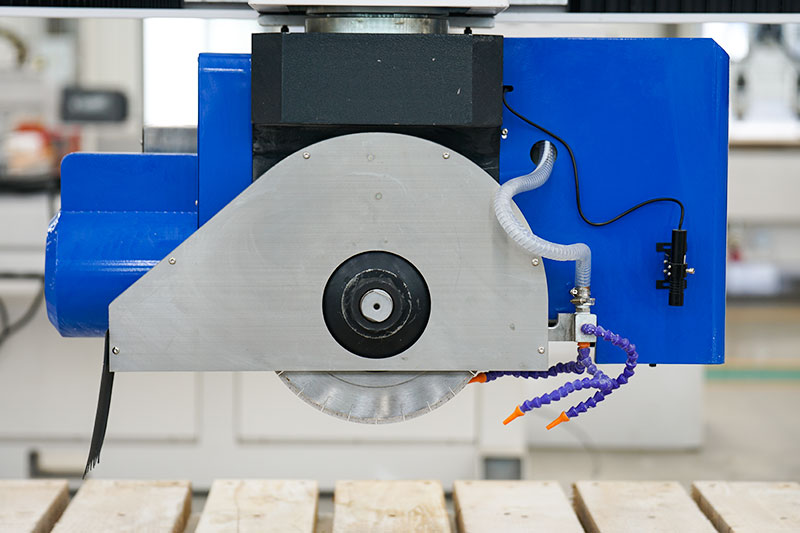

4.The Blue Elaphant servo motor is used to complete circular cutting, square cutting, fan cutting, oval cutting, 45° bevel cutting, drilling, outer edge polishing, etc.
| Worktable size | 3200×2000mm |
| Max. cutting thickness | 100mm |
| Chassis voltage/frequency | 380V/3P/50HZ |

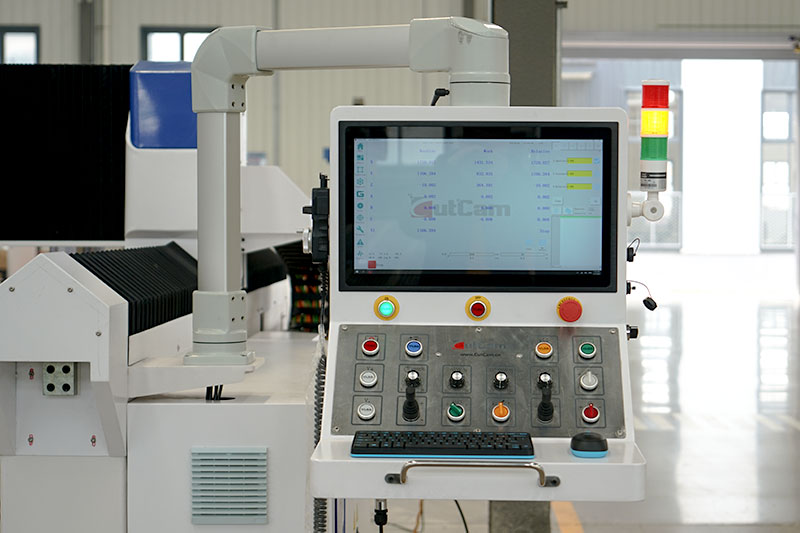

| Control system | Blue Elephant System |

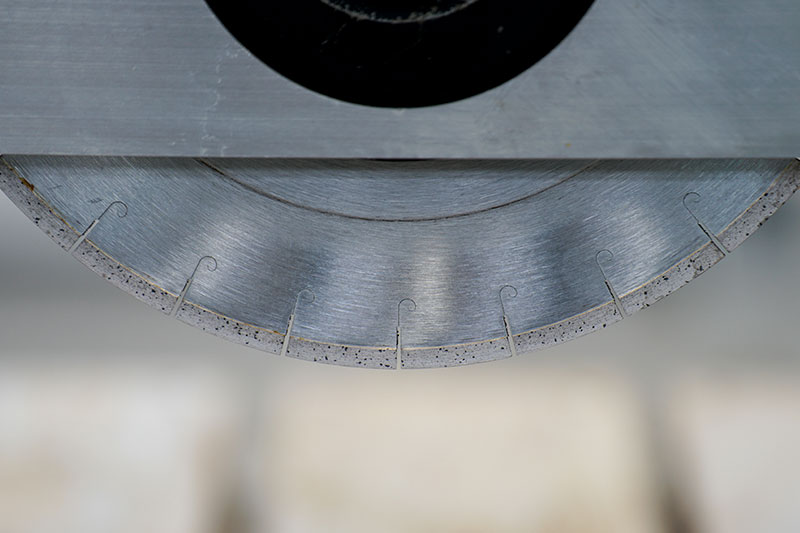

| Saw blade motor/speed | 22KW Rated 300 rpm |
| Saw Blade Motor Driver | Motor comes with |
| Spindle | Shengfeng 5.5KW Liquid-cooling spindle |
| Inverter | ZONCN |
| Saw blade tilt angle | 0-90° |
| Bed structure | Bridge saw split bed |
| Reducer | X/Y:Japan SHIMPO |
| Worktable structure | Rotating square timber 0-85° |
| Water cooler | CW-5000TI |
| Chassis | Side mount chassis |
| Guide rail | #30 |
| Rack | Taiwan 2M |
| Lubrication system | 1.5L Automatic lubrication |
It can complete edge milling, curved edge cutting, countertop cutting and milling, inclined edge cutting, arc edge cutting and milling, wash basin cutting and other processes.
This machine has infrared head, table flip function, saw blade diameter measurement, vacuum material transfer suction cup, phototypesetting positioning and other functions. The workpiece thickness measurement function can be customized according to your needs. It should be noted that the cutting thickness of the saw blade cannot be customized to be greater than 100mm. The voltage cannot be single-phase electricity.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
This 5+1 bridge saw machine can complete the cutting, chamfering, trimming, etc. of various stones, and can realize countertop cutting, Roman column cutting, arc cutting, etc. It can be used in sanitary ware, stone furniture, interior decoration and other industries. It is used to make washbasins, bathroom countertops, kitchen countertops, etc.
