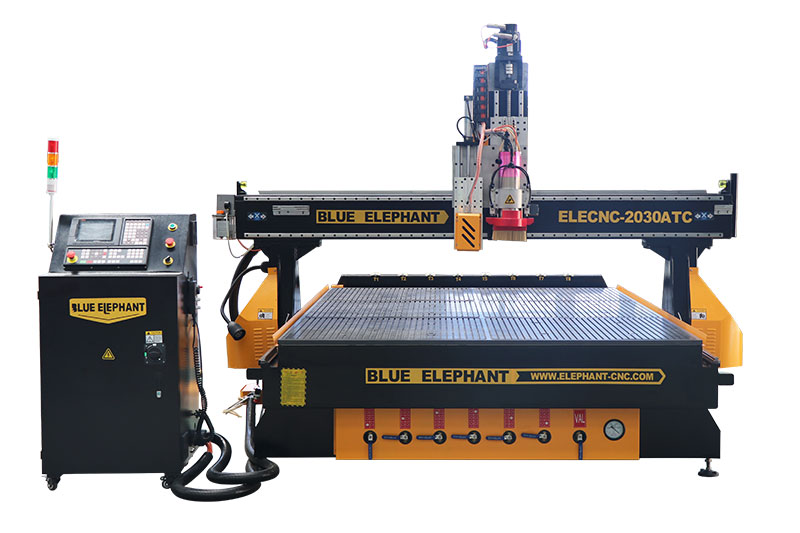

The 6×10 ATC CNC oscilatting machine with EOT-3 oscillating knife cutter helps the man out of the manual operation of choosing and fixing tool/bits. And it also greatly saves much time. EOT-3 oscillating knife cutter meets the cutting needs of leather, carpet, carton, cardboard, rubber, etc.

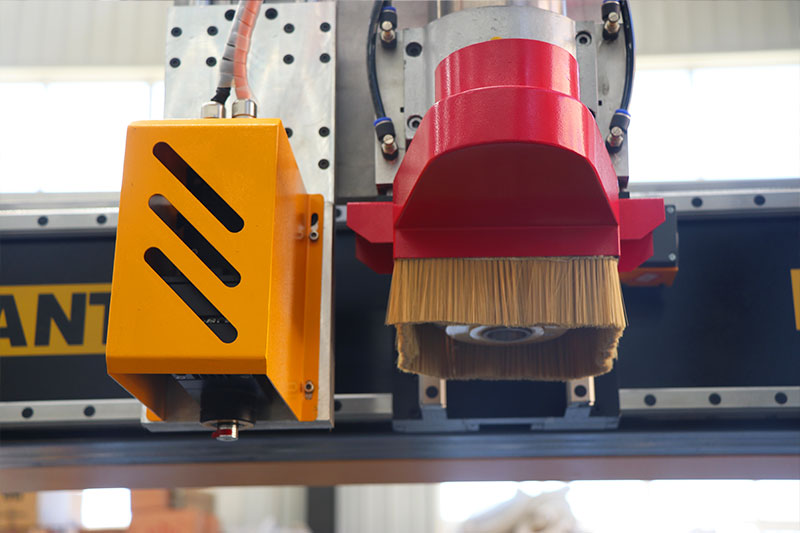

1. German EOT-3 oscillating knives cut soft materials such as leather, carton, and cloth as well as ordinary materials like wood, MDF, acrylic, etc.

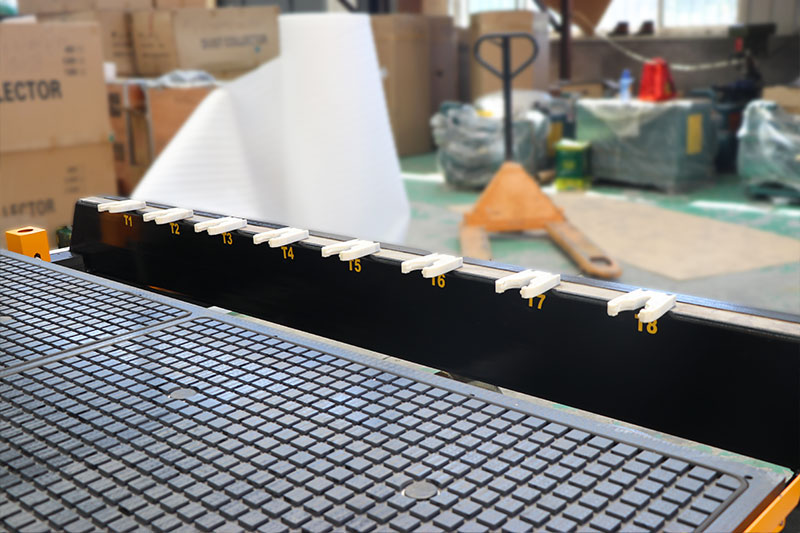

2. Linear auto tool changer with 8 tool magazines, cost-effective for automatic woodworking.
3. Vacuum table with stronger adsorption force, for a better fix of material.

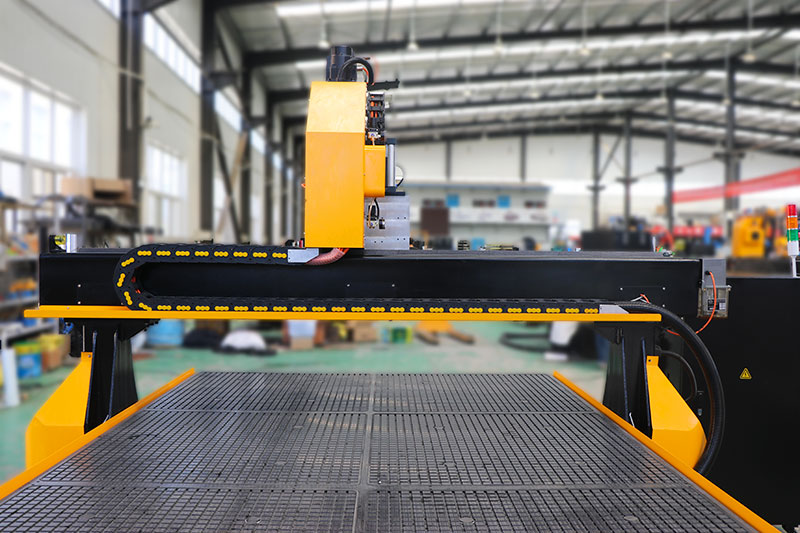

4. A high-performance drive motor ensures high speed and accuracy.
| Model | ELECNC2030ATC |
| X,Y axis travel | 2000x3000mm, option: 1300*2500mm; 1500*3000mm; 2100*4000mm, etc. |
| Z axis travel | 500mm, option: 200mm, 300mm, 400mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan LNC controller, option：Taiwan Syntec |
| Driving system | 850w Leadshine AC servo driver and 850w AC servo motor,4 sets. option:850w Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
Sure. You can customize not only the size of the machine but also many other configurations.
Yes, after add the drilling head on this machine, you can make holes fast. We have several drilling head types for you to choose from.
Both single-phase and three-phase power are possible. However, we recommend that you use 3-phase power, which is more energy-efficient and gives the machine more power.
