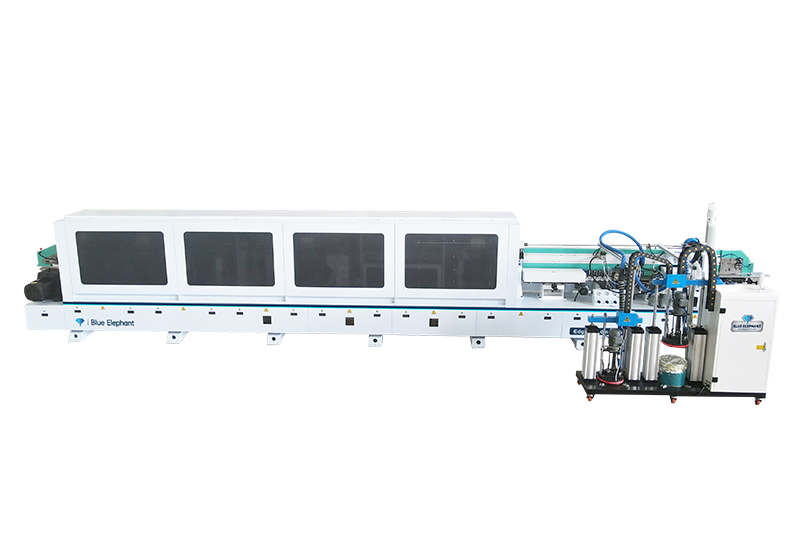

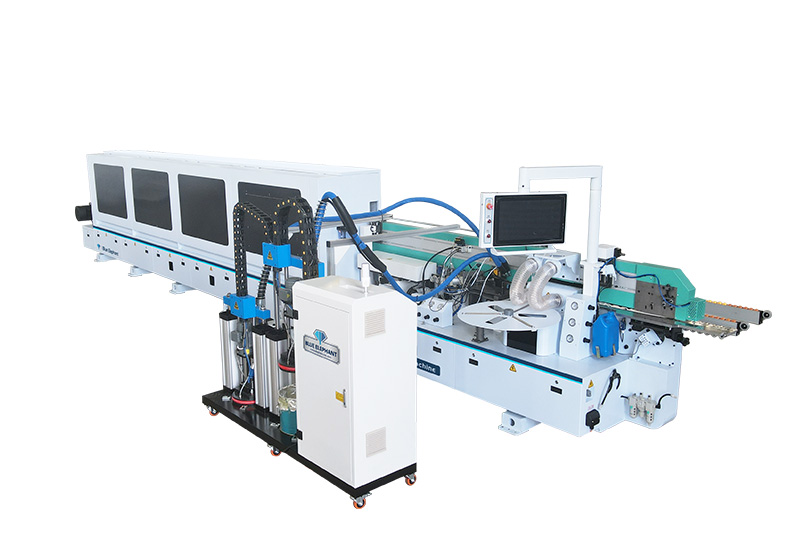

The E90 aluminum-wood integrated edge banding machine has a maximum processing speed of 21m/min, complete functions, stable system, intelligent operation control and high-speed and efficient production, which is suitable for mass production of panel furniture. The edge banding effect is beautiful, delicate, smooth, and feels good, and the sealing line is straight and smooth.

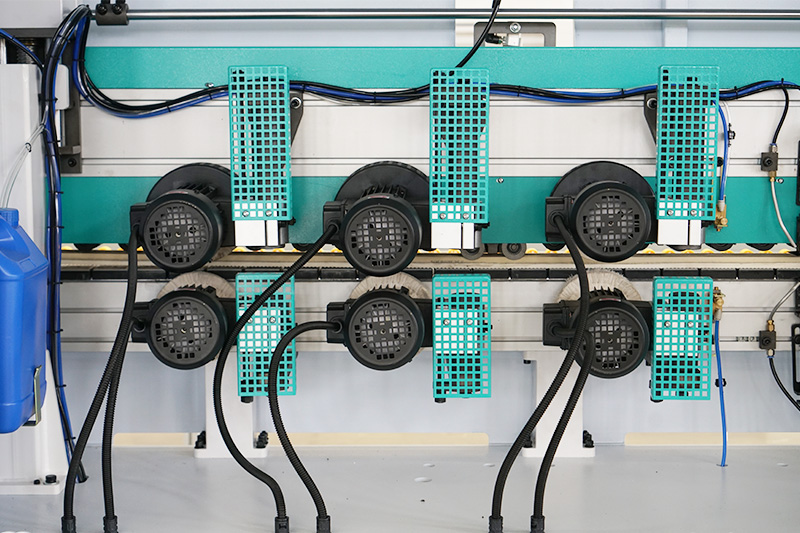

1.Milling flat the edges and residues on the cut surface of the board, making the glue coating more even and the glue line thinner.

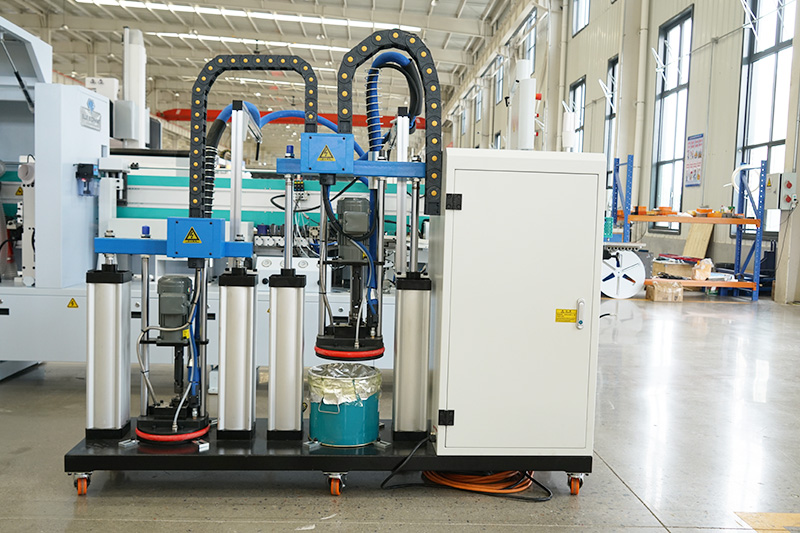

2.Use PUR glue, precise glue supply, fully enclosed glue delivery, glue coating is thinner, more delicate and even.
3.The steel wheel + rubber wheel + belt combination, repeated pressing mode, strongly presses the edge band to make it smoother, improve the edge quality and appearance, and avoid gaps and warping.

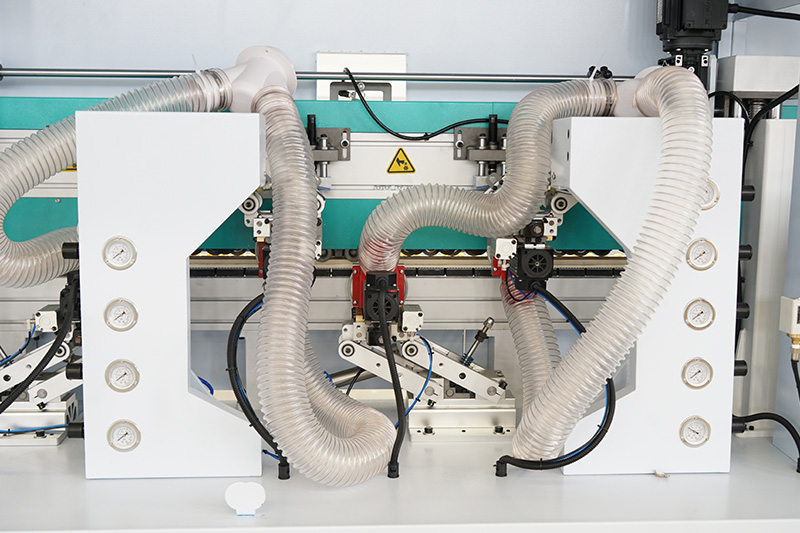

4.Rough trimming + fine trimming, trim off the excess edge banding material on the upper and lower edges of the processed board to ensure that the upper and lower parts of the trimmed board are flat and smooth.
| Automatic High Speed E90 Aluminum-Wood Integrated Edge Banding Machine for Furniture Making | |
| Model | E-90 |
| Machine weight | 4200kg |
| Overall size (L×W×H) | 10400×960×1740mm |
| Total power | 25kw |
| Working pressure | 0.6Mpa |
| Feed speed | Low 9m/Medium 17m/High 21m/min |
| Panel width | ≥60mm |
| Panel thickness | 9mm,50mm |
| Panel length | ≥50mm,≤2400mm |
| Minimum size | 50×50mm |
| Edge band thickness | ≥0.4mm,≤2.0mm |
It is suitable for edge banding of solid wood board, polymer door panel, plywood, PTP, medium density fiberboard and other boards.
Any edge band with the thickness between 0.4mm to 2mm can be used to band edges.
Our automatic edge banding machines have rough trimming, fine trimming, and polishing functions. All these functions help to trim and polish the edges to remove the exceeded glue.
