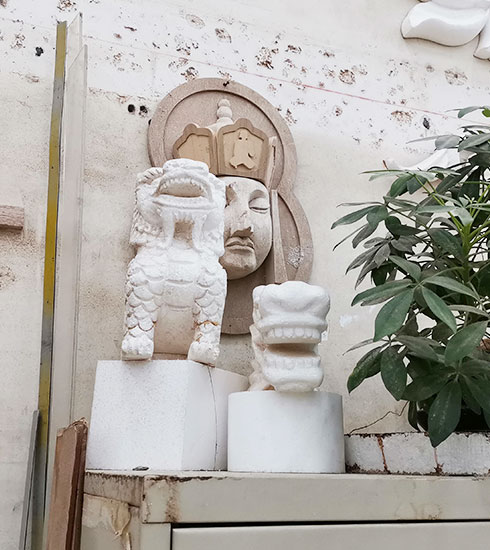

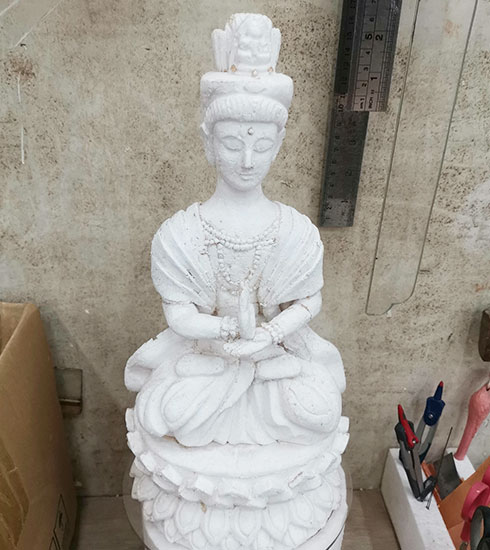

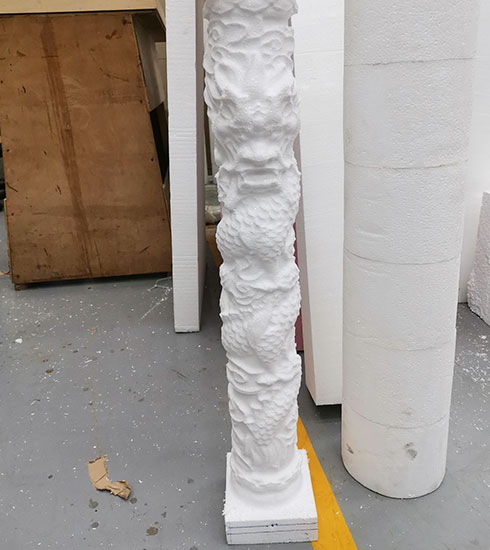

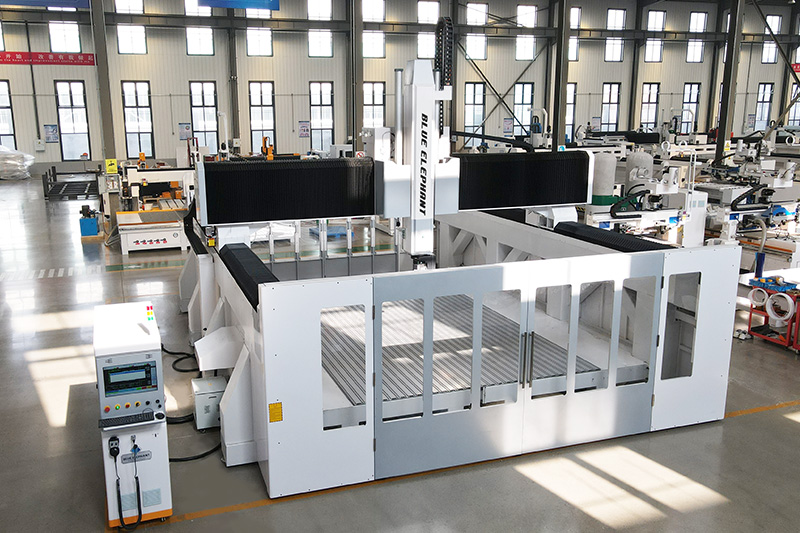

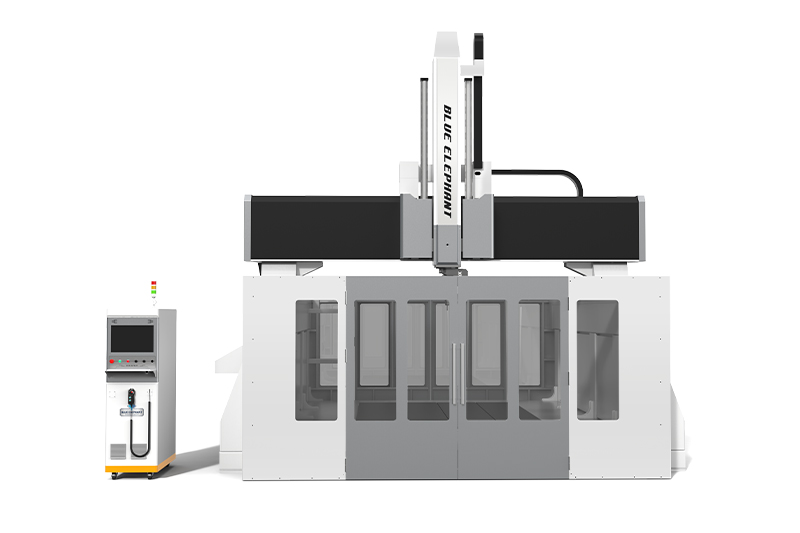

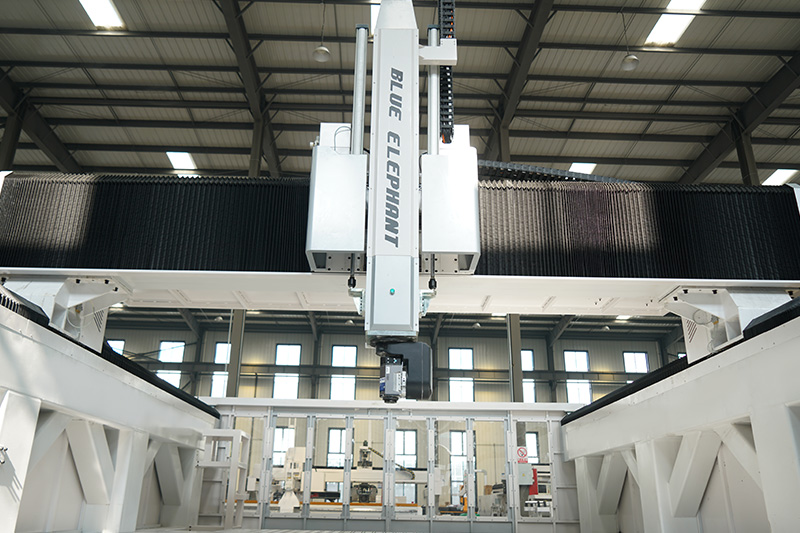

This best-selling 5 axis CNC machining center with a 5 axis head, adopts a heavy-duty bridge structure, high precision and strong stability. In addition, it is equipped with a variety of high-quality, high-performance parts to ensure stable and precise processing. It is used to process many different kinds of materials, such as carbon fiber, fiberglass, wood, medium-density fiberboard, polyurethane, foam, stone, plastic, etc.

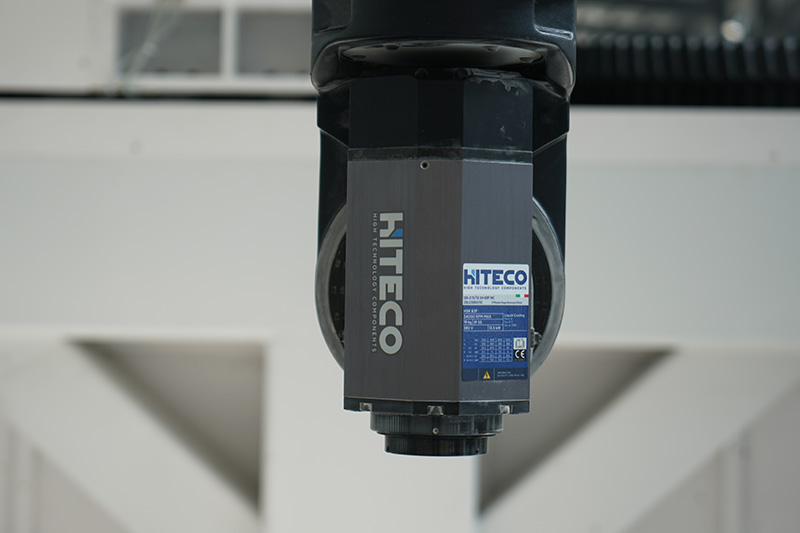

1.This 5-axis foam CNC machining center uses an Italy Hiteco 11KW water-cooling spindle with a speed of up to 24000rpm. It can rotate 270°±90° at the same time to accurately and quickly cut and engrave more complex projects.
2.The 5-axis EPS foam CNC cutter is also equipped with a CW5300AL water chiller, which can better cool the spindle to extend its service life.
3.This 3D foam 5-axis machining center with A-axis that can rotate ±120° and C-axis that can rotate ±245°.
4.The cutting machine can accommodate 8 kinds of tools with different functions, realizing automatic tool change and improving processing efficiency.
| Model | EW4-3050 ATC 5 Axis |
| Chassis voltage/frequency | 380V,3PH,50HZ |
| Control system | Syntec 5-axis system 610 with RTCP function |
| Spindle power/speed | Italy Hiteco 5 axis head＋Italy Hiteco 11 kw liquid cooling spindle, 24000rpm |
| Inverter | 15kw Delta inverter |
| Motor and driver | Y axis 2.9kw Yaskawa servo, X, Z axis 1.8kw Yaskawa servo, Z axis brake |
| Bed structure | Styrofoam bed structure |
| Reducer | Japan SHIMPO reducer |

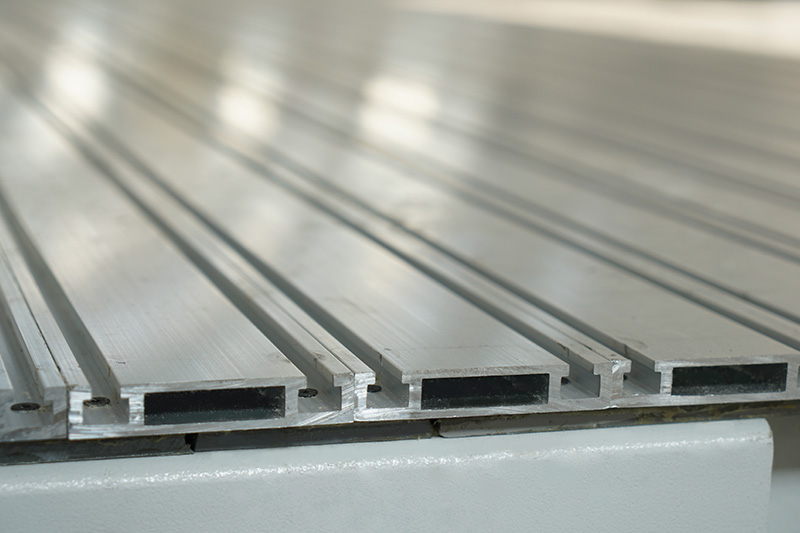

| Table structure | Ordinary countertop + PVC |
| Side panel type | Welded side panel |
| Linear Guide | Taiwan PMI square linear guide rails, 35# |
| Rack | Taiwan YYC rack 3M Z Axis 4010 screw |
| Lubrication system | 1.5L Automatic lubrication system |
| Machine dust protection type | X，Y Axis |
| Water Chiller | CW5300AL 1 PH 220V, 50HZ |
Yes. We can recommend a suitable working height for you based on the material thickness you provide.
The machine has a two-year warranty period, but our company is responsible for the machine for life.
The machine has been debugged before delivery. After you receive the machine, our engineer will guide you online for installation.
