Get the Box Sizes by auto 3D Scanning or Pre-Settings and then Make the box in seconds

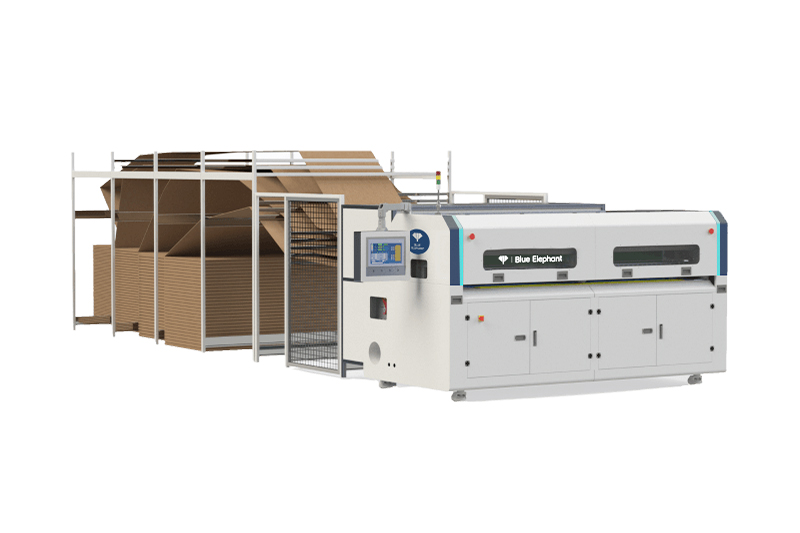

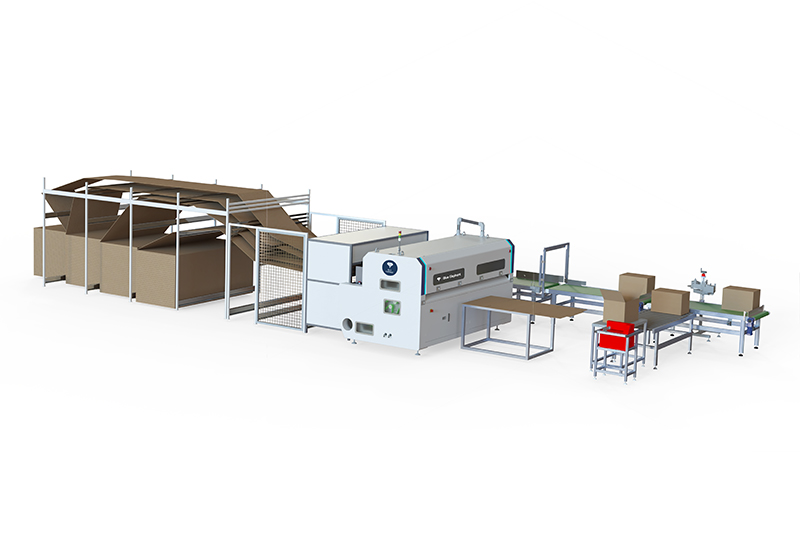

AB2500 Cardboard Box maker machines play a crucial role in the production of cardboard boxes for various industries. These machines are designed to create sturdy and durable boxes suitable for packaging, transporting, and protecting goods. They typically consist of several components, including a prefeed conveyor, forming station, gluing station, and stacking system.
01: Modular Design: Many corrugated box maker machines offer a flexible layout, allowing manufacturers to adapt the machine to their specific production needs.
02: Multiple Configurations: Different machine models accommodate diverse box styles, ranging from basic rectangular prisms to intricate die-cut designs.
03: Quick Setup: Manufacturers can rapidly changeover between various box sizes thanks to automated setup procedures, enhancing overall productivity.
04: Integrated Quality Control: Some machines incorporate cameras and scanners to inspect box dimensions and alignment, ensuring consistently sized and aligned boxes throughout the production run.
05: Smart Technology: IoT connectivity enables remote monitoring and predictive maintenance, helping minimize unexpected downtime and lower maintenance costs.
| Size | 3500(L)×1900(W)×5000(H)mm |
| Weight | 5000kg |
| Power | 380V, 50-60HZ, 32A,16KW |
| Production Rate | 400 PCS/Hour |
| Sheet Type | Z-shaped Cardboard |
| Cardboard density range | Up to 1200g/m² |
| Max.board size | 2500mm Width x Unlimited Length |
| Min.board size | 200mm Width x 650mm Length |
| Slotting Knife | 2 PCS ×500mm Length |
| Servo Motor Qty | 8 Sets |
| Max Sheet Size | 2500mm Width, Unlimited Length |
| Min Sheet Size | 340mm Width, 700mm Length |
| Switchover Time | 2-15 Seconds |

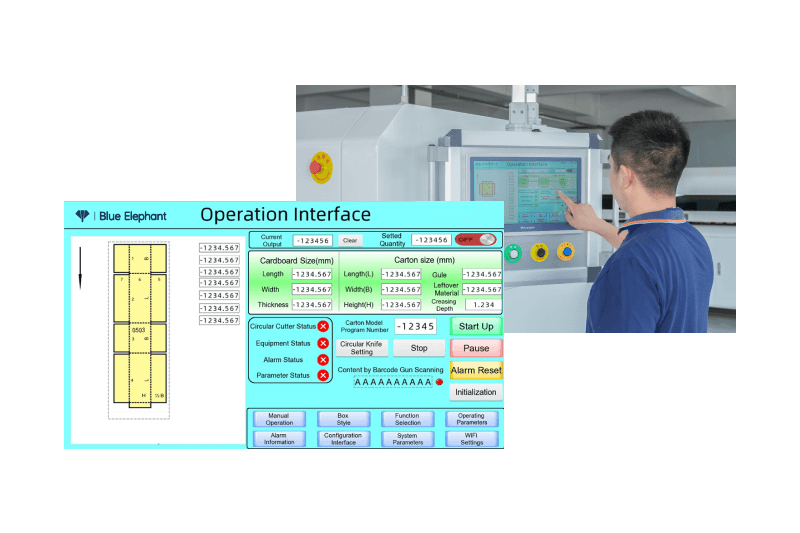

| Touch Panel | 15.6 Inch |
| Cardboard thickness | 2-10mm |
| Vertical Cutting knife | 4 |
| Scoring/Creasing Wheel | 4 |
| Horizontal Cutting Knife | 1 |
| Air Pressure | 0.6-0.7MPa |
| Box styles | More than 85 Fefco codes |
You can use our machine in several sectors, including fulfillment hubs, parcel service locations, furniture workshops, box-manufacturing facilities, storage spaces, and e-commerce platforms.
The Anypack on-demand box machine produces 85 distinct FEFCO-standard carton varieties, meeting global standards for box design.
Our AB2500 Custom Corrugated Box Making Machine carry CE certification, and we welcome assessments from independent entities, including SGS and TÜV Rheinland.
We offer round-the-clock engineer support together with local associates. Amidst the ongoing health crisis, clients receive remote help over telephone or videoconferencing.
Corrugated box maker machines serve numerous industries, including:
These machines simplify the production of various box types, such as:
For any inquiries, don’t hesitate to contact us at:
Get the full product pricing or technical details — we’re ready to assist you right away!
