5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ELECNC-2030
Category : Digital Cutting Machine
Price Range : $12000 to $15000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

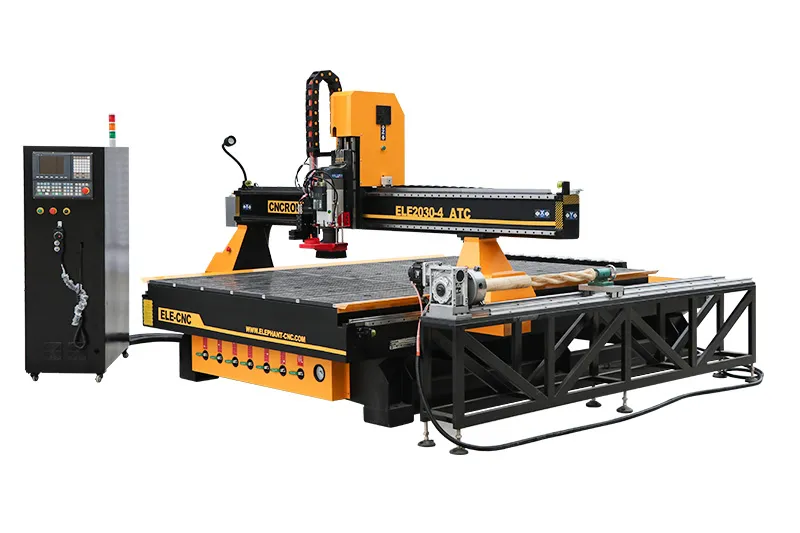

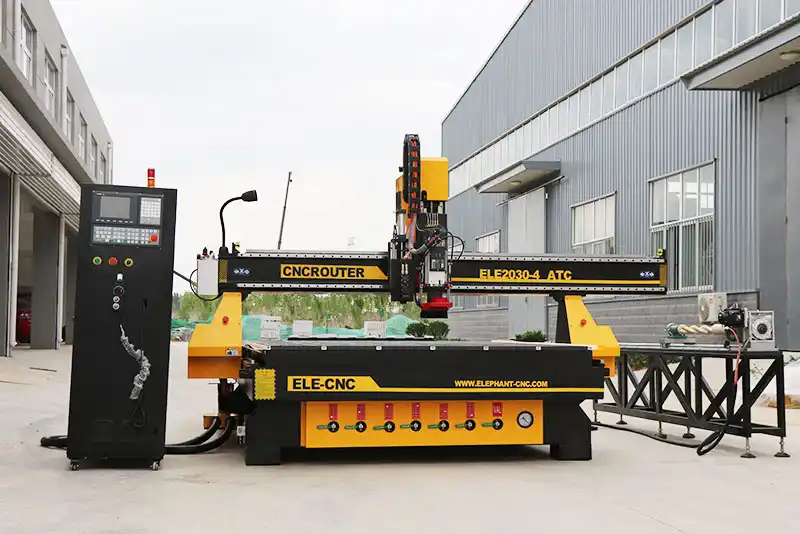

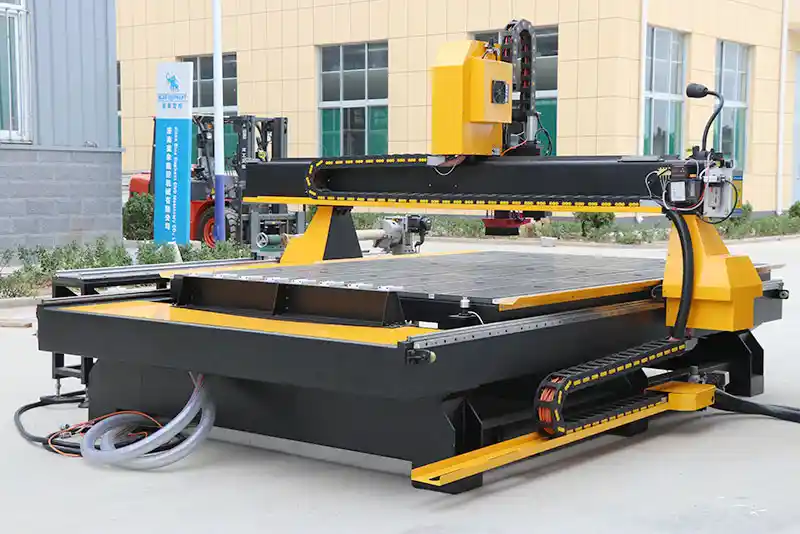

2030 4-axis CNC digital wood cutting machine uses sharp blade cutting soft materials, such as cotton material, leather, carpet, carton, PVC, cardboard, rubber, etc. It has less cutting loss than CNC router and has no heat releasing. This CNC digital cutter is also equipped with an ATC spindle and rotary device for 3d wood carving and cutting.

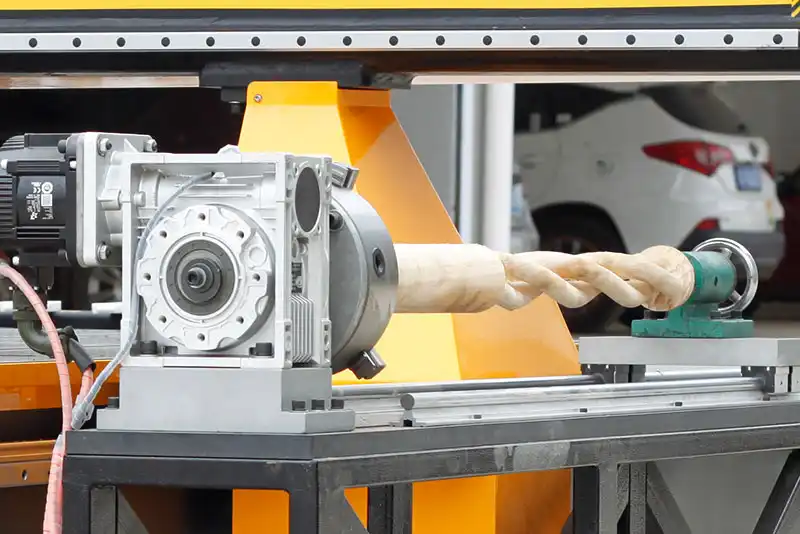

1. New type portable Rotary device, saves working space and easy to use.
2. Vacuum CNC table for quick fixing of MDF plate.
3. Helical rack gear transmission, which can ensure faster speed, higher efficiency, stronger power, and it makes the machine more stable.
4. ATC Spindle and auto tool changer for quick tool changing, save labor and time cost.
| Model | ELECNC2030ATC-R |
| X,Y axis travel | 2000x3000mm, option: 1300*2500mm, 1500*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec controller, option: Taiwan LNC |
| Driving system | 850w Japan Yaskawa AC servo driver and 850w AC servo motor,4 sets. option: 1000w Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command Language | G Code & M Code |
| Traveling speed | 65m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working Accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
If you use water circulation vacuum pump, you should use 2 sets of 7.5kw vacuum pump.
Yes, it’s ok to have both types of carousel tool changers.
For sheets alignment.
