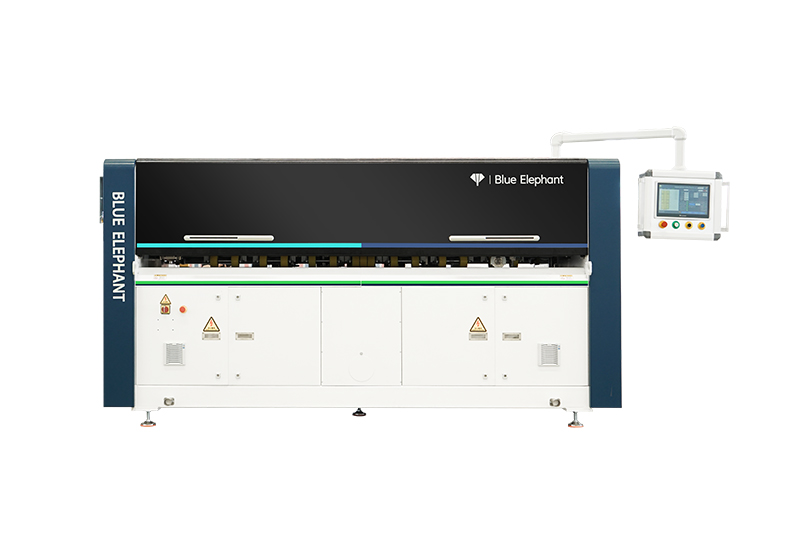

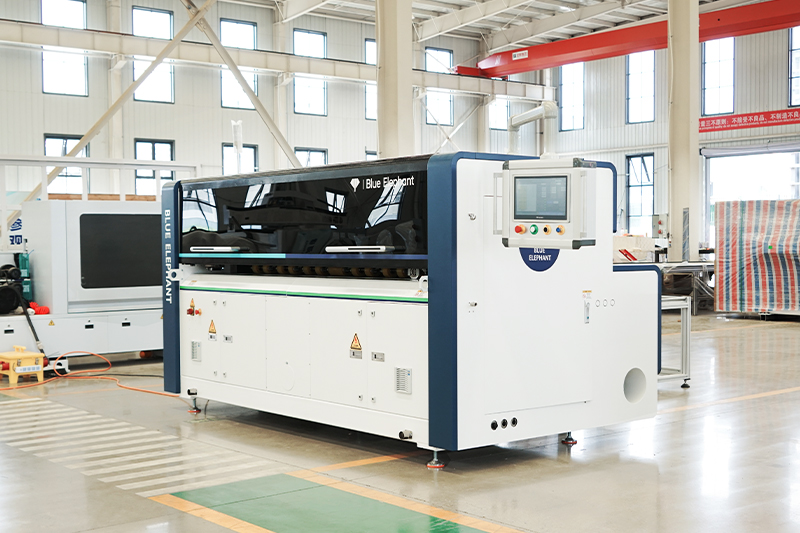

AB2500 Corrugated Box Making Machine

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : AB2500

Category : Corrugated Box Maker Machine

Price Range : $70000 to $80000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

The AB2500 box making machine is easy to operate by a single person. With one-time feeding, it completes slotting, paper separation, horizontal pressing, vertical pressing, cross-cutting, punching, and adhesive printing in one go—saving time and labor. Job change takes just 3 seconds. Supports over 100 box styles for all kinds of custom needs.

Features

1. Capable of processing slot length ranging from 0 to 500mm, slot knife customizable.
2. Rotating cutter for smooth and debris-free paper cutting; Exclusive creasing technique for intact creases without breakage.
3. Meets customized hole punching requirements such as hand holes and ventilation holes forcartons.
4. Automatic gluing system can be integrated for both cold and hot melt.
5. Automatic printing system can be integrated. Both flexo and digital printing can be realized.

Parameters

Model	AB2500
Equipment Size	3500(W)2200(H)2900(L)mm
Weigh	Appr 4000kg
Power	380V,50/60HZ,10KW
Production Rate	500-600Pcs/H (Different box types have differences)
Cardboard Type	Sheet
Switchoverime	About 3 seconds
Cardboard Thickness	1.5-10mm
Max. Board Size	2500(W)mm*Unlimited(L)
Min.Board Size	200(W)*650(L)mm
Max. Box Size	1000(W)1500(H)mmUnlimited(L)
Min.Box Size	150(W)750(H)150(L)mm
Feeding Mode	Sheets Feeding
Slotting Knife	2 Pcs*500mm Length
Vertical Cutting Knife	4
Creasing Wheel	4
Hrizontal Cuting Knife	1
Box Styles	More Than 100 Fefco Code

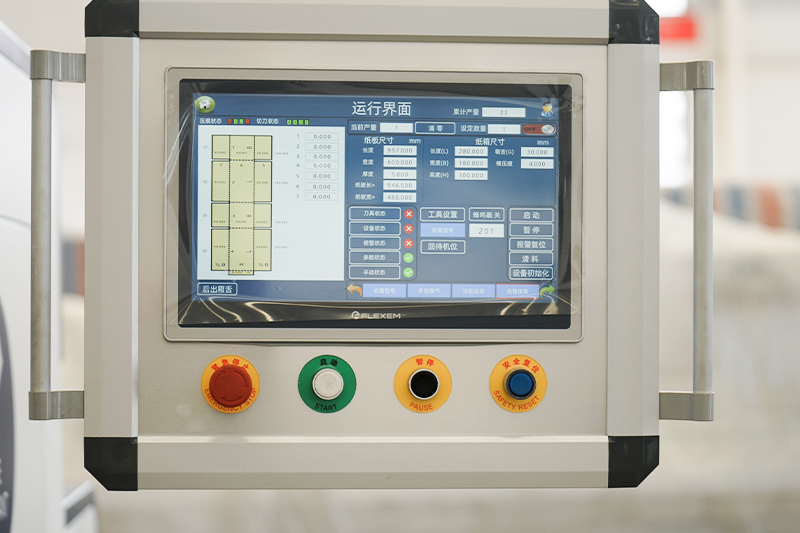

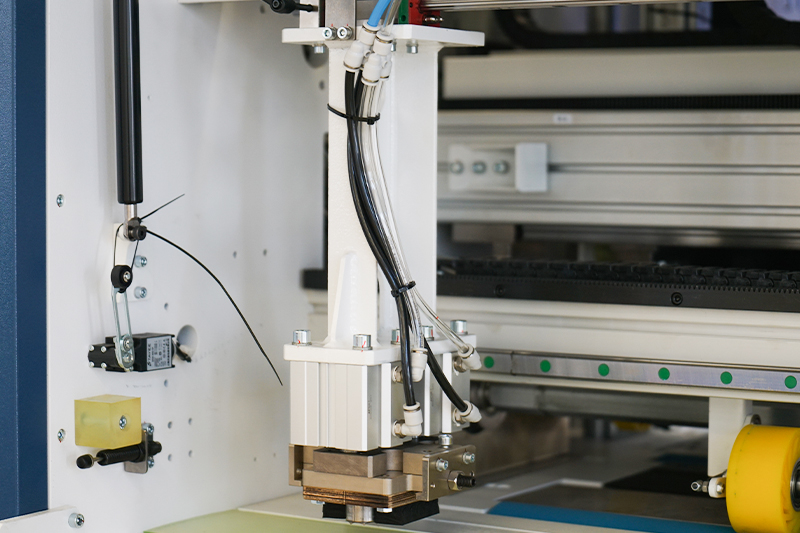

Corrugated Box Maker Machine Optional Parts

Application

Corrugated box making machine is mainly used in e-commerce logistics, food packaging, electronic product packaging, medicine, cosmetics, daily necessities and other industries to meet the large-scale demand for cartons in various industries, improve production efficiency and reduce costs.

Review

It’s been three years since I bought my machine. The machine works every day, does not stop. I’m very happy with the quality of the machine, it looks very strong and well built.

I am very happy with machine quality.It is a happy purchase from China. I will share more working videos after I use my lovely machine.

We used it to make cabinets for four years, I like it very much! Thanks to Blue Elephant for providing such a good-quality machine and perfect after-sales service.

After 10 days installation, training via Blue Elephant, my machine is working now. And i can make some cabinet making. Exactly Machine performance exceeded my expectations, it is with faster speed and good precision. I like it very much. Thanks for all support from Blue Elephant.
