Door Making Assembly Line Furniture Production Solution

Door Making Assembly Line Furniture Production Solution - Image 2

Door Making Assembly Line Furniture Production Solution

(4.9 based on 165 ratings and reviews)

Brand : Blue Elephant
Model : Door Panel Mould Processing
Category : Smart Factory for Furniture Industry
Supply Ability : 350+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

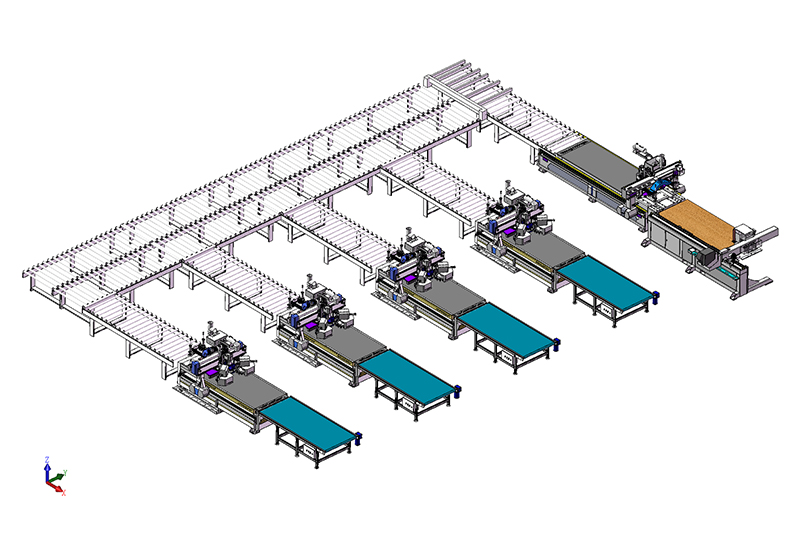

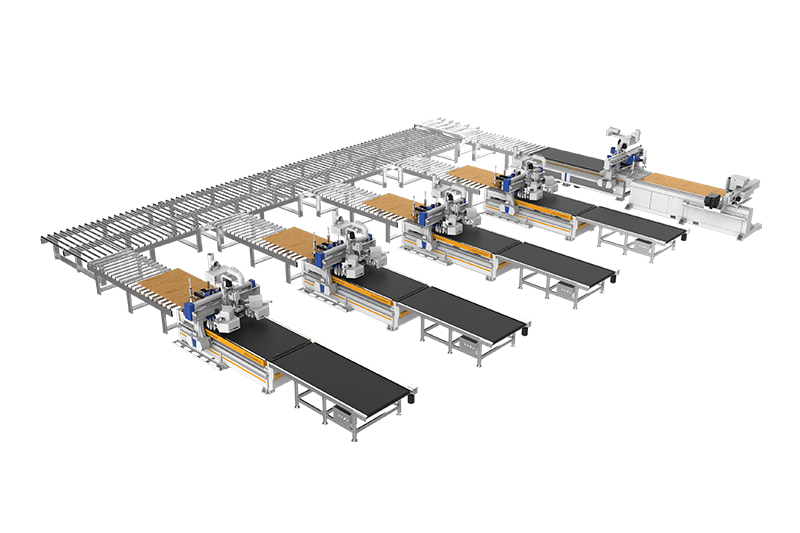

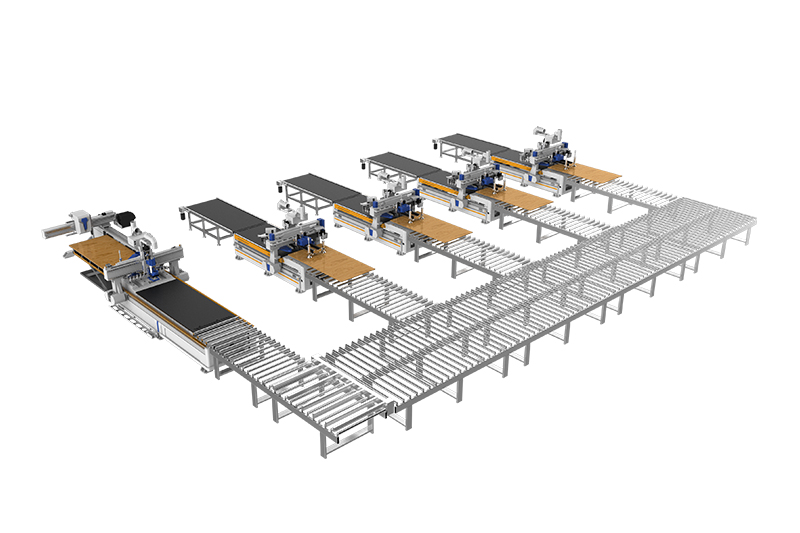

Door making assembly line furniture production solution is consists of labeling machine, CNC nesting machine with automatic loading and unloading, power roller line, panel turnover machine, CNC ball screw cutting machine with automatic loading and unloading. And it suitable for fully automated processing of the front and back of the molded door panel, greatly improving production efficiency and saving labor costs.

Features

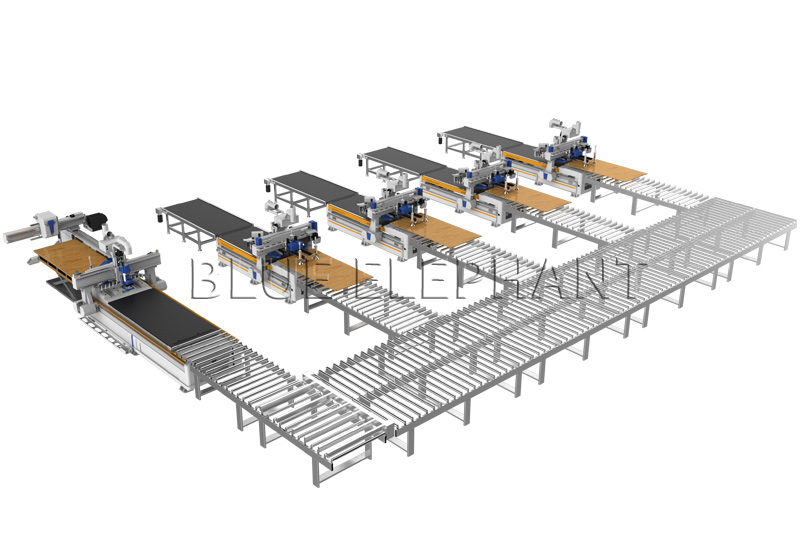

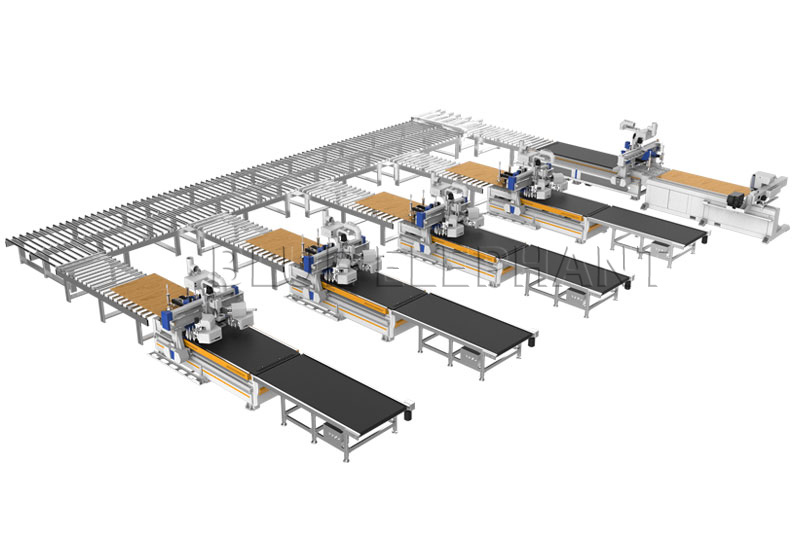

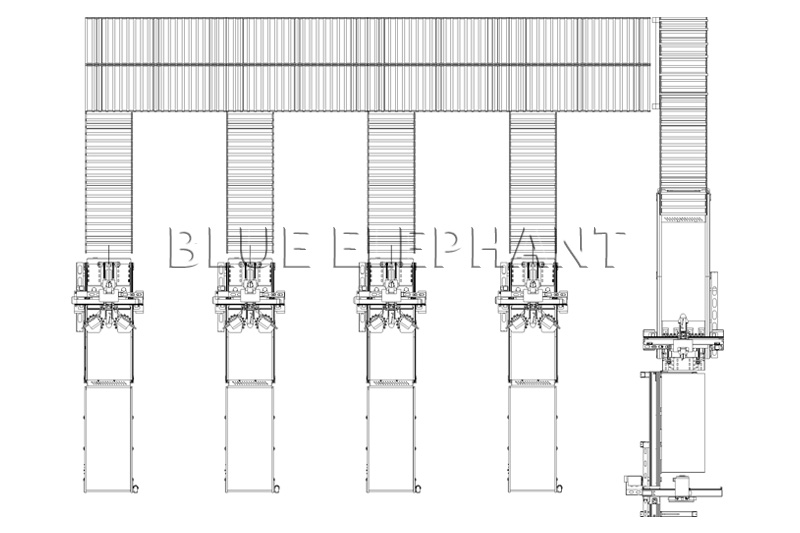

One head with four spindles door panel mould processing connection line consists of: labeling machine, CNC rack cutting machine with automatic loading and unloading, power roller line, panel turnover machine, CNC ball screw cutting machine with automatic loading and unloading

Adopt positive and negative automatic processing of door panel mould processing, greatly improving production efficiency and saving labor cost.
With less error-prone on the production and less human intervention, Syntec system cooperates with software to control production line.
All steps are completed automatically. All plates are distributed to separate machining center by the central control unit, including positive and negative modeling, pan processing and glass door processing, which is compatible with all furniture production software.

Work flow:

Forklift loading the platesAuto labeling machine labeling platesMachine auto grabbing plates and processing hinge hole,straightener slot, glass door back processingPlates are conveyed to turnover machine for turnoverAuto delivered to separate door machining centerMachine processing and cutting doorsAfter machining, machine pushing plates to unloading table and loading plates at the same time
