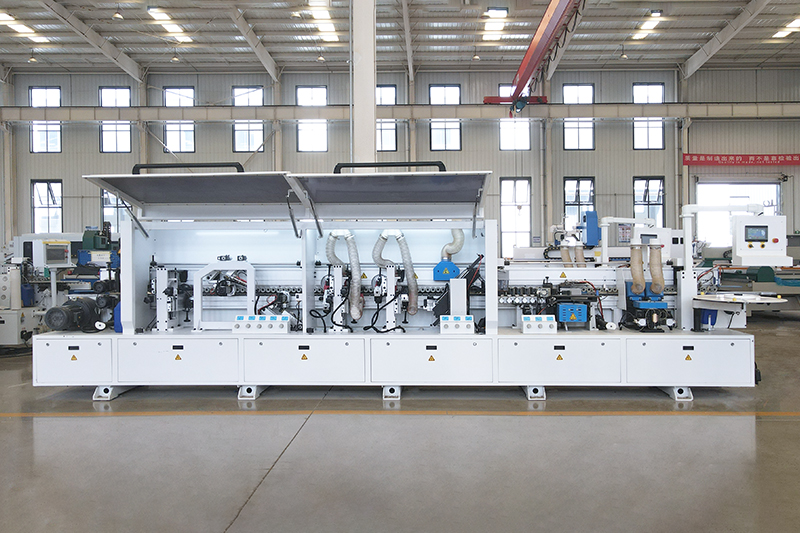

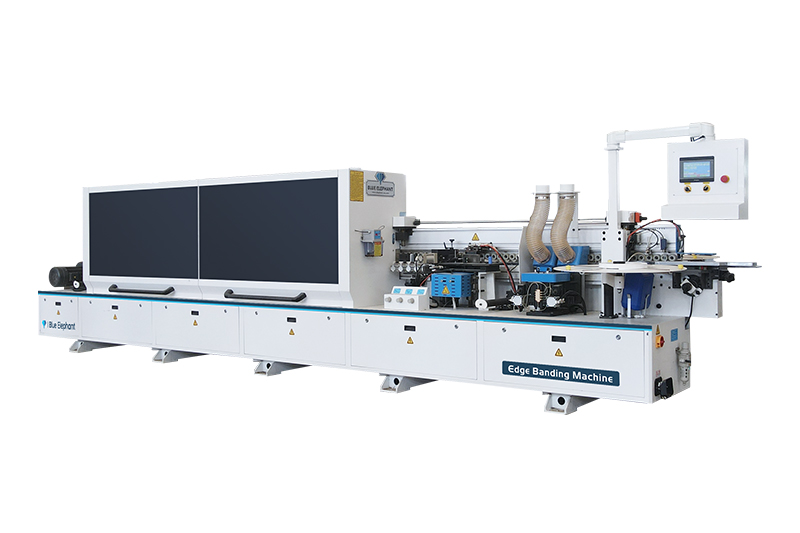

E70J automatic edge banding machine has the functions like pre-milling, gluing, pressing, end cutting, rough trimming, fine trimming, tracking and rounding, scraping, buffing, separating agent(optional),cleaning(optional). This edge bander is widely used in the wood furniture industry, including panel furniture, custom furniture, cabinets, wardrobes, and office furniture.
1. Pre-milling flattens cutting edges and removes residue for more even glue application and thinner glue lines.
2. Fast glue melting reduces waiting time, improving efficiency and saving time.
3. Multi-point pressure ensures tighter adhesion between edge band and panel.
4. End cutting accurately removes excess edge band at panel ends.
5. Rough and fine trimming levels top and bottom edges, keeping the band perfectly parallel to the panel.
Model | E-70J |
Machine weight | 2400kg |
Overall size(Length×width×height) | 6720× 960× 1600mm |
Total power | 17KW |
Working pressure | 0.6Mpa |
Feed speed | Low 16/Mid 18/High 23m/min |
Panel width | ≥60mm |
Panel thickness | 9mm-60mm |
Panel length | ≥ 60mm(No milling) |
Min. size(Width×length) | 60×60mm/150×200mm(Pre-milling) |
Tape thickness | 0.4mm-3mm |

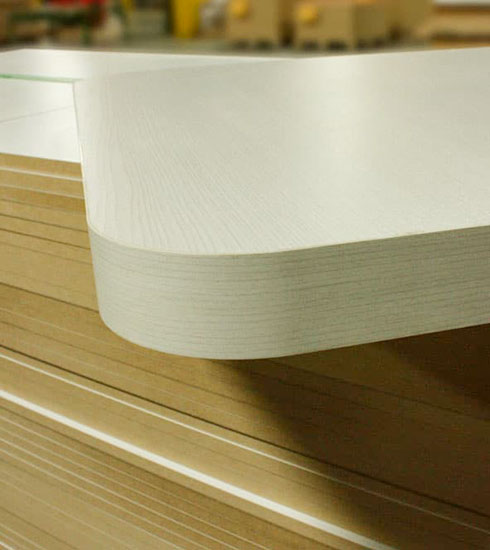

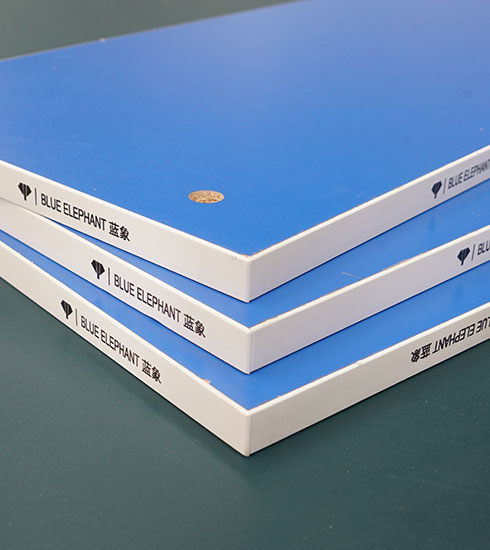

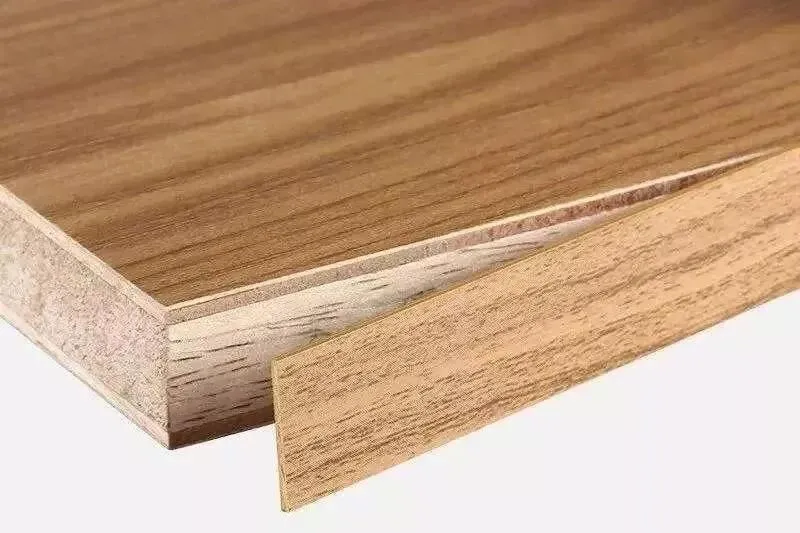

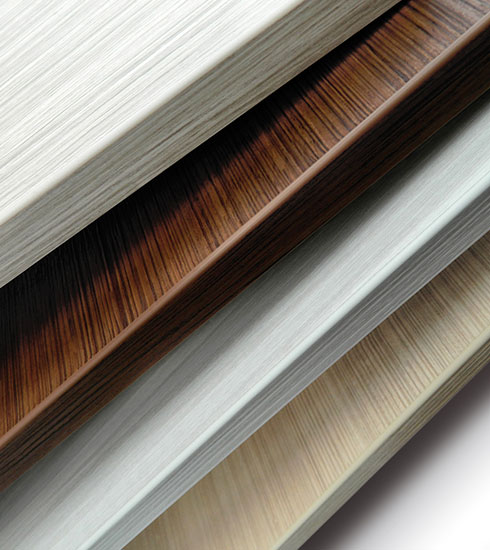

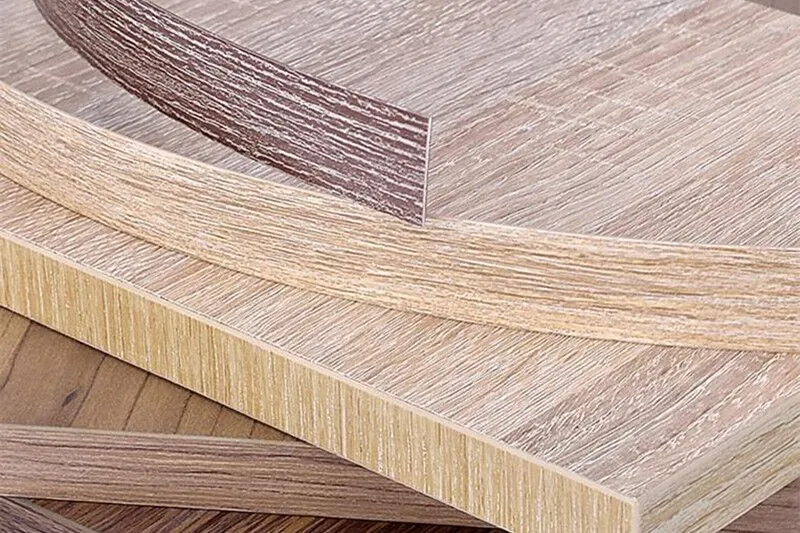

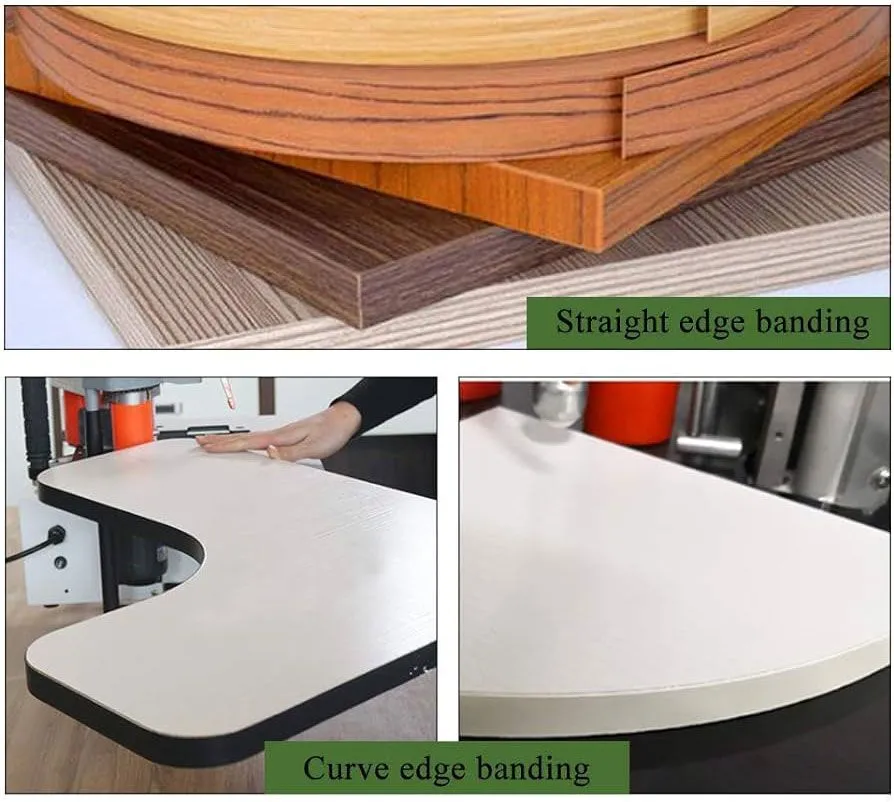

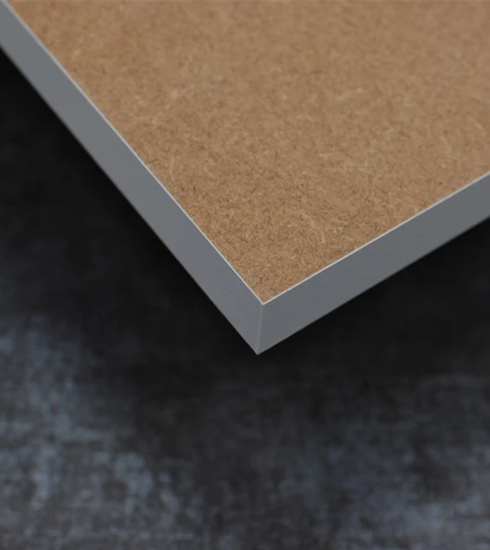

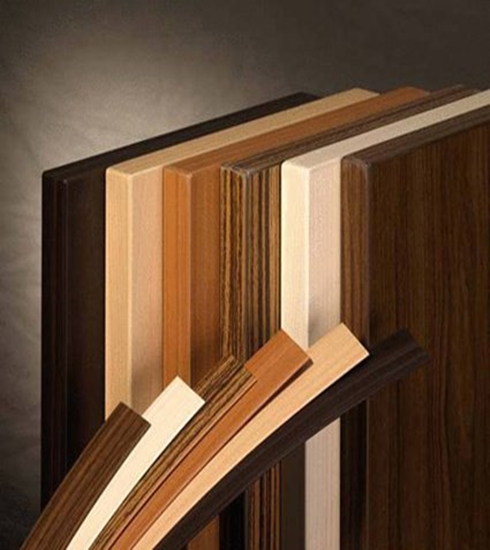

The automatic edge banding machine is suitable for MDF, blockboard, solid wood, particleboard, polymer door panels, and plywood. It delivers smooth, fine, and seamless edge finishes with an excellent feel. Ideal for medium and large furniture manufacturers producing cabinets, wardrobes, and other panel furniture.
This bander machine can process materials such as MDF, solid wood board, particle board, polymer wood board, plywood, etc.
Yes. Its processing range is 9mm-60mm.

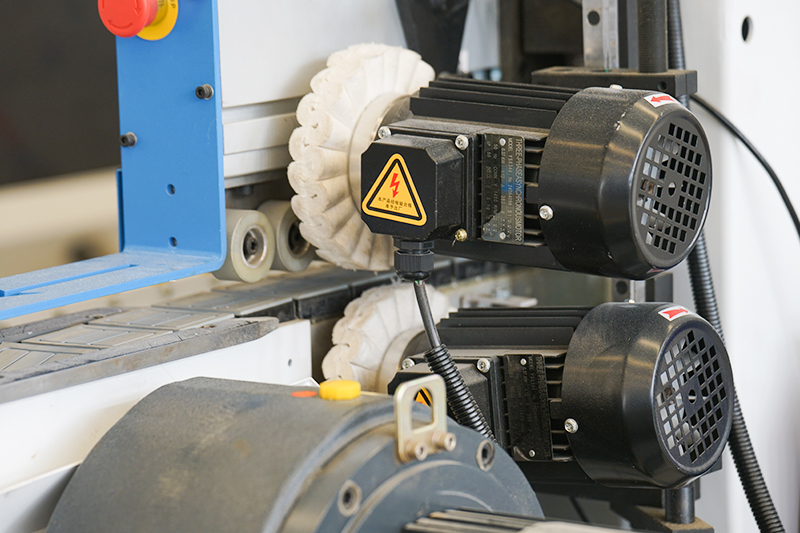

The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
