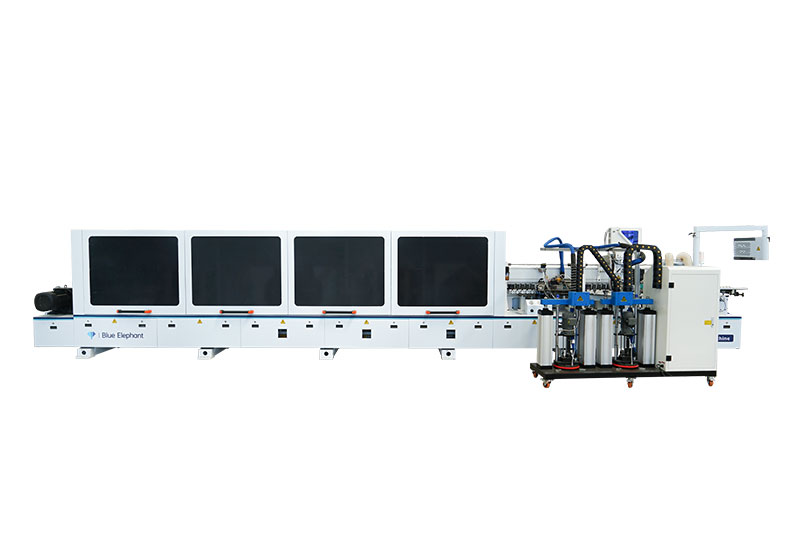

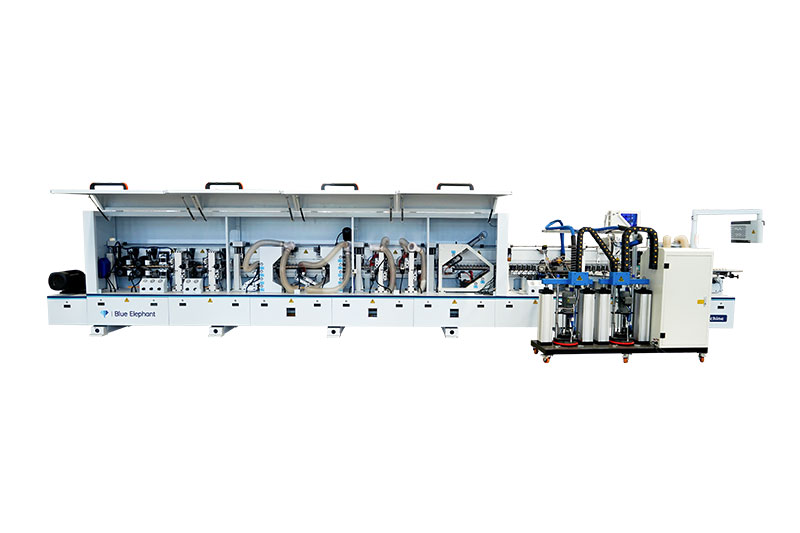

E-80 fully automatic edge banding machine, the maximum processing speed can reach 23m/min, tracking chamfering can reach 18m/min, with complete functions, stable system, intelligent operation control and high-speed and efficient production, suitable for mass production of panel furniture. The edge banding effect is beautiful, delicate, smooth, good feel, and the sealing line is straight and smooth. The machine is stable and durable, with complete functions and extremely high cost performance.

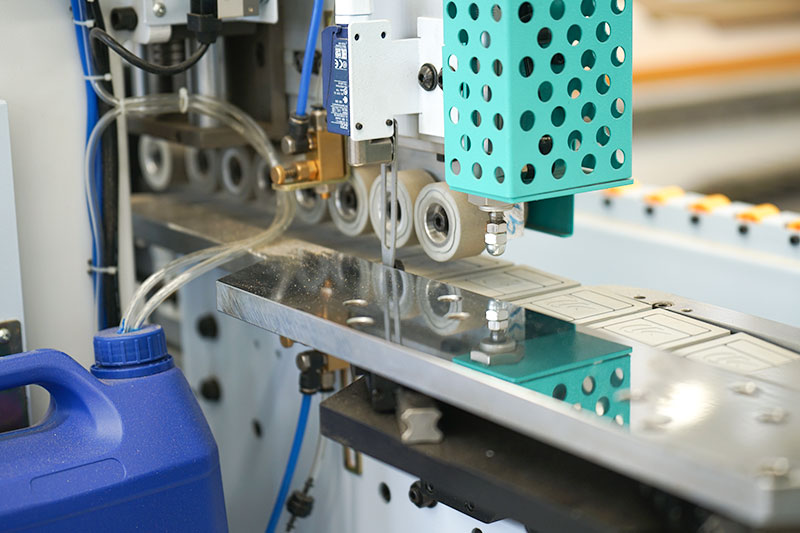

1.E-80 fully automatic edge banding machine can spray release agent on the upper and lower surfaces of the board to prevent the board from sticking to the glue.
2.The E-80 fully automatic edge banding machine can mill off the broken edges and residues on the cut surface of the board, making the glue application more even and the glue line thinner.

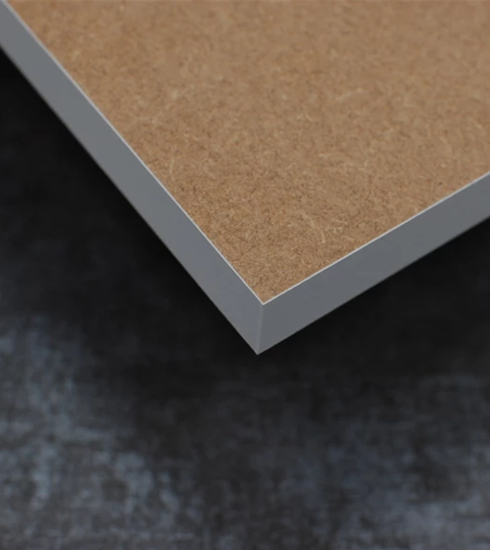

3.It can modify the edges and corners of the board and the residual glue line, making it feel smoother, more beautiful and neat.
4.It adopts 5.5KW large motor, stable and powerful.
| Model | E-80 |
| Machine weight | 4550kg |
| Overall size(Length×width×height) | 10580× 960× 1600mm |
| Total power | 25KW |
| Working pressure | 0.7Mpa |
| Feed speed | Low 18/Mid 23/High 28m/min |
| Panel width | ≥60mm |
| Panel thickness | 9mm-60mm |
| Panel length | ≥ 60mm(No milling) ≥ 150mm(Pre-milling) |
| Min. size | 60×60mm |
| Edge banding thickness | 150×200mm (Pre-milling) |

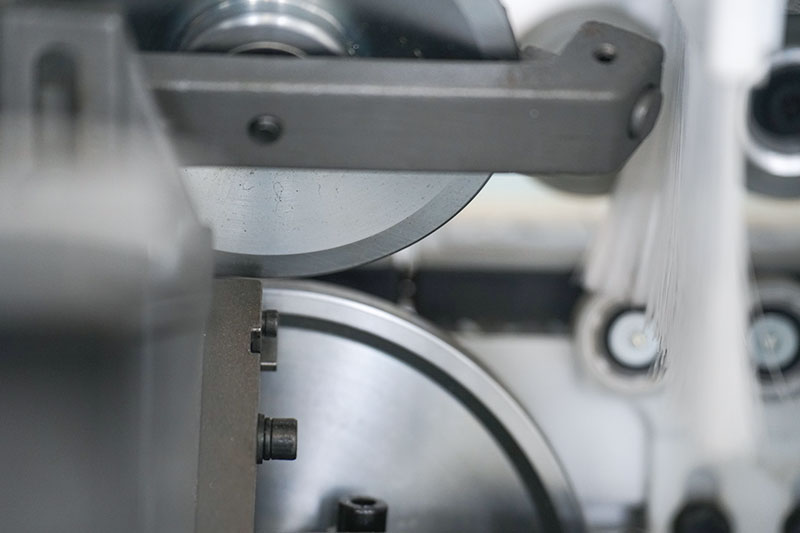

The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
Yes.Its processing range is 9mm-60mm.
This machine can process materials such as MDF, solid wood board, particle board, polymer wood board, plywood, etc.
