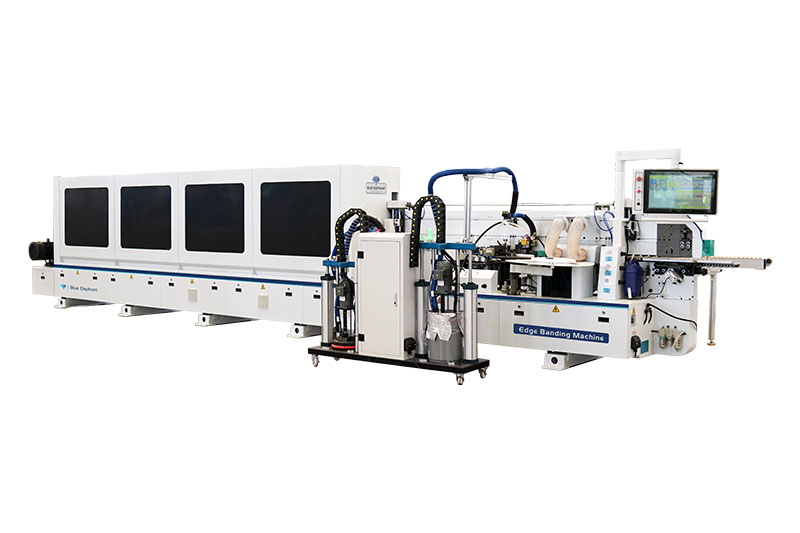

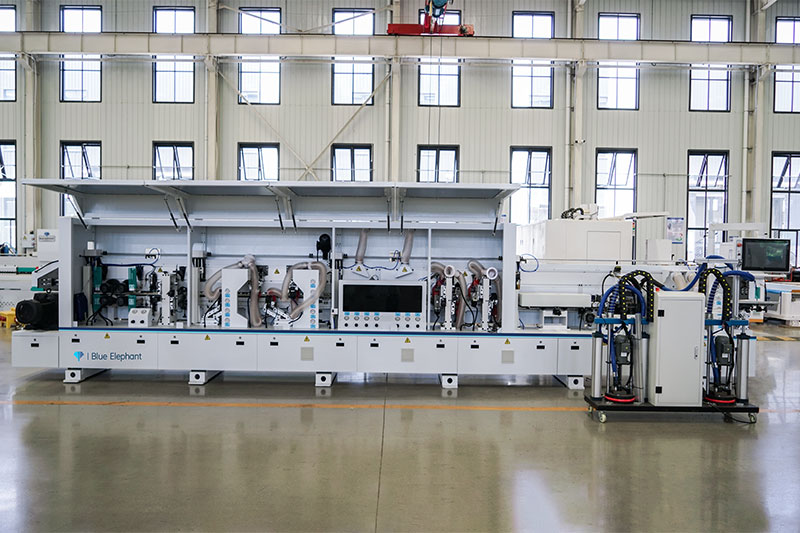

E-90 aluminum-wood edge banding machine is equipped with separating agent, pre-milling, PUR glue pot + dual-color gluing system, specialized belt pressing, rough trimming, fine trimming, split double-track end cutting, four-motor profile tracking, scraping, flat scraping, cleaning, and double buffing functions. It is suitable for edge banding processing of various types of aluminum honeycomb furniture, PET, MDF, blockboard, solid wood board, particle board, polymer door panels, and plywood. The edge banding results are delicate, smooth, straight, and provide an excellent touch and finish.

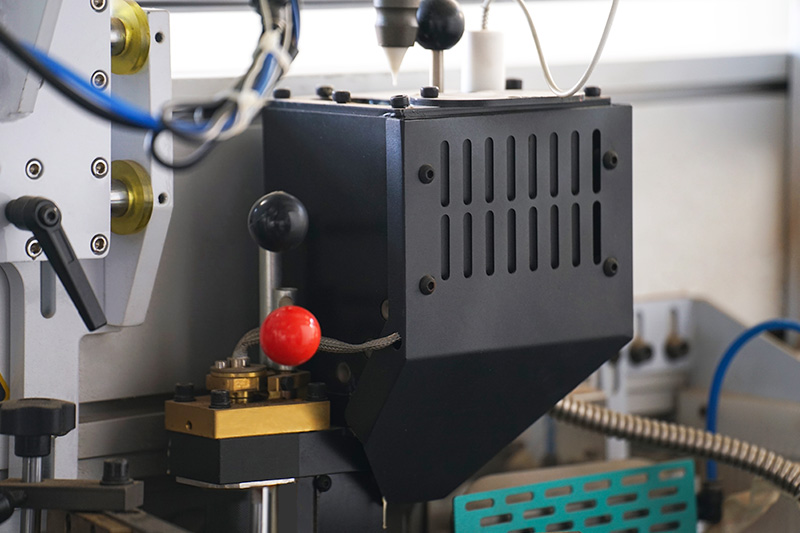

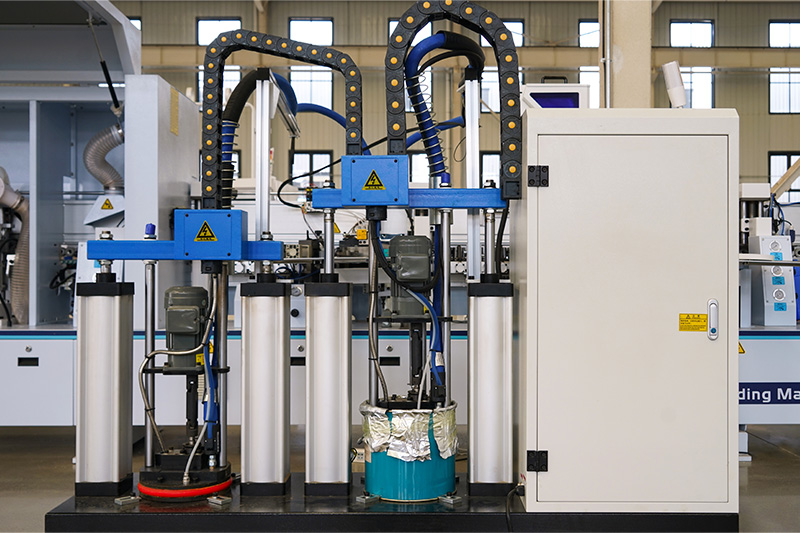

1. The edge banding machine uses a PUR dual-color gluing system with a fully enclosed design. It requires no cleaning, applies glue automatically, and allows one-click two color switching.

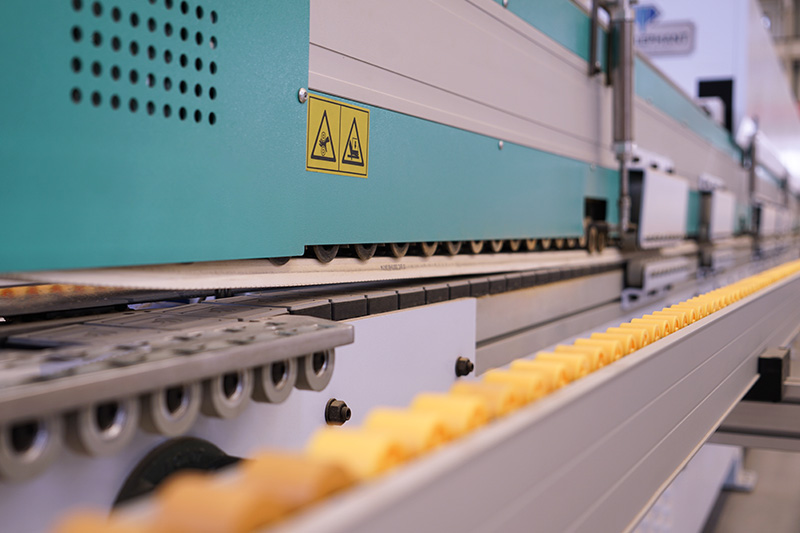

2. The edge bander uses a combination of steel wheel, rubber wheel, and belt pressing. This ensures strong adhesion, smoother edges, and prevents gaps or lifting.

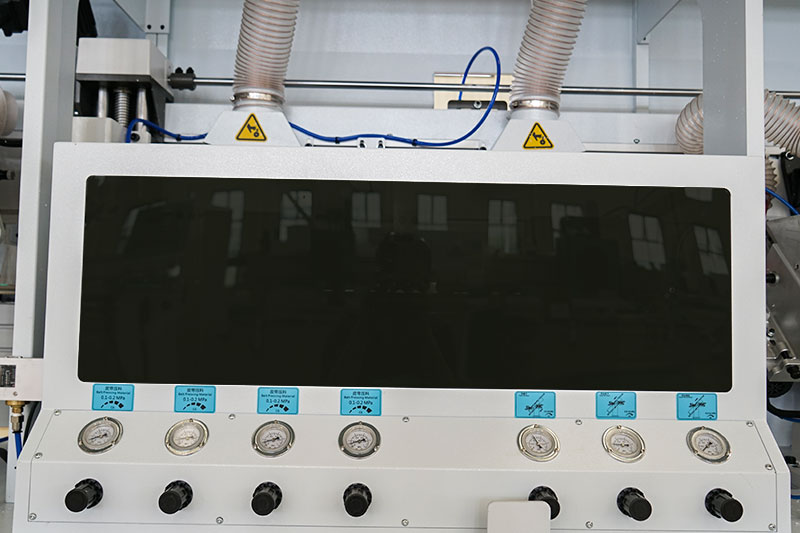

3. It adopts a split double-guide end cutting system. It trims edges precisely, works efficiently, and avoids panel chipping.
4. The machine is equipped with two buffing units. The cotton wheels remove excess glue and make edges and panels smoother and cleaner.
Model | E-90 |
Machine weight | 4250kg |
Overall size (L×W×H) | 9800*900*1750mm |
Total power | 23kw |
Working pressure | 0.6Mpa |
Feed speed | Low 16m/Medium 18m/High 22m/min |
Panel width | ≥60mm |
Panel thickness | 9mm,60mm |
Panel length | ≥60mm ≤2400mm |
Edge banding thickness | ≥0.4mm,≤2.0mm |

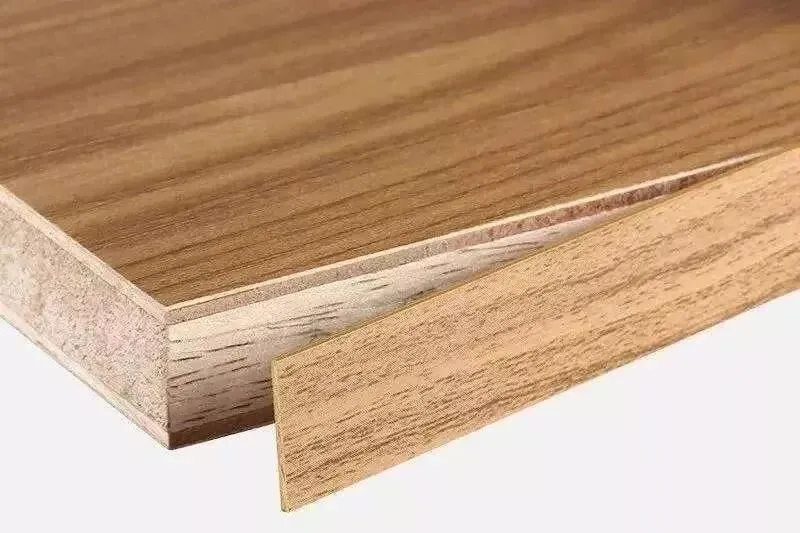

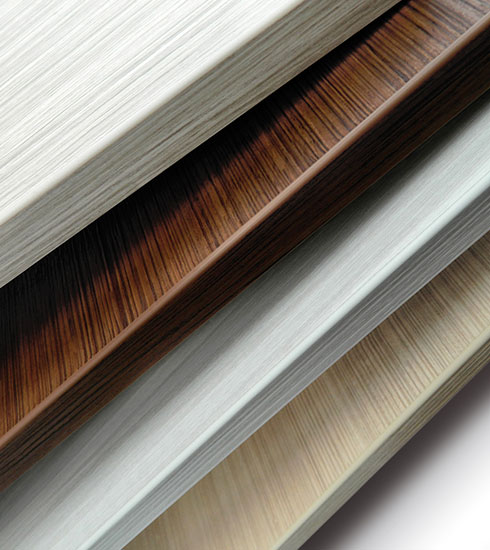

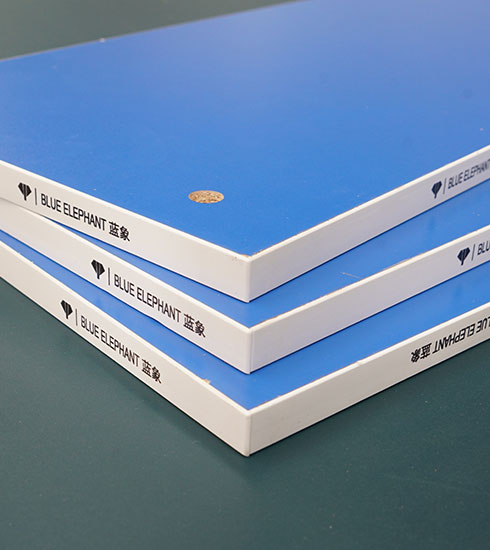

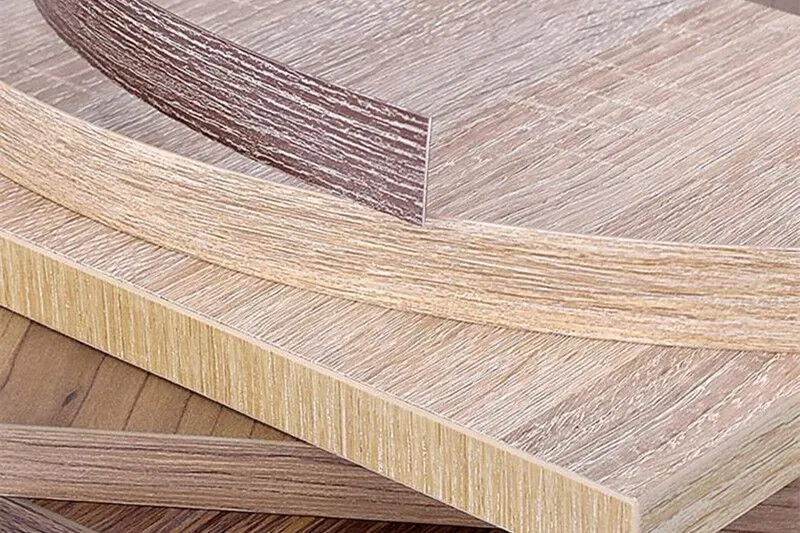

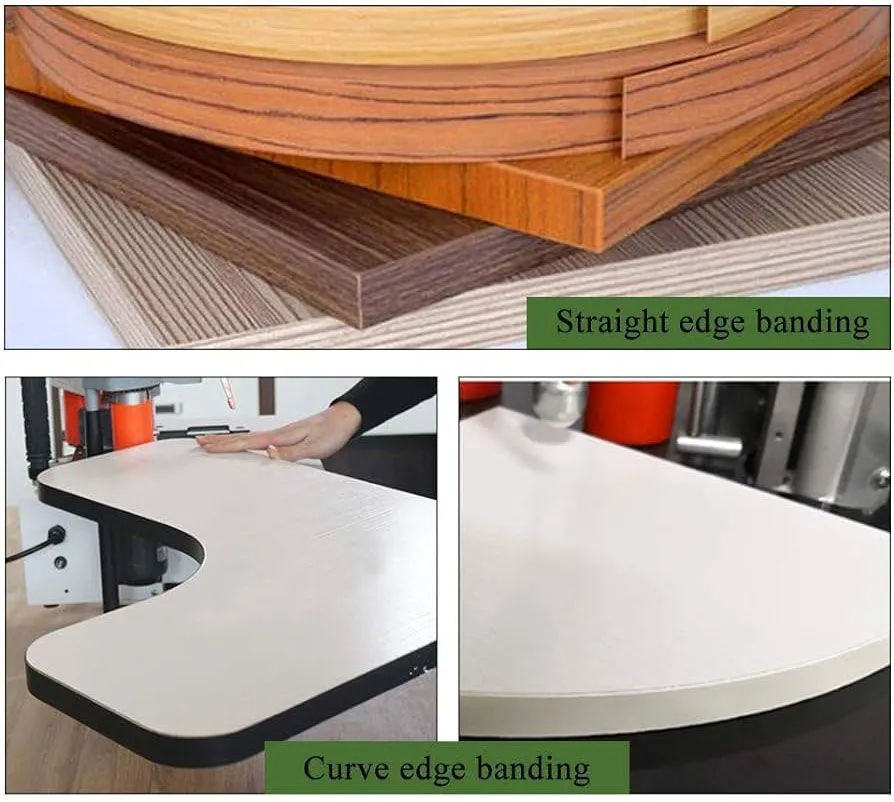

It is suitable for edge banding of solid wood board, polymer door panel, plywood, PTP, medium density fiberboard and other boards.
Any edge band with the thickness between 0.4mm to 2mm can be used to band edges.
Our automatic edge banding machines have rough trimming, fine trimming, and polishing functions. All these functions help to trim and polish the edges to remove the exceeded glue.
