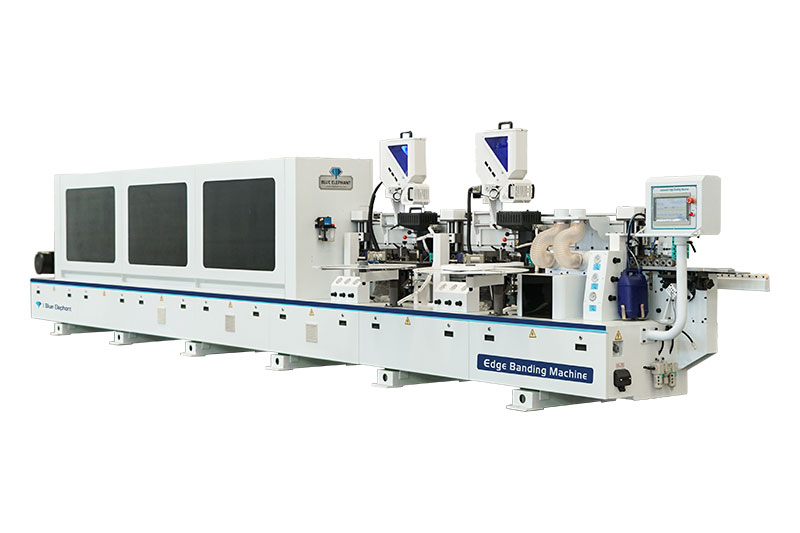

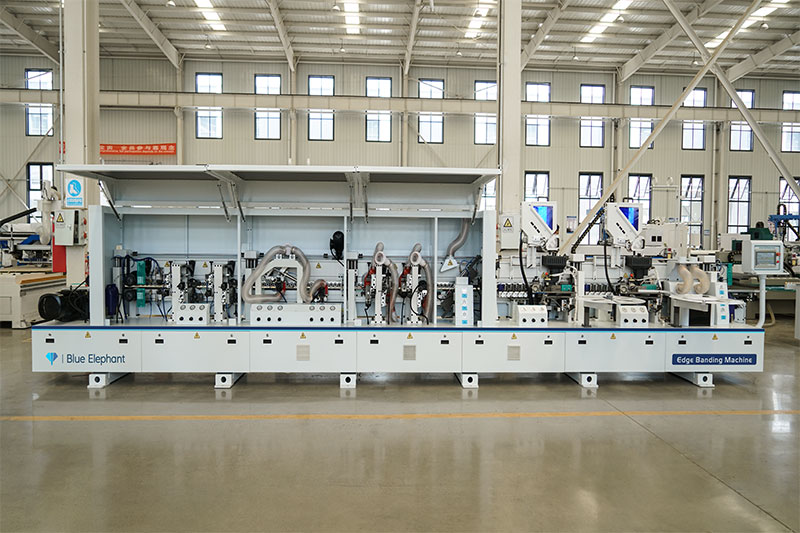

E-70JDSR Edge Banding Machine with Double Glue Pots

E-70JDSR Edge Banding Machine with Double Glue Pots

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : E-70JDSR

Category : Edge Banding Machine

Price Range : $25000 to $30000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

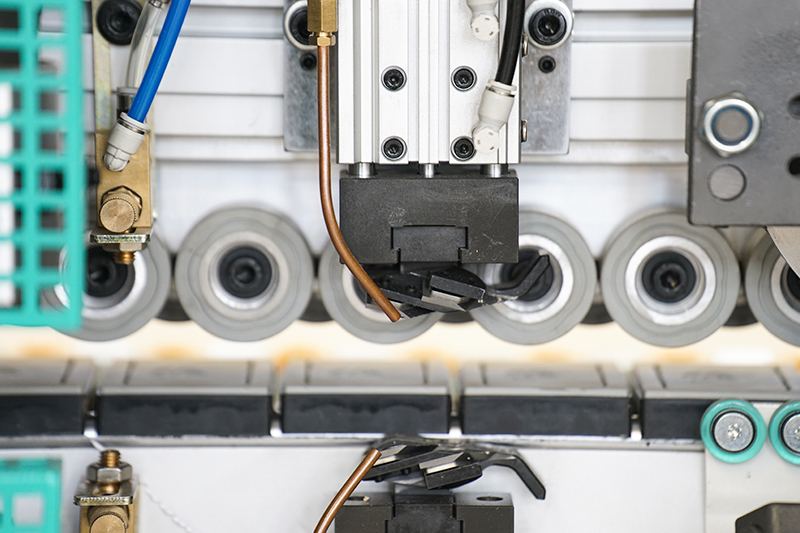

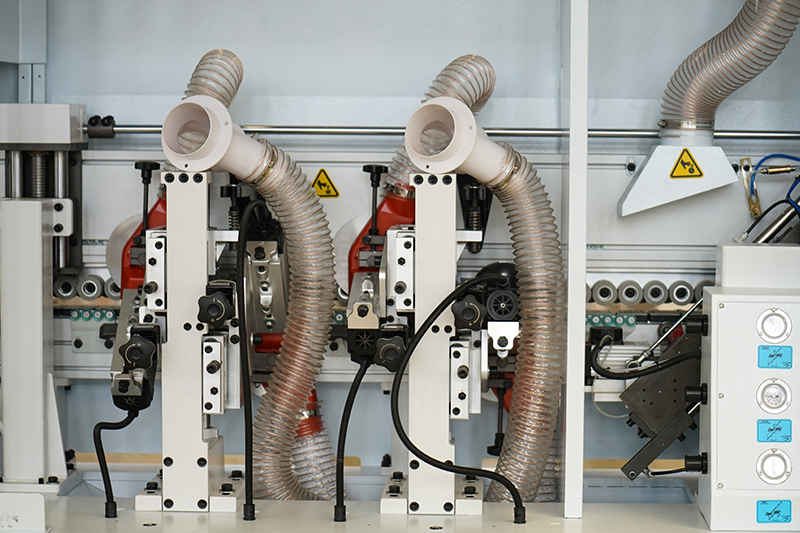

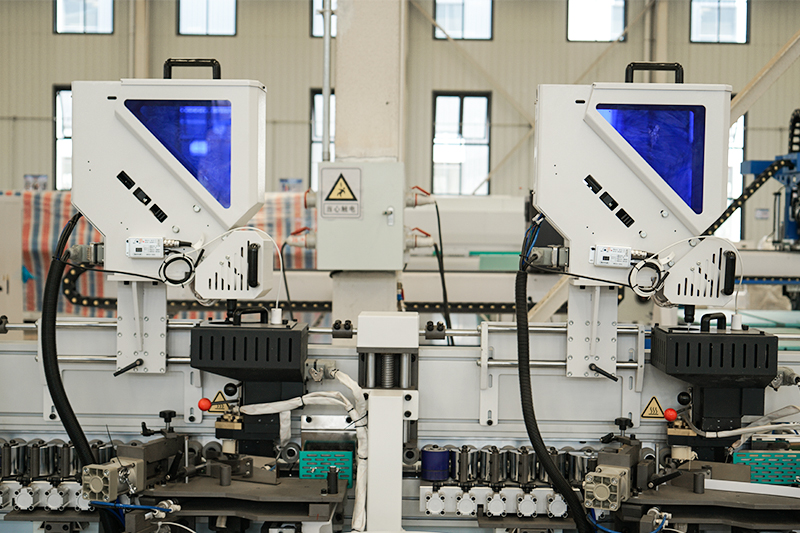

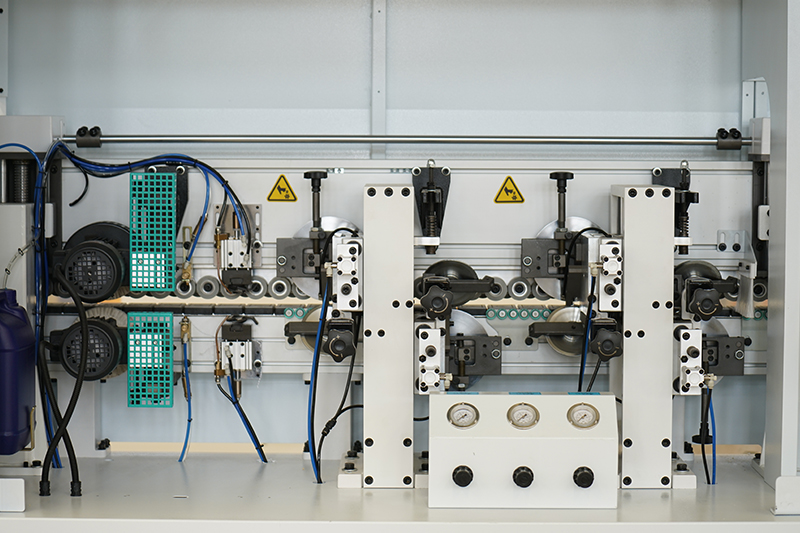

E-70JDSR edge banding machine is equipped with a removable double glue pot, which can quickly switch between EVA, PUR and other colors of glue. It can complete pre-milling, gluing, pressing, end cutting, rough trimming, fine trimming, tracking and rounding, double scraping, flat scraping, double buffing and other functions to achieve perfect and efficient edge banding.

Features

1. Auxiliary board feeding device, stable board feeding, ensuring edge banding quality.

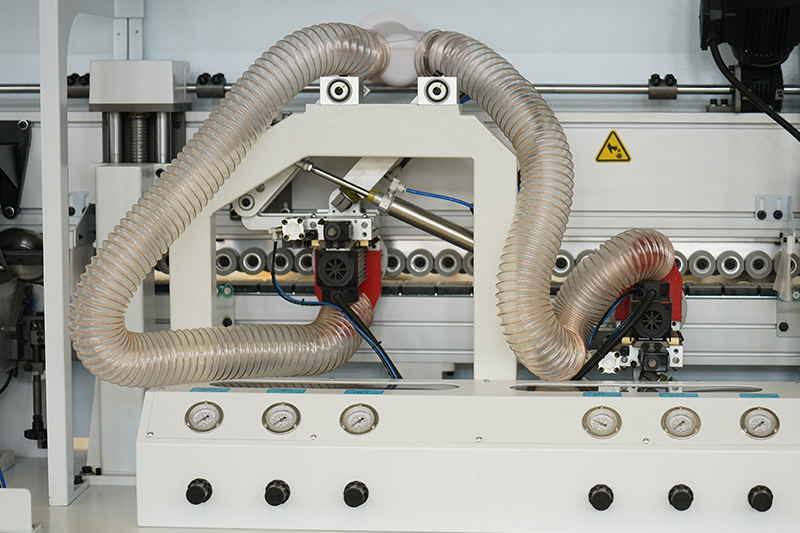

2. Double scraping，triming off the tools marks, ensuring the best edging quality.
3. Flexible flat scraping, adaptive fit, perfect effect.
4. Double buffing buff the panels after edge banding to make the upper and lower sides smoother and more beautiful.

Parameters

Model	E70JDSR
Total power	22KW
Machine length*width	8700*950mm
Machine height	1650mm
Weight	3450kg
Tape thickness	0.4mm~3.0mm
Plate thickness	10mm~60mm
Plate length	≥150mm
Plate width	≥60mm
Working pressure	0.6Mpa
Feed speed	16(Low) / 18(Mid) / 23(High)m/min
Minimum plate size	60(W)×60(L)mm / 150(W)×200(L)mm(Pre-milling)

Automatic Edge Banding Machine Optional Parts

Application

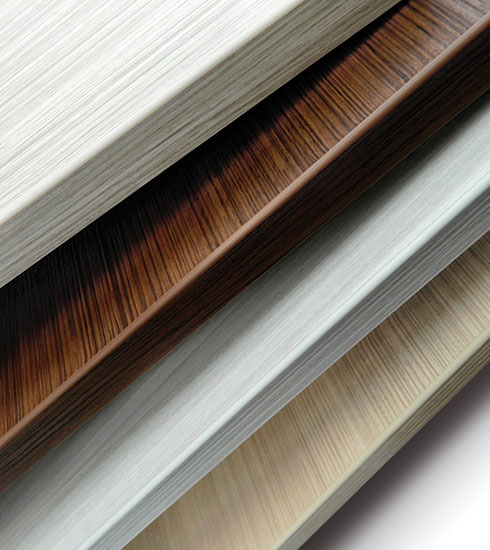

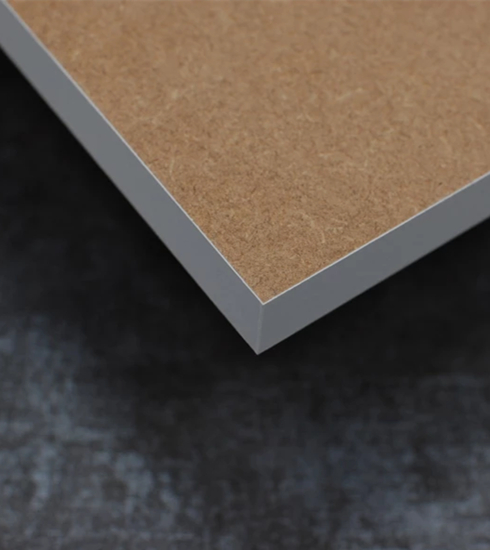

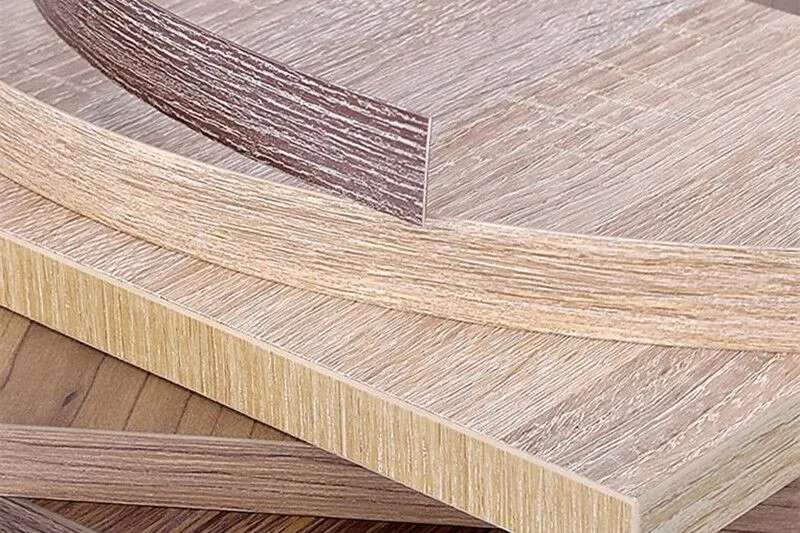

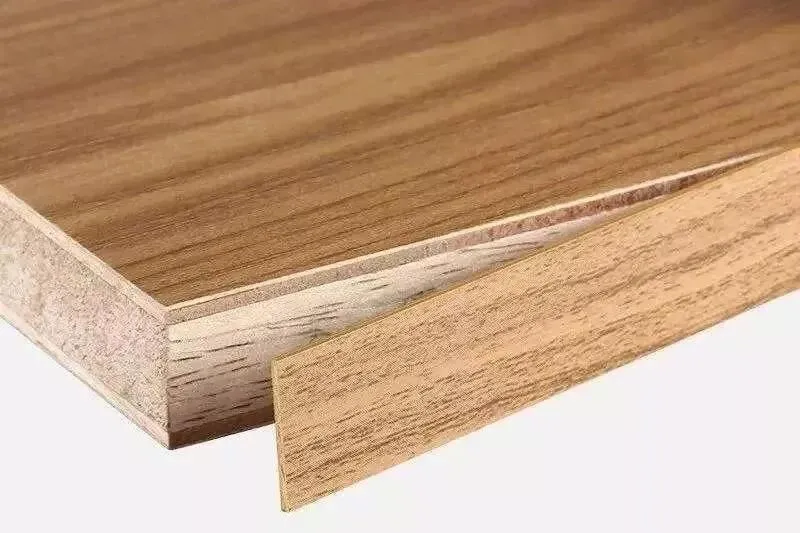

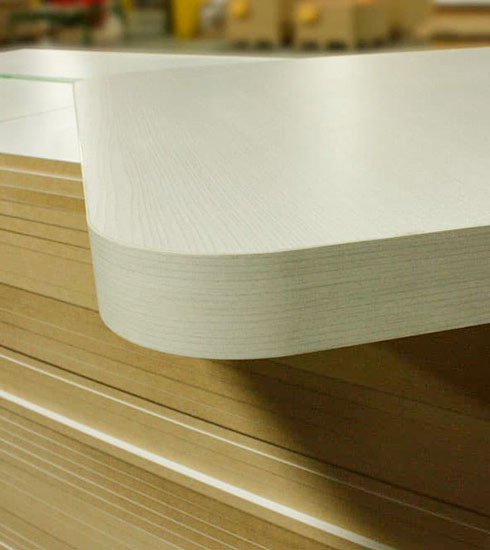

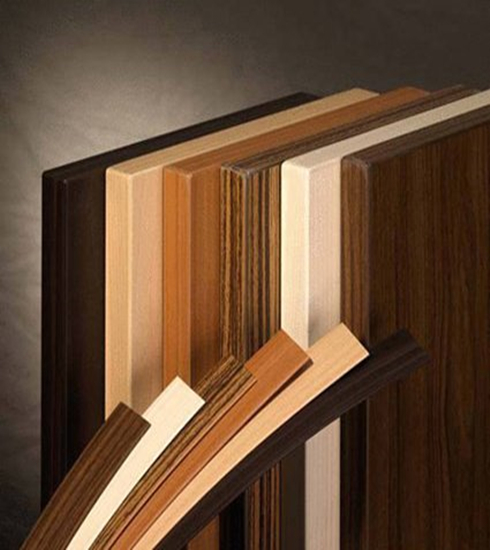

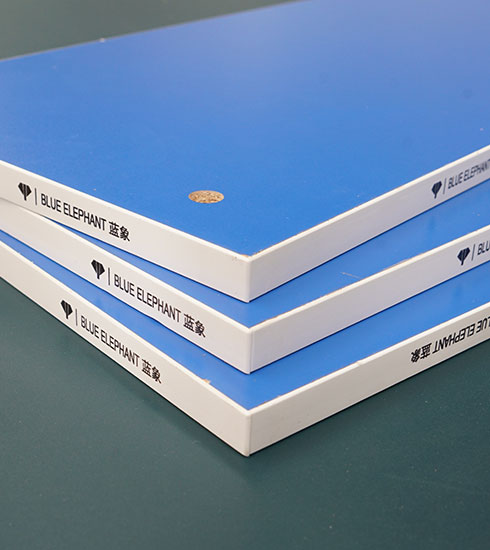

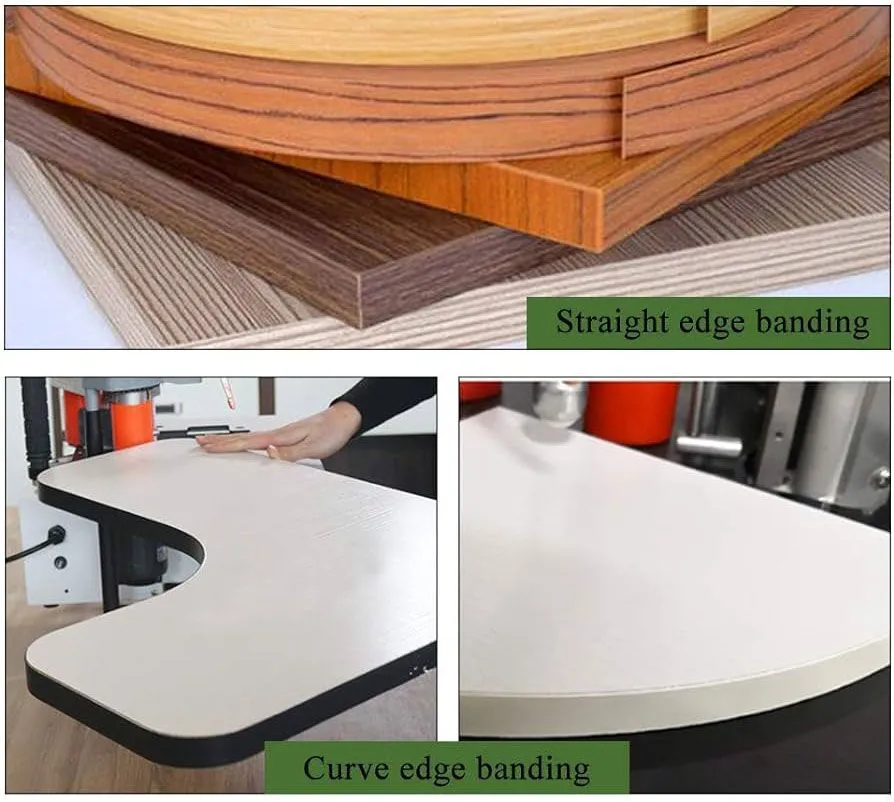

Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.

Review

All very well, did the first job. The machine made the facades for the kitchen. The work was done quickly and efficiently. Next time I work, I’ll take photos and videos for you. I’m very glad to choose your company, thank you again for your worry.

I got the machine in a very good condition. Thank you so much. Now I have some things to finish in my workshop before starting to connect and use it. I will comeback to you with more photos and my first comments in few days. Thanks again to Blue Elephant that made my dream come true.

We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.

So far so good. The machine arrived in perfect condition, it was packed very nicely. Cutting an oval coffee table, 45000 years old swamp Kaurin and resin. Worked beautifully.

FAQ

What materials can be banded by the edge banding machine?

This machine can process materials such as Medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc.

If I have never used an edge banding machine before, will I be able to figure it out?

At Blue Elephant, we understand that many of our clients are new to edge banding machine. That’s why we’re dedicated to providing lifetime technical assistance. With us, you’ll always have someone to speak with whenever you need help. Plus, we offer access to Blue Elephant University Training Videos, providing hands-on experience without the cost of paid training.

Does this machine has limit on the wooden panel thickness?

Yes. Its processing range is 10-60mm.
