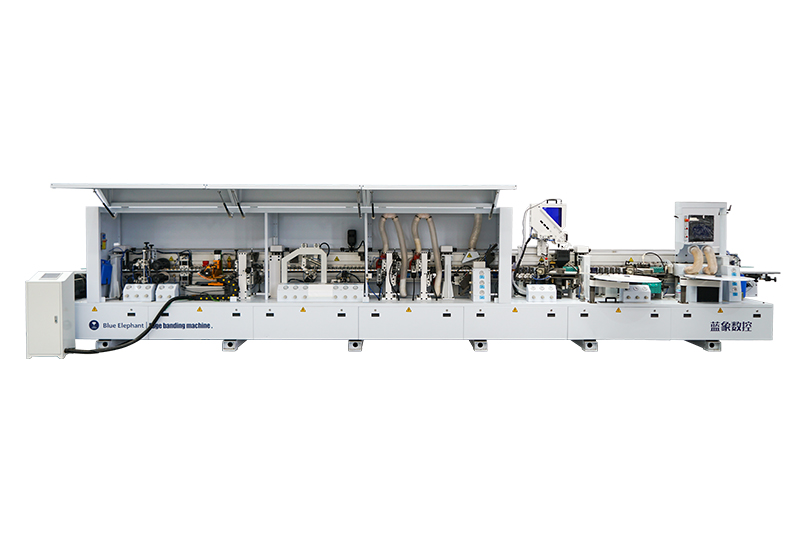

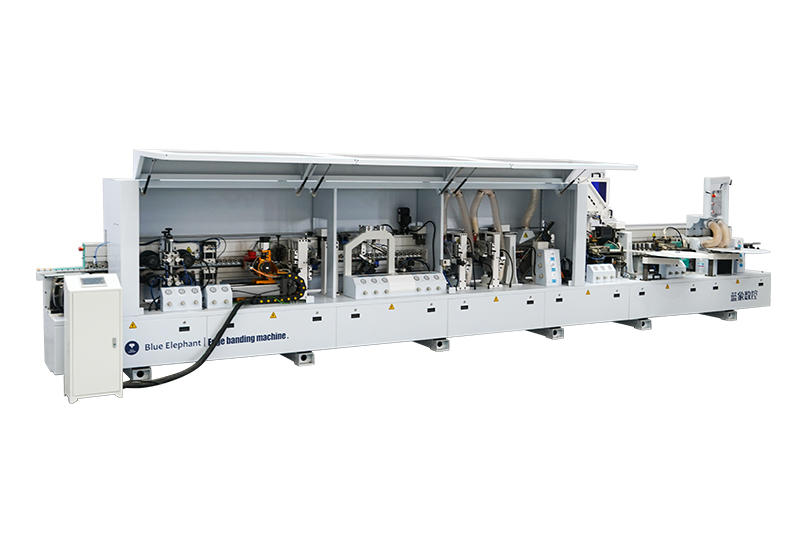

Compared with other common automatic edge banding machines, the E70JDSC side hole drilling edge banding machine can also synchronously drill holes. In addition, it can complete pre-milling, gluing, end cutting, rough and fine trimming, tracking chamfering, scraping, edge banding and polishing. And using high-quality CNC parts, we can use the E70JDSC side hole drilling edge banding machine in high and low temperature and other harsh environments. It has the characteristics of stable production, low maintenance and durability.
1. The maximum speed of the E70JDSC side hole drilling edge banding machine can reach 23m/min, and the tracking chamfering speed can reach 18m/min. It can achieve high-speed and efficient production and is suitable for the mass production of panel furniture.
2. The E70JDSC side hole drilling edge bander premills the blasted edges and residues on the cutting surface of the board to make the amount of glue applied more uniform and the glue lines smaller.

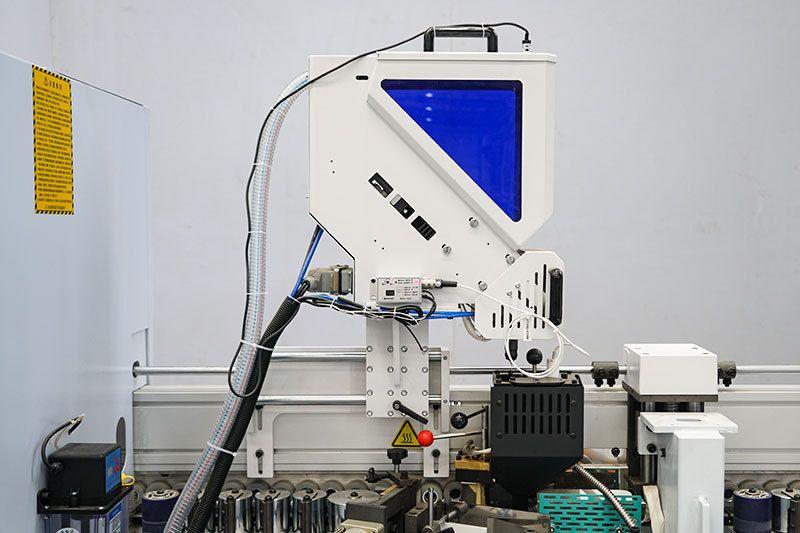

3. Fast melting glue reduces the waiting time for melting glue, which highly improve the sol efficiency.

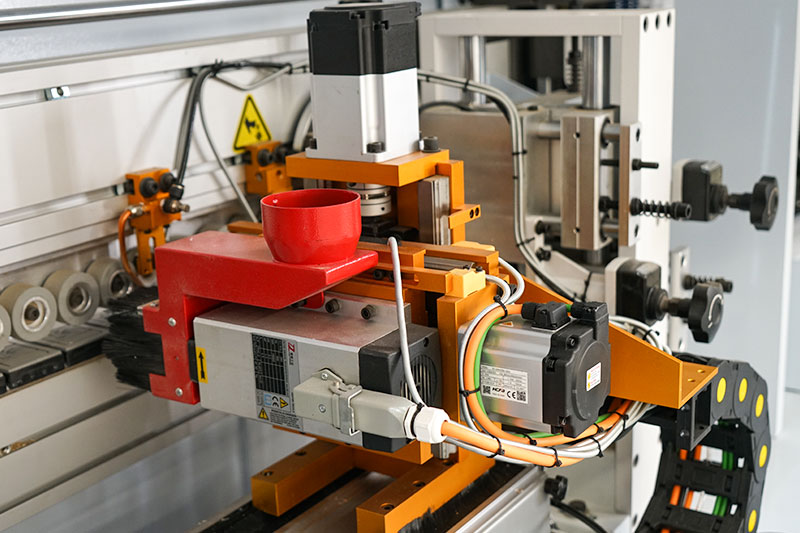

4. The E70JDSC side hole boring edge banding machine is a dual-purpose machine. It can also perform side drilling while sealing edges, reducing the space occupied by the machine and enabling more furniture processing processes.
| Model | E70JDSC |
| Machine Weight | 3500kg |
| Machine Size | 9250*960*1750mm |
| Total Power | 21kw |
| Air Pressure | 0.6MPa |
| Feed Speed | 16 – 23m/min |
| Panel Width | ≥60mm |
| Panel Thickness | 9 – 60mm |
| Panel Length | ≥60mm (no premilling) |
| ≥200mm (premilling) | |
| Minimum Size | 60*60mm |
| Edge Banding Thickness | 150*200mm (premilling) |
This machine has the cleaning device as the standard configuration. It can do 2 times cleaning.
The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
Yes, it’s Taiwan Delta brand.
