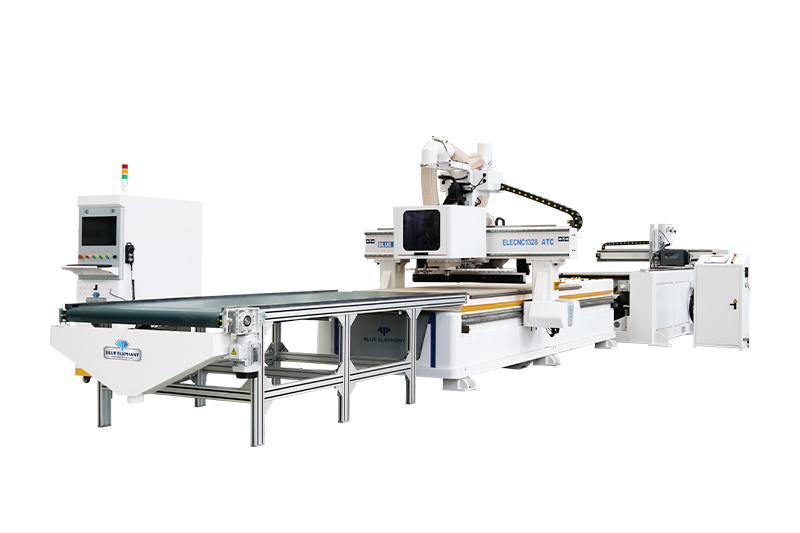

EK2-1328 Loading&Unloading Nesting CNC Machine with Labeling Function

EK2-1328 Loading&Unloading Nesting CNC Machine with Labeling Function

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : ELECNC-1328ATC

Category : Nesting CNC Machine

Price Range : $20000 to $25000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

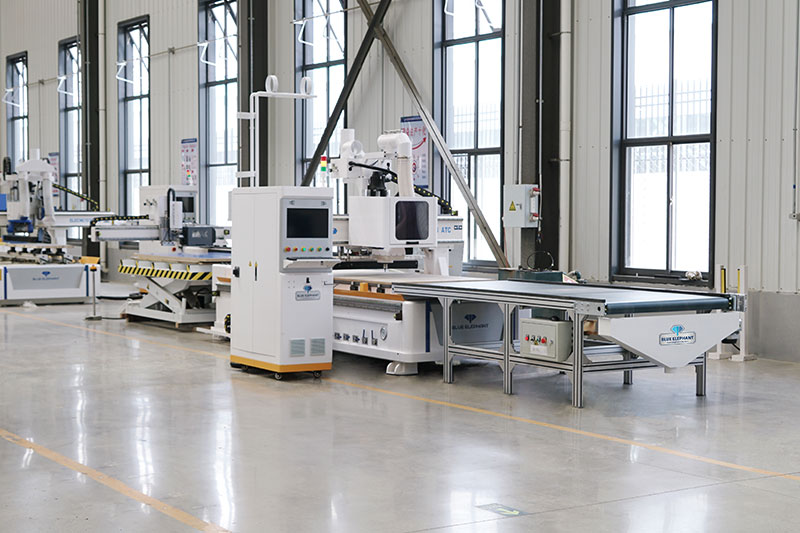

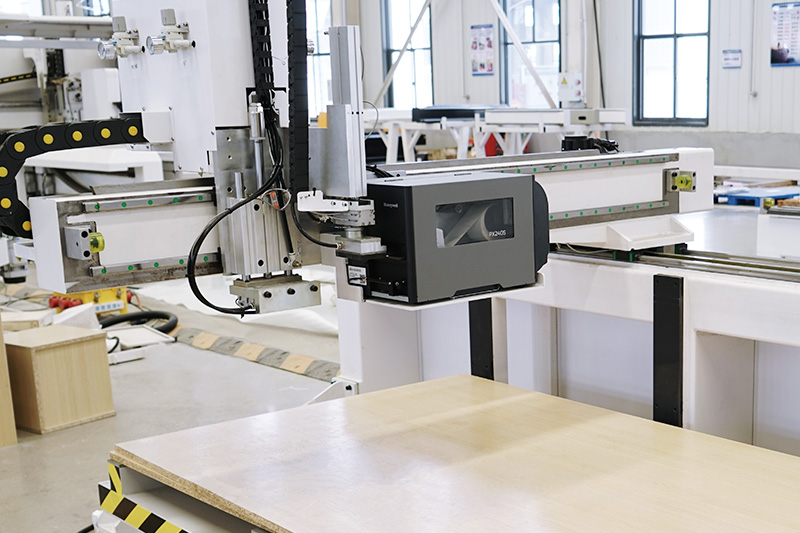

EK2-1328 ATC loading&unloading nesting CNC machine is mainly used in the panel furniture industry, such as cabinets, cabinet doors, wardrobes, office furniture, etc. It is equipped with an independent automatic labeling machine, which works with the nesting CNC machine at the same time, making it more efficient. In addition, it is equipped with an automatic loading and unloading platform, which effectively saves manpower.

Features

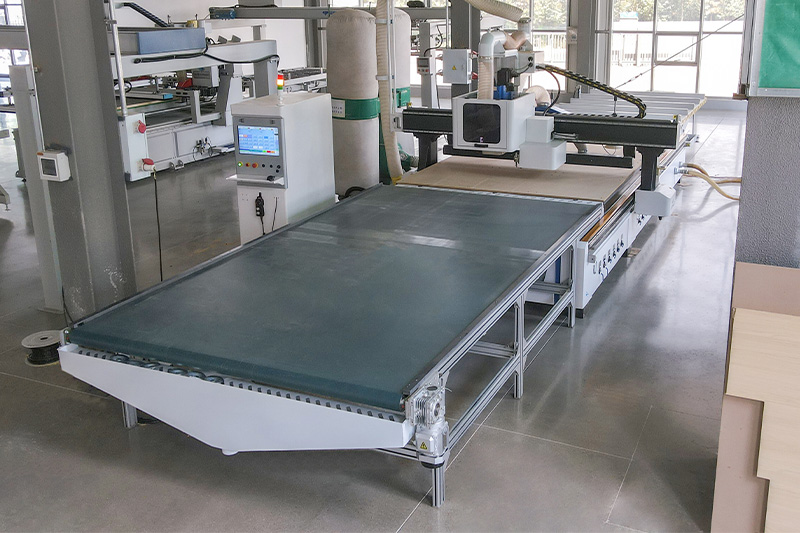

1. This nesting CNC machine can automatically load and unload 1220*2440mm and 1220*2800mm boards.
2. The vacuum work table is divided into 7 areas. Each area is controlled by a control threshold, which effectively prevents the board from sliding during operation.

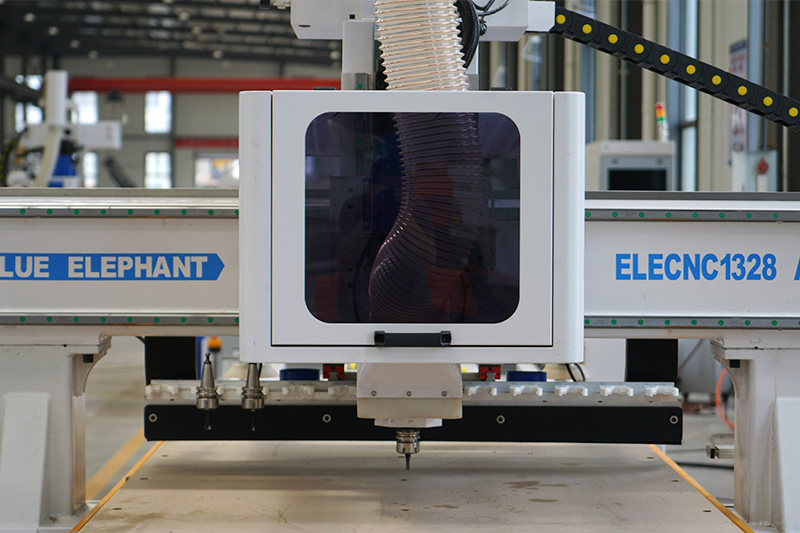

3. It adopts fast tool changes with linear ATC under the gantry.

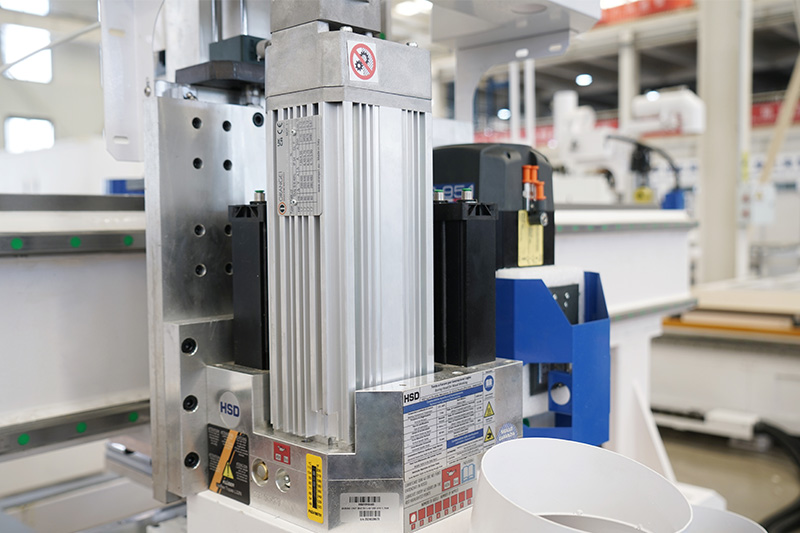

4. It has 9.5kw air-cooling HQD spindle, 24,000RPM.

Parameters

Model	EK2-1328ATC
X, Y, Z axis travel	12202800200 mm
Tool magazine	12 pieces linear type ATC
Labeling machine servo	Leadshine 1.5KW absolute value servo motor drive
Labeling machine linear guide	Taiwan square guide
Labeling machine control system	Taiwan Syntec 60PE-S
Voltage/frequency	380V, 3PH, 50HZ

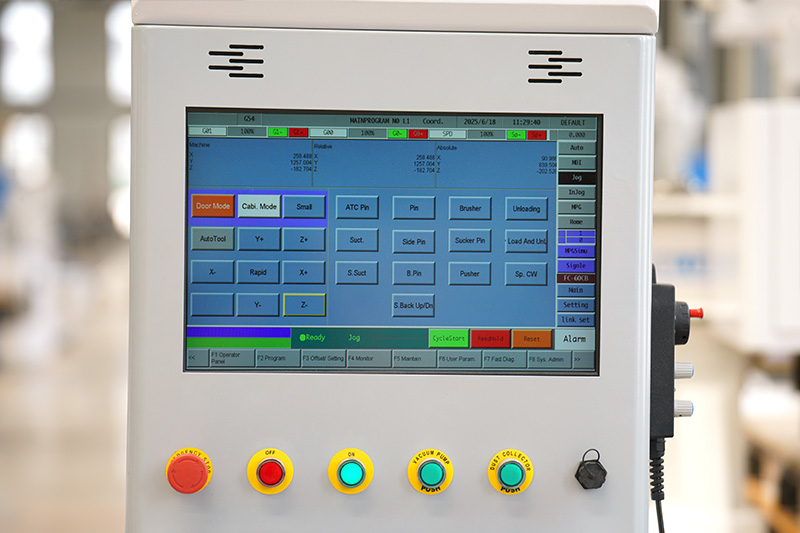

Control system	Syntec 60CB
Spindle type	9 KW JST ATC air-cooling tool changer, 24,000 rpm, ISO30, ER32
Inverter	11 KW Fuling Inverter-H1
Motor and driver	Leadshine 1.5KW absolute value servo motor drive
Reducer	Shimpo
Table structure	Vacuum adsorption table, 7 divisions
Chassis	Rittal
Guide rail	Taiwan square guide rail Y#30, XZ #2
Transmission	JT 2M
Lubrication system	1.5L Auto lubrication system
Vacuum pump	7.5kw Tong you pump ZBW （250m³/h） , 415V, 3PH, 50HZ
Vacuum cleaner	5.5kw double bag old style vacuum cleaner, 415V, 3PH, 50HZ
Positioning cylinder	6, X-2, Y-4

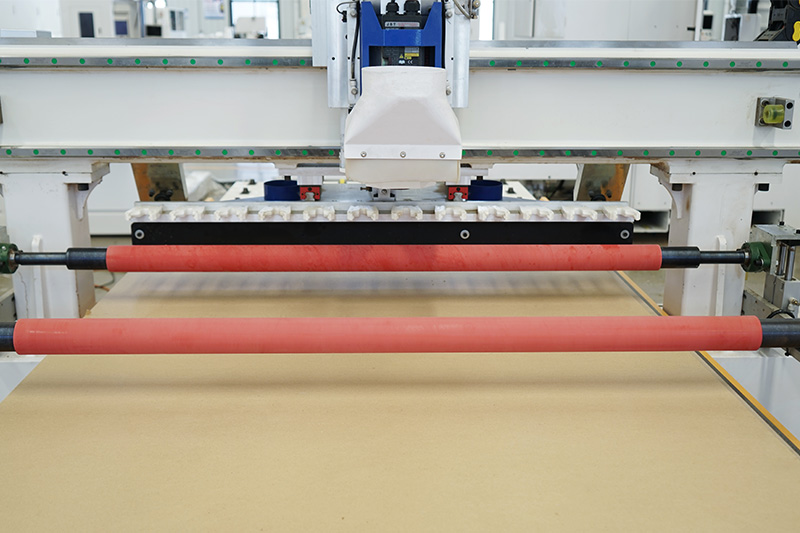

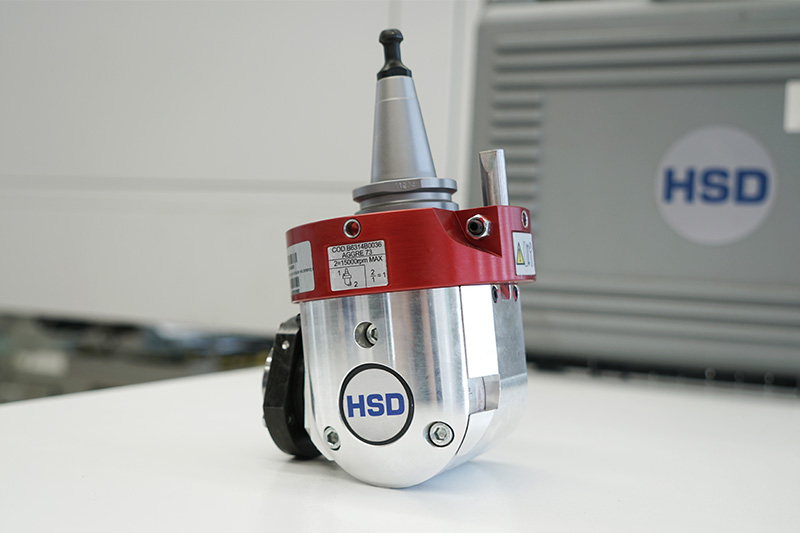

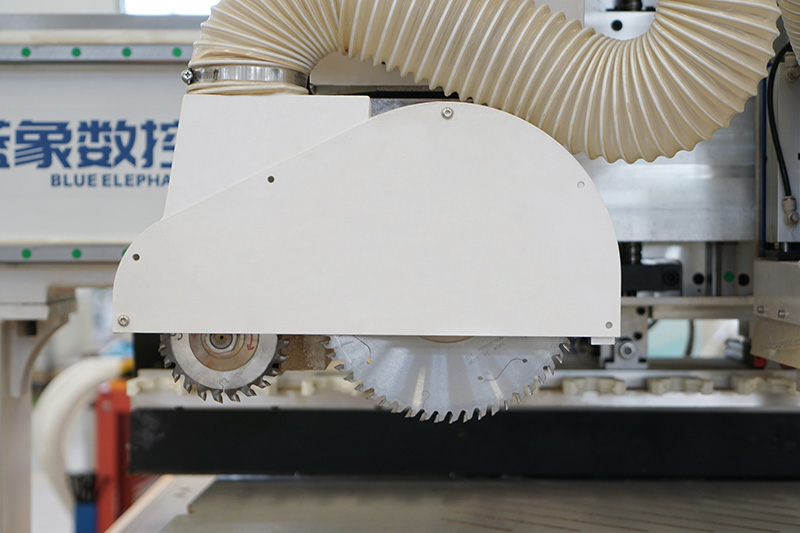

Nesting CNC Machine Optional Parts

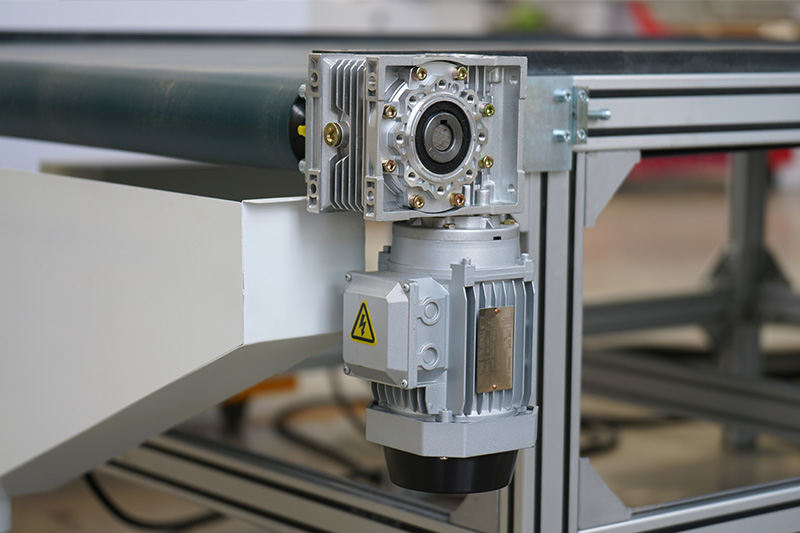

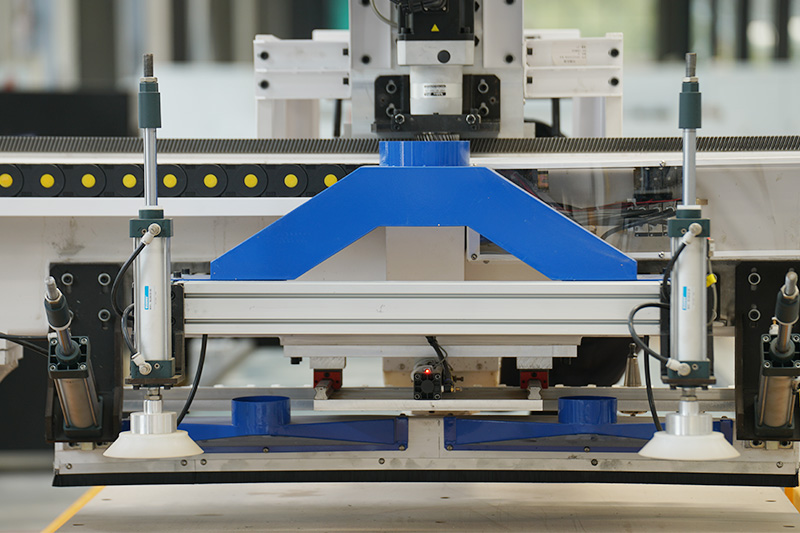

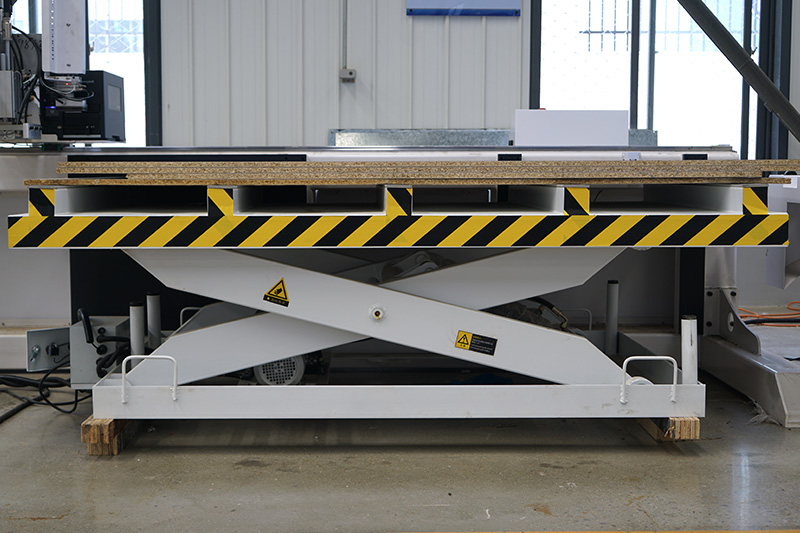

EK2-1328 Nesting CNC Machine Part

Application

EK2-1328 ATC loading&unloading nesting CNC machine is mainly used in panel furniture industry, decoration industry, advertising industry and other wood products processing. It can realize the production and processing of customized cabinets and wardrobes, as well as the shaping and processing of blister door panels.

Review

This cutting machine is a game-changer! The auto-loading/unloading system saves us hours of manual work, and the labeling function is incredibly precise. Our production efficiency has improved by nearly 40%. Highly recommended for any woodworking business.

As a furniture manufacturer, we need high precision and automation. This machine delivers both—flawless material handling and accurate labeling. The after-sales support is excellent too. A solid investment for any serious workshop!

The machine runs smoothly, and the auto-loading feature reduces labor costs significantly. The labeling function works well, though minor adjustments are needed for different materials. Overall, great value for the price!

We are extremely satisfied with this cutting machine! The auto-loading/unloading is seamless, and the labeling accuracy is perfect. The user-friendly interface and quick technical support make it a top choice for manufacturers.
