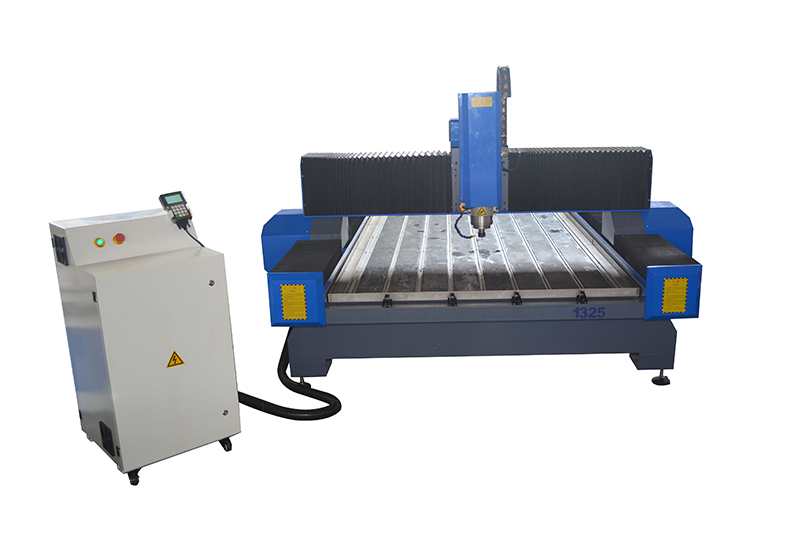

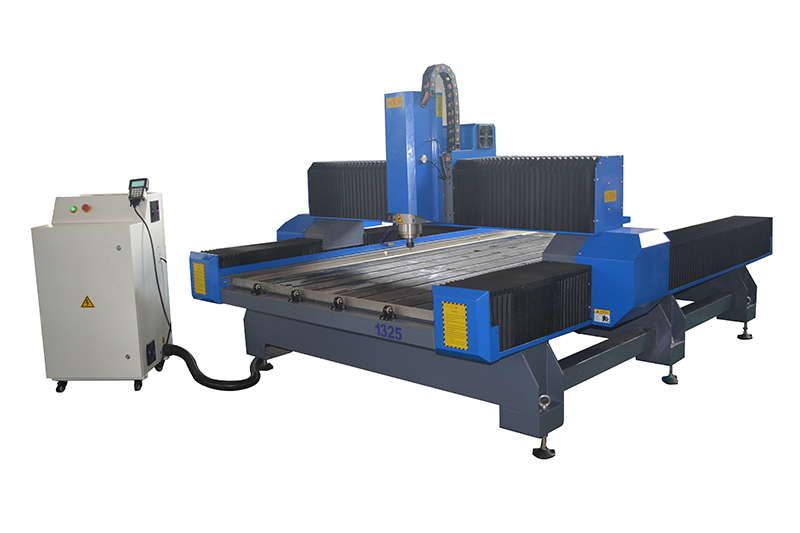

This stone CNC router machine accessories adopt internationally renowned brands. Such as motor and driver to ensure the machine has a long service life. So it is the ideal choice for the stone processing industry.

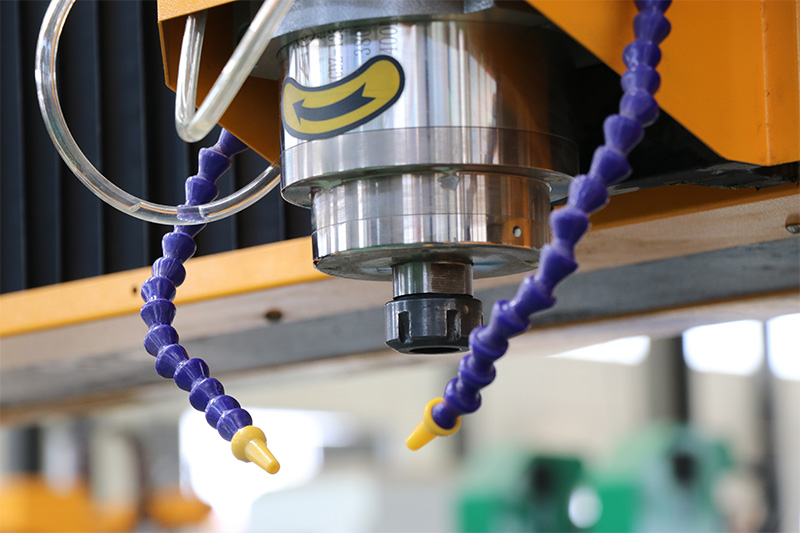

1. Adopting 6.0kw water cooling spindle, it has the features of high speed and high precision.
2. Equipped with 7.5kw Fuling inverter, and famous brand has after-sales service all over the world.

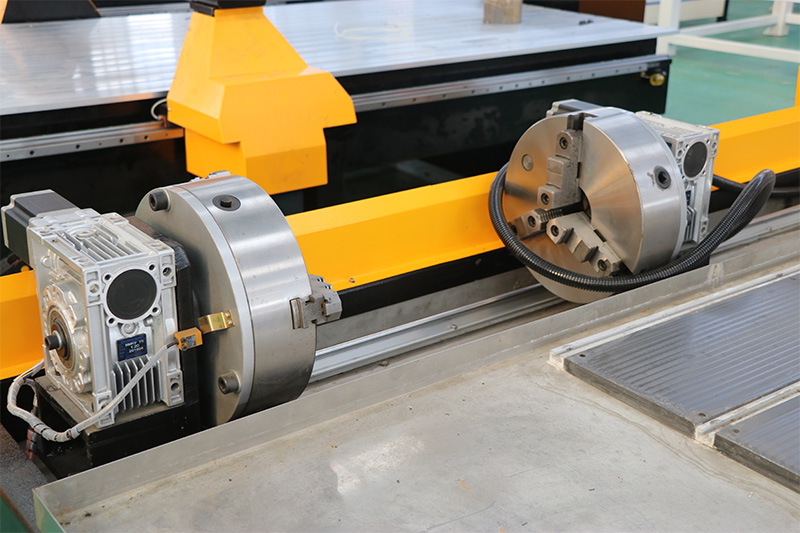

3. Manufactured with 300mm diameter rotary device with double chucks, it can meet your diverse job needs.
4. Adopting International imported brand components like motor and driver, which make the machine have a longer service life.
| Model | ELECNC1325 |
| X, Y axis travel | 1300*2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 300mm, option: 200mm, 400mm, etc |
| Spindle type | 4.5kw water cooling spindle |
| Inverter type | 5.5kw inverter |
| Control system | Mach3 controller for 4 axis |
| Driving system | FL118 stepper motor and YAKO 2811 big driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stone special working table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan helical rack and pinion Z axis:Taiwan TBI high precision ball screw |

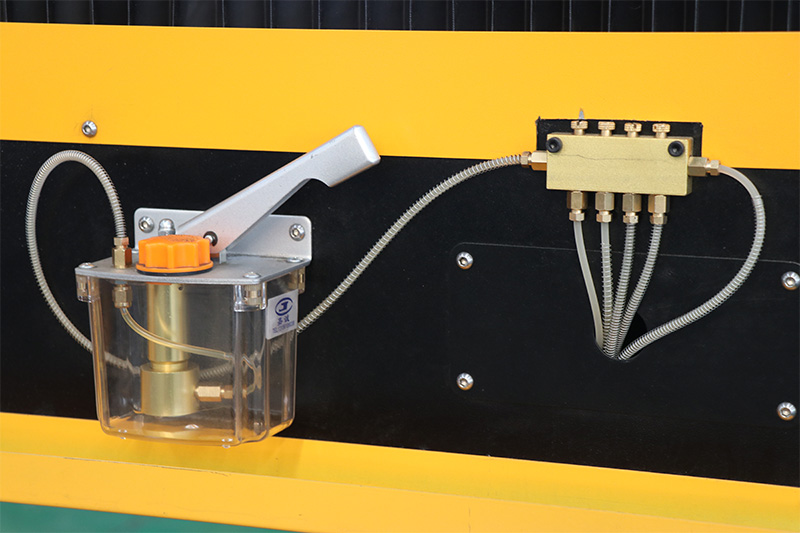

| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |

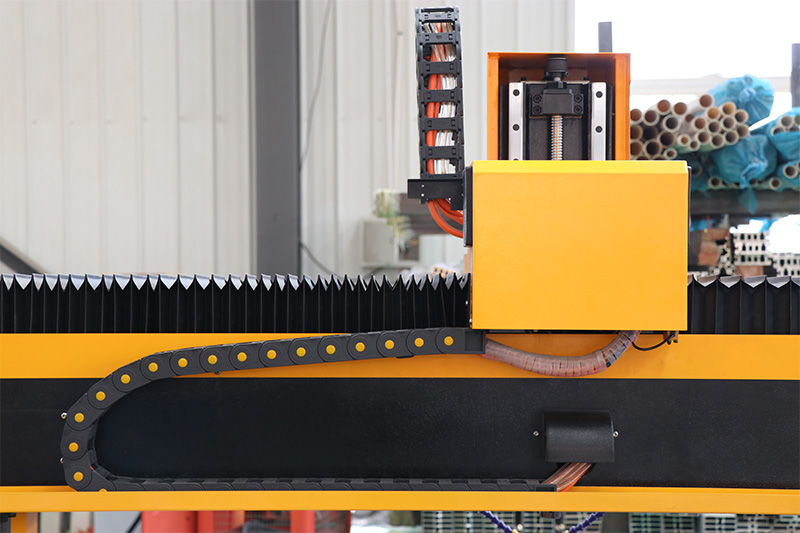

| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 25m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| X,Y,Z Working Area | 1300*2500*300mm |
| Table Surface | T-slot table and stainless steel water tank |
| Spindle | 6.0kw water cooling spindle |
| X, Y Structure | Taiwan linear guide 25# |
| Z Structure | Taiwan TBI ball screw for Z axis |
| Motor and driver | FL118 Stepper motor and YAKO2811 Big Driver |
| Inverter | 7.5kw Fuling inverter |
| Control System | DSP B18 control system |
| Software Compatibility | Artcam Software in English |
The machine is easy to install. We have manuals and teach videos in English to help you. Our engineers can also teach you step by step.
Yes, the tools for stone are different with tools for wood. It needs stone processing tools.
Yes, it is with Mach3 control system. You can operate it by laptop. Mach3 system has upgraded since 2020. It also has memory function.
